Stand Cabinet, 7x16 Mini Lathe
Stand Cabinet, 7x16 Mini Lathe
SKU:5626
Out of stock
Couldn't load pickup availability
Key Features
Key Features
- Metal stand and chip tray for mini lathe
- Single column two door design
- 34.7" x 13.9" x 35.3" (882 mm x 352 mm x 896 mm)
- Cabinet for storage with locking door
- Fits SIEG SC2 and HiTorque 7x16 mini lathes
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

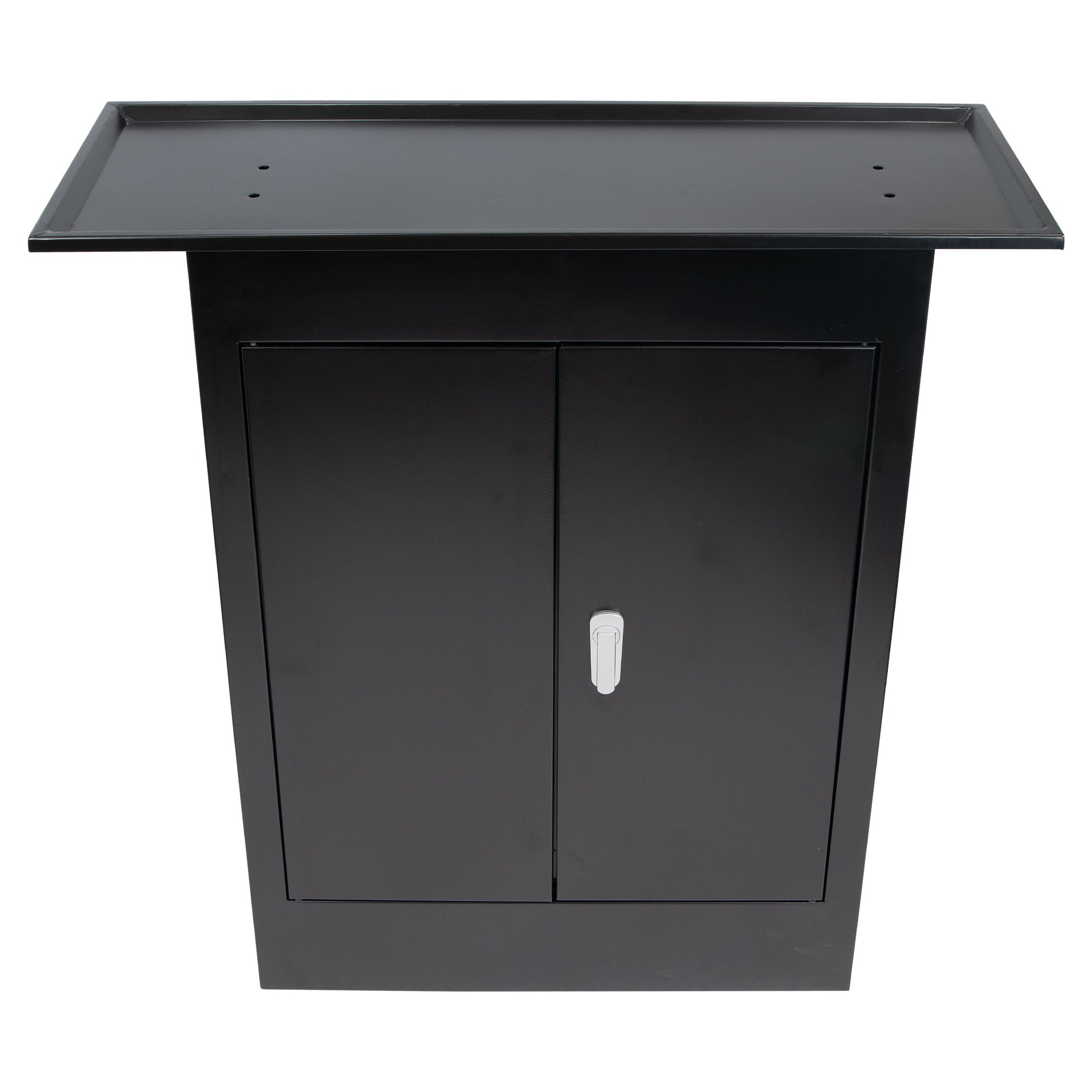

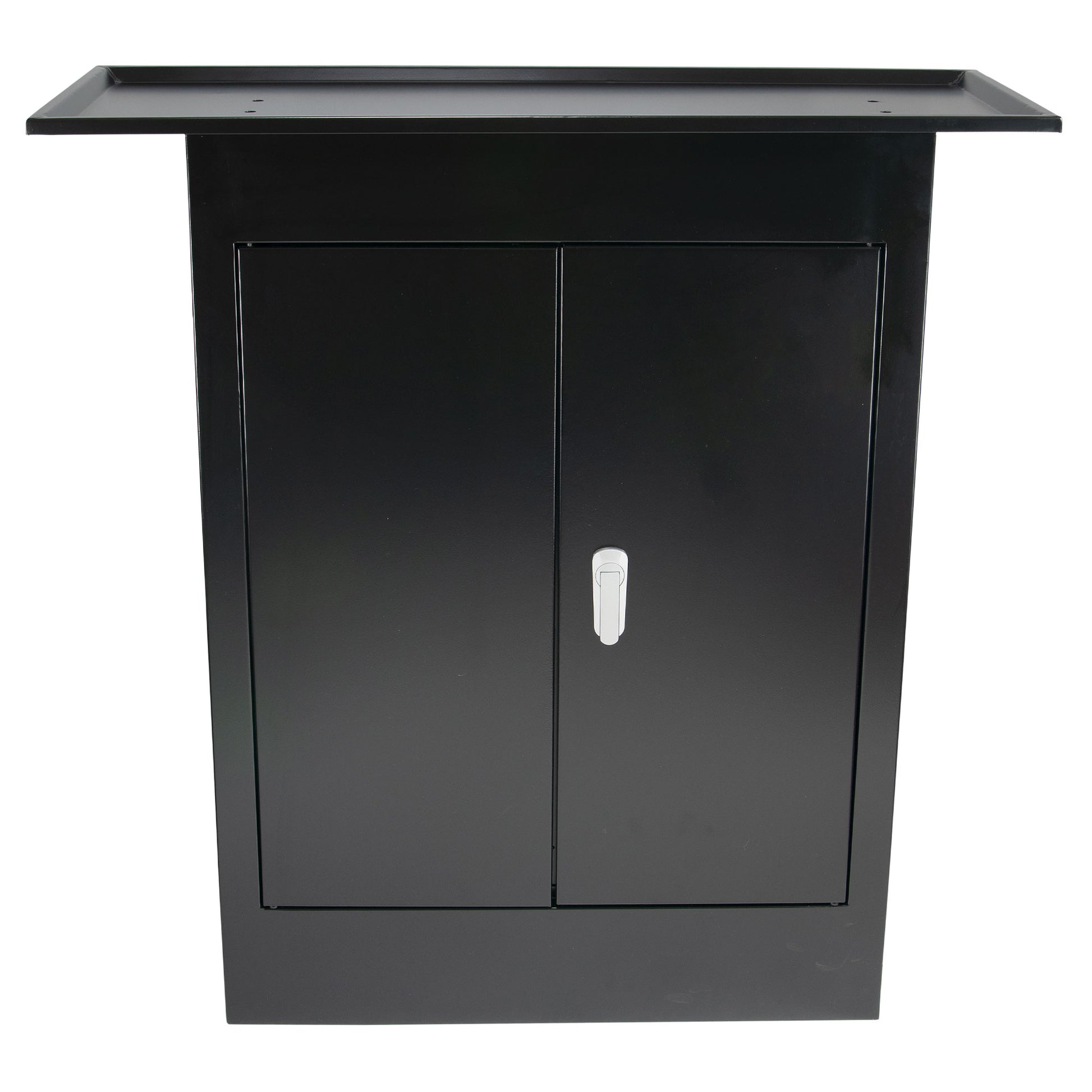

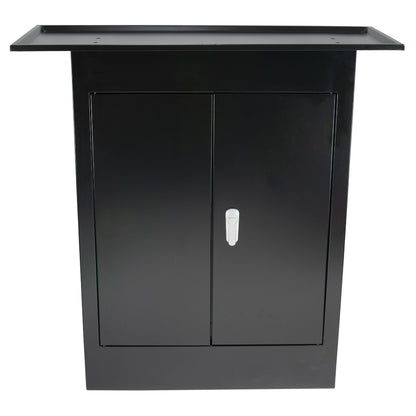

This single column two door design black stand comes with a built in cabinet and is suitable for all SIEG SC3 7x16 and HiTorque 7x16 mini lathes. The cabinet has one shelf.
The tray dimensions are 34.7" x 13.9" x 0.63" (882 mm x 352 mm x 16 mm). Predrilled holes in tray are sized for securing compatible 7x16 mini lathes.
This chip tray has been upgraded to be more robust than the trays that ship with most mini lathes.

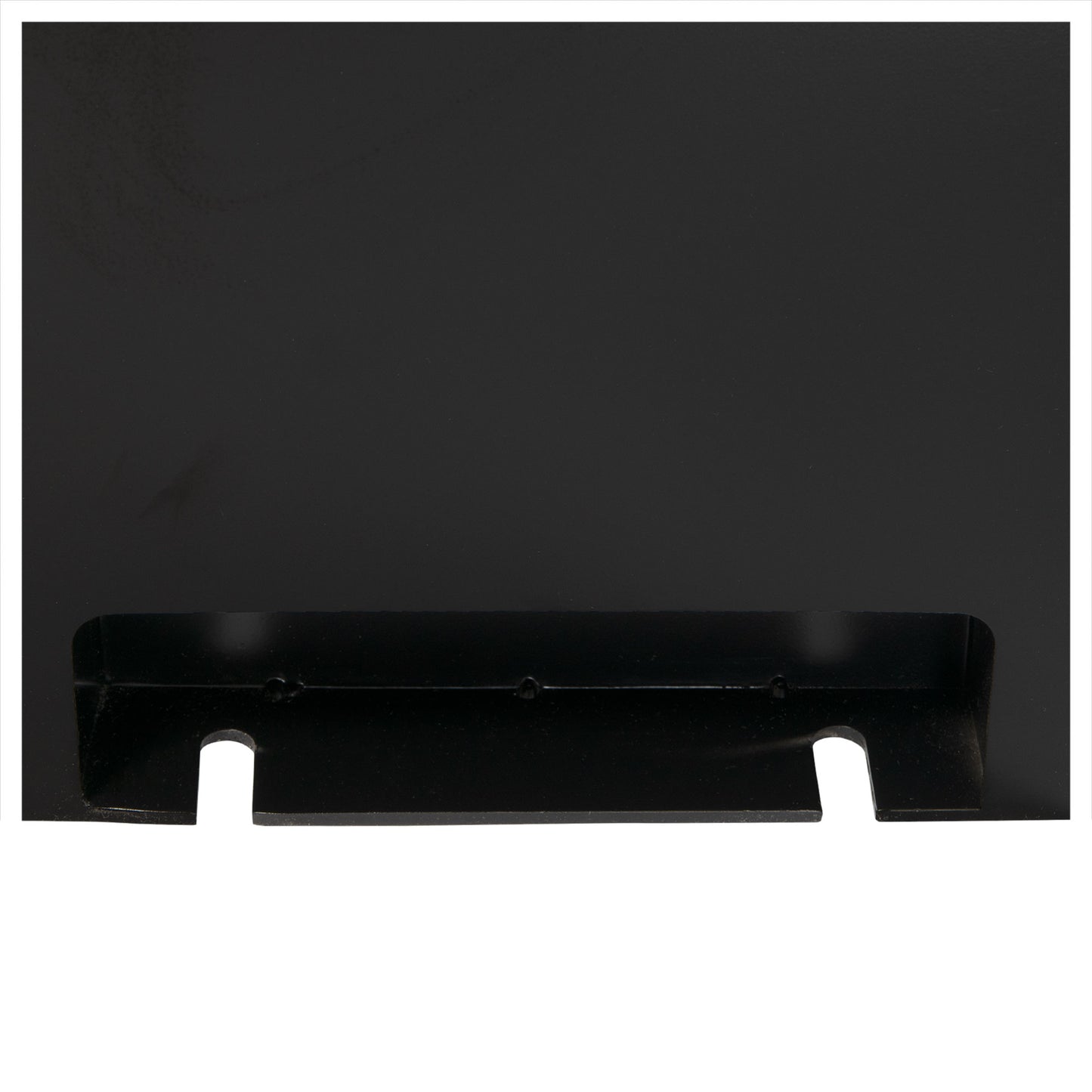

The stand has bolting slots for securing the stand to a floor for additional stability and safety.
See the Compatibility tab for machines that work with this product.
*** NOTE: If you have the HiTorque 7450 Mini-Lathe, it comes with the DELUXE chip tray and this item will be removed and the price reduced (refunded) before shipping.
Specifications
Height with Tray: 35.276" (896 mm)
Width with Tray: 34.724" (882 mm)
Width of Cabinet: 25.591" (650 mm)
Depth with Tray: 13.858" (352 mm)
Depth of Cabinet: 11.811" (300 mm)
Tray Usable Width (Flat Area): 32.677" (830 mm)
Tray Usable Depth (Flat Area): 11.811" (300 mm)
Cabinet Usable Width: 25.512" (648 mm)
Cabinet Top Shelf Usable Depth: 9.843" (250 mm)
Cabinet Top Shelf Usable Heigth: 16.417" (417 mm)
Cabinet Bottom Shelf Usable Depth: 9.055" (230 mm)
Cabinet Bottom Shelf Usable Height: 14.961" (380 mm)
Bolt Down Slots Distance On Center: 6.496" (165 mm)
Bolt Down Slots Width: 0.512" (13 mm)
Bolt Down Slots Depth: 1.378" (35 mm)
Product Compatibility
This product was designed for machines manufactured by SIEG, including those listed below. We have added compatibility for other non-SIEG machines when a “fit” can be verified.
If your machine is not listed, we cannot verify compatibility but encourage you to contact us. With additional information we may be able to help you find a solution.
- Micro-Mark 84631 MicroLux 7x16 Mini Lathe
- LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
