Stirling-Steele Engine Plans

Stirling-Steele Engine Plans

Made in United States of America (USA) Made in United States of America (USA)

2295

$29.95 USD
$29.95 USD
Sale Sold out
Shipping calculated at checkout.

Low stock

Key Features

  • Complete plans to build a Stirling engine
  • Engine is 10" tall when completed
  • 26 Pages of plans

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

Complete plans to build a four-cylinder Stirling cycle engine from bar stock and commercial components.

These plans were created by Ronald J. Steele.

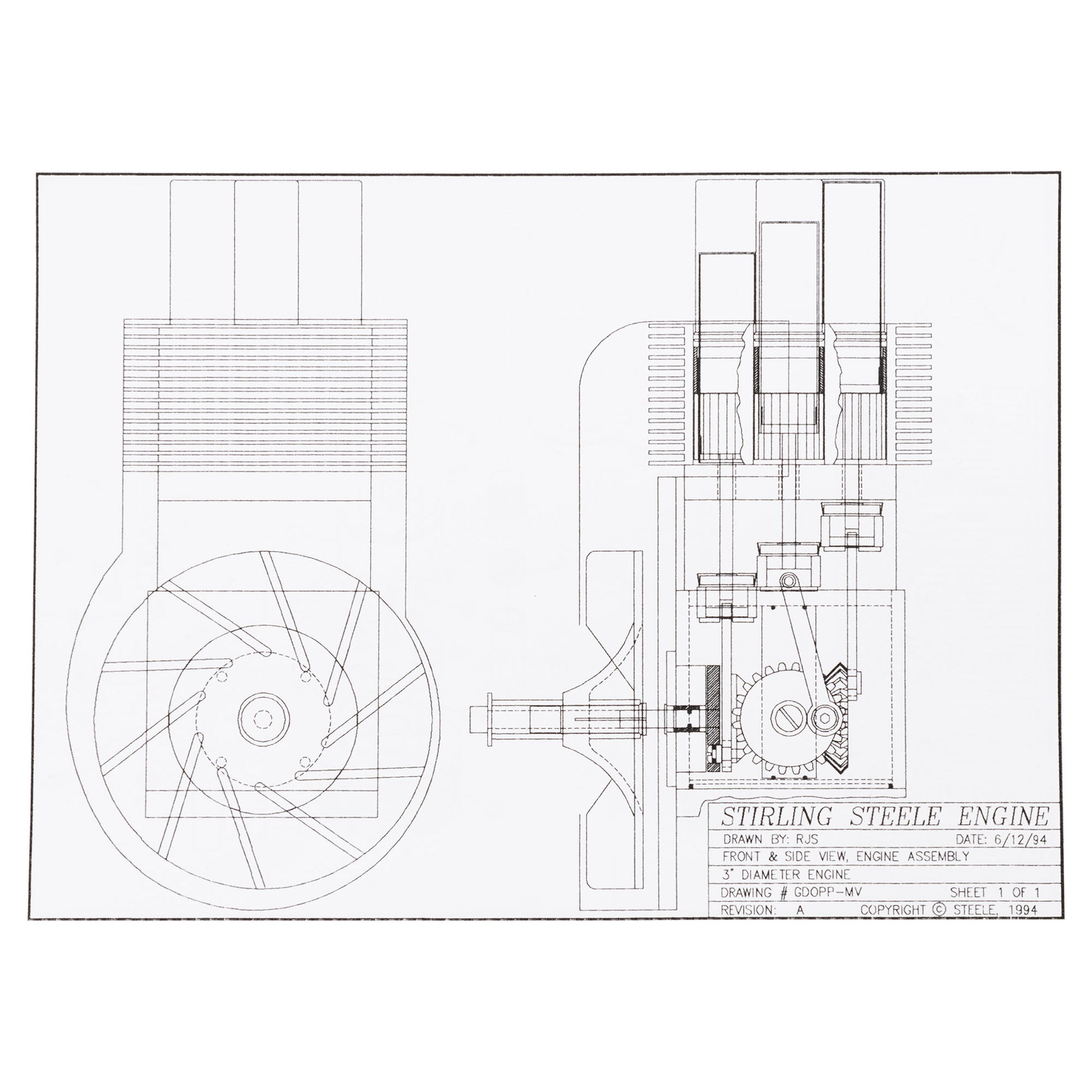

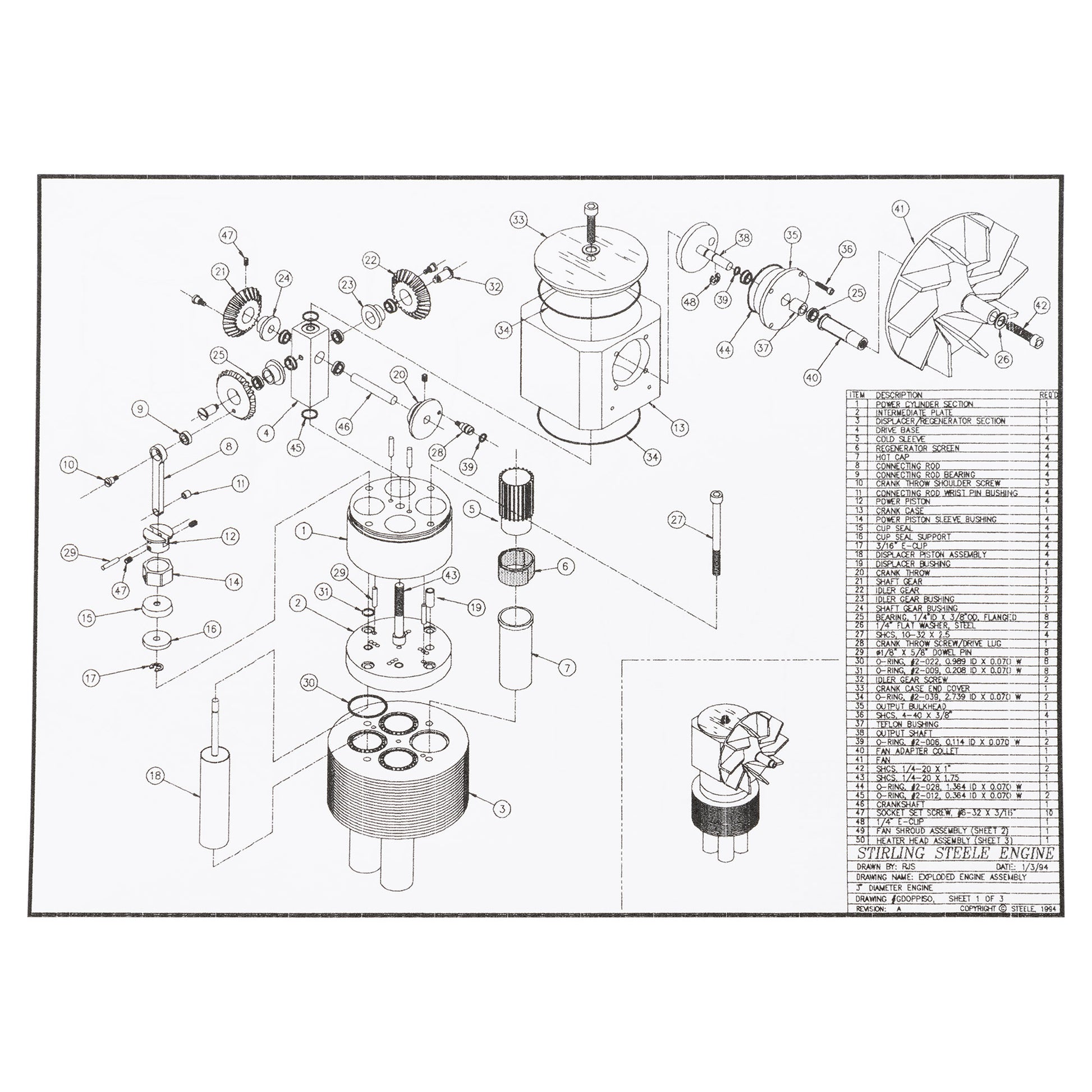

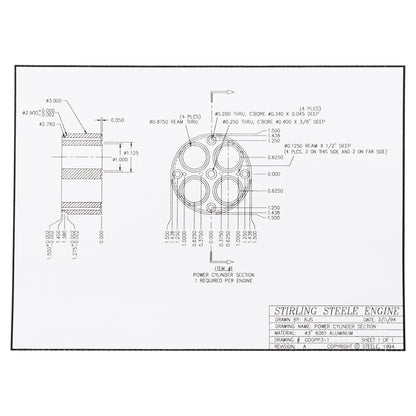

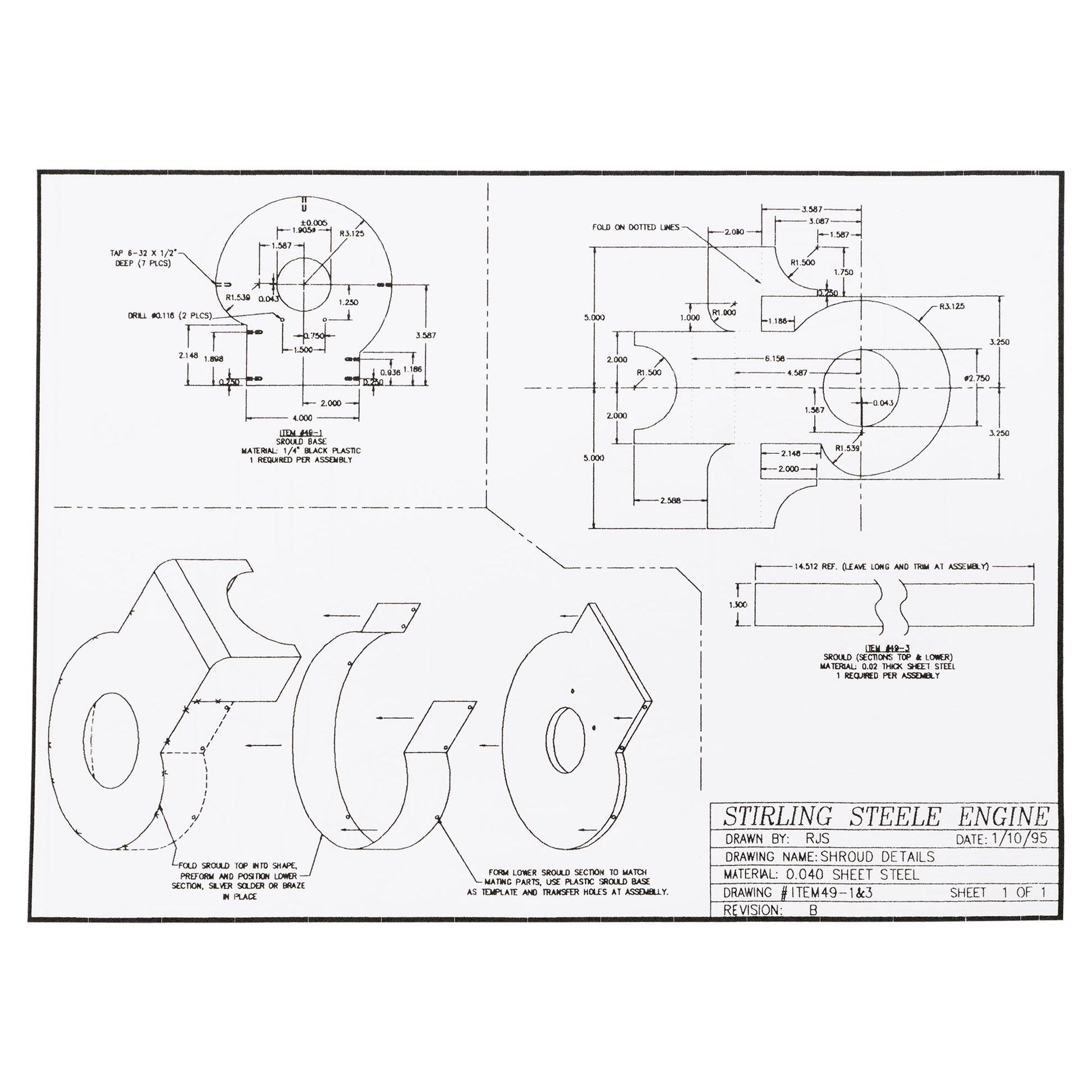

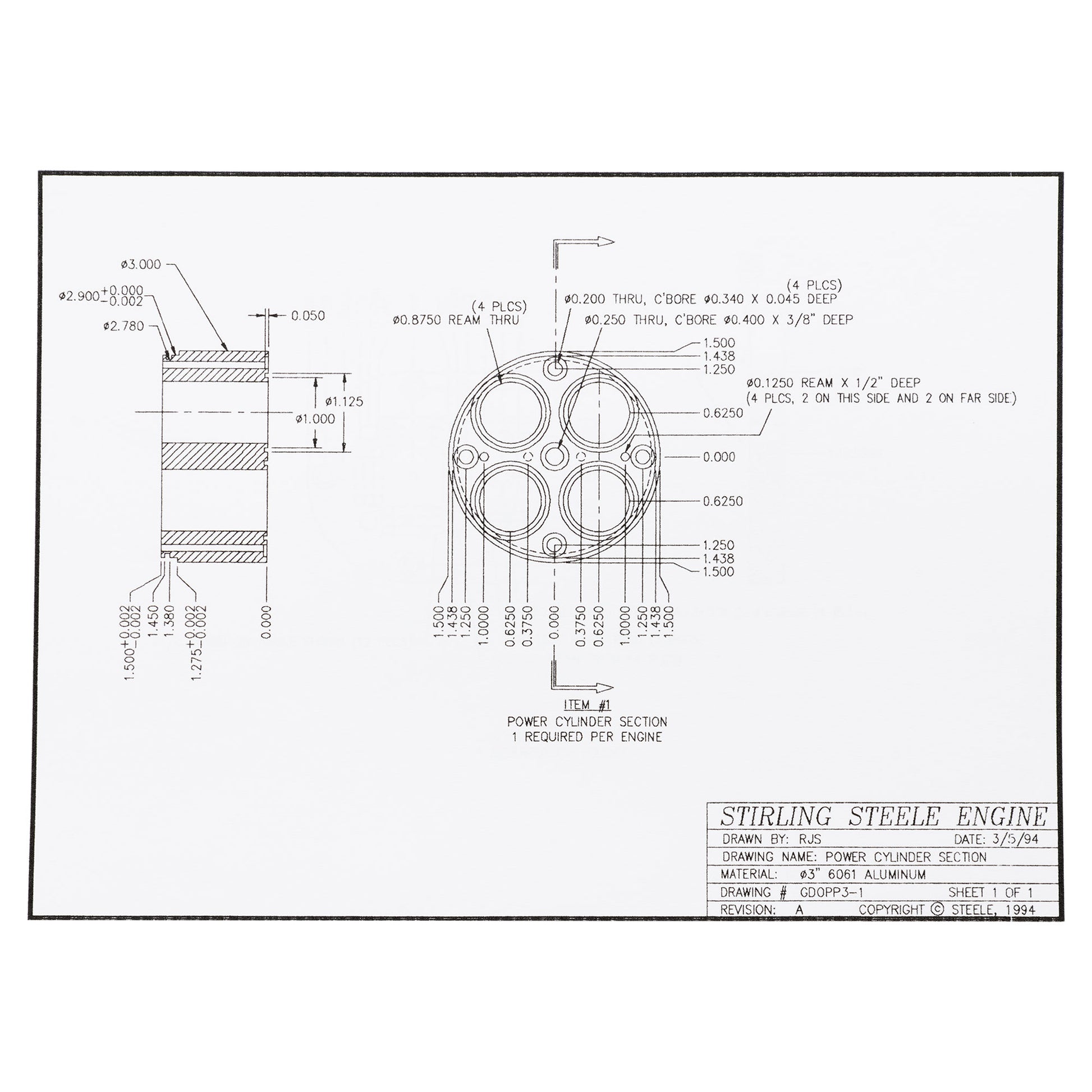

The package contains 26 pages of highly detailed drawings and instructions providing all the necessary information to produce this modern compact version of a Stirling engine. The Stirling-Steele engine can be machined on a 6" lathe and small milling machine from readily available material. A full bill of materials is included as are assembly instructions. This is not a kit but a full set of dimensioned drawings.
