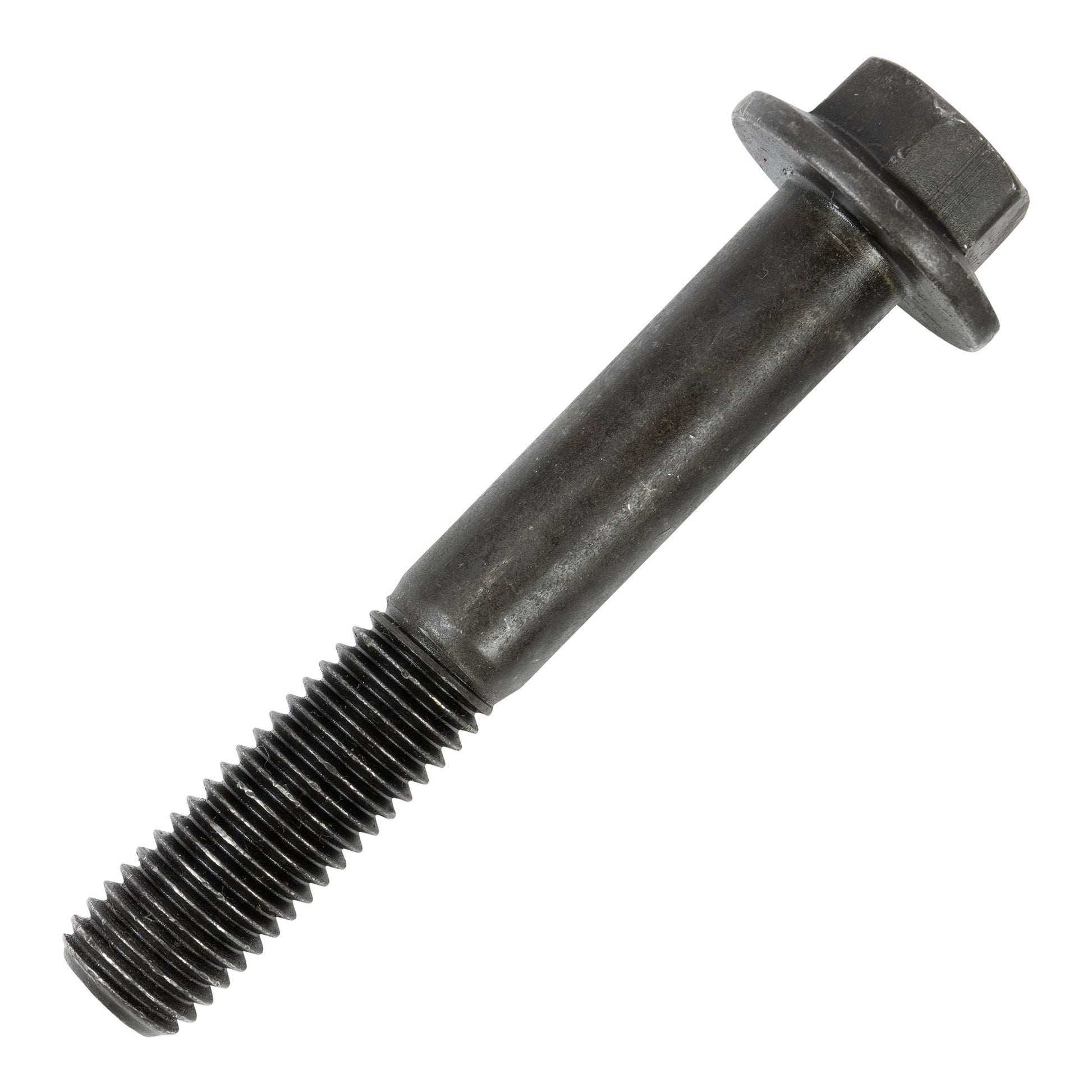

• Stud, AXA QCTP, for HiTorque 9x20 Lathes (Component)
1 1

Stud, AXA QCTP, for HiTorque 9x20 Lathes (Component)

Stud, AXA QCTP, for HiTorque 9x20 Lathes (Component)

Made in Taiwan Made in Taiwan

$5.95
$5.95
Sale Sold out
Shipping calculated at checkout.

In stock

6721 (D06 - 07)

Key Features

  • Makes AXA QCTP a bolt-on accessory for HiTorque 9x20 lathes
  • Threads through tool post into compound rest
  • Outside thread is 14mm x 2mm
  • Length: Shaft (90mm/34mm threaded), Bolt Head (12.88mm)
  • Hex head is 18mm

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

Black-phosphate class 10.9 steel bolt which is run through the middle of the AXA tool post into the 14mm x 2mm threading of the compound rest.
The shaft length is 90mm with min. thread length of 34mm. The hex head height is 12.8mm with an 18mm hex head and a 30.5mm flange.
See the Compatibility tab for products that work with this product.

Specifications

Material: Class 10.9 Black-Phosphate Steel

Thread Direction: Right

Thread Size: M14

Thread Pitch: 2 mm

Thread Fit: Class 6g

Length: 3.543" (90 mm)

Threading: Partially

Min. Thread Length: 1.339" (34 mm)

Head Width: 0.709" (18 mm)

Head Height: 0.504" (12.8 mm)

Flange Diameter: 1.201" (30.5 mm)

Strength Grade/Class: Class 10.9

Hardness: Rc 32

Specifications Met: ISO 898-1, DIN 6921
