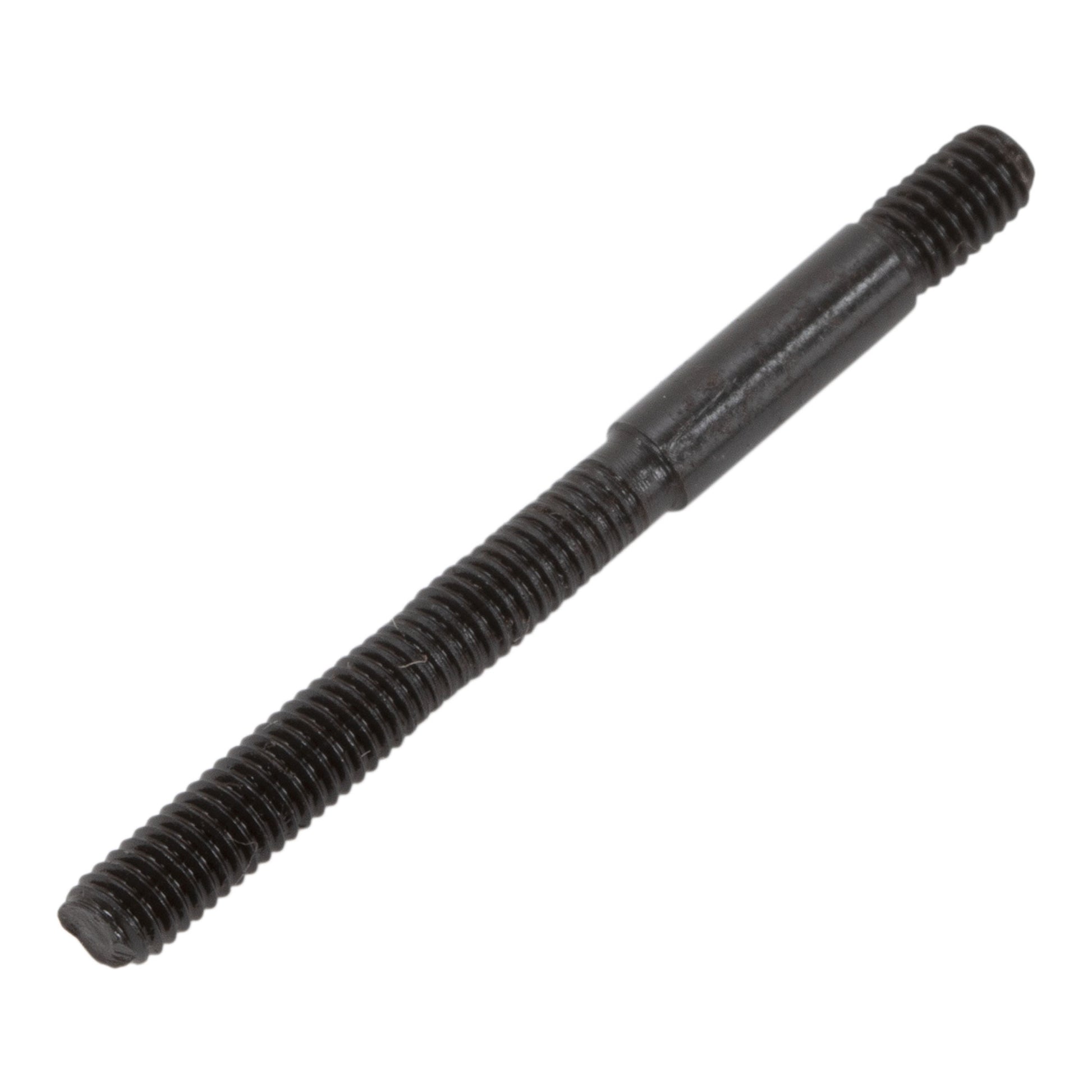

Stud M3x34.5, DRO Read Head Mounting
Stud M3x34.5, DRO Read Head Mounting
SKU:6147
In stock
Couldn't load pickup availability
Key Features
Key Features
- Threaded stud
- Attaches DRO read head to cross slide
- Fits HiTorque deluxe large bench lathe
- Fits SIEG SC4 bench lathes with DRO
- Size M3x34.5
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
Connection stud with threading on both ends to secure the DRO read head to the cross slide. As the cross slide is moved along the Y-Axis, the DRO scale moves along the read head.
The size is 3x34.5 mm.
Chris's Tips
Double ended studs that conform to DIN 938 have two external threaded sections divided by an unthreaded section.
The short threaded section is fixed in length of 1 x diameter. The short end is typicalled installed into a tapped hole or fitting. The length of the long end will vary depending on the length of the stud.
Both ends are designed for internally threaded fasteners such as a nut or a bracket.
The nominal length of the stud is the calculated by adding the length of the unthreaded section plus the long threaded section.
