• Stud M4x28, DRO Read Head Mounting
1 1

Stud M4x28, DRO Read Head Mounting

Stud M4x28, DRO Read Head Mounting

6452

$0.95 USD
$0.95 USD
Sale Sold out
Shipping calculated at checkout.

Low stock

Key Features

  • Double Ended Stud, M4x28
  • Nominal length 28 mm, Diameter 4 mm
  • Long threaded section 14 mm
  • Unthreaded section 14 mm
  • Short threaded section 4 mm
*Will this fit my machine? Check our Replacement Parts

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

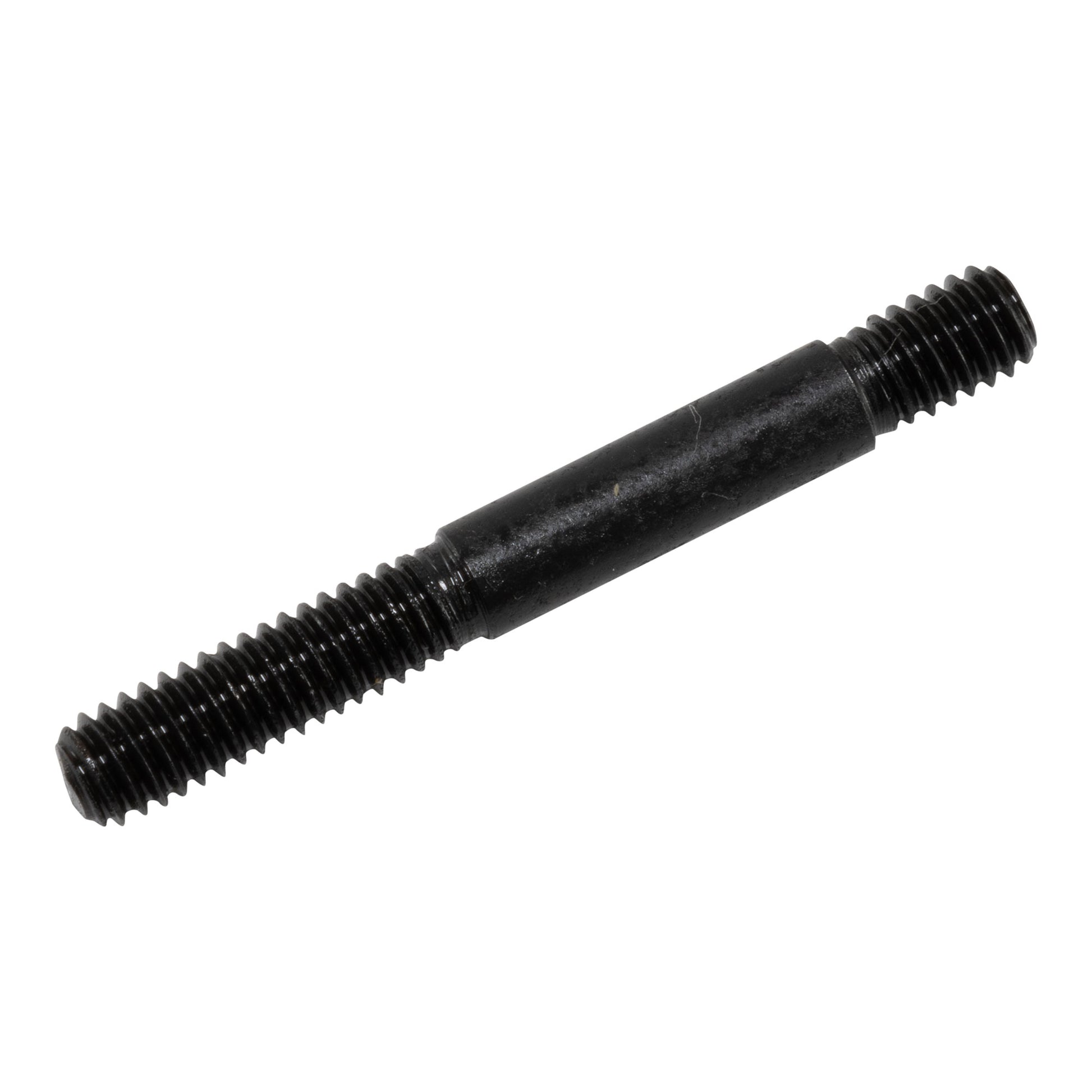

Double ended stud. The stud is M4x28. Here are the specific dimensions.
Nominal length 28 mm
Long threaded end 14 mm
Short threaded end 4 mm
Unthreaded portion 14 mm

See Chris' tips on measuring double ended studs.

See the Compatibility tab for machines and other products that work with this product.

Chris's Tips

Double ended studs that conform to DIN 938 have two external threaded sections divided by an unthreaded section.

The short threaded section is fixed in length of 1 x diameter. The short end is typicalled installed into a tapped hole or fitting. The length of the long end will vary depending on the length of the stud.

Both ends are designed for internally threaded fasteners such as a nut or a bracket.

The nominal length of the stud is the calculated by adding the length of the unthreaded section plus the long threaded section.
