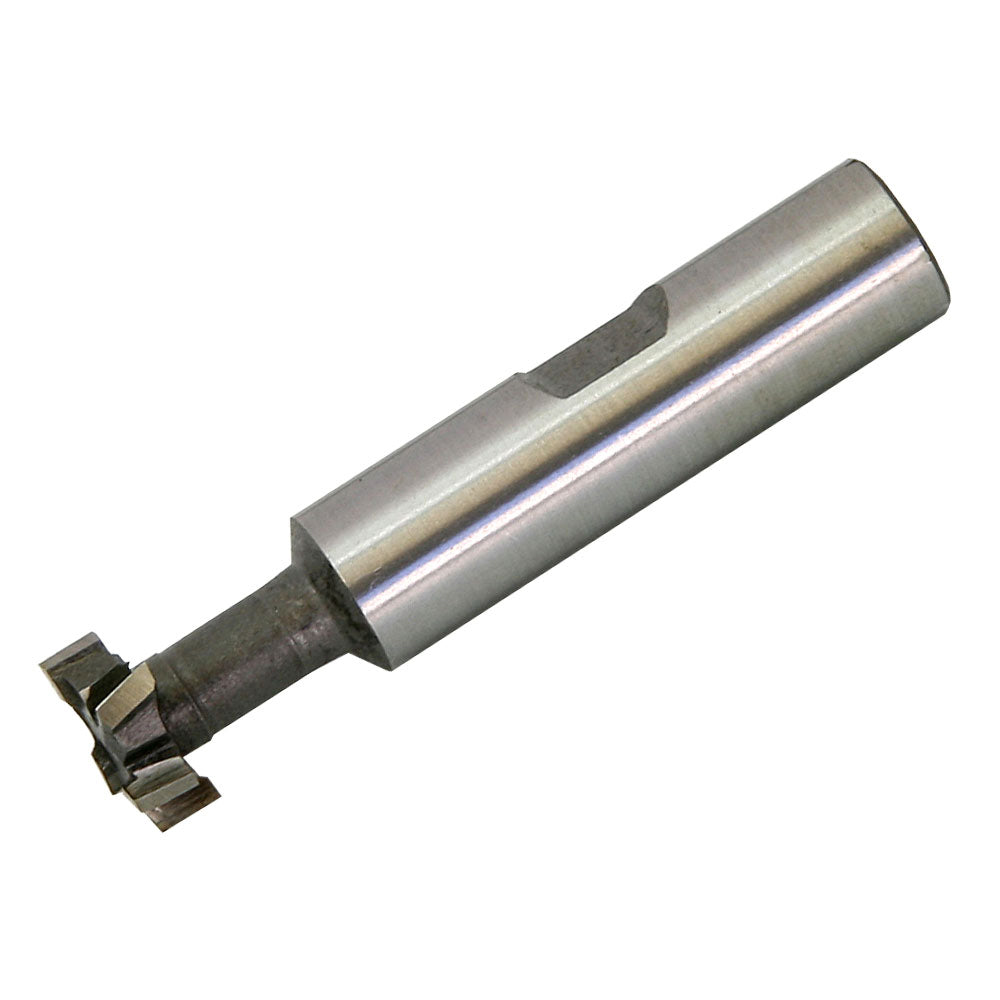

T-Slot Cutter, 8 mm T-slot, HSS
T-Slot Cutter, 8 mm T-slot, HSS
SKU:5194
In stock
Couldn't load pickup availability
Key Features
Key Features
- High speed steel T-slot cutters
- Positive radial rake, right and left hand spiral.
- Weldon Shank
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
T-slot cutting tools are designed to make T-slots in tables and beds.
Two milling cutters are required for milling T-slots, an end mill and a T-slot cutter. A 1/4" vertical slot is milled into the piece so that the neck and shank of the T-slot cutter can enter.
These T-slot cutters have a positive radial rake, right and left hand spiral with alternate side cutting teeth for maximum chip clearance.
The listed dimension is the width of the T-slot measured at the top of the T-slot.
Specifications
T-Slot Width: 0.315" (8 mm)
Cutting Diameter: 0.563" (14.300 mm)
Cutter Width (Depth): 0.2344" (5.954 mm)
Bolt Size: M6
Neck Diameter: 0.266" (6.75 mm)
Shank Diameter: 0.50" (12.70 mm)
Undercut Length: 0.547" (13.89 mm)
Overall Length: 2.5938" (65.883 mm)
