T-Slot Nut, Individual Sizes

T-Slot Nut, Individual Sizes

$2.60
$2.60
Sale Sold out
Shipping calculated at checkout.

In stock

1269 (B03 - 04)

Key Features

  • Black oxide finish
  • Heat treated 1040 steel
  • Case hardened

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

We carry a wide range of T-Slot nuts in both inch and metric measurements.
They are heat treated and have a black oxide finish.

The stated dimension of the T-slot nut is the width at the top of the T-slot.

See Specifications for more details on individual nuts.

Chris' Tips

Following are the dimensions of the T-slot nuts that we sell separately or as part of a set.

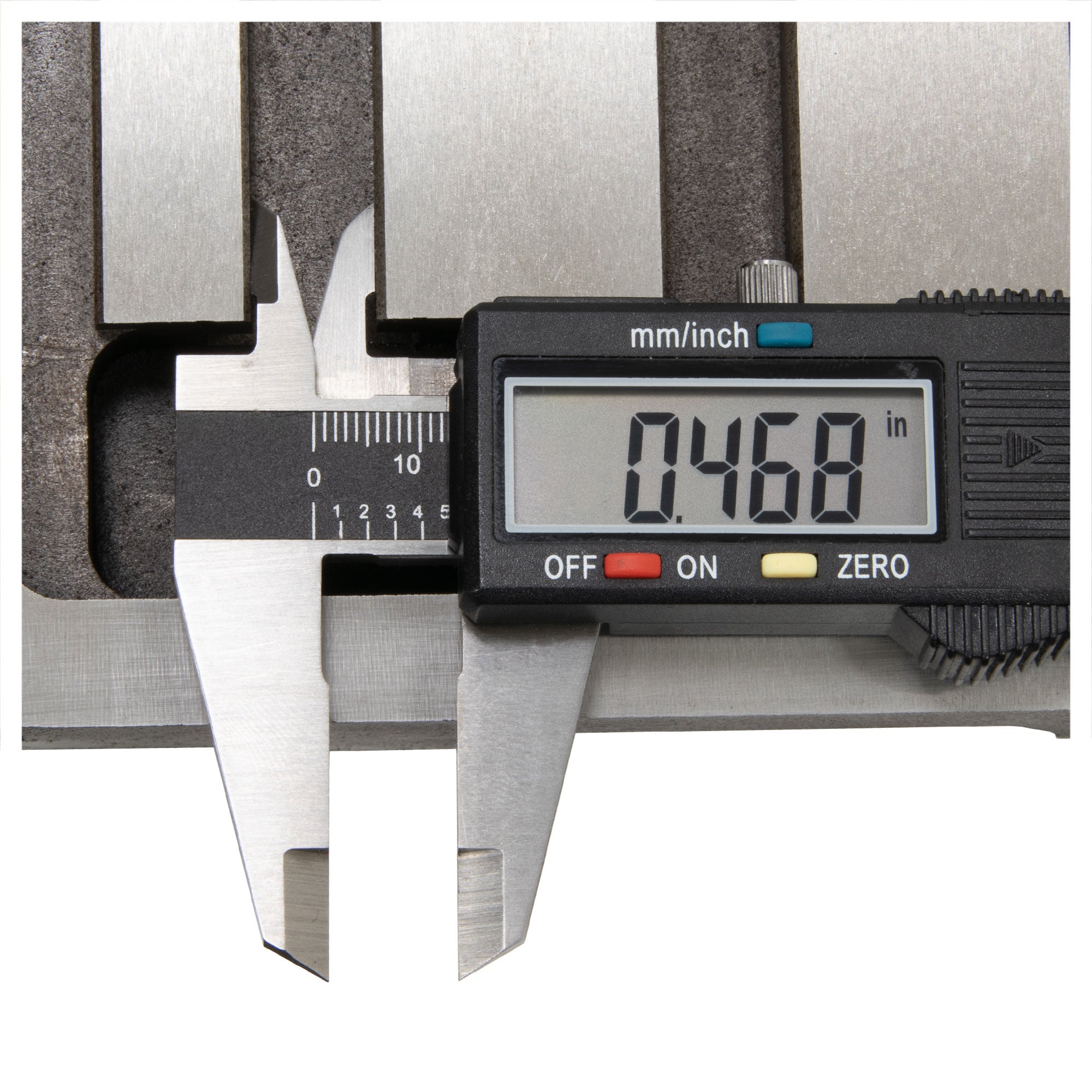

Measure the width at the top of the T-slot on your mill table as shown in the photo below.

This is the dimension given for T-slot nuts and clamping kits. For example, if you measure 0.468 at the top of the T-slot, you should get a 7/16” (0.438”) T-slot nut or clamping kit.

T-slot measuring

Specifications

T-Slot Nut 6 mm
• Fit 6 mm T-slots
• Threaded M5
• Fits T-slots measuring 0.22" to 0.25" in width

T-Slot Nut 8 mm
• Fit 8 mm T-slots
• Threaded M6
• Fits T-slots measuring 0.31" to 0.38" in width

T-Slot Nut 10 mm
• Fit 10 mm T-slots
• Threaded M8
• Fits T-slots measuring 0.38" - 0.45" in width

T-Slot Nut 12 mm
• Fits 12 mm T-slots
• Threaded M8
• Fits T-slots measuring 0.46" to 0.54" in width

T-Slot Nut ¼
• Fit 1/4" T-slots
• Threaded M5
• Fits T-slots measuring 0.25" - 0.30" in width

T-Slot Nut 3/8
• Fit 3/8" T-slots
• Threaded 5/16"-18
• Fits T-slots measuring 0.375" to 0.42" in width

T-Slot Nut 7/16
• Fits 7/16" (12 mm) T-slots
• Threaded 3/8"-16
• Fits T-slots measuring 0.43" to 0.49" in width

T-Slot Nut ½
• Fits 1/2" T-slots
• Threaded 3/8"-16
• Fits T-slots measuring 0.5" to 0.6" in width

T-Slot Nut 5/8
• Fit 5/8" T-slots
• Threaded 1/2"-13 thread
• Fits T-slots measuring 0.62" to 0.7" in width

Drawings
