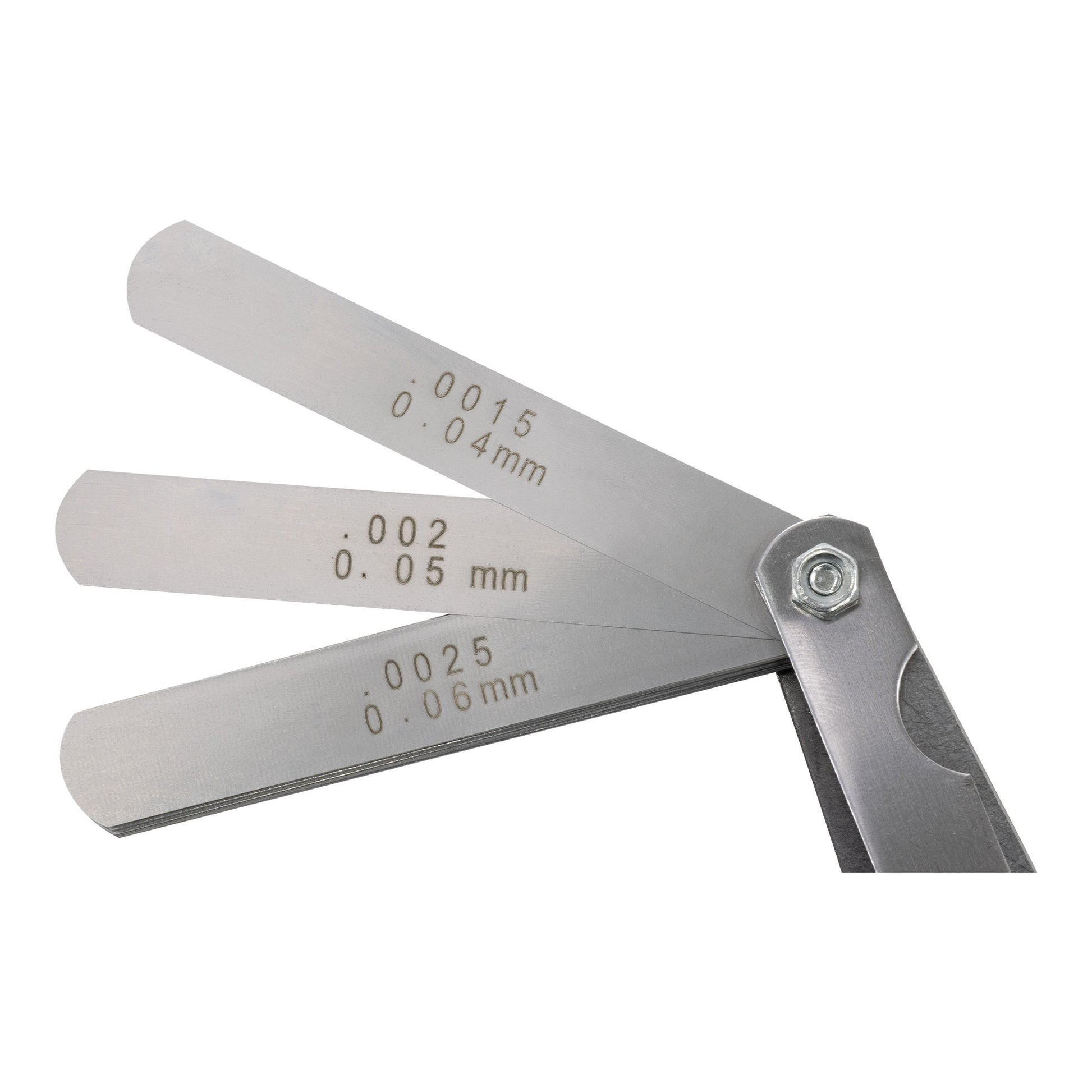

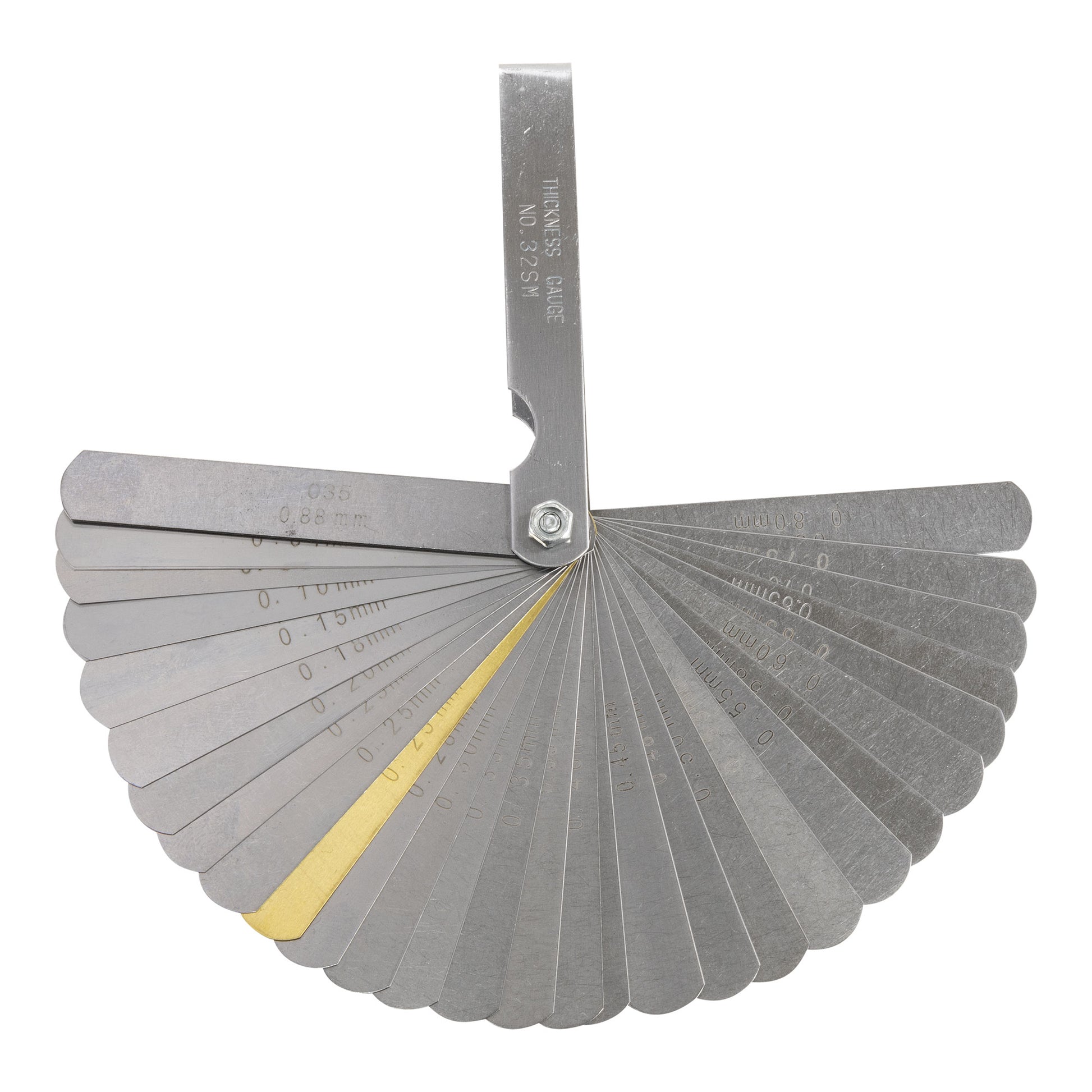

Thickness Gage Set, 32 Leaves, 0.0015" - 0.035", iGaging

32 Leaves, 3-7/8" length

Range 0.0015 - 0.035"

Leaf Thickness: 0.0015" (0.04mm), 0.002" (0.05mm), 0.0025" (0.06mm), 0.003" (0.08mm), 0.004" (0.10mm), 0.005" (0.13mm), 0.006" (0.15mm), 0.007" (0.18mm), 0.008" (0.20mm), 0.009" (0.23mm), 0.010" (0.25mm), 0.011" (0.28mm), 0.012" (0.30mm), 0.013" (0.33mm), 0.014" (0.35mm), 0.015" (0.38mm), 0.016" (0.40mm), 0.017" (0.43mm), 0.018" (0.45mm), 0.019" (0.48mm), 0.020" (0.50mm), 0.021" (0.53mm), 0.022" (0.55mm), 0.023" (0.58mm), 0.024" (0.60mm), 0.025" (0.63mm), 0.026" (0.65mm), 0.027” (0.68mm), 0.028" (0.70mm), 0.030" (0.75mm), 0.032" (0.80mm), 0.035" (0.88mm)

The gages of this feeler gage set are used in automotive, aviation, diesel, and farm equipment manufacture and service, and also in jig, fixture, gage, and experimental work. Especially useful in adjusting tappets, spark plugs, distributor points, checking bearing clearances and gear play, fitting pistons, rings and pins, and gaging narrow slots.

Leaves made of manganese steel with satin chrome finish, carefully finished to correct thickness, individually tested and marked with thickness.
