Thin Parallels, 1.5" Long, 9 Pairs
Thin Parallels, 1.5" Long, 9 Pairs
SKU:3947
In stock
Couldn't load pickup availability
Notify Me
Notify me when items are back in stock.
Key Features
Key Features
- Nine pairs thin parallels
- Length: 1.5", Width 1/16"
- Heights range 1/8" - 3/8"
- High grade alloy steel
- Parallel top and bottom within 0.0002"
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

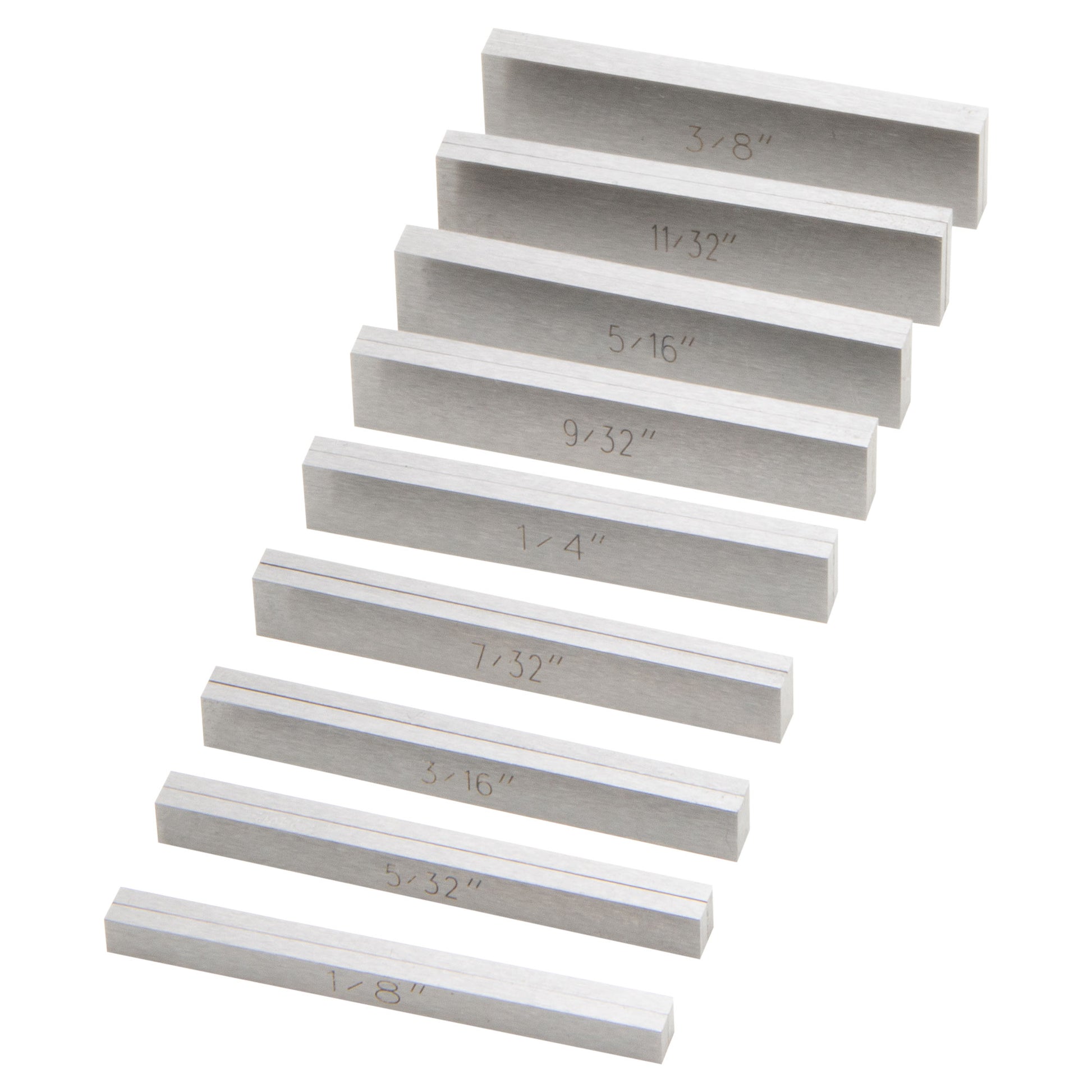

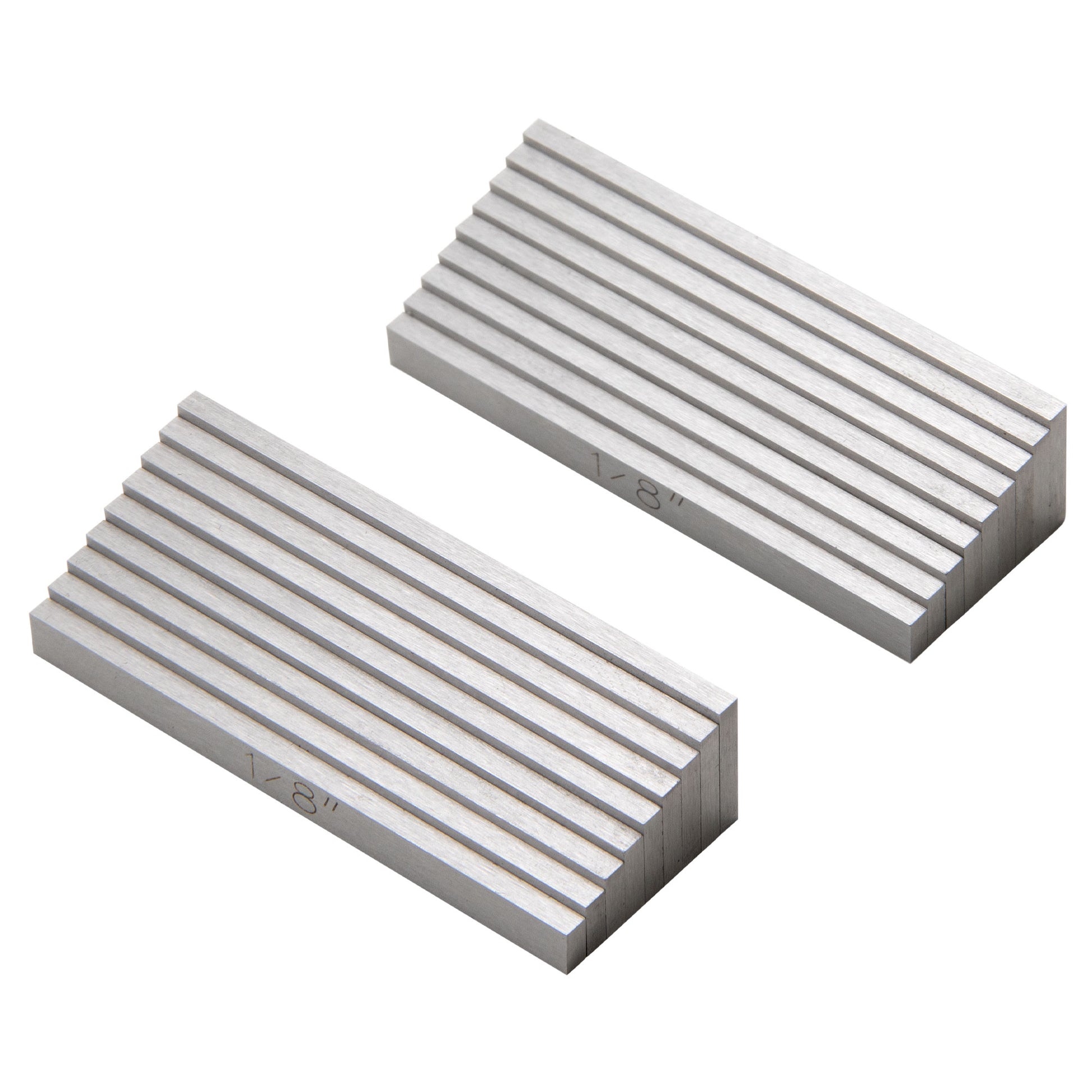

Set of nine pairs of thin parallels. Each parallel is 1.5" long and 1/16" wide. The height of the parallels range from 1/8" to 3/8" in the following sizes: 1/8", 5/32", 3/16", 7/32", 1/4", 9/32, 5/16", 11/32", 3/8".
Made of high grade alloy steel hardened to 52 to 58 Rc. Parallel within 0.0002" on the top and bottom. The pairs are matched in height within 0.0002"
These 1.5" long parallels are great for miniature vises such as the 2" screwless vises.
*Case not included.
Chris's Tips
Vise jaws are often too deep for the work. In general, you want the top of the work piece to extend above the top of the vise jaws. To fill the gap from the bottom of the work piece to the "ways" of the vise, you use parallels.
Parallels are strips of metal that have been carefully ground so that the top and bottom edges are parallel with very tight tolerances. They usually come in matched pairs. Place one parallel adjacent to each jaw in the vise and place the work piece so it rests on the parallels.
