Thin Parallels, 4" Long, 10 Pairs, Sized by 8ths
Thin Parallels, 4" Long, 10 Pairs, Sized by 8ths
SKU:5381
In stock
Couldn't load pickup availability
Key Features
Key Features
- 10 Pair set of 1/8" wide x 4" long precision parallels
- Made of high grade alloy steel hardened to 52 to 58 Rc
- Tolerance: Parallel to 0.0003" on 2 sides, top and bottom
- Dimensions: Within 0.001" allowance
- Heights are 1/2", 5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", and 1-5/8"
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

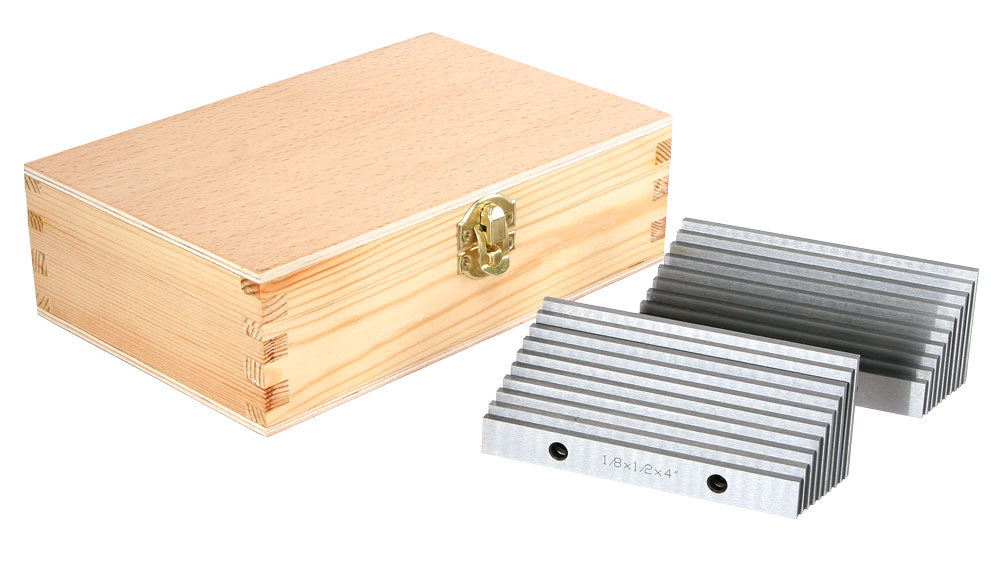

Set of 10 matched pairs of high grade steel parallels, precision ground and hardened.
Set comes in a fitted case.
Chris's Tips
Vise jaws are often too deep for the work. In general, you want the top of the work piece to extend above the top of the vise jaws. To fill the gap from the bottom of the work piece to the "ways" of the vise, you use parallels.
Parallels are strips of metal that have been carefully ground so that the top and bottom edges are parallel with very tight tolerances. They usually come in matched pairs. Place one parallel adjacent to each jaw in the vise and place the work piece so it rests on the parallels.
