Description

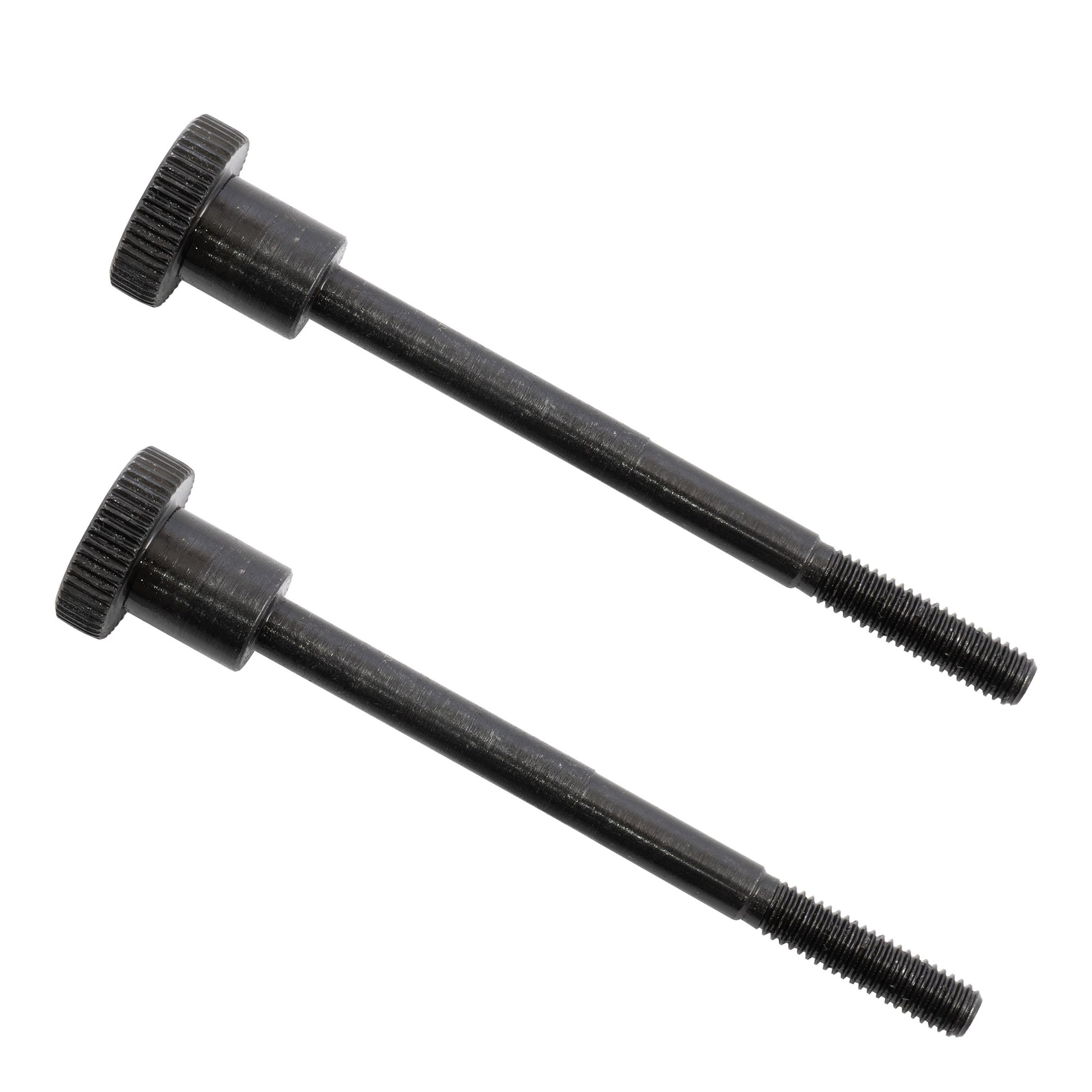

Custom made for LittleMachineShop.com to fit HiTorque mini lathes and SIEG SC20, C3 and SC3 mini lathes. This product is sold as a pair of screws.
Replace socket head cap screws on the change gear cover with these screws to allow for quick, easy access to the gears. No need for Allen wrenches whenever you need to modify the gear combinations.
Overall length is 80mm.

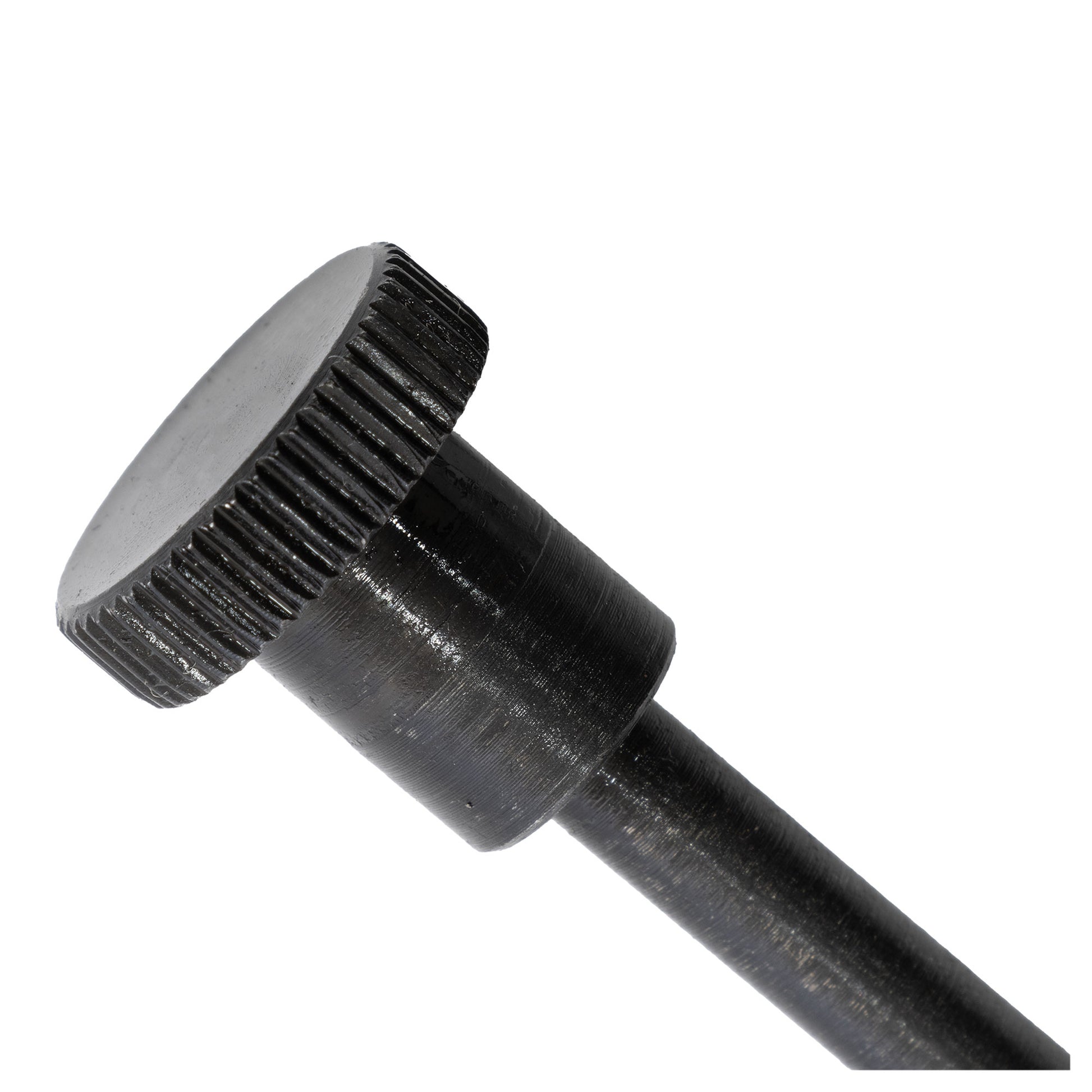

Knurled knob is 16mm in diameter and 4mm thick with a straight knurl.
Length from top of knob to bottom of thick shaft is 15mm.
The unthreaded shaft is 9.5mm diameter and 45mm in length. The threaded portion is 20mm in length and is 5mm threading.
Made of black steel.

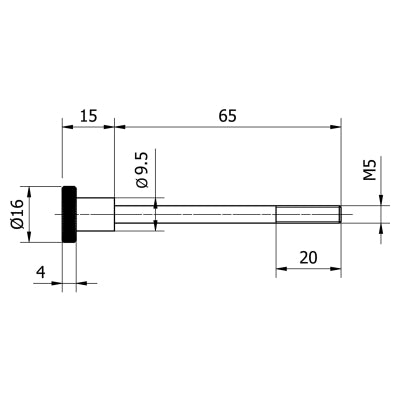

Drawings
Product Compatibility
This product was designed for machines manufactured by SIEG, including those listed below. We have added compatibility for other non-SIEG machines when a “fit” can be verified.
If your machine is not listed, we cannot verify compatibility but encourage you to contact us. With additional information we may be able to help you find a solution.
- Micro-Mark 82710 MicroLux 7x14 Mini Lathe
- LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
- SIEG C3 7x14 Mini Lathe
- Micro-Mark 84631 MicroLux 7x16 Mini Lathe
- LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
