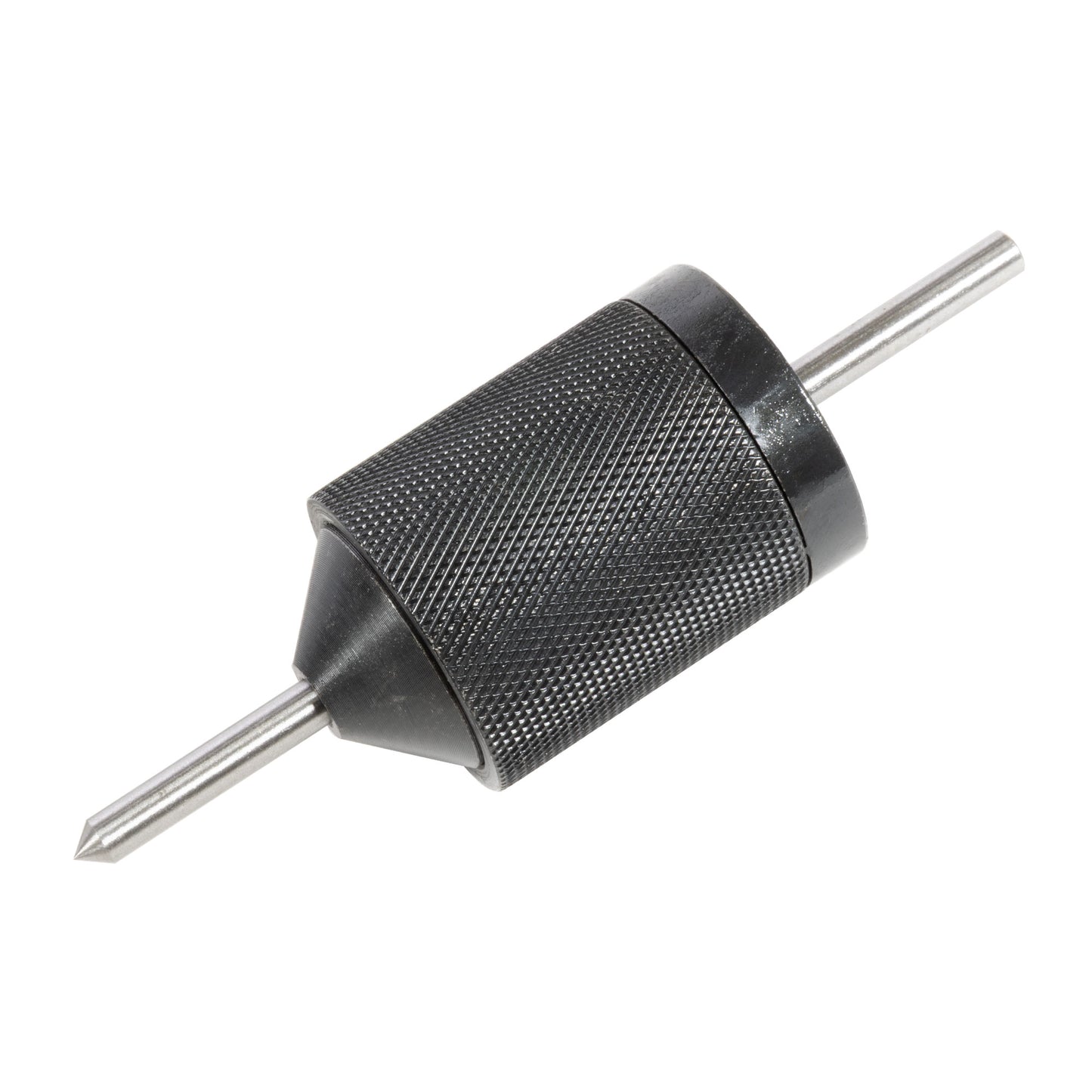

Transfer Center Punch and Aligner, Large
Transfer Center Punch and Aligner, Large
Regular price
$19.95
Regular price
Sale price
$19.95
Unit price
/
per
Shipping calculated at checkout.
In stock
SKU:6827Shelf Location: (D01 - 04)
Couldn't load pickup availability
Key Features
Key Features
- Spring loaded
- Outer cup squares assembly
- Good for transferring centers using a template
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
Good for transferring hole centers using a template with varying hole sizes.

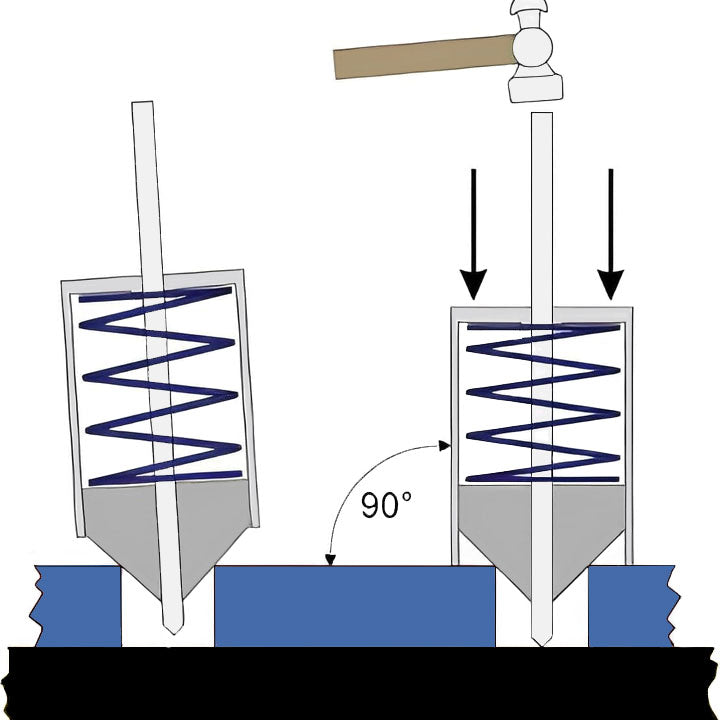

The alignment cone is spring loaded and slides in an outer cup which squares the whole assembly to the workpiece when pressed down on the template. The sliding center punch may then be struck to mark the workpiece.
Specifications
- Punch diameter 4.75 mm
- Minimum hole size 10 mm
- Maximum hole size 26 mm
