Turret Tool Holder, 2MT Tailstock, 3 Heads
Turret Tool Holder, 2MT Tailstock, 3 Heads
SKU:1877
In stock
Couldn't load pickup availability
Key Features
Key Features
- Three head turret tool holder
- Mounts in 2MT tailstock
- Equipped with 3MT arbor sleeve
- Heads include 1 drill chuck, 1 live center, and 1 die holder
- Quick locking lever for rapid tool changing
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

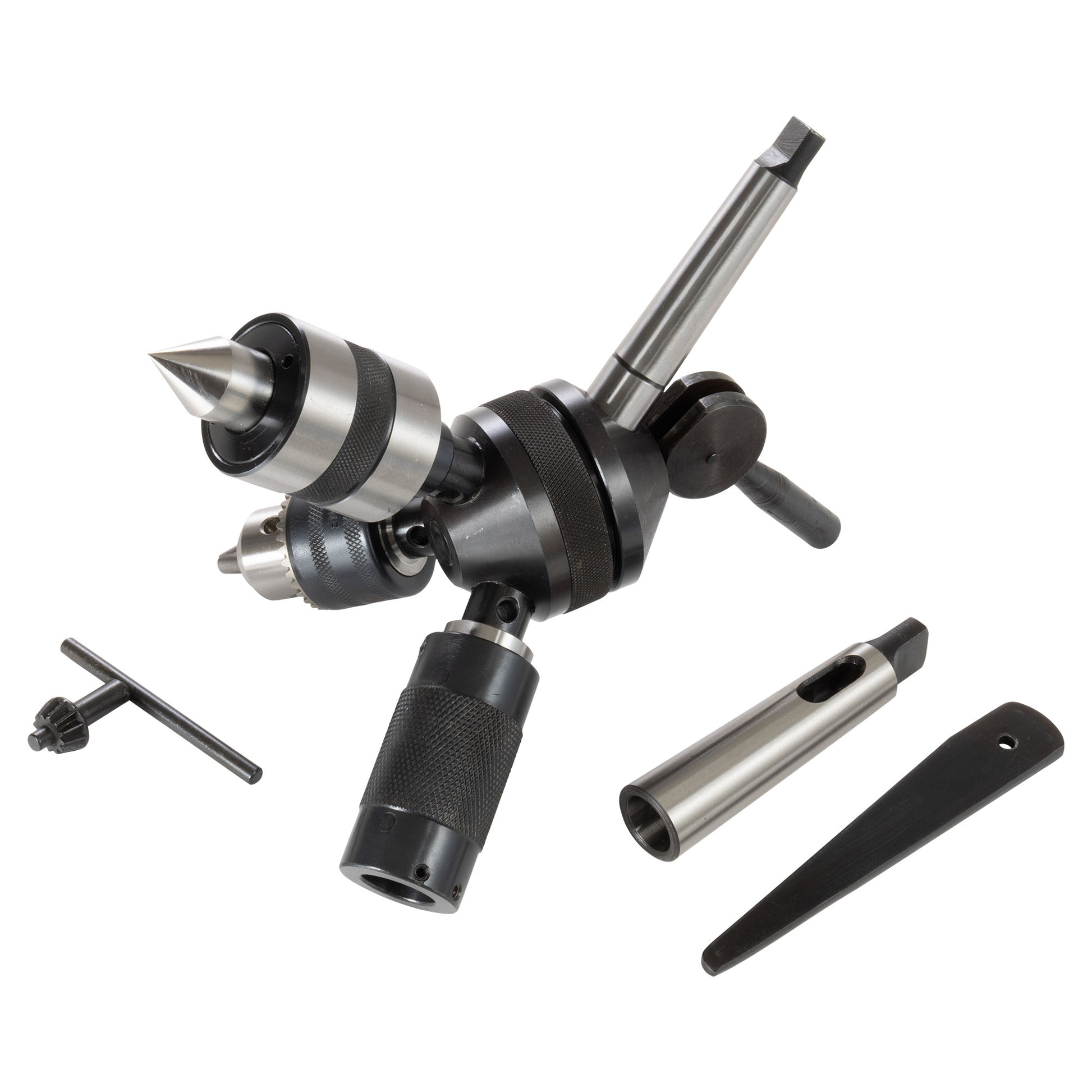

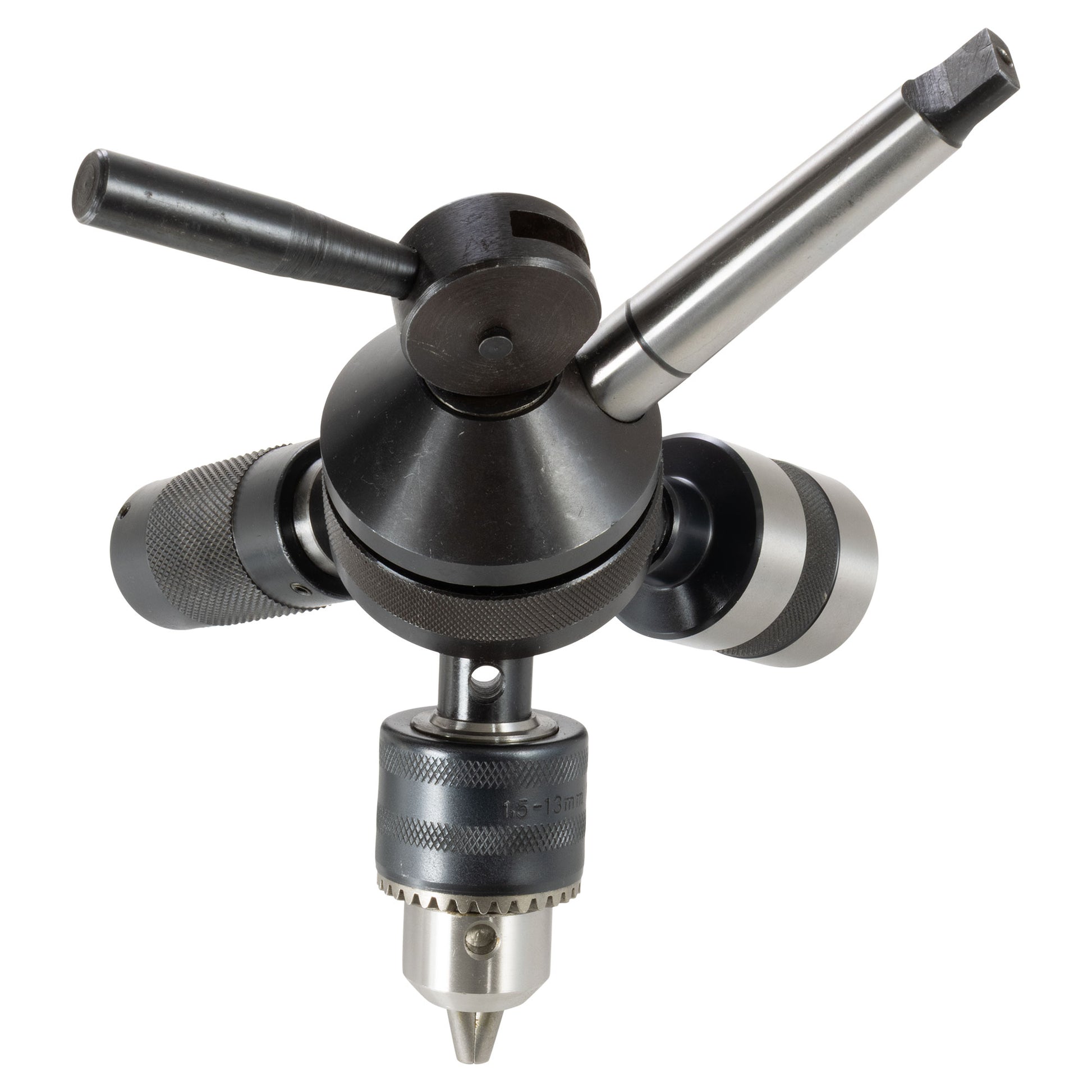

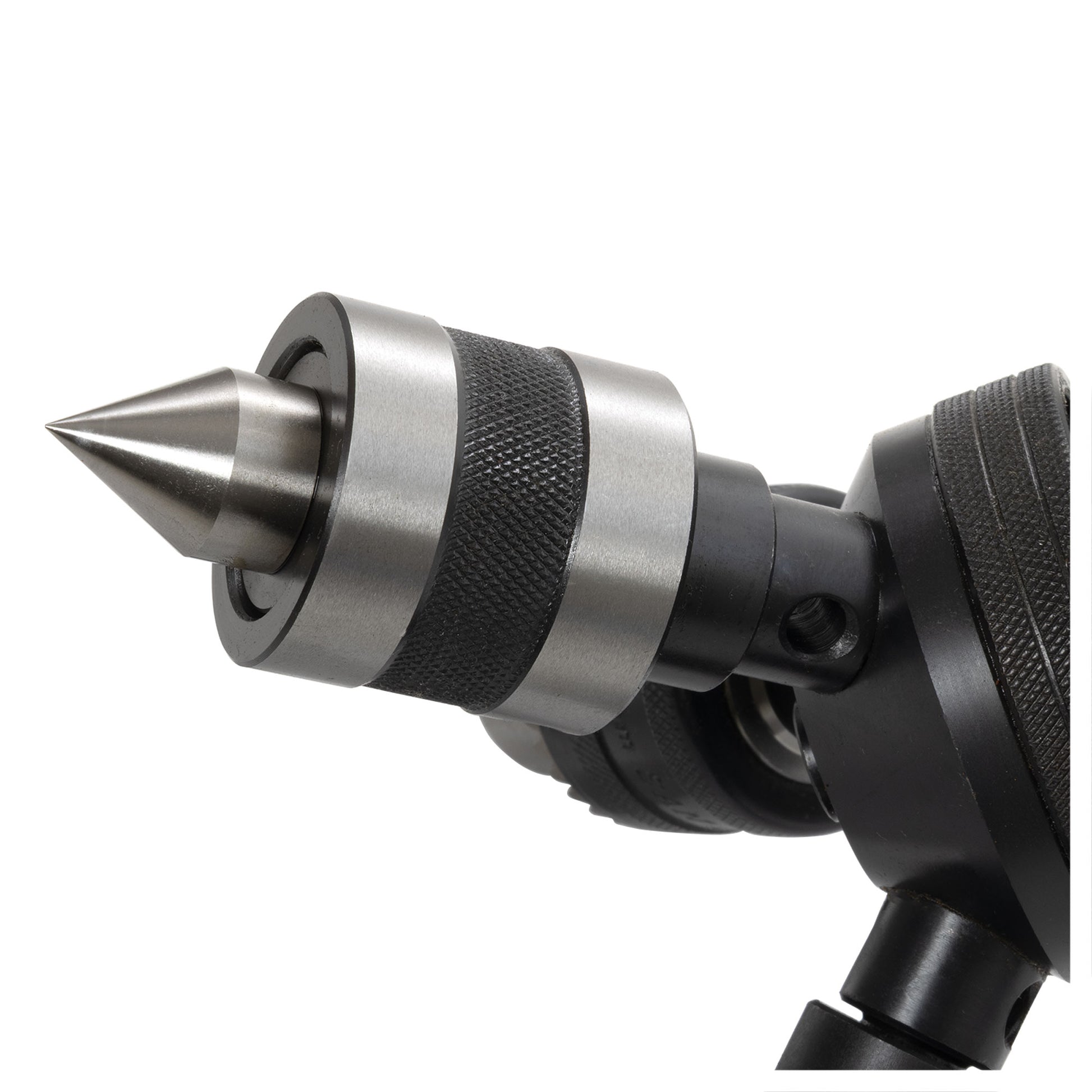

This tailstock turret tool holder comes equipped with three heads, 1 drill chuck, 1 live center, and 1 die holder.

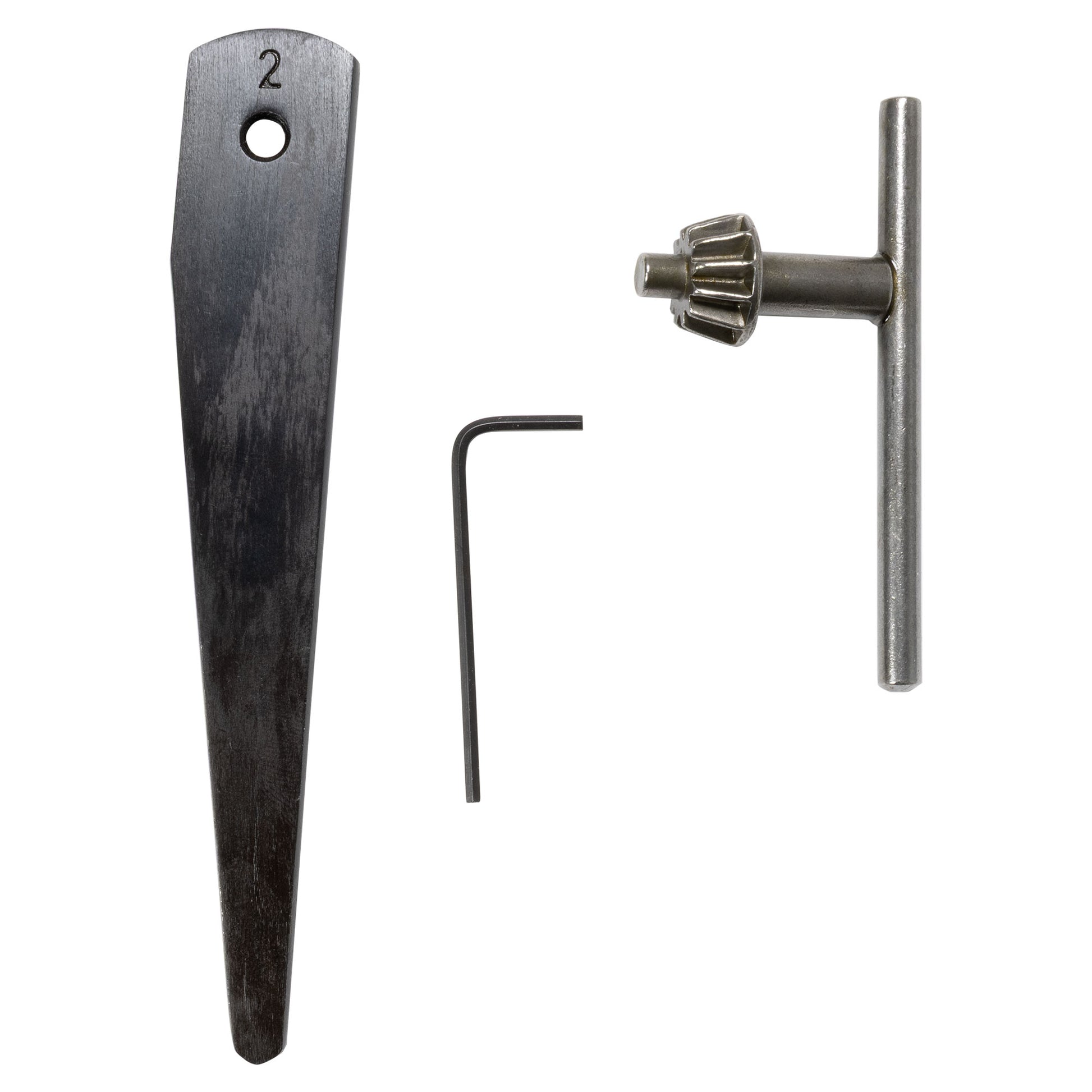

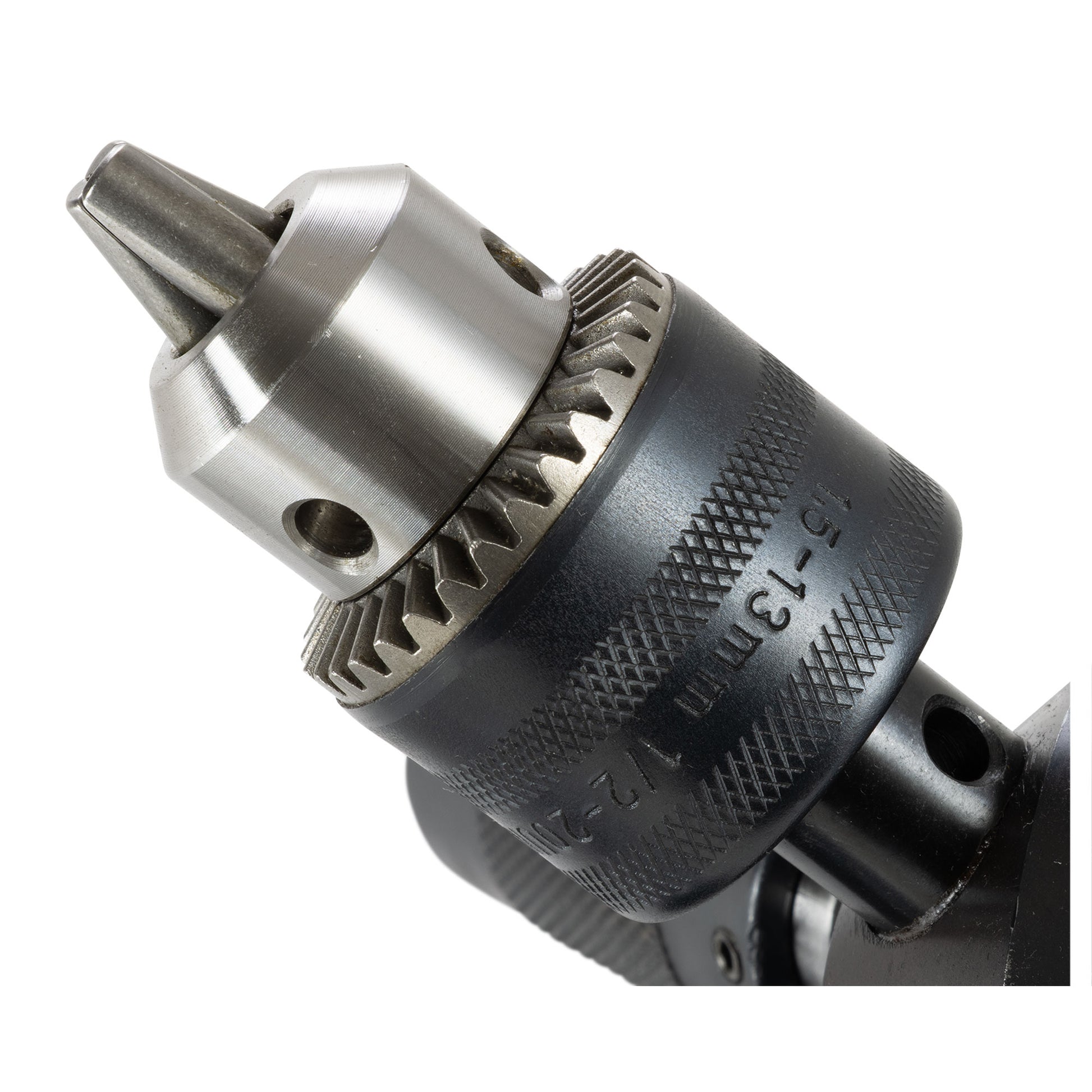

Each head is mounted to the turret by a threaded post 1/2" x 20TPI. The drill chuck is rated for 1.5mm - 13mm (0.06" - 0.51"). The chuck comes with a chuck key.

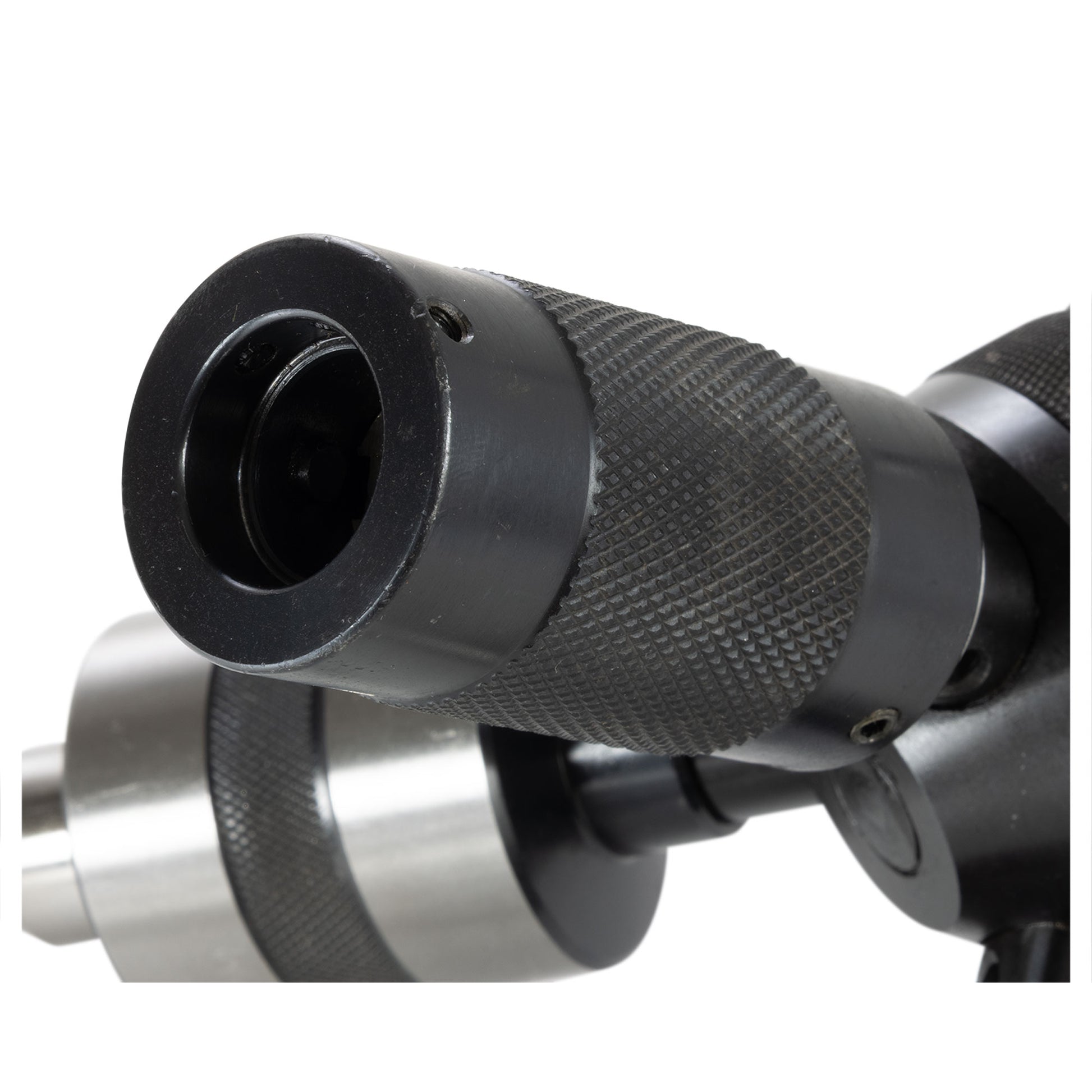

The die holder supports standard 13/16" diameter round dies and has three tightening screws. The die holder head has a center bore that is 40mm in depth (approx. 1.5") for cutting external threads up to that length. An Allen wrench is included for locking the die.
The turret has a slight ratchet to ensure that the tool is positioned correctly in relation to the quill.

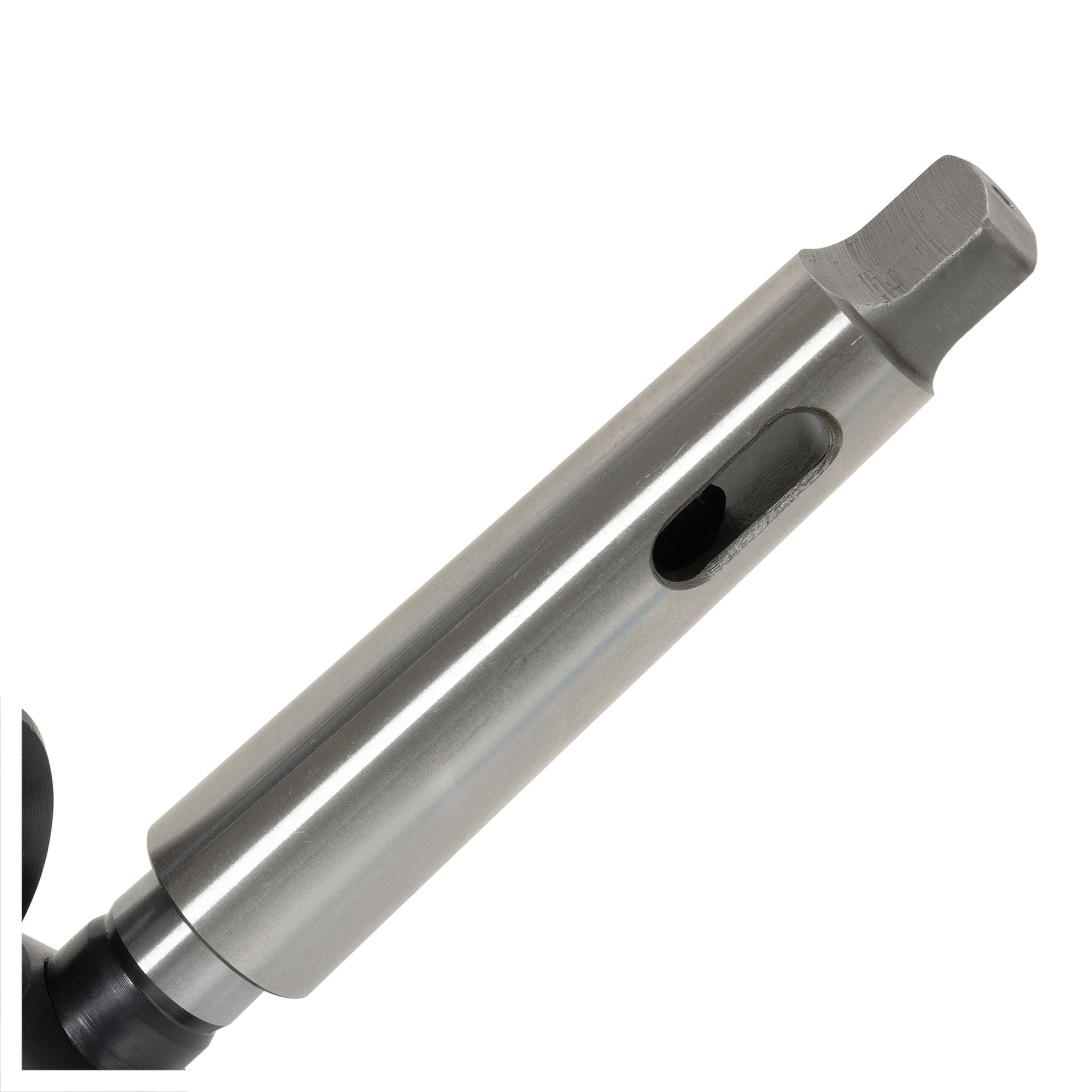

In addition, the holder comes with a 3MT sleeve that slides over the 2MT arbor for use on machines with a 3MT tailstock. This sleeve is accompanied by a quick removal wedge.
A tailstock turret tool holder us useful for a wide range of tasks. It enables quick seamless changing of tools without refitting items into the tailstock. This minimizes downtime thereby enhancing productivity.
