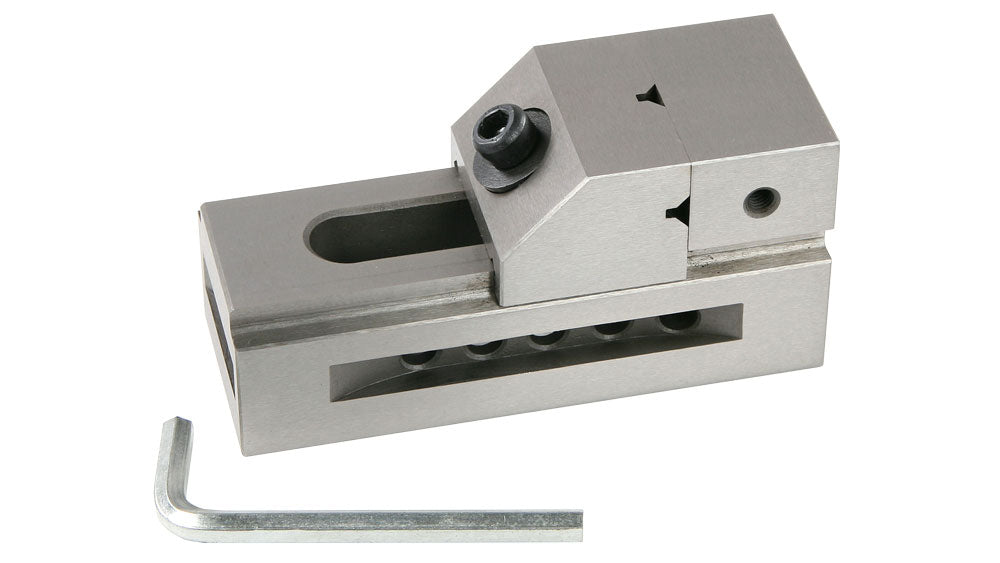

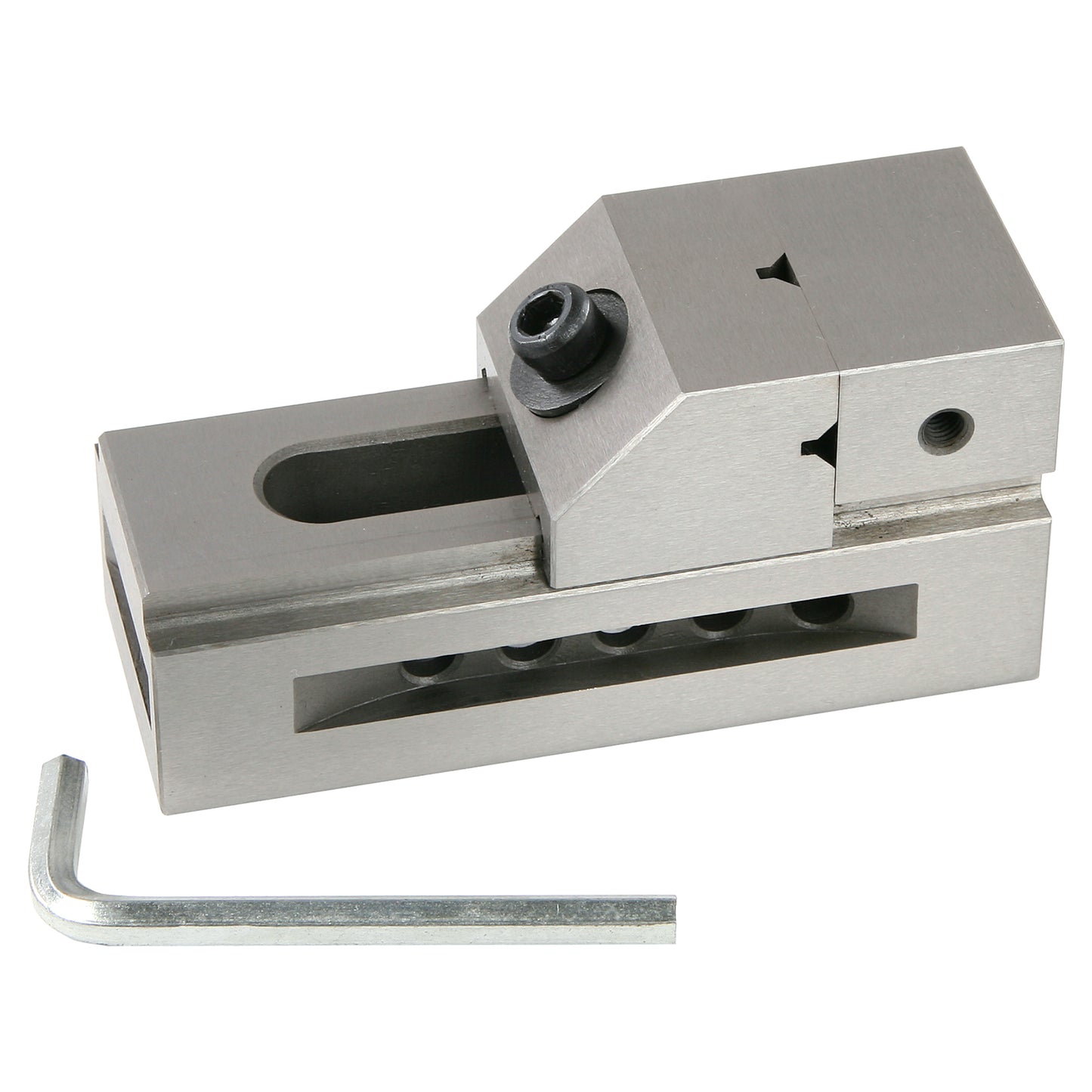

Vise, 1.5" Screwless
Vise, 1.5" Screwless
SKU:3950
In stock
Couldn't load pickup availability
Notify Me
Notify me when items are back in stock.
Key Features
Key Features
- Hardened and precision ground
- Jaw can be opened and closed without unbolting from work surface
- 1.5" jaw width
- Square and parallel .0002"
- Overall length is 100 mm
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
This high precision toolmakers screwless vise has a one-piece body. The body and jaws are hardened to Rc 58-62. All sides are flat, square, and parallel to 0.0002".
The jaws are 0.75" deep and open to 1.5".
The vise is 3.94" long x 1.5" wide.
Specifications
Jaw Depth: 0.75" (19.050 mm)
Maximum Jaw Opening: 1.5" (38.100 mm)
Table to Bed: 1.21" (30.734 mm)
Table to Clamping Slot: .46" (11.684 mm)
Height: 1.97" (50.038 mm)
Length: 3.94" (100.076 mm)
Width: 1.6" (40.640 mm)
Weight: 1.9 lbs (1 kg)
