Vise, 1" Screwless, Built-in Parallels
Vise, 1" Screwless, Built-in Parallels
SKU:3142
In stock
Couldn't load pickup availability
Key Features
Key Features
- Notches in jaws provide built-in parallels
- Jaw opening capacity is 1"
- Hardened to RC 58-62
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

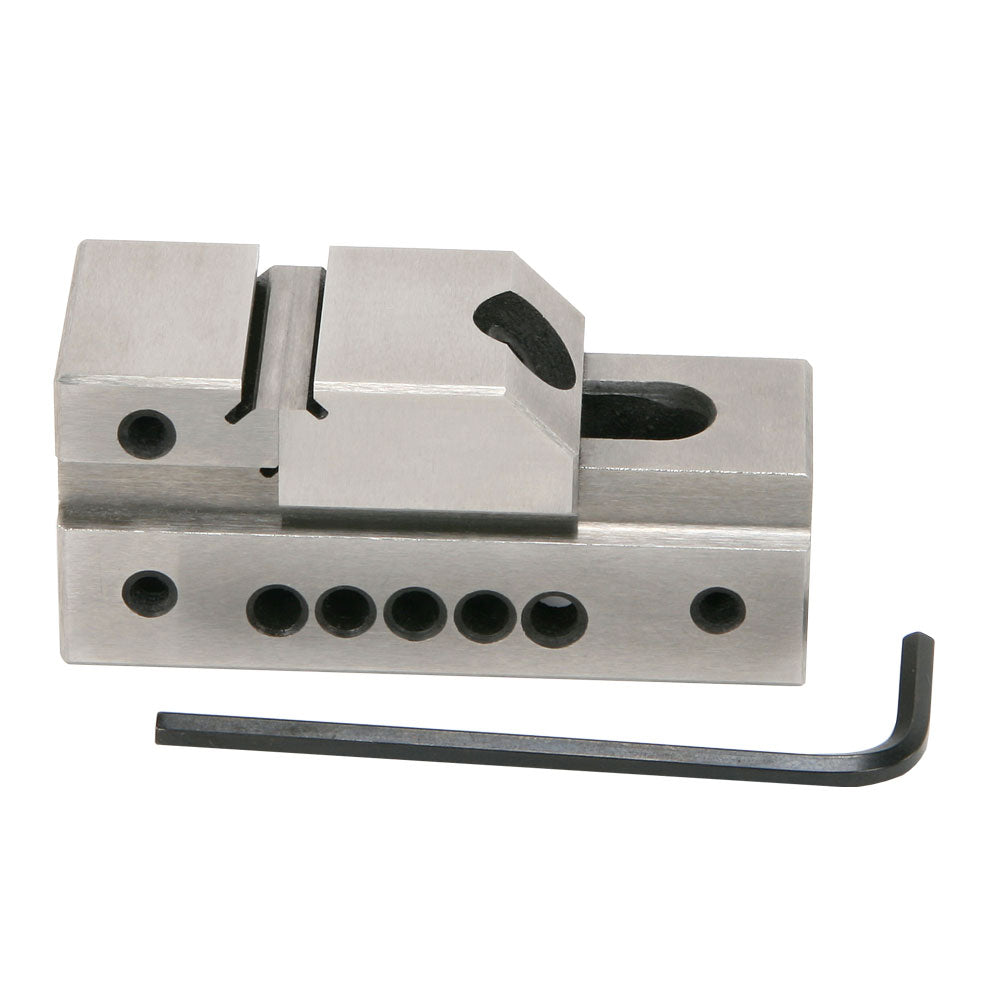

This high precision toolmakers screwless vise has a one-piece body. The body and jaws are hardened to Rc 58-62. All sides are flat, square, and parallel to 0.0002".

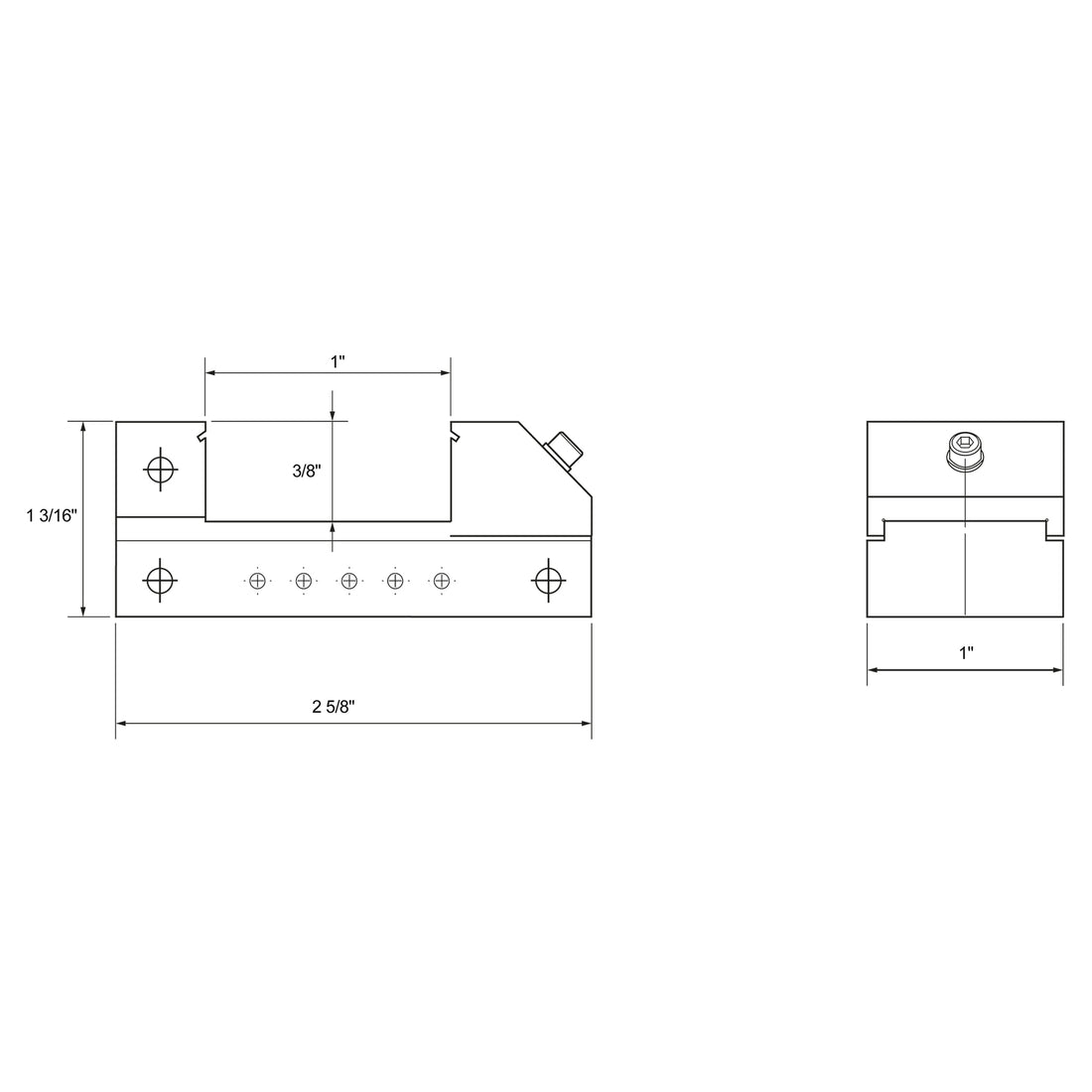

The jaws are 3/8" deep and open to 1".
The vise is 2-5/8" long x 1" wide.
Built in parallels are 2.75mm(0.11in) below top of jaws.
Chris's Tips
You can use your clamping kit to secure this vise using the slots in the ends, but we recommend that you make a couple of clamping blocks to secure the vise across the table.
Take a look at our vise comparison page before you choose a vise.
Specifications
Jaw Depth: 0.375" (9.525 mm)
Maximum Jaw Opening: 1" (25.400 mm)
Weight: 0.51 lbs (0 kg)
Length: 2.625" (66.675 mm)
