Vise, 3" Drill Press Quick Slide
Vise, 3" Drill Press Quick Slide
SKU:4141
Low stock
Couldn't load pickup availability
Key Features
Key Features
- 3" wide jaws
- 1/2" slot for mounting
- Precision ground
- Jaw depth 1"
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

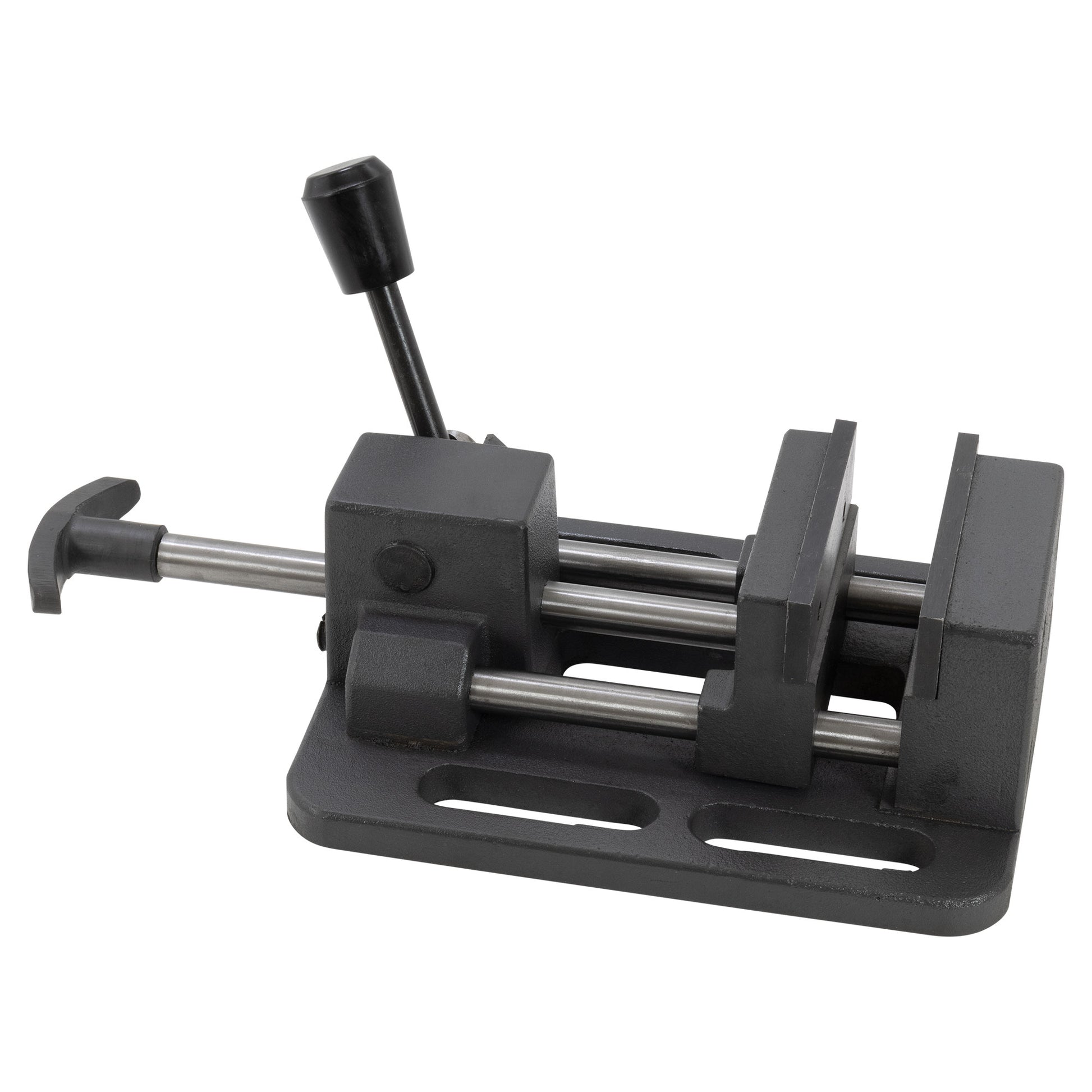

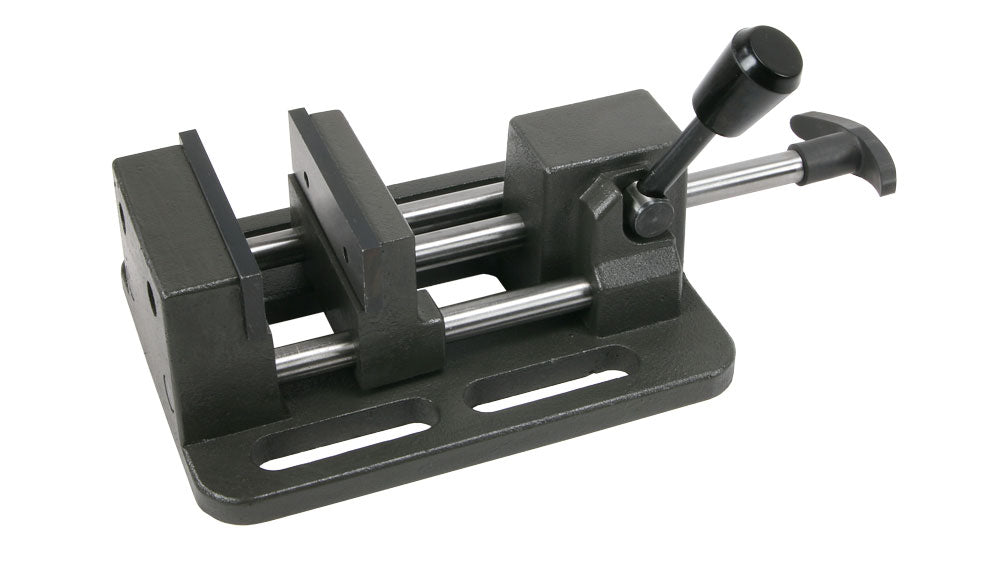

With this quick-slide vise for your drill press, you slide the jaws against your workpiece and lock it into place with the lever for a secure hold. The 1/2-inch slot allows the vise to be mounted to nearly any machine table using common T-slot bolts. Made of high-grade stress-relieved iron casting.

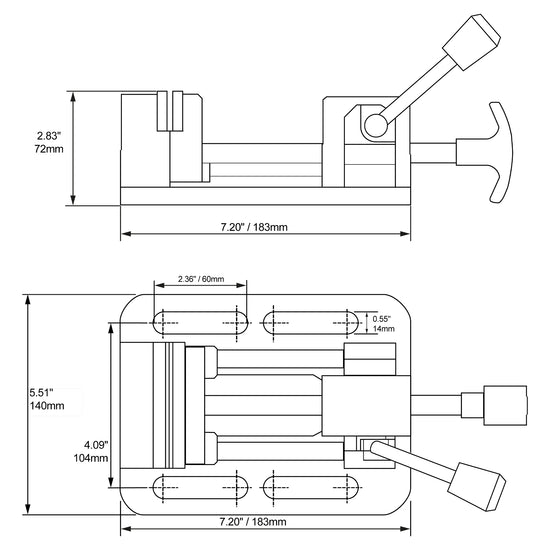

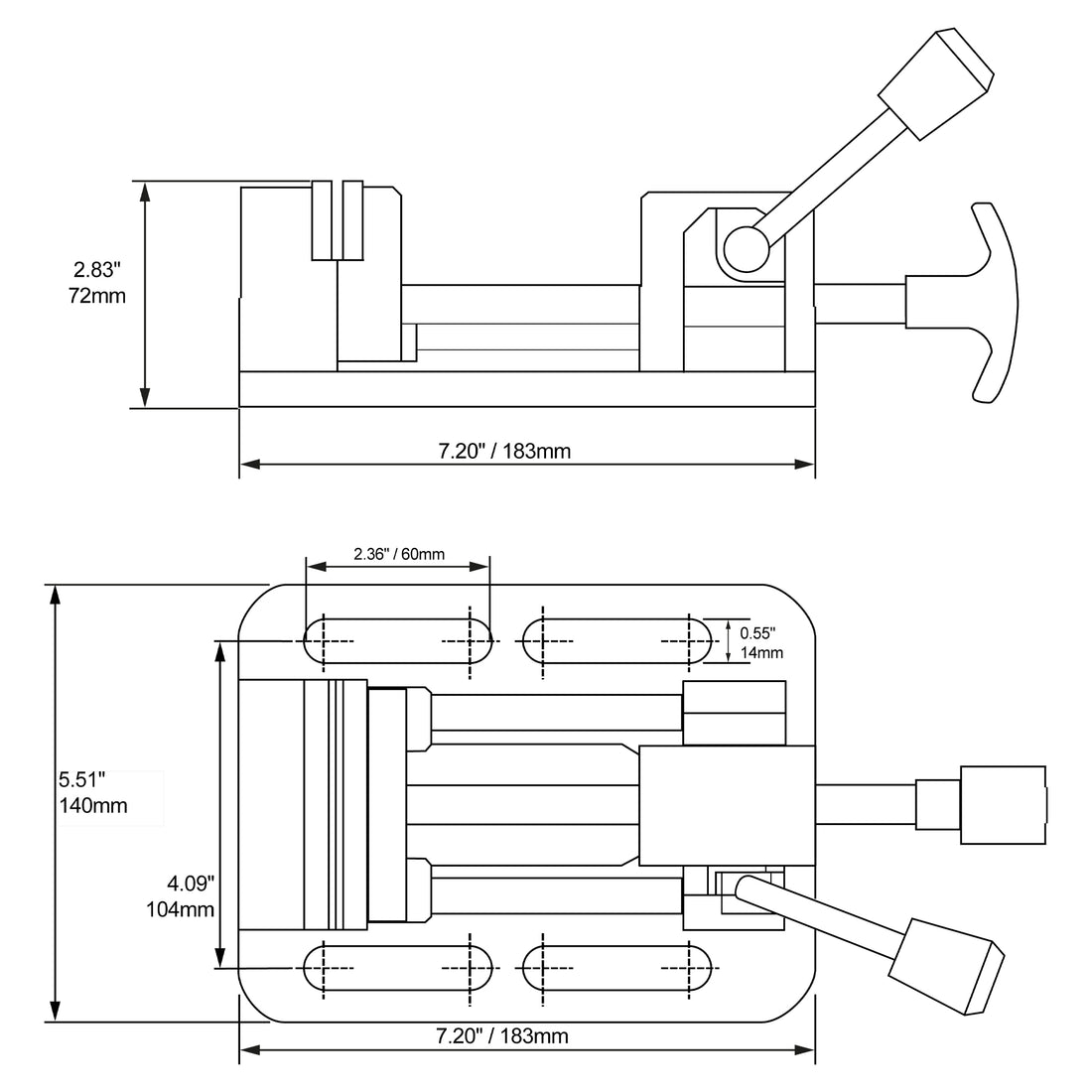

Specifications
Jaw Width: 3" (76.200 mm)
Jaw Depth: 1.25" (31.750 mm)
Jaw Opening: 3.5" (88.900 mm)
Overall Length: 7.205" (183 mm)
Weight: 8.93 lbs (4 kg)
Length: 7.20" (182.880 mm)
Height: 2.835" (72 mm)
Width: 5.512" (140 mm)
Width Between Bolts (Approx): 4" (101.600 mm)
Mounting Slot Width: 0.551" (14 mm)
Mounting Slot Length: 2.362" (60 mm)
