Vise, 3" Screwless with Clamping Holes
Vise, 3" Screwless with Clamping Holes
SKU:1590
In stock
Couldn't load pickup availability
Key Features
Key Features
- high precision toolmakers screwless vise
- Square and Parallel within 0.0002"
- Ground "V" Way
- Hardened and Precision Ground
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

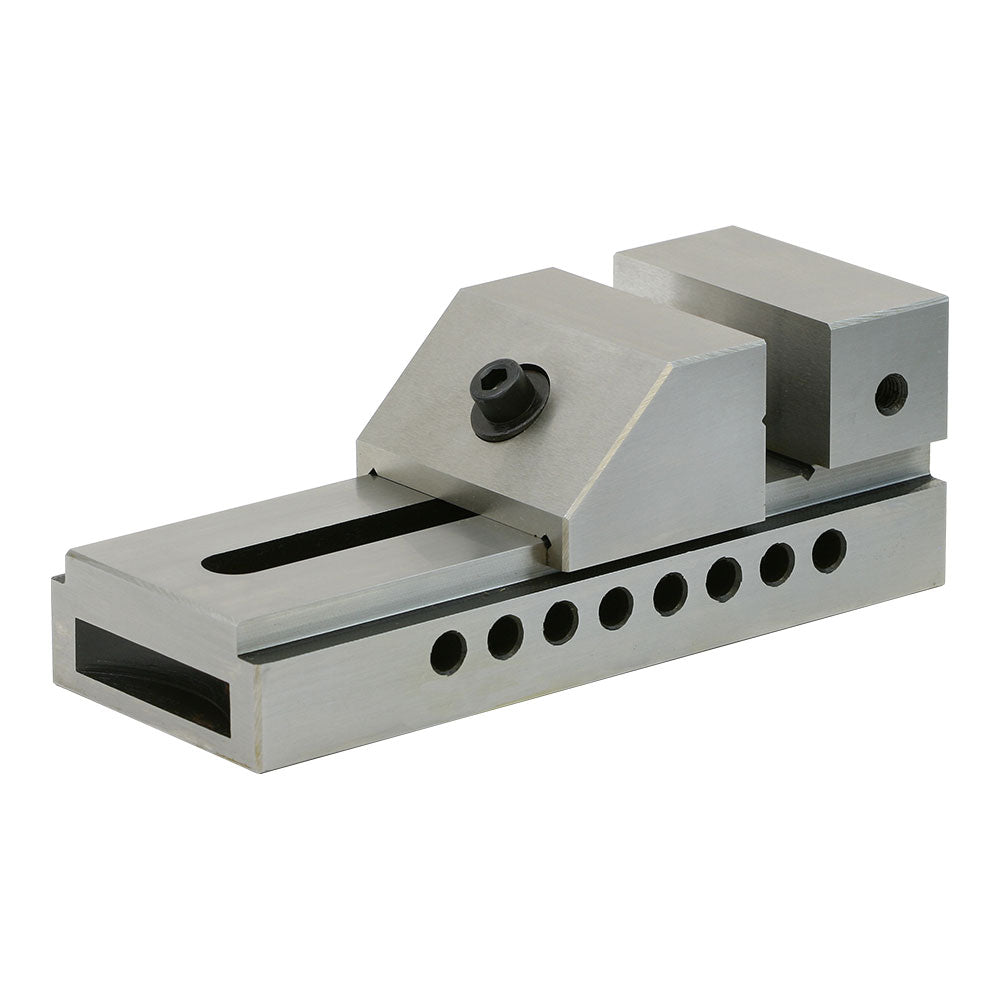

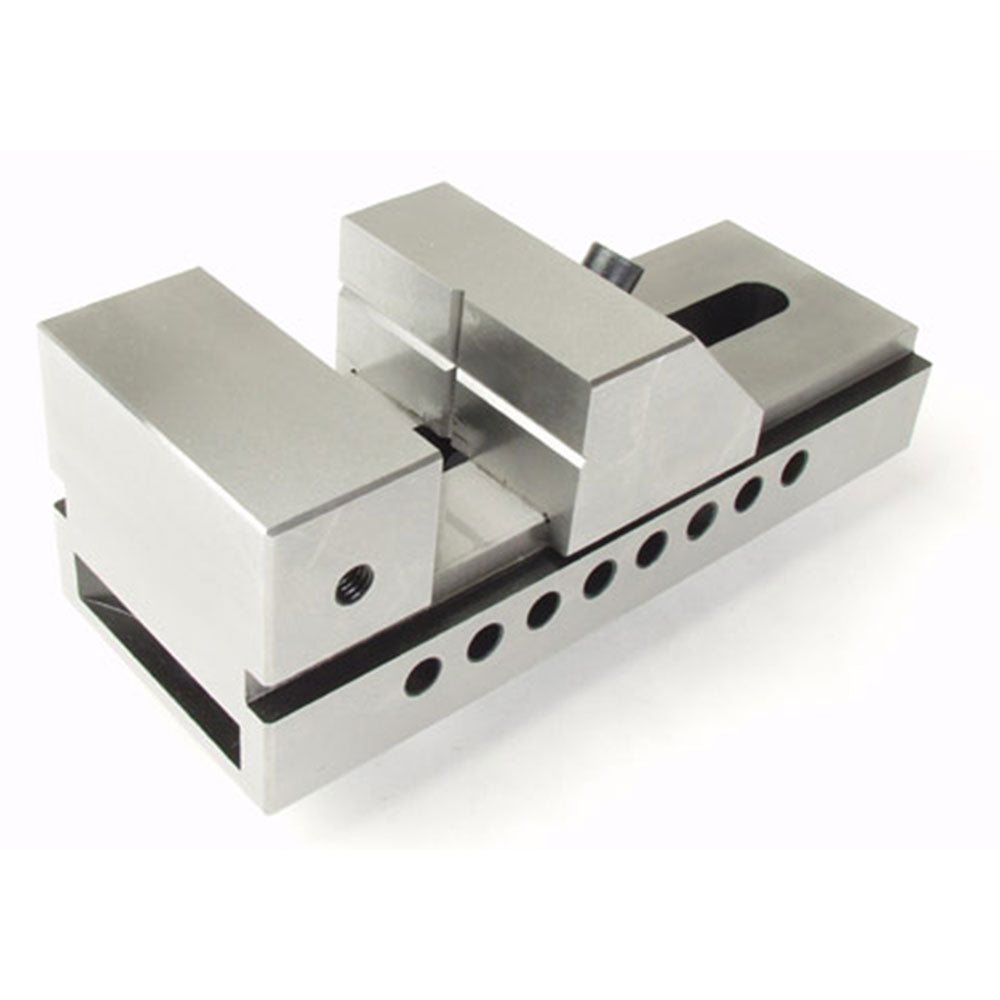

This high precision toolmakers screwless vise has a one-piece body. There are horizontal and vertical vees on the inside face of the movable jaw to hold round objects.
The jaws are 1.38" deep and open to 3.78" capacity.
The vise is 7.28" long, 2.76" tall and 2.875" wide.
All sides are flat, square and parallel to 0.0002".
The body and jaws are hardened to Rc 58-62.
Chris's Tips
You can use your clamping kit to secure this vise using the slots in the ends, but we recommend that you make a couple of clamping blocks to secure the vise across the table.
Take a look at our vise comparison page before you choose a vise.
Specifications
Jaw Depth: 1.38" (35.052 mm)
Maximum Jaw Opening: 3.78" (96.012 mm)
Weight: 9.9 lbs (4 kg)
Height with Out Base: 2.76" (70.104 mm)
Length: 7.28" (184.912 mm)
Width with Out Base: 2.875" (73.025 mm)
