Description
This high precision toolmakers screwless vise has a one-piece body. There are horizontal and vertical vees on the inside face of the movable jaw to hold round objects.
- The jaws are 1.38" deep and open to 3.78" capacity.
- The vise is 7.28" long, 2.76" tall and 2.875" wide.
- All sides are flat, square and parallel to 0.0002".
- The body and jaws are hardened to Rc 58-62.
This pair of clamps is used to mount a 3" screwless vise on your mill table. You furnish 3/8" socket head cap screws of the appropriate length for your mill, and T-slot nuts.
These clamps are height-adjustable so they will work with any screwless vise with 8 mm (5/16") or larger holes. You can also use these clamps in the slots that are in the end of most screwless vises.
Chris' Tips
You can use your clamping kit to secure this vise using the slots in the ends, but we recommend that you make a couple of clamping blocks to secure the vise across the table.
Take a look at our vise comparison page before you choose a vise.
These clamps make it simple to mount a screwless vise to your mill table. They are sized for 3" screwless vises with 8 mm (5/16") holes in the side.
The adjustable foot can be rotated to provide more distance from the mill table.
To use these on a mini mill, you need two T-slot nuts and two 3/8-16 x 1.25" socket head cap screws. Your hardware store has the socket head cap screws.

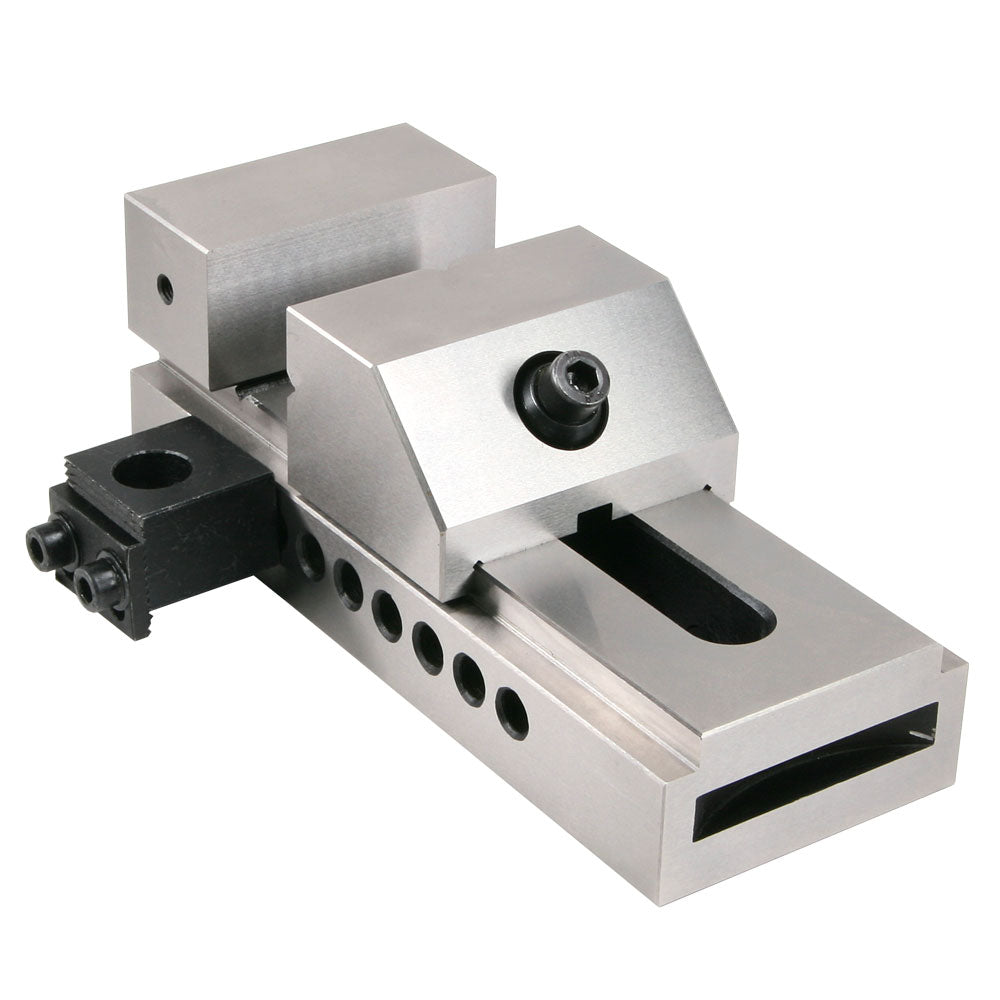

Here is a vise mounted with the clamps.
