Description

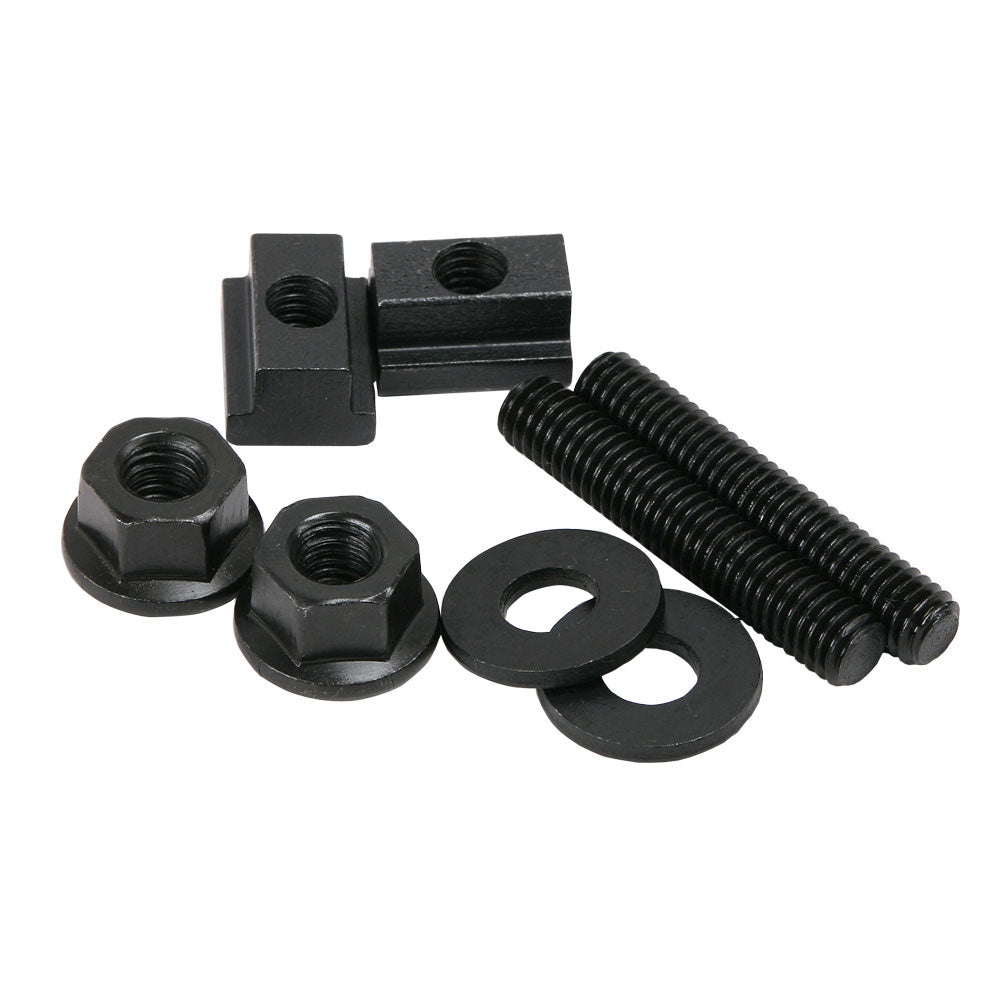

The studs in this kit are 5/16"-18 x 2".
Note that you have to take the swivel base off the vise to use this kit.
The stated dimension of the clamping kit is the width at the top of the T-slot.
Chris's Tips
Most vises have some sort of "mounting kit" but these are often simply intended to slot them into the t-slots of a mill and not really attach them to the table. Our vise mounting kit has true t-slot nuts and hardened bolts and nuts to ensure your vise is properly secured to the table. This prevents slight movement throwing off measurements or cutting operations and is all around safer.

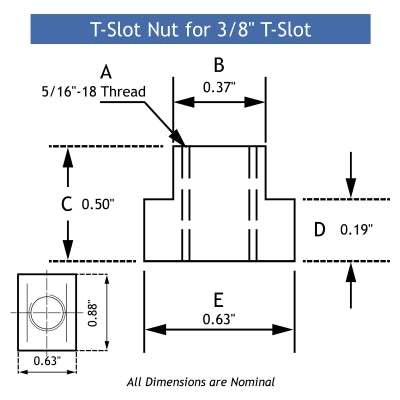

Following are the dimensions of the T-slot nuts that we sell separately or as part of a set.
Drawings
Product Compatibility
This product was designed for machines manufactured by SIEG, including those listed below. We have added compatibility for other non-SIEG machines when a “fit” can be verified.
If your machine is not listed, we cannot verify compatibility but encourage you to contact us. With additional information we may be able to help you find a solution.
- Grizzly G0758 Mill/Drill
