Description

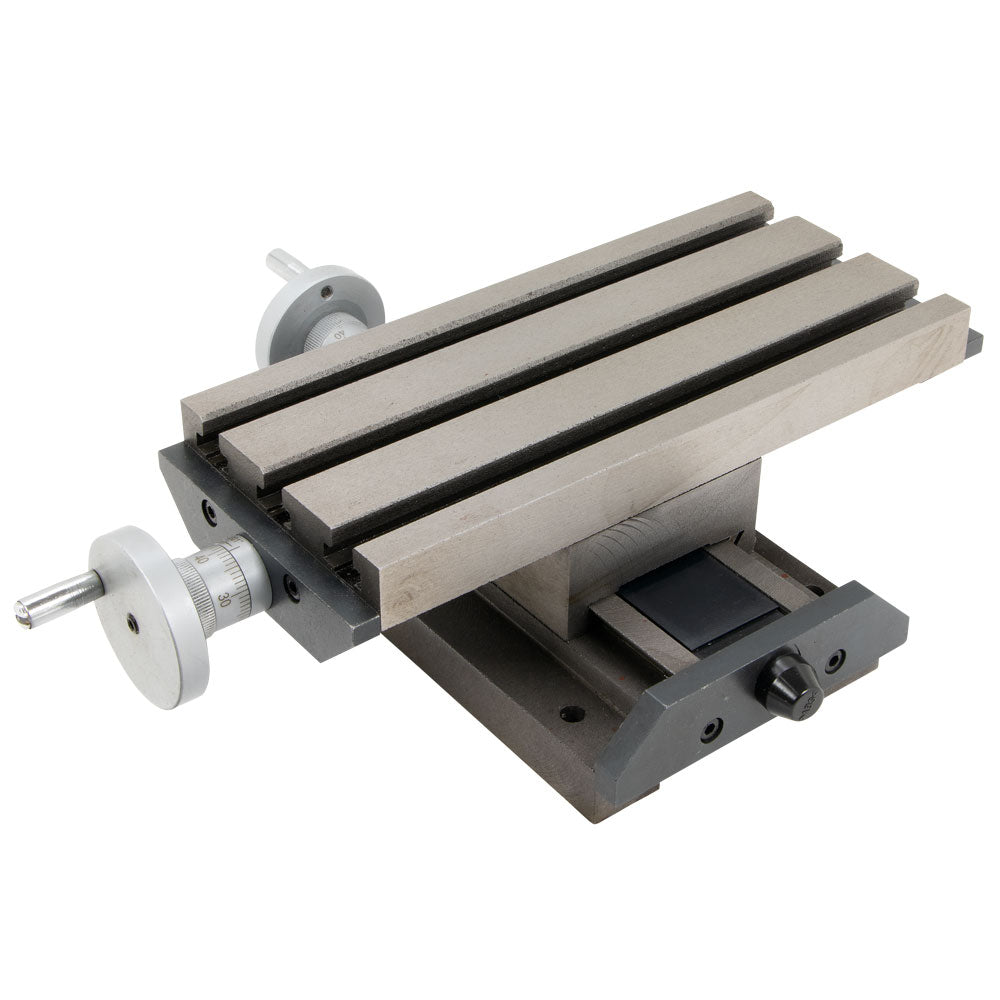

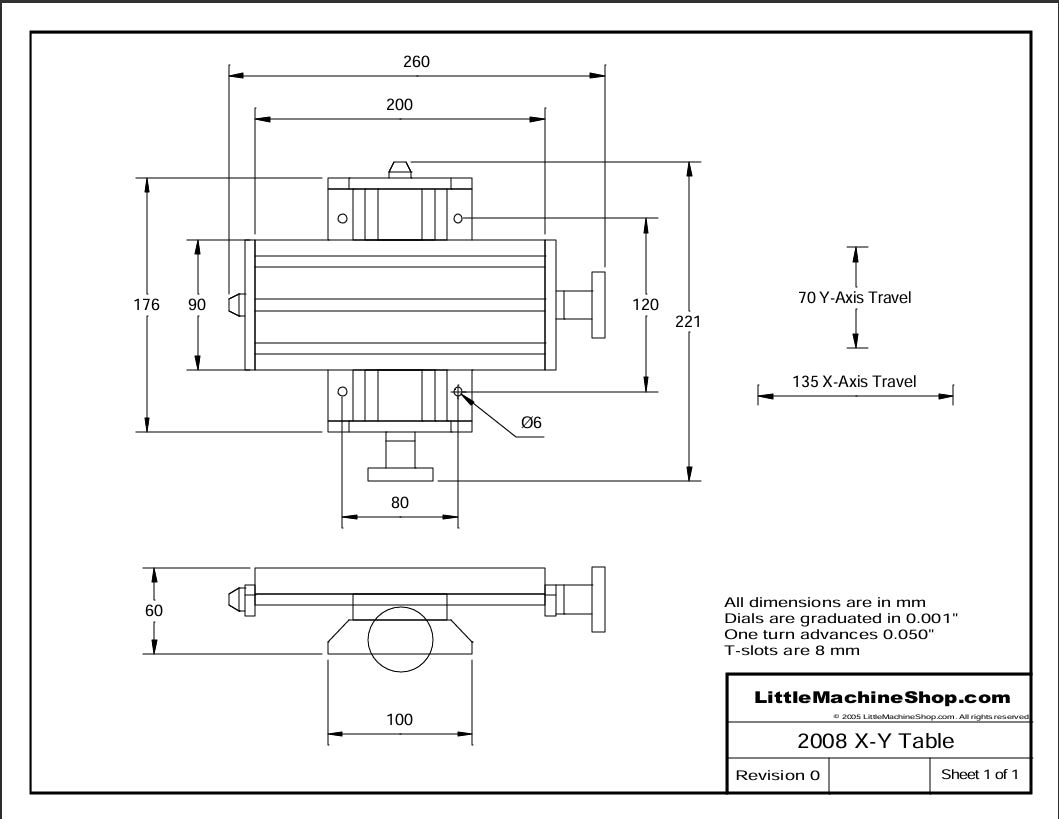

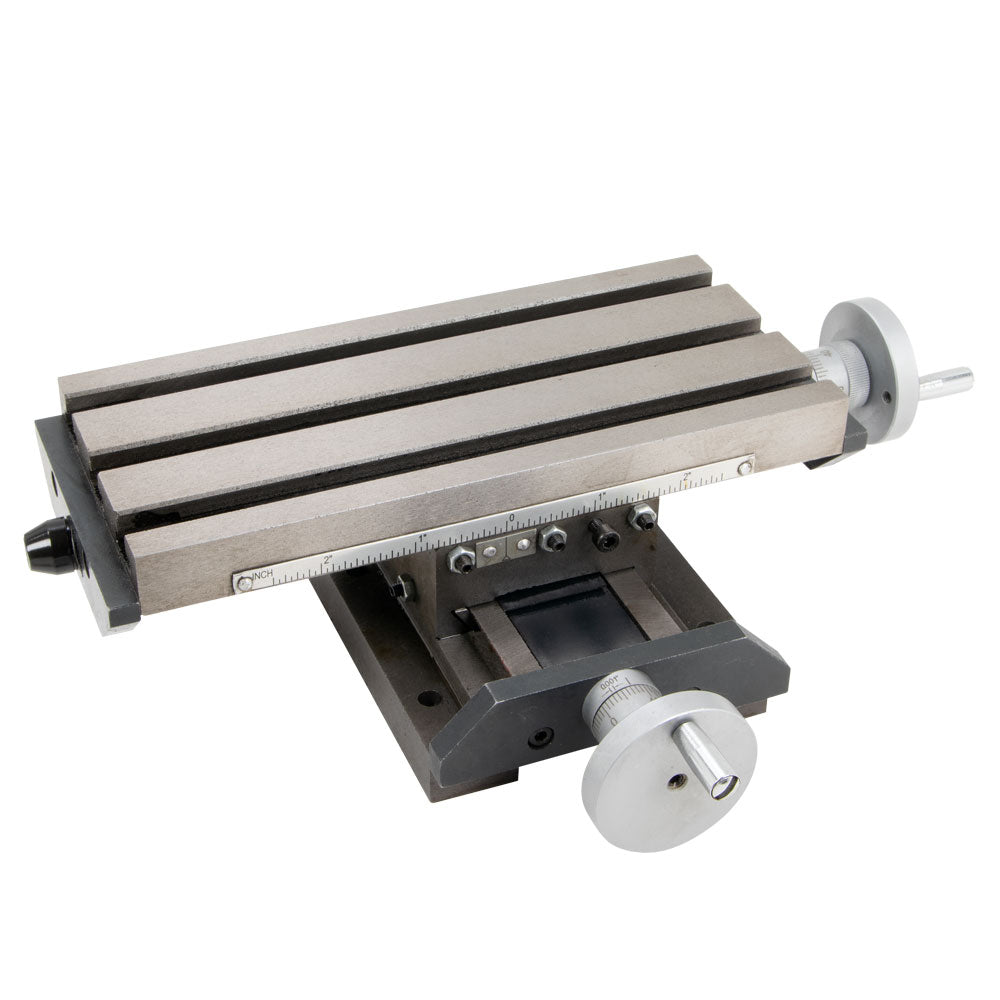

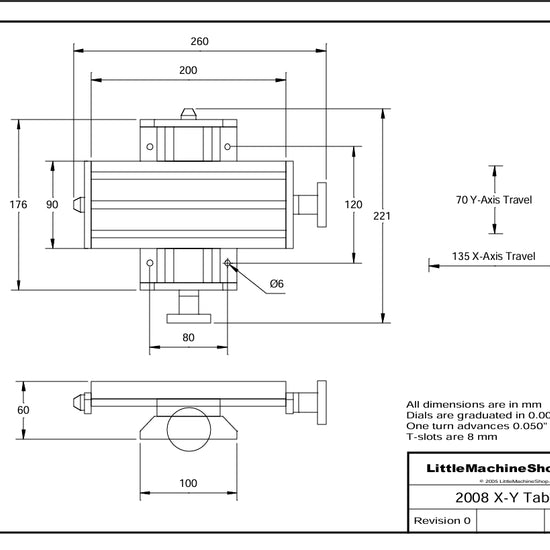

This small precision X-Y table can be used on a drill press or other machine to precisely locate your workpiece.
The table is 90 mm (3.54") by 200 mm (7.87"). It has three 8 mm T-slots.
The complete X-Y Table assembly is 10.5" wide, 9" deep and 2.9" high.
The X-axis travel is 135 mm (5.31") and the Y-axis travel is 70 mm (2.76").
The height of the table is 60 mm (2.36").
The base is 100 mm (3.94") by 175 mm (6.89").

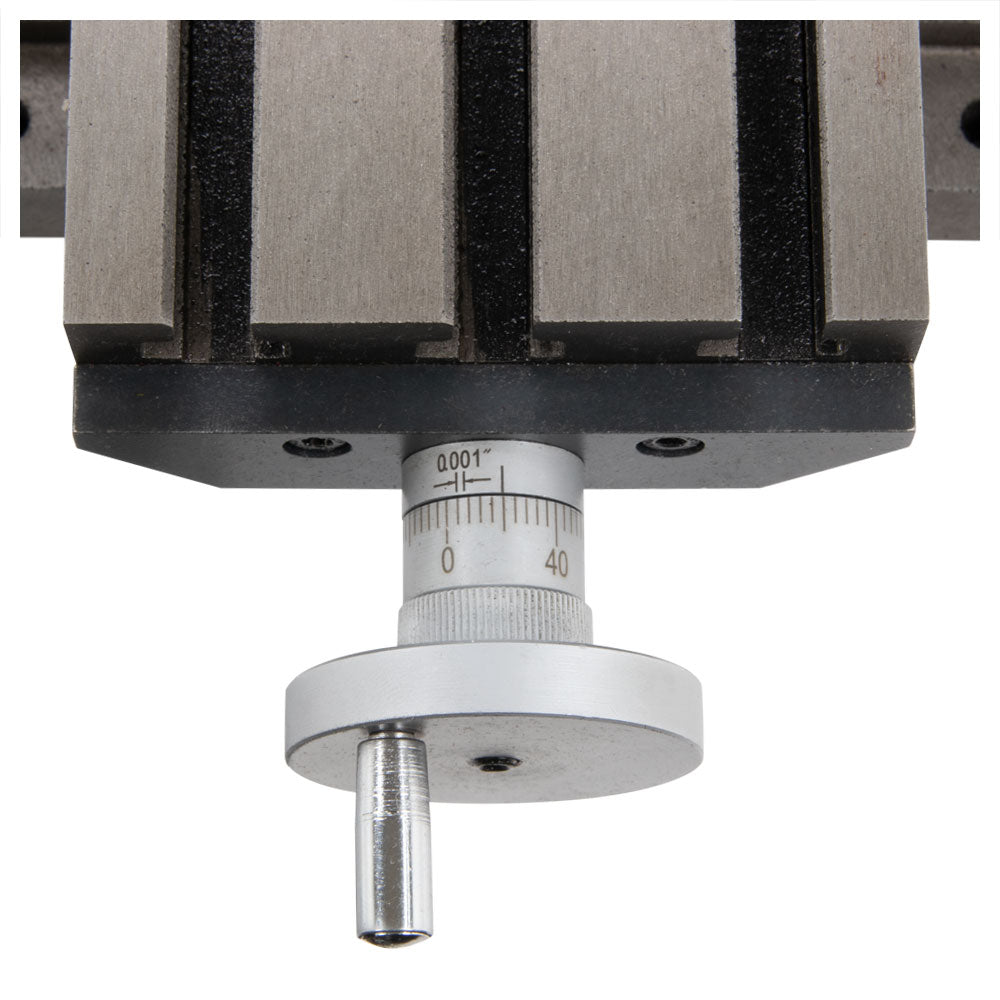

The dials are graduated in 0.001" and one turn of the hand wheels moves the table 0.050".
The X-Y table is made of cast iron and steel. There are adjustable gibs on both axes.
