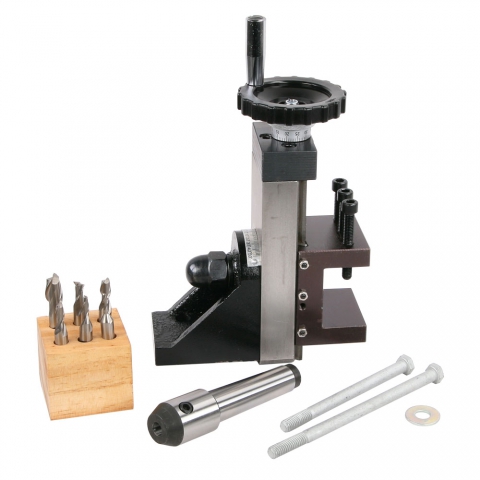

Milling Attachment Package, Mini Lathe

Milling attachment that bolts on to the mini lathe
Set of 6 two-flute end mills, 1/8" to 1/2" diameter
3/8" End mill holder and drawbar

Part Number: 3766
Weight: 14.1 lb

$284.95 Value Price

Purchased individually $313.40

This product is currently backordered.

Estimated availability:
21-Dec-2024
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

Share this page:
http://lmscnc.com/3766

Description

The milling attachment replaces the compound rest on the mini lathe.

The vise opening is 1.9". The width of the vise is 2.6" and the depth is 1.4".

The travel is 3.6". The dial is graduated in 0.025 mm (approximately 0.001") and there are 60 divisions, so the advance is 1.5 mm (0.059") per revolution.

This package includes drawbars for all mini lathes. For other lathes you will probably need to make a drawbar from 3/8-16 threaded rod.

Chris' Tips

Chris' Tips
This package gives you what you need to get started milling on a mini lathe.

Here is a drawing of an optional mounting block you can make that centers the milling attachment on the cross slide.

Here's a picture of the milling attachment on a mini lathe.

Contents

This product contains the following items:
	Description	Qty
	Cap Screw, 3/8-16x5, Hex Head, P/N 1869	1
	Cap Screw, 3/8-16x6.5, Hex Head, P/N 2223	1
	End Mill Holder, 3MT, 3/8", P/N 1632	1
	End Mill Set, 6 Piece 2 Flute, HSS, P/N 1242	1
	Milling Attachment, Mini Lathe, P/N 1681	1
	Washer, 3/8" Flat Hardened, P/N 1870	1

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:

3844 Tooling Plate, Milling Attachment

This product works with the following lathes. (If your machine is not on this list, we cannot verify compatibility.)

Enco 110-0803 Enco 7x10 Mini Lathe
Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
MSC 0192857 Enco 7x10 Mini Lathe
Bolton CQ9318 7x12 Mini Lathe
Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
Cummins (Tools Now) 5278 7x12 Mini Lathe
Eastwood 32497 7x12 Mini Lathe
Grizzly G8688 7x12 Mini Metal Lathe
Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
Northern Tool 49656 KLUTCH 7x12 Mini Lathe
Princess Auto 8507659 Powerfist 7x12 Mini Lathe
SIEG C2 7x12 Mini Lathe
Tormach 30689 7x12 Duality Lathe
Travers Tools OT222300 OTMT 7x12 Mini Lathe
Warco 3004 7x12 Mini Lathe (Metric)
Warco 3005 7x12 Mini Lathe (Imperial)
WEN 3455 WEN 7x12 Mini Lathe
Micro-Mark 82500 MicroLux 7x12 Mini Lathe
LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
SIEG SC2 7x12 Mini Lathe
Micro-Mark 82710 MicroLux 7x14 Mini Lathe
LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
SIEG C3 7x14 Mini Lathe
Big Dog BD-0618Ax300 7x14 Mini Lathe
Big Dog BD-0618x300 7x14 Mini Lathe
Warco 4800-350 7x14 Mini Lathe (Imperial)
Warco 4820-350 7x14 Mini Lathe (Metric)
Grizzly G0765 7x14 Mini Lathe
Micro-Mark 84631 MicroLux 7x16 Mini Lathe
LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
