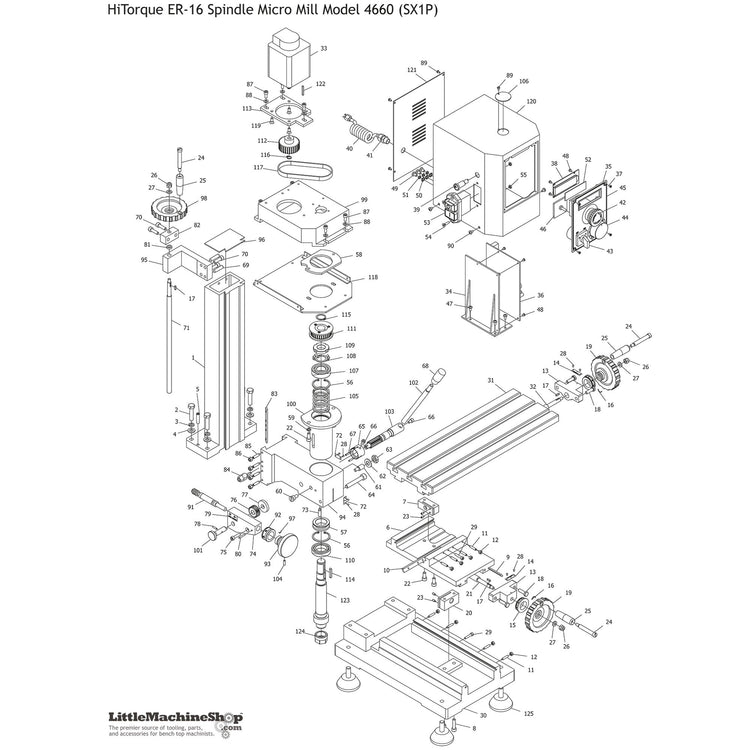

Collection: LittleMachineShop.com HiTorque 4660
Download Diagram
-
Product Sku1542
Cap Screw, M6x25, Socket Head
Regular price $0.55 USDRegular priceUnit price / perSale price $0.55 USDItem: 8
-
Product Sku4055
Switch, Power, HiTorque Mini Mills and Lathes
Regular price $14.95 USDRegular priceUnit price / perSale price $14.95 USDItem: 53
-
Product Sku1586
Washer, M8 Flat
Regular price $0.15 USDRegular priceUnit price / perSale price $0.15 USDItem: 4
-
Product Sku1346
Knob, 8 mm
Regular price $2.95 USDRegular priceUnit price / perSale price $2.95 USDItem: 68
-
Product Sku1541
Cap Screw, M6x20, Socket Head
Regular price $0.49 USDRegular priceUnit price / perSale price $0.49 USDItem: 70
-
Product Sku4481
Cap Screw, M8x35, Hex Head
Regular price $0.67 USDRegular priceUnit price / perSale price $0.67 USDItem: 2
-
Product Sku4482
Washer, M8 Lock
Regular price $0.25 USDRegular priceUnit price / perSale price $0.25 USDItem: 3
-
Product Sku4194
Nut, Hex Thin Chamfered M4
Regular price $0.35 USDRegular priceUnit price / perSale price $0.35 USDItem: 55
-
Product Sku3996
Potentiometer, Mini Mill & Mini Lathe
Regular price $29.95 USDRegular priceUnit price / perSale price $29.95 USDItem: 46
-
Product Sku3872
Screw, M3x6 Flat Head Phillips Machine
Regular price $0.25 USDRegular priceUnit price / perSale price $0.25 USDItem: 37
-
Product Sku2041
Switch, Forward-Off-Reverse, Micro Mill
Regular price $19.95 USDRegular priceUnit price / perSale price $19.95 USDItem: 43
-
Product Sku1909
Screw, M4x6 Pan Head Phillips Machine
Regular price $0.18 USDRegular priceUnit price / perSale price $0.18 USDItem: 90
-
Product Sku1581
Washer, M10 Flat
Regular price $0.19 USDRegular priceUnit price / perSale price $0.19 USDItem: 62
-
Product Sku1557
Screw, M4x8 Pan Head Phillips Machine
Regular price $0.18 USDRegular priceUnit price / perSale price $0.18 USDItem: 47
-
Product Sku1535
Cap Screw, M5x20, Socket Head
Regular price $0.53 USDRegular priceUnit price / perSale price $0.53 USDItem: 75
-
Product Sku1184
Retaining Ring, M8 External
Regular price $0.31 USDRegular priceUnit price / perSale price $0.31 USDItem: 116
-

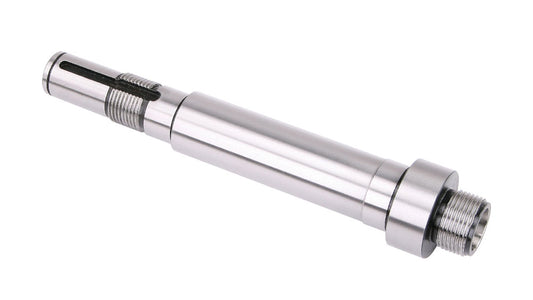

Product Sku5843
Spindle, Micro Mill, ER-16
Regular price $99.95 USDRegular priceUnit price / perSale price $99.95 USDItem: 0
-
Product Sku5637
Cable, Speed Control
Regular price $10.95 USDRegular priceUnit price / perSale price $10.95 USDItem: 0
-

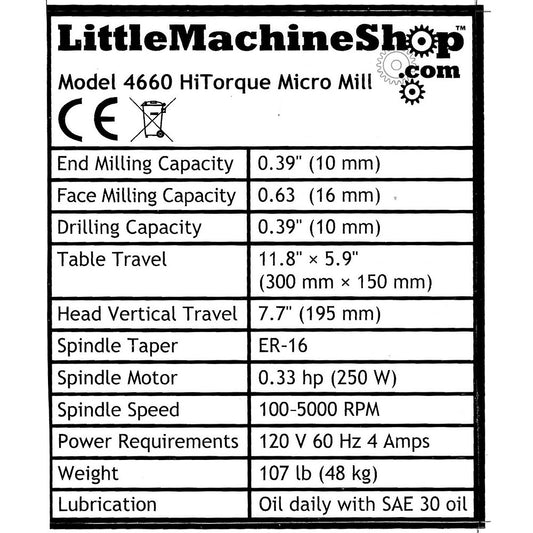

Product Sku4778
Label, HiTorque Micro Mill, ER-16 Spindle
Regular price $5.95 USDRegular priceUnit price / perSale price $5.95 USDItem: 0
-
Product Sku3330
Pin, M6x26, Tapered and Threaded
Regular price $0.95 USDRegular priceUnit price / perSale price $0.95 USDItem: 5 69
-
Product Sku5804
Set Screw, M4x12, Socket Cone Point
Regular price $0.95 USDRegular priceUnit price / perSale price $0.95 USDItem: 104
-
Product Sku5350
Bearing, 6004-2RS
Regular price $18.95 USDRegular priceUnit price / perSale price $18.95 USDItem: 107
-
Product Sku5225
Label, Zero
Regular price $0.95 USDRegular priceUnit price / perSale price $0.95 USDItem: 72
-
Product Sku4802
Motor, 250 Watt Brushless DC, Micro Mill
Regular price $299.95 USDRegular priceUnit price / perSale price $299.95 USDItem: 33
-
Product Sku4807
Emergency Stop Switch, Micro Mill
Regular price $19.79 USDRegular priceUnit price / perSale price $19.79 USDItem: 42
-
Product Sku
Motor Controller, HiTorque Micro Mill
Regular price $299.95 USDRegular priceUnit price / perSale price $299.95 USDItem: 36
Sold out -
Product Sku4810
Knob, Speed Control, Micro Mill
Regular price $3.63 USDRegular priceUnit price / perSale price $3.63 USDItem: 44
-
Product Sku4658
Belt, Timing Micro Mill
Regular price $9.95 USDRegular priceUnit price / perSale price $9.95 USDItem: 117
-
Product Sku2179
Plate, Z-Axis Fine Feed, Micro Mill
Regular price $13.35 USDRegular priceUnit price / perSale price $13.35 USDItem: 74
-
Product Sku3780
Set Screw, M4x8, Socket Dog Point
Regular price $0.22 USDRegular priceUnit price / perSale price $0.22 USDItem: 23
-
Product Sku3875
Screw, Spindle Sleeve Guide, HiTorque Micro Mill
Regular price $1.95 USDRegular priceUnit price / perSale price $1.95 USDItem: 61
-
Product Sku3516
Strain Relief, 12 mm
Regular price $0.95 USDRegular priceUnit price / perSale price $0.95 USDItem: 41
-
Product Sku2171
Support, Z-Axis Screw
Regular price $8.28 USDRegular priceUnit price / perSale price $8.28 USDItem: 82
-
Product Sku2719
Base, HiTorque Micro Mill
Regular price $89.95 USDRegular priceUnit price / perSale price $89.95 USDItem: 30
-
Product Sku2176
Washer, M6 Lock
Regular price $0.95 USDRegular priceUnit price / perSale price $0.95 USDItem: 59
-
Product Sku2178
Worm Shaft, Z-Axis Fine Feed
Regular price $16.92 USDRegular priceUnit price / perSale price $16.92 USDItem: 91
-
Product Sku2177
Gear, Worm Z-Axis 24 Teeth, Micro Mill
Regular price $8.35 USDRegular priceUnit price / perSale price $8.35 USDItem: 76
-
Product Sku2155
Shaft, Downfeed
Regular price $10.95 USDRegular priceUnit price / perSale price $10.95 USDItem: 103
-
Product Sku2150
Feed Screw, Z-Axis X1 Micro Mill
Regular price $10.95 USDRegular priceUnit price / perSale price $10.95 USDItem: 71
-
Product Sku2169
Spring, Quill
Regular price $3.25 USDRegular priceUnit price / perSale price $3.25 USDItem: 105
-
Product Sku2170
Support, Spindle Sleeve
Regular price $6.55 USDRegular priceUnit price / perSale price $6.55 USDItem: 58
-
Product Sku2163
Spacer, Z-Axis Fine Feed
Regular price $3.95 USDRegular priceUnit price / perSale price $3.95 USDItem: 77
-
Product Sku2167
Spring, Adjustable Dial, Micro Mill Fine Feed
Regular price $0.31 USDRegular priceUnit price / perSale price $0.31 USDItem: 97
-
Product Sku2166
Spring, Adjustable Dial, Micro Mill X-Y Axis
Regular price $0.34 USDRegular priceUnit price / perSale price $0.34 USDItem: 16
-
Product Sku2159
Graduated Scale, Z-Axis Quill Down Feed, Micro Mill
Regular price $8.28 USDRegular priceUnit price / perSale price $8.28 USDItem: 65
-
Product Sku2157
Shaft, Z-Axis Fine Feed, Micro Mill
Regular price $6.55 USDRegular priceUnit price / perSale price $6.55 USDItem: 101
-
Product Sku2151
Seat, Spring
Regular price $3.28 USDRegular priceUnit price / perSale price $3.28 USDItem: 57
-
Product Sku2148
Screw, Self-Tapping M2.9x6.5 Round Head Phillips
Regular price $0.28 USDRegular priceUnit price / perSale price $0.28 USDItem: 48
-
Product Sku2145
Bolt, Handwheel 6 mm
Regular price $3.14 USDRegular priceUnit price / perSale price $3.14 USDItem: 24
-
Product Sku2117
Pointer X- and Y-axis
Regular price $0.95 USDRegular priceUnit price / perSale price $0.95 USDItem: 14
-
Product Sku2139
Retaining Ring, M38 Internal
Regular price $0.68 USDRegular priceUnit price / perSale price $0.68 USDItem: 56
-
Product Sku2141
Screw, Spindle Sleeve Guide, Micro Mill
Regular price $3.15 USDRegular priceUnit price / perSale price $3.15 USDItem: 60
-
Product Sku2136
Retainer, X- and Y-Axis Screw, Micro Mill
Regular price $11.70 USDRegular priceUnit price / perSale price $11.70 USDItem: 13
-
Product Sku2134
Spring Pin, M3x12
Regular price $0.58 USDRegular priceUnit price / perSale price $0.58 USDItem: 67
-
Product Sku2132
Pin, M3x18
Regular price $0.59 USDRegular priceUnit price / perSale price $0.59 USDItem: 80
-
Product Sku2129
Nut, Z-Axis
Regular price $16.78 USDRegular priceUnit price / perSale price $16.78 USDItem: 95
-
Product Sku2128
Nut, X- and Y-Axis, Micro Mill
Regular price $18.23 USDRegular priceUnit price / perSale price $18.23 USDItem: 7
-
Product Sku2131
Key, 3x10 mm
Regular price $0.68 USDRegular priceUnit price / perSale price $0.68 USDItem: 17
-
Product Sku2127
Nut, Spindle M20x1.5
Regular price $4.13 USDRegular priceUnit price / perSale price $4.13 USDItem: 109
-
Product Sku2112
Key, 4x28 mm
Regular price $0.60 USDRegular priceUnit price / perSale price $0.60 USDItem: 114
-
Product Sku2115
Label, Normal/Fine Feed
Regular price $0.95 USDRegular priceUnit price / perSale price $0.95 USDItem: 79
-
Product Sku2104
Handle, Handwheel, Chrome
Regular price $4.95 USDRegular priceUnit price / perSale price $4.95 USDItem: 25
-
Product Sku2105
Locking Lever, M5
Regular price $9.95 USDRegular priceUnit price / perSale price $9.95 USDItem: 84
-
Product Sku2103
Handle, Downfeed
Regular price $4.91 USDRegular priceUnit price / perSale price $4.91 USDItem: 102
-
Sold outProduct SkuHandwheel, Micro Mill
Regular price $9.95 USDRegular priceUnit price / perSale price $9.95 USDItem: 19
Sold out -
Product Sku2100
Gib, X1 Micro Mill X-Axis, 120 mm
Regular price $4.06 USDRegular priceUnit price / perSale price $4.06 USDItem: 10
-
Product Sku2086
Graduated Dial, X- and Y-Axis, Micro Mill
Regular price $13.35 USDRegular priceUnit price / perSale price $13.35 USDItem: 15
-
Product Sku
Graduated Dial, Z-Axis Fine Feed, Micro Mill
Regular price $11.03 USDRegular priceUnit price / perSale price $11.03 USDItem: 92
Sold out -
Product Sku2099
Gib, X1 Micro Mill Spindle, 90 mm
Regular price $4.06 USDRegular priceUnit price / perSale price $4.06 USDItem: 83
-
Product Sku2083
Cover, Micro Mill Column
Regular price $0.68 USDRegular priceUnit price / perSale price $0.68 USDItem: 96
-
Product Sku2080
Cap Screw, M8x50, Socket Head
Regular price $1.50 USDRegular priceUnit price / perSale price $1.50 USDItem: 64
-
Product Sku2078
Cap Screw, M6x14, Socket Head
Regular price $0.56 USDRegular priceUnit price / perSale price $0.56 USDItem: 22
-
Product Sku2076
Cap Screw, M4x20, Socket Head
Regular price $0.50 USDRegular priceUnit price / perSale price $0.50 USDItem: 29
-
Product Sku2070
Arbor, Drill Chuck 2MT Drawbar (metric) to 2JT
Regular price $11.95 USDRegular priceUnit price / perSale price $11.95 USDItem: 127
-
Product Sku2072
Bearing, 6905-2RS
Regular price $20.85 USDRegular priceUnit price / perSale price $20.85 USDItem: 110
-
Product Sku1988
Rivet, M2x4
Regular price $0.95 USDRegular priceUnit price / perSale price $0.95 USDItem: 28
-
Product Sku1559
Screw, M5x8 Pan Head Phillips Machine
Regular price $0.24 USDRegular priceUnit price / perSale price $0.24 USDItem: 49
-
Product Sku1585
Washer, M6 Flat
Regular price $0.20 USDRegular priceUnit price / perSale price $0.20 USDItem: 27
-
Product Sku1532
Cap Screw, M5x12, Socket Head
Regular price $0.42 USDRegular priceUnit price / perSale price $0.42 USDItem: 87
-
Product Sku1518
Knob, Z-Axis Fine Feed, Mini Mill
Regular price $21.76 USDRegular priceUnit price / perSale price $21.76 USDItem: 93
-
Product Sku1538
Cap Screw, M5x8, Socket Head
Regular price $0.49 USDRegular priceUnit price / perSale price $0.49 USDItem: 66
-
Product Sku1513
Pin, M3x12
Regular price $0.83 USDRegular priceUnit price / perSale price $0.83 USDItem: 78
-
Product Sku1415
Screw, M4x16 Flat Head Phillips Machine
Regular price $0.29 USDRegular priceUnit price / perSale price $0.29 USDItem: 54
-
Product Sku1333
Fuse Holder
Regular price $2.95 USDRegular priceUnit price / perSale price $2.95 USDItem: 39
