Collection: SIEG SX2

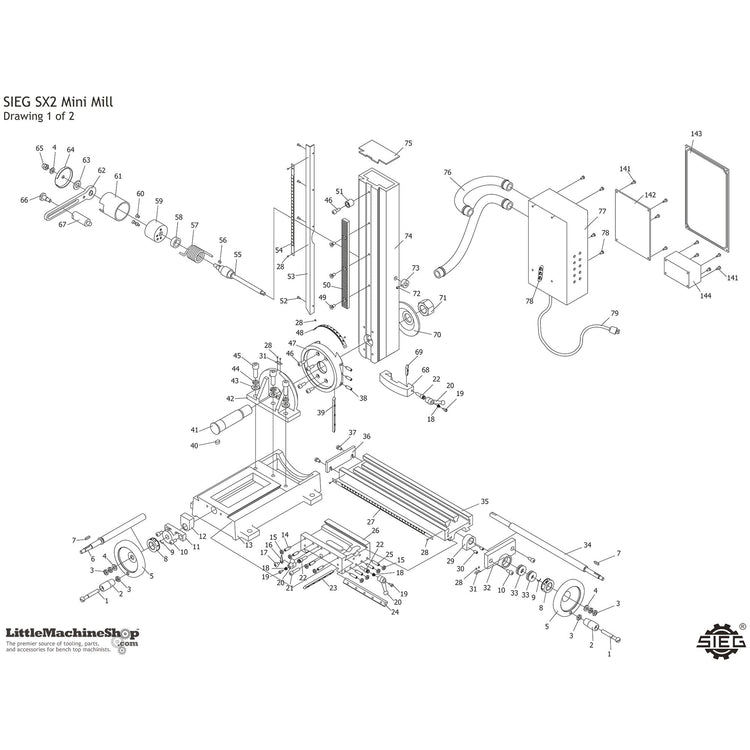

Download Diagram
-
Product Sku1542
Cap Screw, M6x25, Socket Head
Regular price $0.55 USDRegular priceUnit price / perItem: 21
-
Product Sku4055
Switch, Power, HiTorque Mini Mills and Lathes
Regular price $14.95 USDRegular priceUnit price / perItem: 150
-
Product Sku1586
Washer, M8 Flat
Regular price $0.15 USDRegular priceUnit price / perItem: 4
-
Product Sku1346
Knob, 8 mm
Regular price $2.95 USDRegular priceUnit price / perItem: 123
-
Product Sku1376
Key, 4x8 mm
Regular price $0.95 USDRegular priceUnit price / perItem: 56
-
Product Sku1219
Bearing, 6206-2RS
Regular price $22.95 USDRegular priceUnit price / perItem: 83a
-
Product Sku1638
Drawbar, R8 1-Piece, Mini Mill
Regular price $17.95 USDRegular priceUnit price / perItem: 93
-
Product Sku1182
Retaining Ring, M12 External
Regular price $0.29 USDRegular priceUnit price / perItem: 124
-
Product Sku3996
Potentiometer, Mini Mill & Mini Lathe
Regular price $29.95 USDRegular priceUnit price / perItem: 145
-
Product Sku3995
Motor Controller, Mini Mill and Mini Lathe
Regular price $399.95 USDRegular priceUnit price / perItem: 142
-
Product Sku1676
Arbor, Drill Chuck R8 to 33JT
Regular price $11.95 USDRegular priceUnit price / perItem: 80
-
Product Sku1565
Screw, M8x55 Fillister Head Slotted Machine
Regular price $1.04 USDRegular priceUnit price / perItem: 1
-
Product Sku1540
Cap Screw, M6x16, Socket Head
Regular price $0.66 USDRegular priceUnit price / perItem: 46
-
Product Sku1338
Spring, 5 mm x 10 mm
Regular price $0.95 USDRegular priceUnit price / perItem: 119
-
Product Sku
Cover, Spindle Bearing, Mini Lathe and Mini Mill
Regular price $2.95 USDRegular priceUnit price / perItem: 82
Sold out -
Product Sku4038
Gib, HiTorque Mini Mill X-Axis, 150mm
Regular price $4.12 USDRegular priceUnit price / perItem: 24
-
Product Sku4037
Gib, Mini Mill Y-Axis, 120 mm
Regular price $4.12 USDRegular priceUnit price / perItem: 23
-
Product Sku4020
Chip Shield, Spindle
Regular price $4.95 USDRegular priceUnit price / perItem: 86
-
Product Sku2192
Lamp, Small Green
Regular price $3.95 USDRegular priceUnit price / perItem: 146
-
Product Sku1909
Screw, M4x6 Pan Head Phillips Machine
Regular price $0.18 USDRegular priceUnit price / perItem: 128
-
Product Sku1656
Bushing, Drawbar
Regular price $5.95 USDRegular priceUnit price / perItem: 91
-
Product Sku1646
Bearing, Thrust 51200
Regular price $8.09 USDRegular priceUnit price / perItem: 33
-
Product Sku1581
Washer, M10 Flat
Regular price $0.19 USDRegular priceUnit price / perItem: 43
-
Product Sku1573
Set Screw, M6x10, Socket Flat Point
Regular price $0.53 USDRegular priceUnit price / perItem: 30
-
Product Sku1563
Screw, M6x12 Flat Socket Head Machine
Regular price $0.29 USDRegular priceUnit price / perItem: 49
-
Product Sku1557
Screw, M4x8 Pan Head Phillips Machine
Regular price $0.18 USDRegular priceUnit price / perItem: 141
-
Product Sku1539
Cap Screw, M6x12, Socket Head
Regular price $0.49 USDRegular priceUnit price / perItem: 10
-
Product Sku1535
Cap Screw, M5x20, Socket Head
Regular price $0.53 USDRegular priceUnit price / perItem: 126
-
Product Sku1484
Label, Position Indicator
Regular price $1.95 USDRegular priceUnit price / perItem: 16
-
Product Sku1483
Graduated Dial, 62.5 Divisions, Mini Mill
Regular price $11.95 USDRegular priceUnit price / perItem: 8
-
Product Sku1477
Locking Lever, M6
Regular price $4.17 USDRegular priceUnit price / perItem: 109
-
Product Sku1464
Scale, X-Axis, Mini Mill
Regular price $4.08 USDRegular priceUnit price / perItem: 27
-
Product Sku1443
Cover, Drawbar, Mini Mill
Regular price $4.90 USDRegular priceUnit price / perItem: 94
-
Sold outProduct SkuBearing, 6007-2RS
Regular price $24.95 USDRegular priceUnit price / perItem: 83b
Sold out -
Product Sku1208
Spring, Adjustable Dial, Mini Mill
Regular price $0.40 USDRegular priceUnit price / perItem: 139
-
Product Sku1871
Washer, M12 Flat
Regular price $0.49 USDRegular priceUnit price / perItem: 63
-
Product Sku1582
Washer, M10 Lock
Regular price $0.16 USDRegular priceUnit price / perItem: 44
-
Product Sku1527
Cap Screw, M10x30, Socket Head
Regular price $1.67 USDRegular priceUnit price / perItem: 45
-
Product Sku1488
Handwheel, Mini Mill
Regular price $24.95 USDRegular priceUnit price / perItem: 5
-
Product Sku1482
Key, 8x12 mm
Regular price $0.84 USDRegular priceUnit price / perItem: 40
-
Product Sku1470
Table, Mini Mill
Regular price $99.95 USDRegular priceUnit price / perItem: 35
-
Product Sku5639
Cable, Speed Control, HiTorque Mini Mill
Regular price $13.51 USDRegular priceUnit price / perItem: 0
-
Product Sku1381
Handle Set, Handwheel, Mini Mill
Regular price $8.44 USDRegular priceUnit price / perItem: 2
-
Product Sku4196
Cap Screw, M6x10 Hex Socket Button Head
Regular price $0.95 USDRegular priceUnit price / perItem: 37
-
Product Sku4167
Screw, M3x8 Flat Head Phillips Machine
Regular price $0.45 USDRegular priceUnit price / perItem: 52
-
Product Sku4146
Cover, Control Box
Regular price $4.99 USDRegular priceUnit price / perItem: 148
-
Product Sku4144
Motor, 500 Watt Brushless DC, Mini Mill
Regular price $499.95 USDRegular priceUnit price / perItem: 95
-
Product Sku4032
Feed Screw, X-Axis 16 TPI
Regular price $19.95 USDRegular priceUnit price / perItem: 34
-
Product Sku4023
Cover, Motor Control Box
Regular price $5.05 USDRegular priceUnit price / perItem: 143
-
Product Sku4022
Box, Controls, Mini Mill
Regular price $11.95 USDRegular priceUnit price / perItem: 88
-
Product Sku4021
Box, Motor Control, HiTorque Mini Mill
Regular price $16.89 USDRegular priceUnit price / perItem: 77
-
Product Sku4018
Bracket, Scale
Regular price $3.95 USDRegular priceUnit price / perItem: 53
-
Product Sku4017
Washer, Motor Shaft
Regular price $1.29 USDRegular priceUnit price / perItem: 98
-
Product Sku4016
Pulley, Timing, Motor, HiTorque Mini Mill
Regular price $21.84 USDRegular priceUnit price / perItem: 97
-
Product Sku4015
Belt, Timing SX2 Mini Mills
Regular price $12.83 USDRegular priceUnit price / perItem: 99
-
Product Sku4014
Pulley, Timing, Spindle, HiTorque Mini Mill
Regular price $26.95 USDRegular priceUnit price / perItem: 90
-
Product Sku4013
Plate, Motor Adjusting
Regular price $13.98 USDRegular priceUnit price / perItem: 101
-
Product Sku4012
Bracket, Motor Mounting, HiTorque Mini Mill
Regular price $2.95 USDRegular priceUnit price / perItem: 102
-
Product Sku4011
Spindle, R8 HiTorque Mini Mill
Regular price $59.95 USDRegular priceUnit price / perItem: 84
-
Product Sku4010
Housing, HiTorque Mini Mill Spindle
Regular price $89.95 USDRegular priceUnit price / perItem: 103
-
Sold outProduct SkuPower Cord with Plug
Regular price $9.95 USDRegular priceUnit price / perItem: 76
Sold out -
Product Sku2263
Cap Screw, M8x80, Socket Head
Regular price $1.73 USDRegular priceUnit price / perItem: 108
-
Product Sku1988
Rivet, M2x4
Regular price $0.95 USDRegular priceUnit price / perItem: 28
-
Product Sku1578
Set Screw, M6x8, Socket Flat Point
Regular price $0.45 USDRegular priceUnit price / perItem: 120
-
Product Sku1564
Screw, M6x8 Round Head Phillips Machine
Regular price $0.24 USDRegular priceUnit price / perItem: 17
-
Product Sku1559
Screw, M5x8 Pan Head Phillips Machine
Regular price $0.24 USDRegular priceUnit price / perItem: 89
-
Product Sku1536
Cap Screw, M5x25, Socket Head
Regular price $0.99 USDRegular priceUnit price / perItem: 134
-
Product Sku1533
Cap Screw, M5x16, Socket Head
Regular price $0.49 USDRegular priceUnit price / perItem: 87
-
Product Sku1520
Cover, Z-Axis Fine Feed
Regular price $2.95 USDRegular priceUnit price / perItem: 127
-
Product Sku1519
Shaft, Z-Axis Fine Feed Universal
Regular price $13.37 USDRegular priceUnit price / perItem: 133
-
Product Sku1518
Knob, Z-Axis Fine Feed, Mini Mill
Regular price $21.76 USDRegular priceUnit price / perItem: 138
-
Product Sku1517
Graduated Dial, Z-Axis Fine Feed, Mini Mill
Regular price $13.27 USDRegular priceUnit price / perItem: 136
-
Product Sku1516
Bracket, Z-Axis Fine Feed
Regular price $5.95 USDRegular priceUnit price / perItem: 135
-
Product Sku1515
Universal Joint, Z-Axis Fine Feed
Regular price $8.33 USDRegular priceUnit price / perItem: 132
-
Product Sku1513
Pin, M3x12
Regular price $0.83 USDRegular priceUnit price / perItem: 131
-
Product Sku1512
Shaft, Z-Axis Fine Feed, Mini Mill
Regular price $11.95 USDRegular priceUnit price / perItem: 129
-
Product Sku1511
Worm, Z-Axis Fine Feed, Mini Mill
Regular price $10.95 USDRegular priceUnit price / perItem: 113
-
Product Sku1510
Pin, M4x15
Regular price $0.60 USDRegular priceUnit price / perItem: 118
-
Product Sku1509
Housing, Z-Axis Fine Feed
Regular price $24.95 USDRegular priceUnit price / perItem: 117
-
Product Sku1501
Scale, Z-Axis, Mini Mill
Regular price $5.47 USDRegular priceUnit price / perItem: 54
-
Product Sku1500
Gib, Mini Mill Z-Axis Stop, 22 mm
Regular price $4.07 USDRegular priceUnit price / perItem: 69
-
Product Sku1499
Stop, Z-Axis
Regular price $19.95 USDRegular priceUnit price / perItem: 68
-
Sold outProduct SkuMount, Spindle Housing
Regular price $53.95 USDRegular priceUnit price / perItem: 106
Sold out -
Product Sku1497
Pointer, Z-Axis
Regular price $3.24 USDRegular priceUnit price / perItem: 105
-
Product Sku1495
Lever, Z-Axis Coarse Feed
Regular price $5.42 USDRegular priceUnit price / perItem: 122
-
Product Sku1494
Pivot, Z-Axis Coarse Feed
Regular price $26.95 USDRegular priceUnit price / perItem: 125
-
Product Sku1491
Gear, Worm 29 Teeth, Mini Mill
Regular price $18.95 USDRegular priceUnit price / perItem: 116
-
Product Sku1489
Pinion, Z-Axis
Regular price $15.16 USDRegular priceUnit price / perItem: 115
-
Product Sku1485
Scale, Column Angle, Mini Mill
Regular price $4.07 USDRegular priceUnit price / perItem: 48
-
Product Sku1476
Retainer, Y-Axis Screw
Regular price $25.95 USDRegular priceUnit price / perItem: 11
-
Product Sku1473
Key, 4x16 mm
Regular price $0.60 USDRegular priceUnit price / perItem: 7
-
Product Sku1461
Nut, M8 Acorn
Regular price $1.17 USDRegular priceUnit price / perItem: 65
-
Product Sku1445
Lamp, Yellow
Regular price $4.95 USDRegular priceUnit price / perItem: 147
-
Sold outProduct SkuNut, Spindle M27x1.5 Left Hand
Regular price $7.95 USDRegular priceUnit price / perItem: 92
Sold out -
Product Sku1415
Screw, M4x16 Flat Head Phillips Machine
Regular price $0.29 USDRegular priceUnit price / perItem: 149
-
Product Sku1398
Key, 5x20 mm
Regular price $0.71 USDRegular priceUnit price / perItem: 96
-
Product Sku1337
Ball, Steel, 5 mm
Regular price $0.95 USDRegular priceUnit price / perItem: 121
-
Product Sku1333
Fuse Holder
Regular price $2.95 USDRegular priceUnit price / perItem: 151
-
Product Sku1124
Gib, Mini Mill Spindle, 140 mm
Regular price $4.07 USDRegular priceUnit price / perItem: 107
-
Product Sku1121
Nut, Y-Axis Feed 16 TPI
Regular price $26.95 USDRegular priceUnit price / perItem: 12
-
Product Sku1118
Nut, X-Axis Feed 16 TPI
Regular price $29.95 USDRegular priceUnit price / perItem: 29
-
Product Sku1506
Column Pivot
Regular price $24.95 USDRegular priceUnit price / perItem: 47
-
Product Sku1505
Washer, Column Pivot
Regular price $8.21 USDRegular priceUnit price / perItem: 70
-
Product Sku1481
Shaft, Column Pivot
Regular price $3.95 USDRegular priceUnit price / perItem: 41
-
Product Sku1480
Brace, Column X2/SX2 Mini Mill
Regular price $27.95 USDRegular priceUnit price / perItem: 42
-
Product Sku1479
Saddle, Mini Mill
Regular price $55.95 USDRegular priceUnit price / perItem: 26
-
Product Sku1467
Cover Plate, Torsion Spring Assembly
Regular price $3.24 USDRegular priceUnit price / perItem: 64
-
Product Sku1471
Feed Screw, Y-Axis 16 TPI
Regular price $19.95 USDRegular priceUnit price / perItem: 6
-
Product Sku1469
Retainer, X-Axis Bearing, Mini Mill
Regular price $11.95 USDRegular priceUnit price / perItem: 32
-
Product Sku1472
Cover, Table End
Regular price $4.96 USDRegular priceUnit price / perItem: 36
-
Product Sku1468
Cover, Mini Mill Column
Regular price $9.95 USDRegular priceUnit price / perItem: 75
-
Product Sku1460
Cover, Torsion Spring
Regular price $8.43 USDRegular priceUnit price / perItem: 61
-
Product Sku1463
Arm, Torsion Spring
Regular price $13.50 USDRegular priceUnit price / perItem: 62
-
Product Sku1462
Support, Torsion Spring
Regular price $8.43 USDRegular priceUnit price / perItem: 67
-
Product Sku1458
Retainer, Torsion Spring
Regular price $15.27 USDRegular priceUnit price / perItem: 59
-
Sold outProduct SkuSet Collar
Regular price $14.95 USDRegular priceUnit price / perItem: 58
Sold out -
Product Sku1456
Shaft, Torsion Spring
Regular price $21.99 USDRegular priceUnit price / perItem: 55
-
Product Sku1425
Stop, Head Travel
Regular price $0.95 USDRegular priceUnit price / perItem: 51
-
Product Sku1122
Gib, Mini Mill Base, 100 mm
Regular price $4.06 USDRegular priceUnit price / perItem: 39
