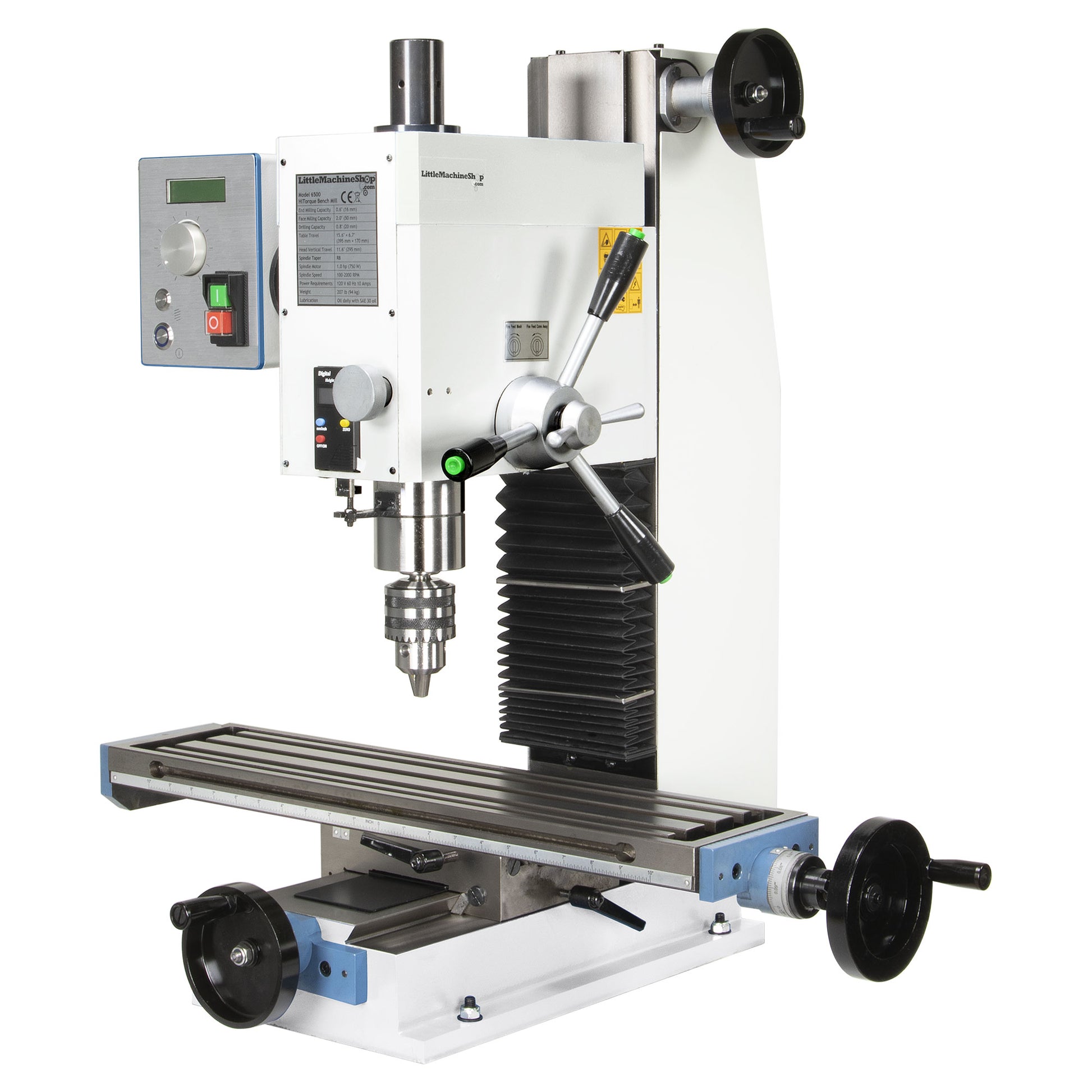

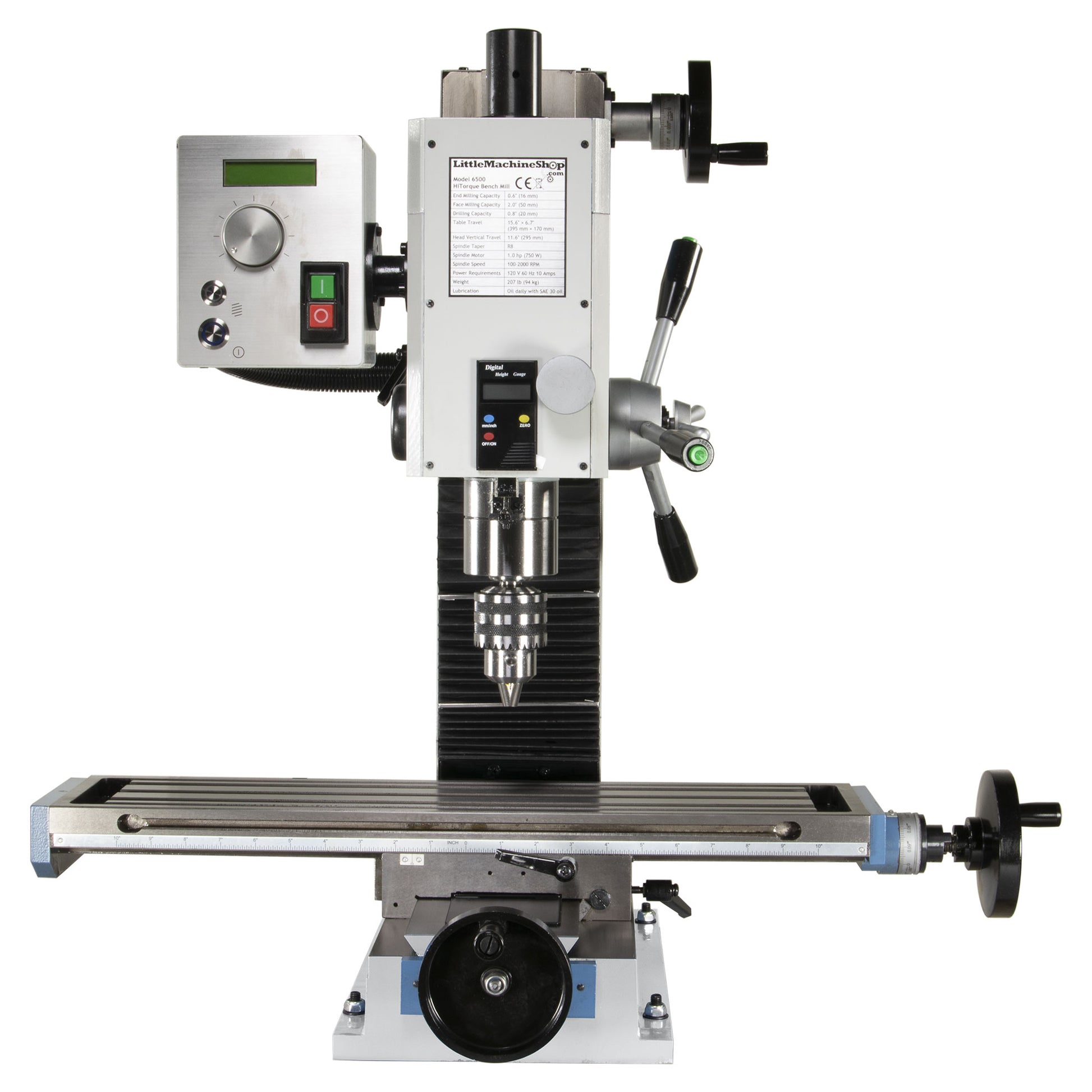

HiTorque 6500 Bench Mill (Long Table)

The LittleMachineShop.com HITorque Bench Mill 6500 provides a larger table, more travel, more horsepower, and more rigidity than other brand mills in its size class.

The 6500 is a middleweight in our mill lineup. A significant step up in size, rigidity, and power compared to a mini mill. Weighing in at a little over 250 lbs., these mills can be placed on a bench with the help of some friends and their base dimensions of 9.1" x 16.1" will fit on most benches.

A 750-Watt (1 hp) brushless DC motor provides abundant spindle power and tremendous low-end torque. The drive allows for spindle speeds from 100 to 2500 RPM continuously in both forward and reverse. A belt drive from motor to spindle eliminates any failure from gears breaking. NSK quality spindle bearings ensure years of quiet operation.

The combination of a large table (27.5" x 6.25") and extensive travel along X, Y, Z-axis (19.7", 5.7", 11.6") provides a large work envelope. Precision ground ways ensure smooth and accurate movement. Adjustable gibs are on all dovetail ways. A fine feed knob on the Z-axis provides for precise control.

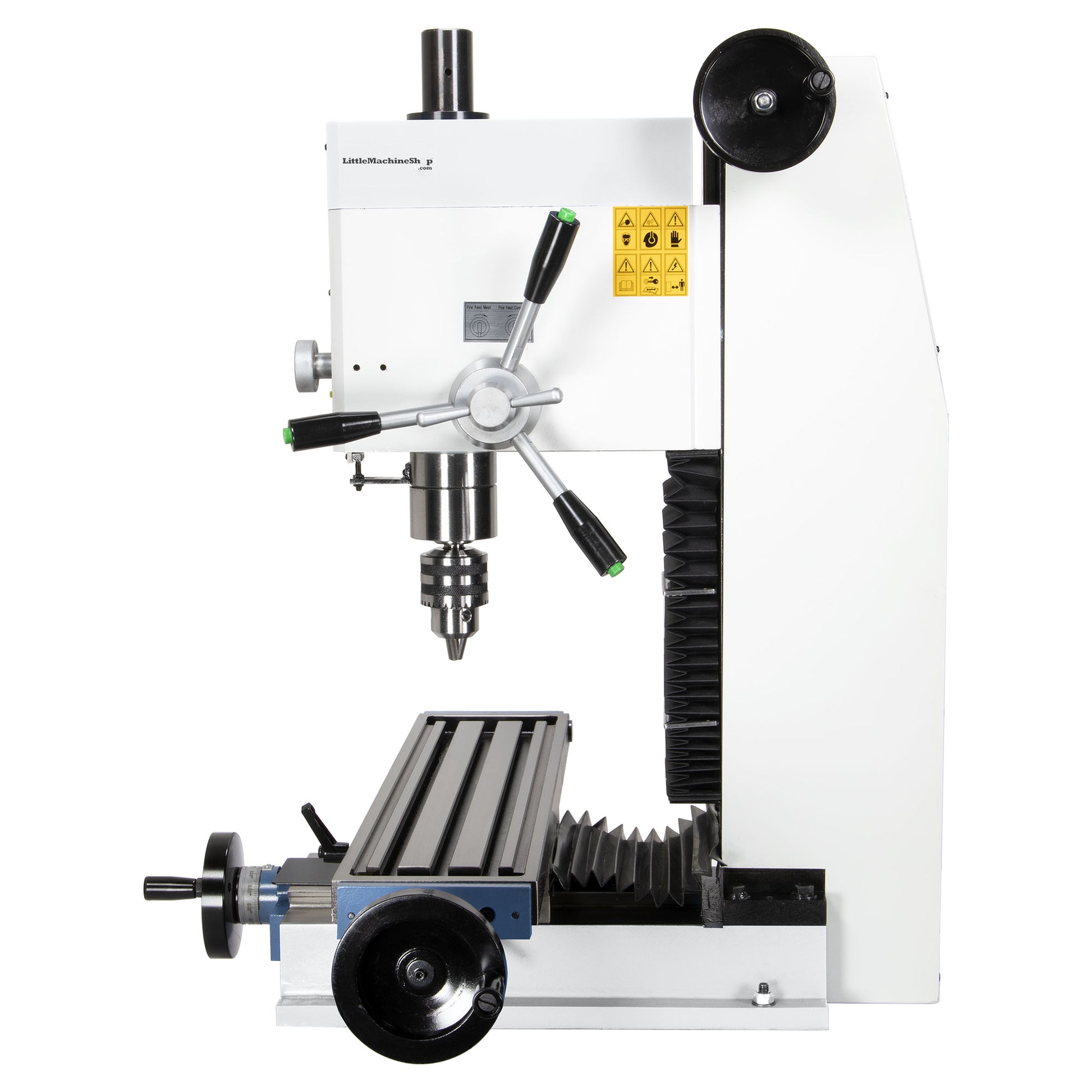

The mill has an R8 spindle for wide tool availability. A true quill and drill press-style handles make for easy drilling. Tapping-mode is another standard feature with a button on the end of each handle allowing you to reverse the spindle to make tapping easy.

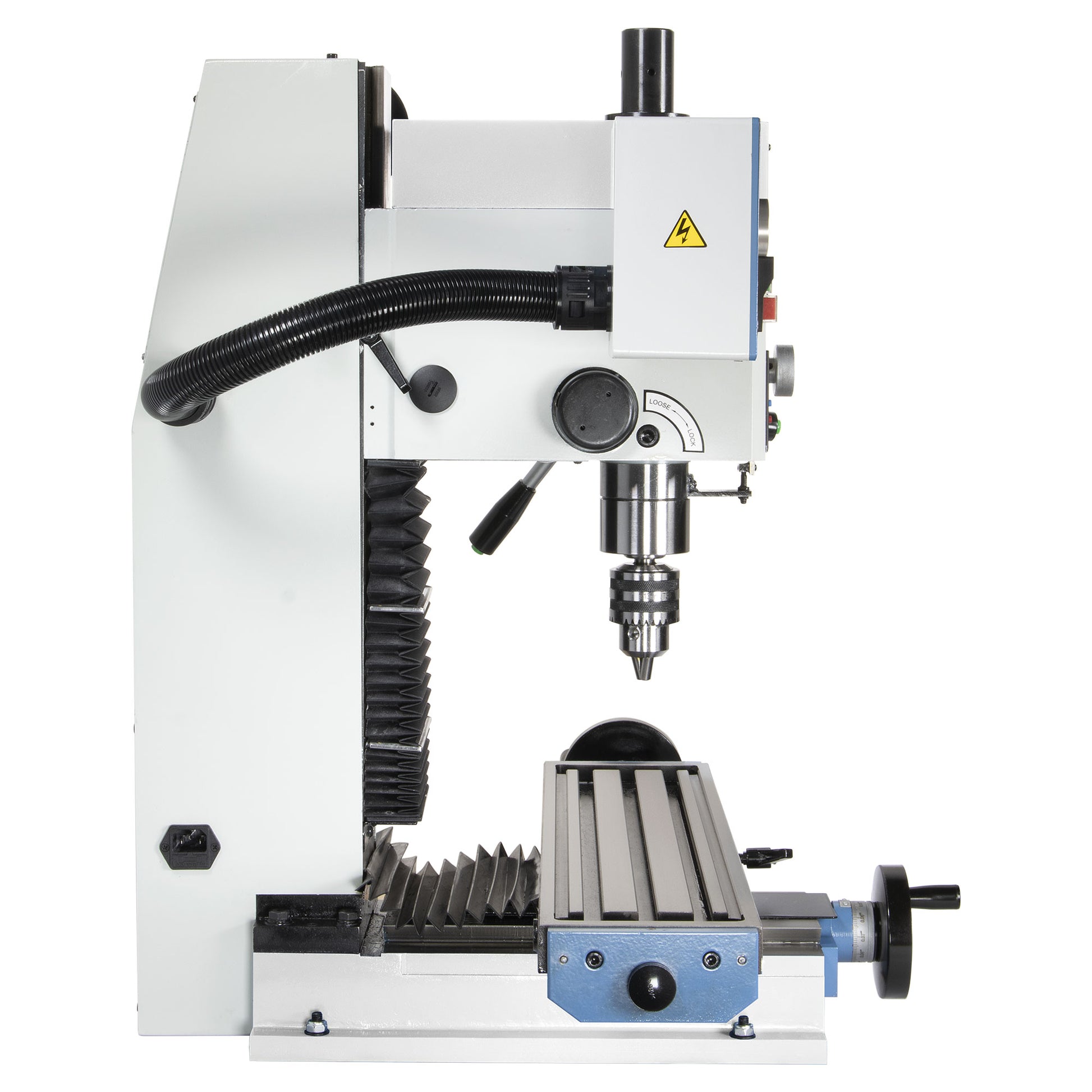

The mill has a solid (No-Tilt) head and rigid rectangular dovetail column which maintains head alignment (tram) at any height, ensuring years of rigid and "true" milling.

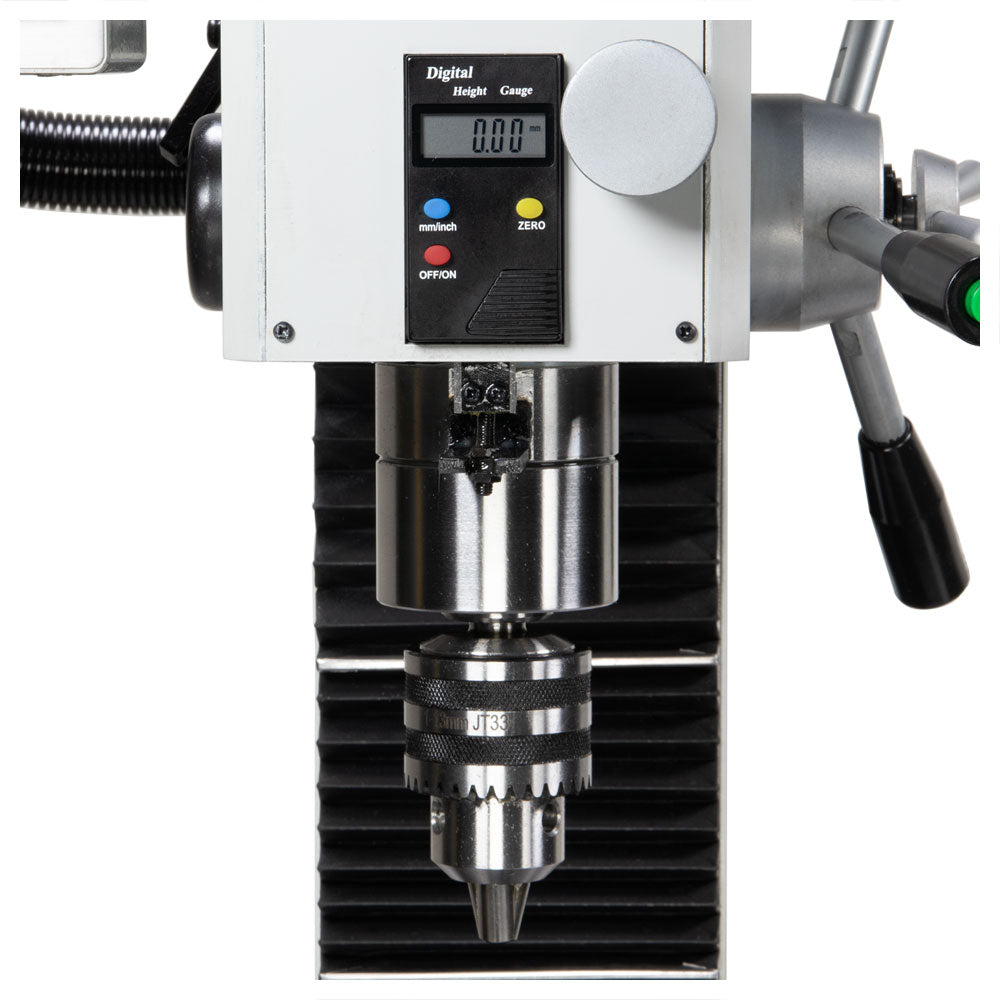

A digital spindle speed display and a separate digital depth gauge for the quill which reads in inches and mm. You can automatically resume running at the last-used spindle speed. Spindle fine feed and position lock are also standard.

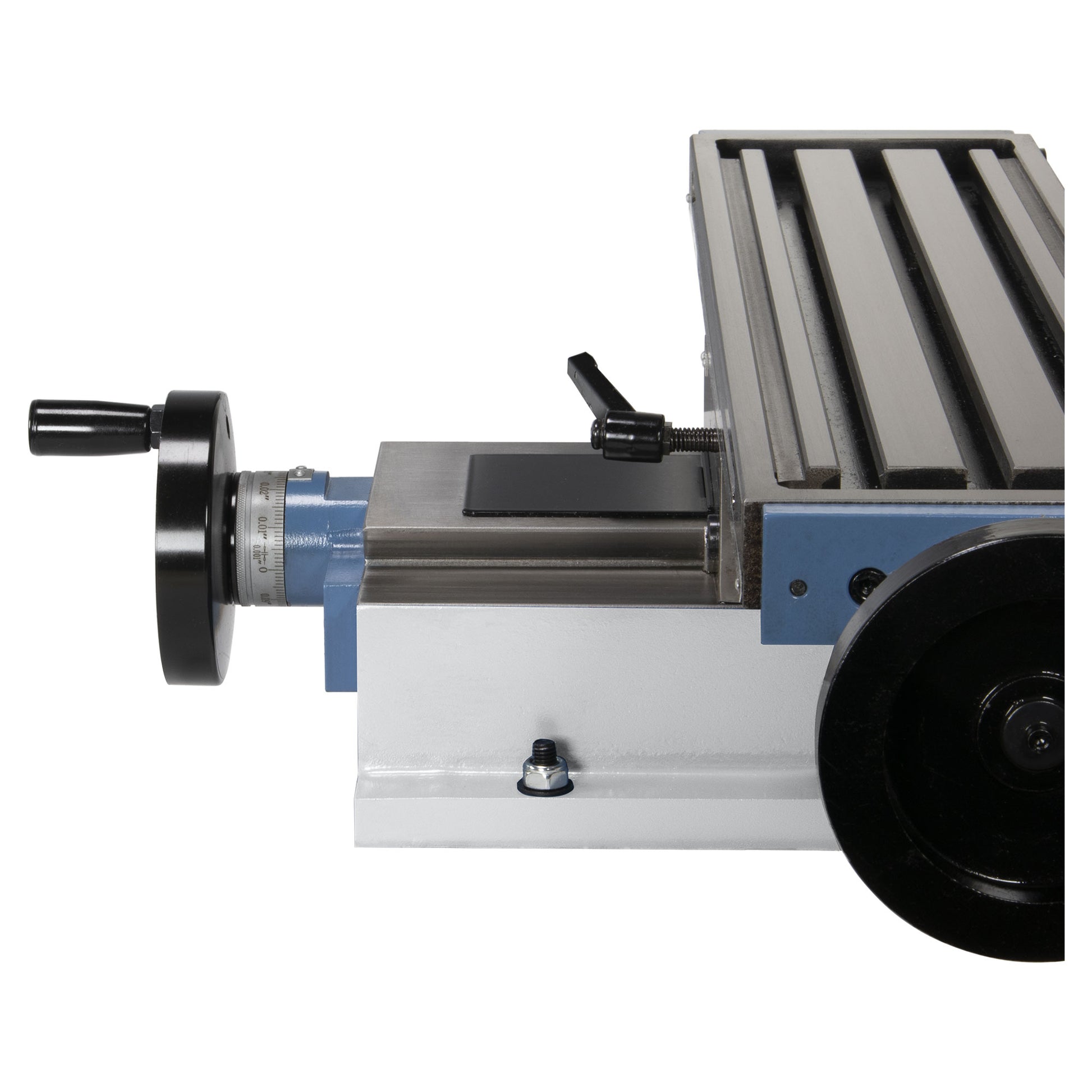

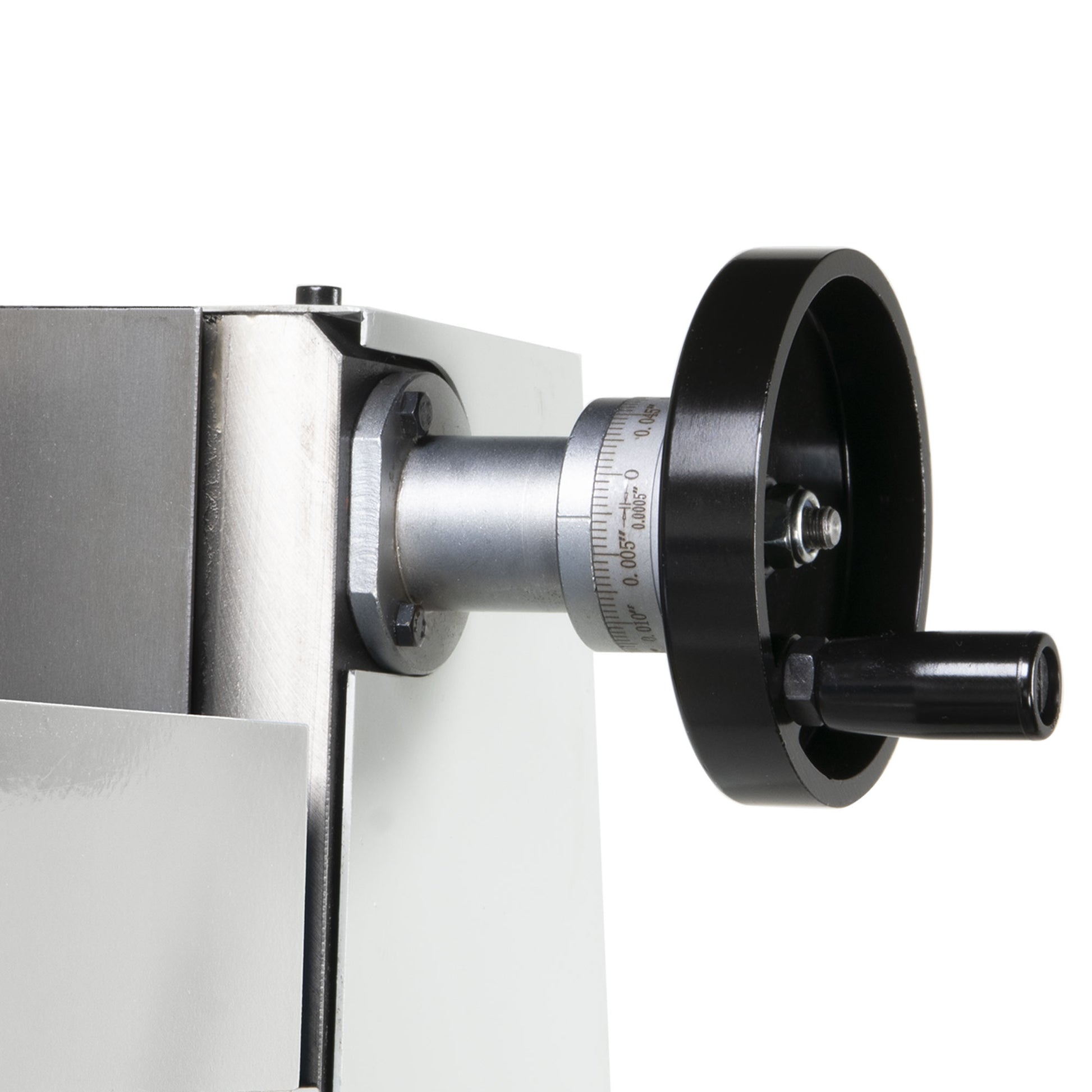

Large handwheels on the X and Y axes and 10 TPI lead screws (accurate to 0.001") provide accurate readings. Ball thrust bearings on feed screws ensure smooth movement.

At LittleMachineShop.com, we stand behind every machine we sell! If it’s not right, we’ll make it right and we have the in-house technicians and replacement parts in our U.S. warehouse to back it up.

The LittleMachineShop.com exclusive version of this machine features:

• 750 Watt (1 hp) brushless DC spindle drive
• R8 Spindle for wide tool availability
• NSK brand Japanese bearings
• No gears in spindle drive

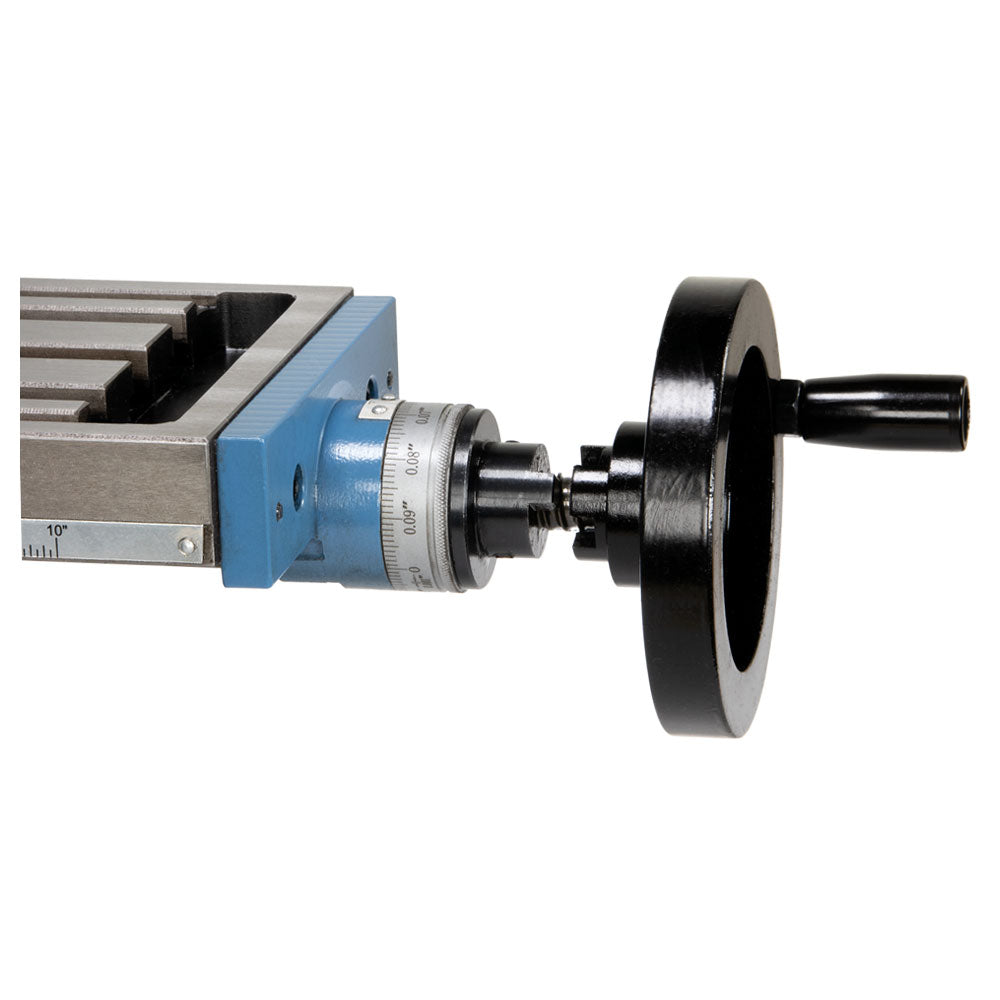

• 0.001" Graduated dials, 0.100" per turn

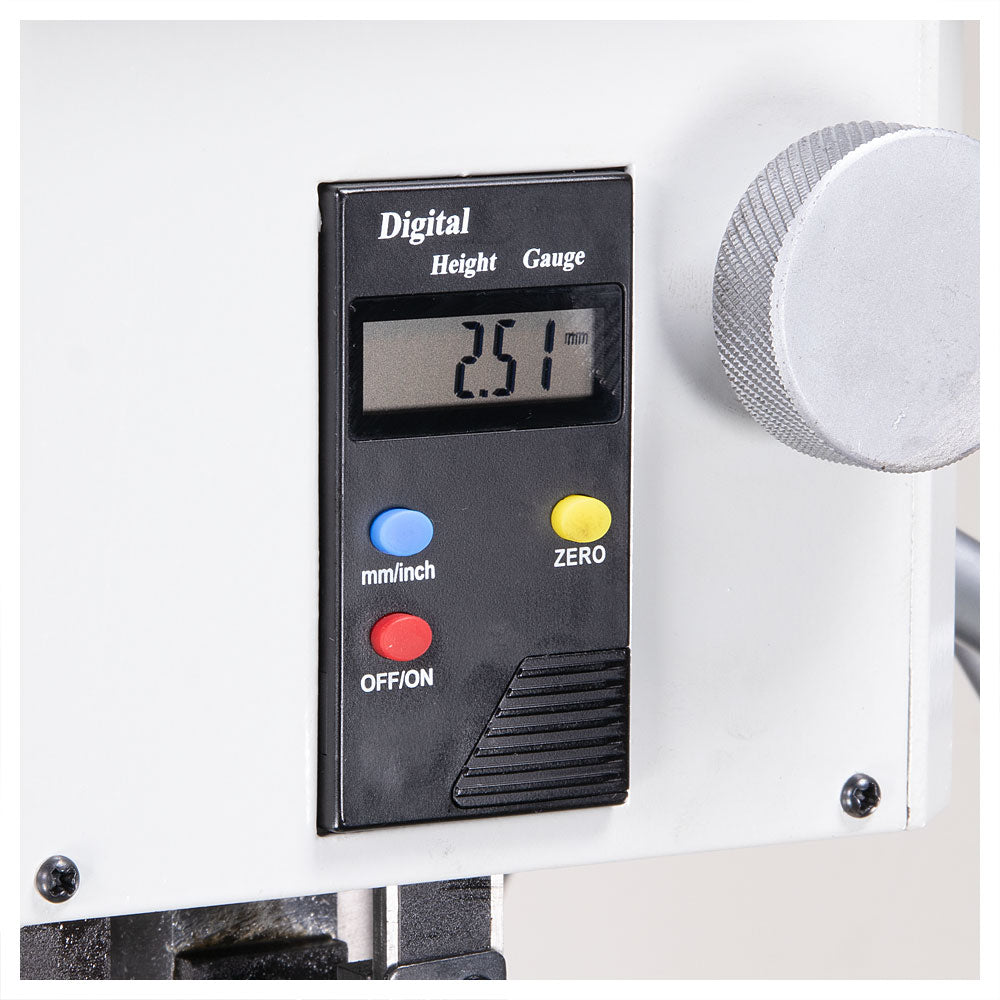

• Digital position readout on the quill reads in inches and mm
• Large X-Y table 23.4" x 5.5"
• Tapping mode for reversing taps out
• Solid rectangular column for rigidity
• Dovetail column maintains head alignment at any height
• E-stop safety power switch
• Forward and Reverse modes on the power panel

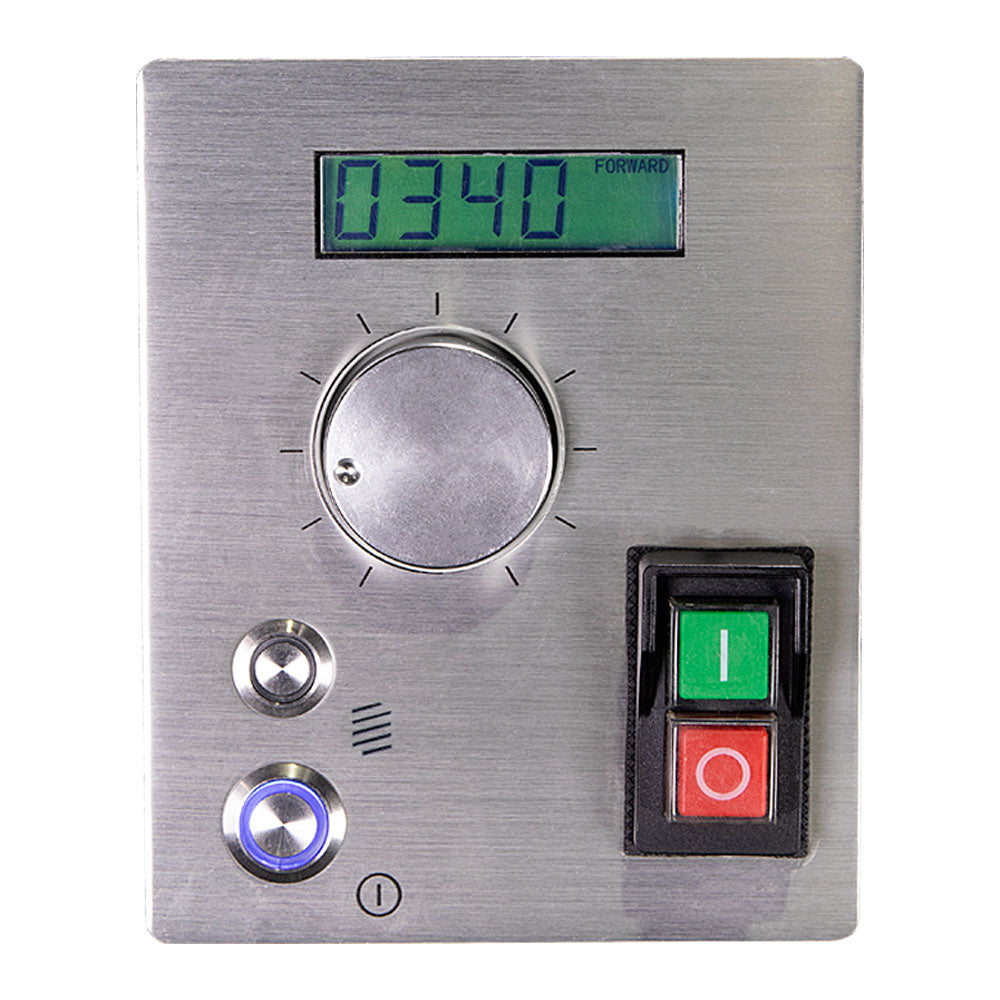

• Spindle speed display
• Spindle fine feed and position lock
• Fine feed on Z-axis for precise control
• Adjustable gibs on all dovetail ways
• Includes R8 to 33JT drill chuck arbor and drill chuck

The HiTorque Bench Mill comes with the following:

• Bench Mill Users Guide
• One 1/2" drill chuck and R8 arbor
• Two T-slot nuts
• Three end wrenches
• Five hex (Allen) wrenches
• One spanner wrench
• Oil can (plastic)

*This mill is a version of the SIEG SX2.7 built to LittleMachineShop.com specifications.

See what the difference is between the SIEG drive system and the HiTorque drive system.

You can compare the specifications for our mills.
