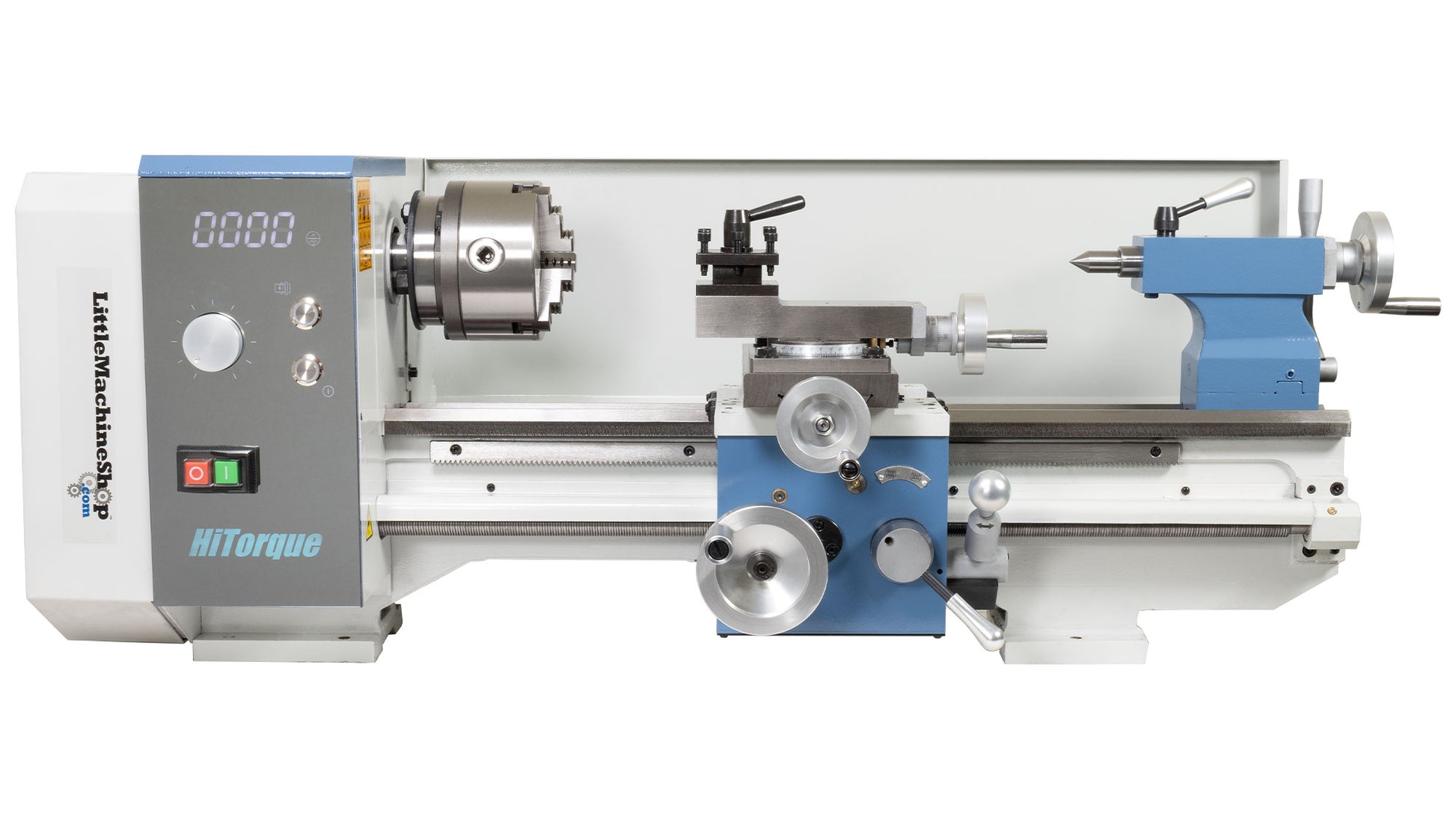

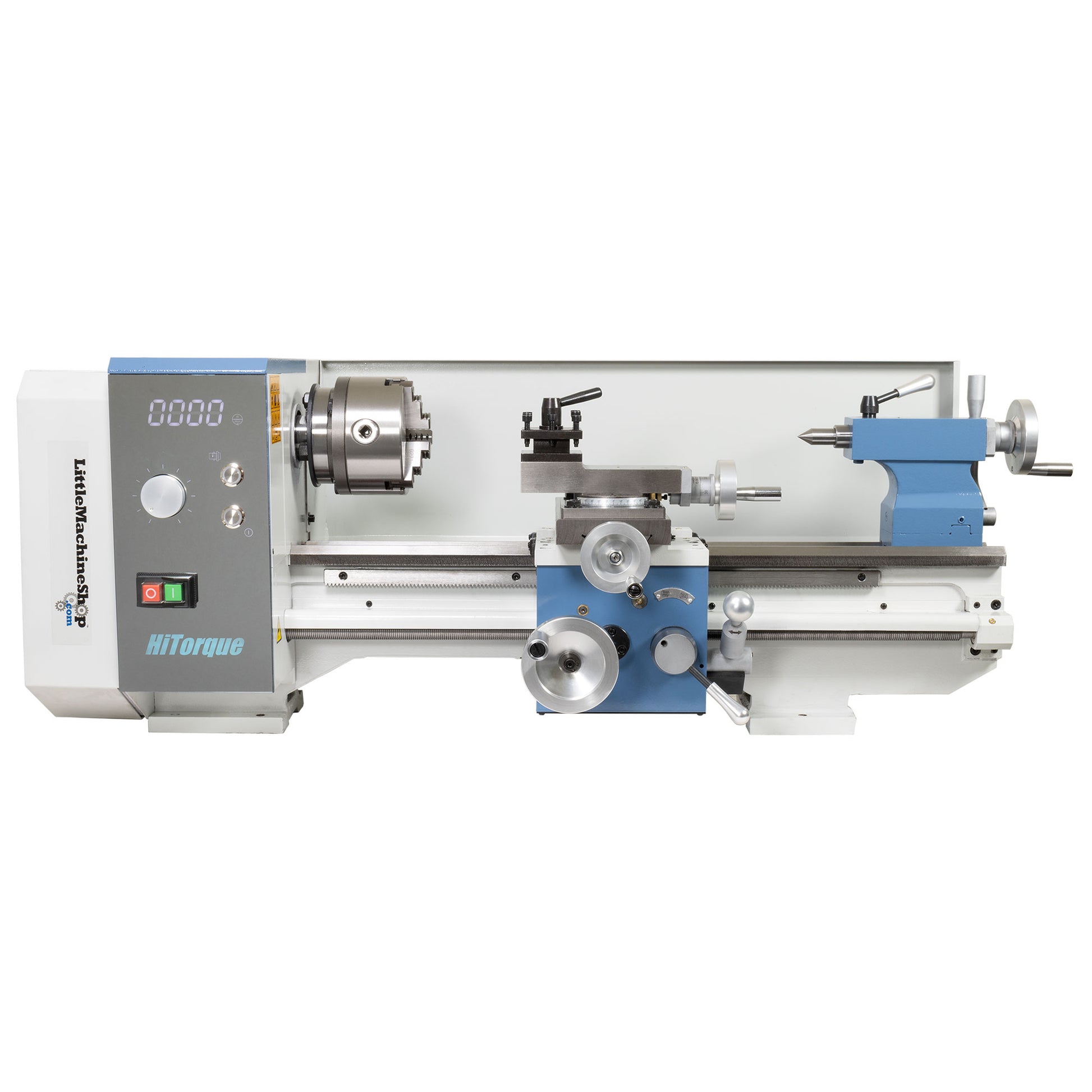

HiTorque 9x20 Bench Lathe, LED Display

The LittleMachineShop.com model 7600 HiTorque9x20 Bench Lathe is the best in its class. It is a significant step up in size, rigidity, and power compared to a mini lathe. This bench top lathe provides a larger bed, more swing over bed, more horsepower, and more rigidity. Compare our standard features and specs to others in this size and price range.

NEW larger spindle through hole - 1.1" (28 mm) accepts 1" stock.
NEW greater swing from 8.5" to 9"

The 1000-Watt brushless spindle drive motor provides tremendous low-end torque. And you can vary the speed from 100 rpm to 2000 rpm continuously in both directions. There are no gears to shift. NSK brand Japanese-quality spindle bearings ensure years of quiet operation.

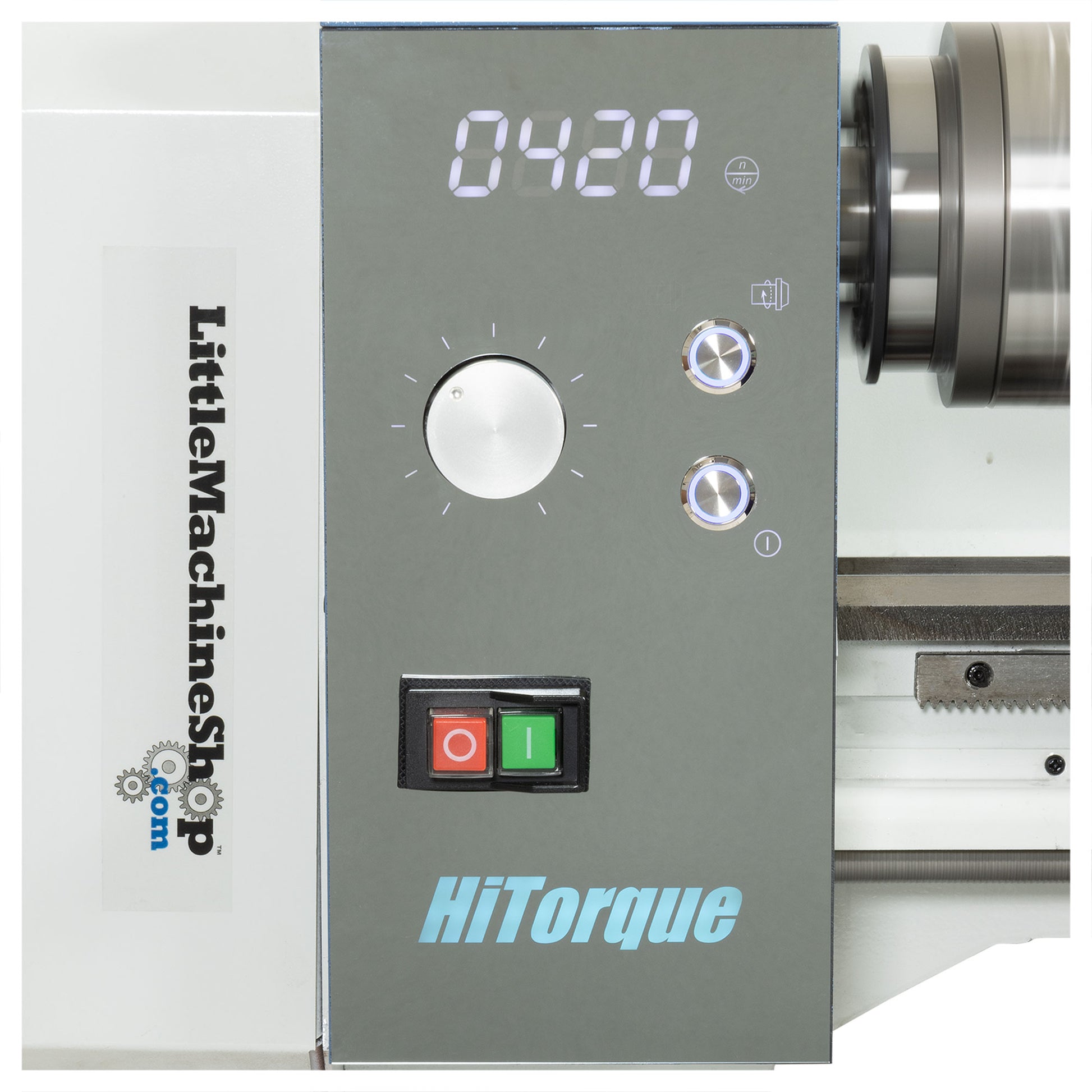

NEW easy-to-read LED display with built in speed readout allows you to stop and then restart the lathe at a pre-selected speed.

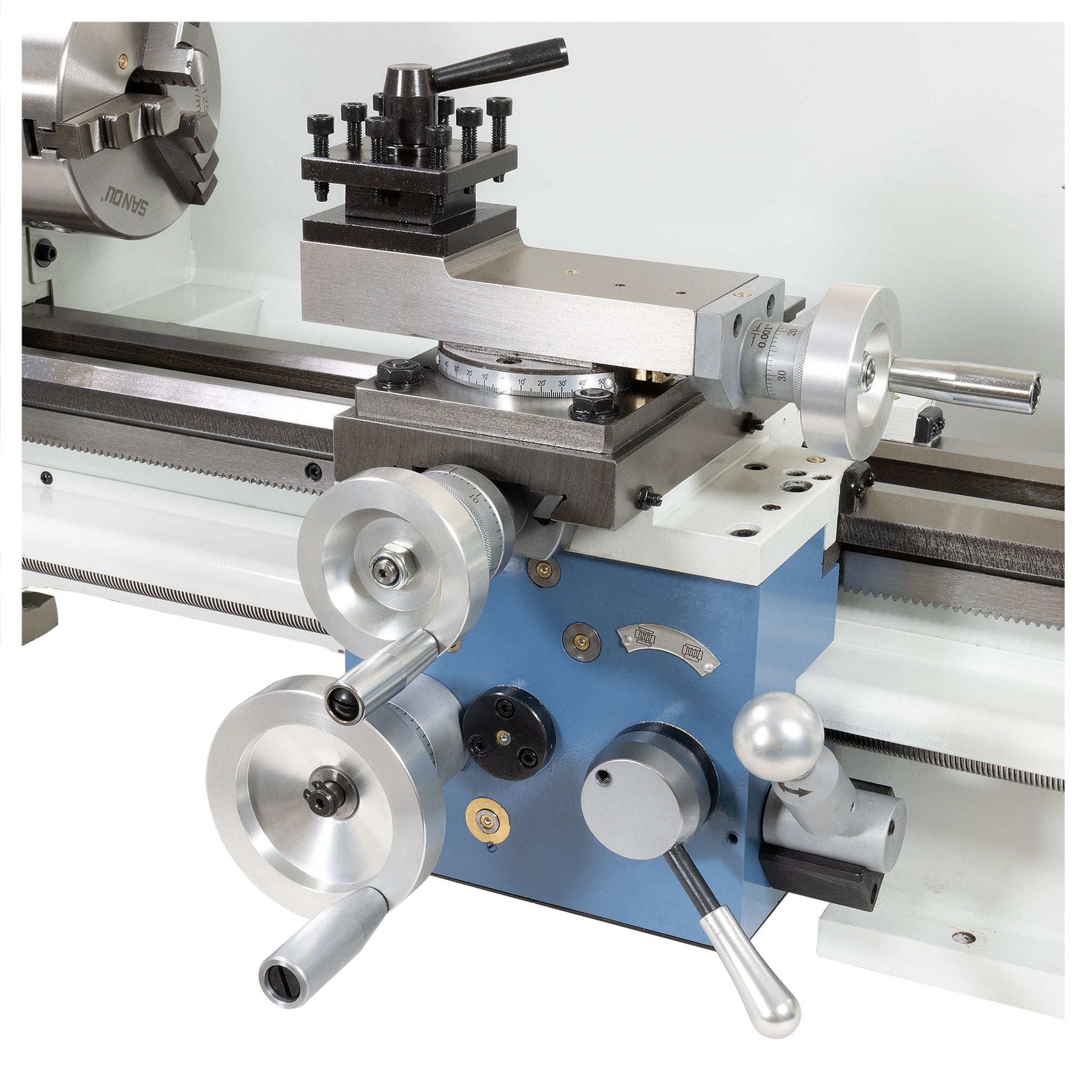

A power cross feed is a feature not found in other lathes of this size. The cross feed and compound rest dials are graduated in 0.001" and advance 0.050" per turn. The metal lathe is equipped with a 4-way indexing tool post set for 10 mm tools.

A reversible 2 mm pitch lead screw provide extended threading capability. You can create every American Standard Unified class 2A inch screw thread from 6 to 80 threads per inch, and you can create every American Standard Metric class 6h thread from 0.25 to 4 mm pitch with the change gears that are included. All the gears on this lathe are metal.

Features for the model 7600 lathe:

• NEW larger spindle through hole - 1.1" (28 mm) accepts 1" stock.
• NEW greater swing from 8.5" to 9"
• NEW easy-to-read LED display with built in speed readout
• 1000 Watt output spindle motor with spindle speed display
• Genuine NSK bearings
• Metal gears
• Induction hardened ways
• Power longitudinal feed
• Power cross feed
• E-stop safety power switch
• Spindle on-off button
• Forward/reverse button for spindle and lead screw direction
• Reversible lead screw allows for right- and left-hand threading
• Extended threading capability - inch and metric threads
• Zero-resettable dials graduated at 0.001" and advancing 0.050" per turn

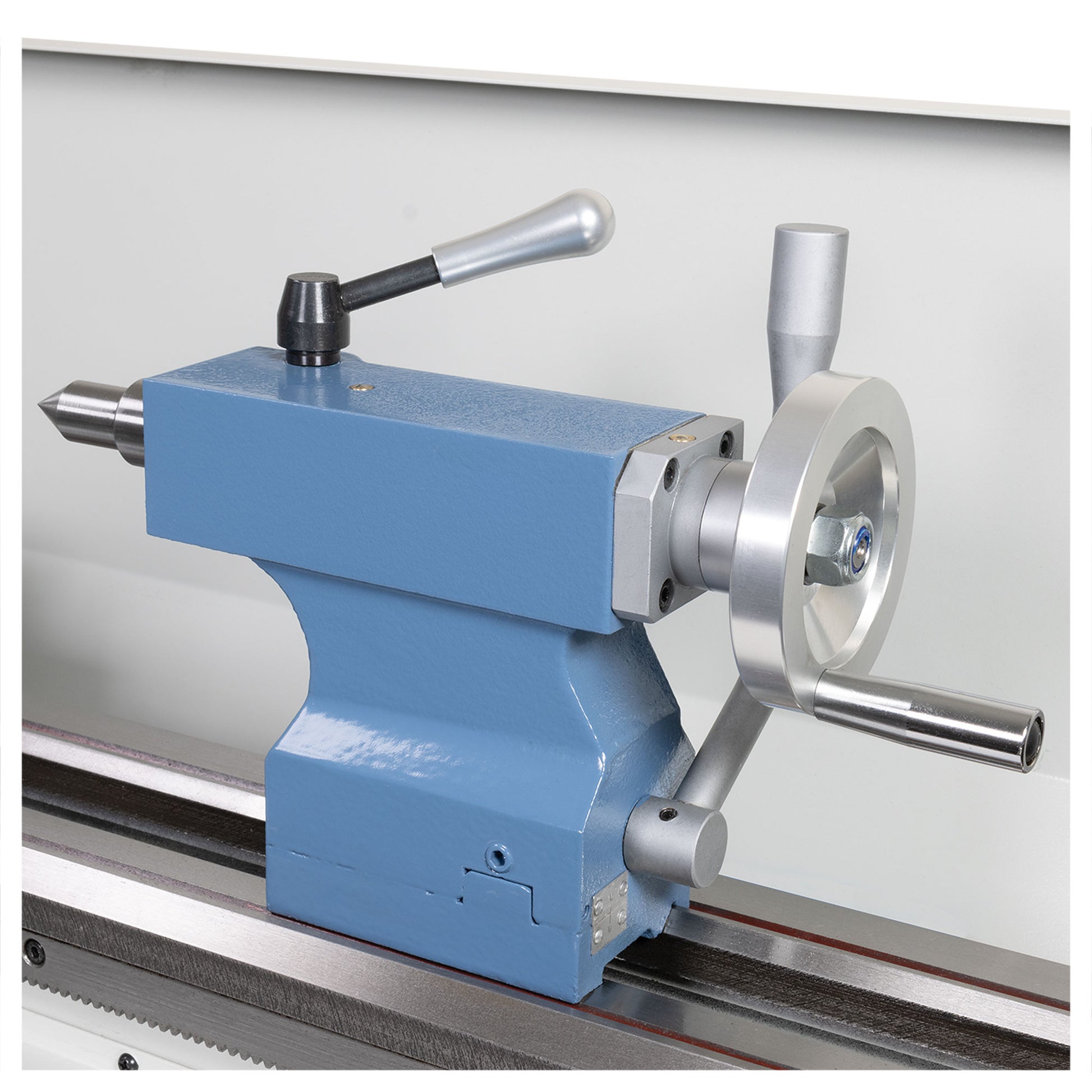

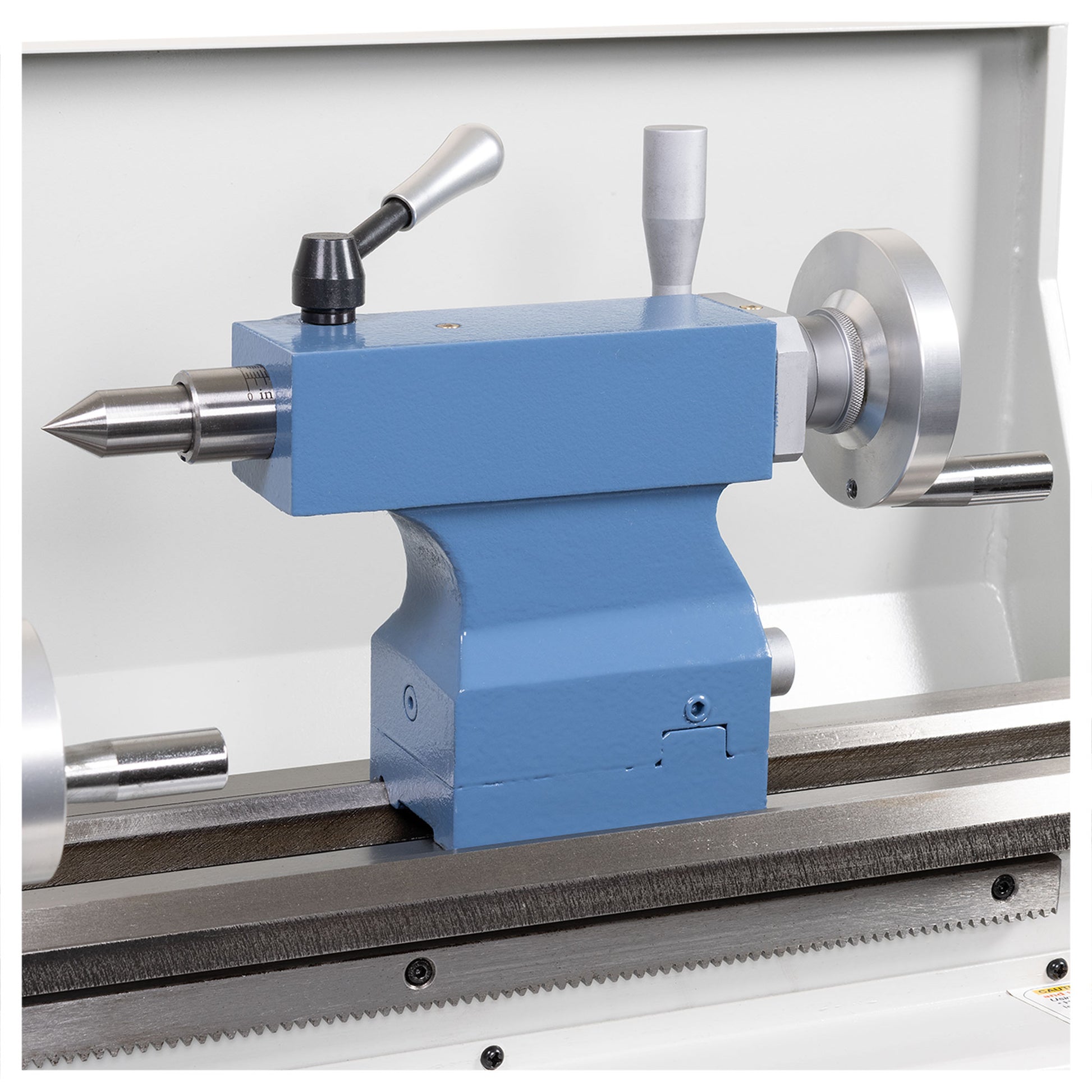

• Cam-lock tailstock
• Four-way tool post
• 5" (125 mm) 3-jaw self centering lathe chuck

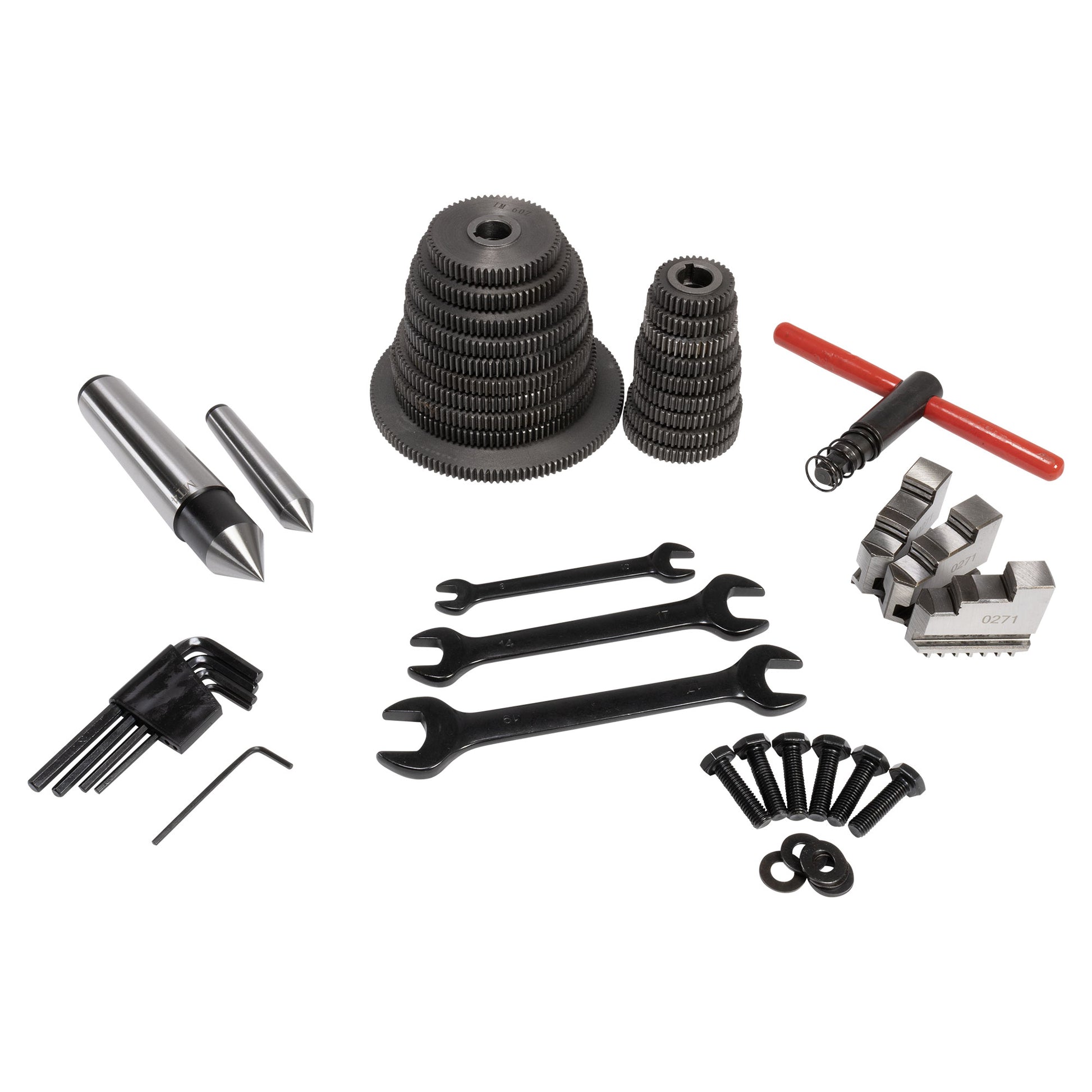

The Bench Lathe comes with the following:

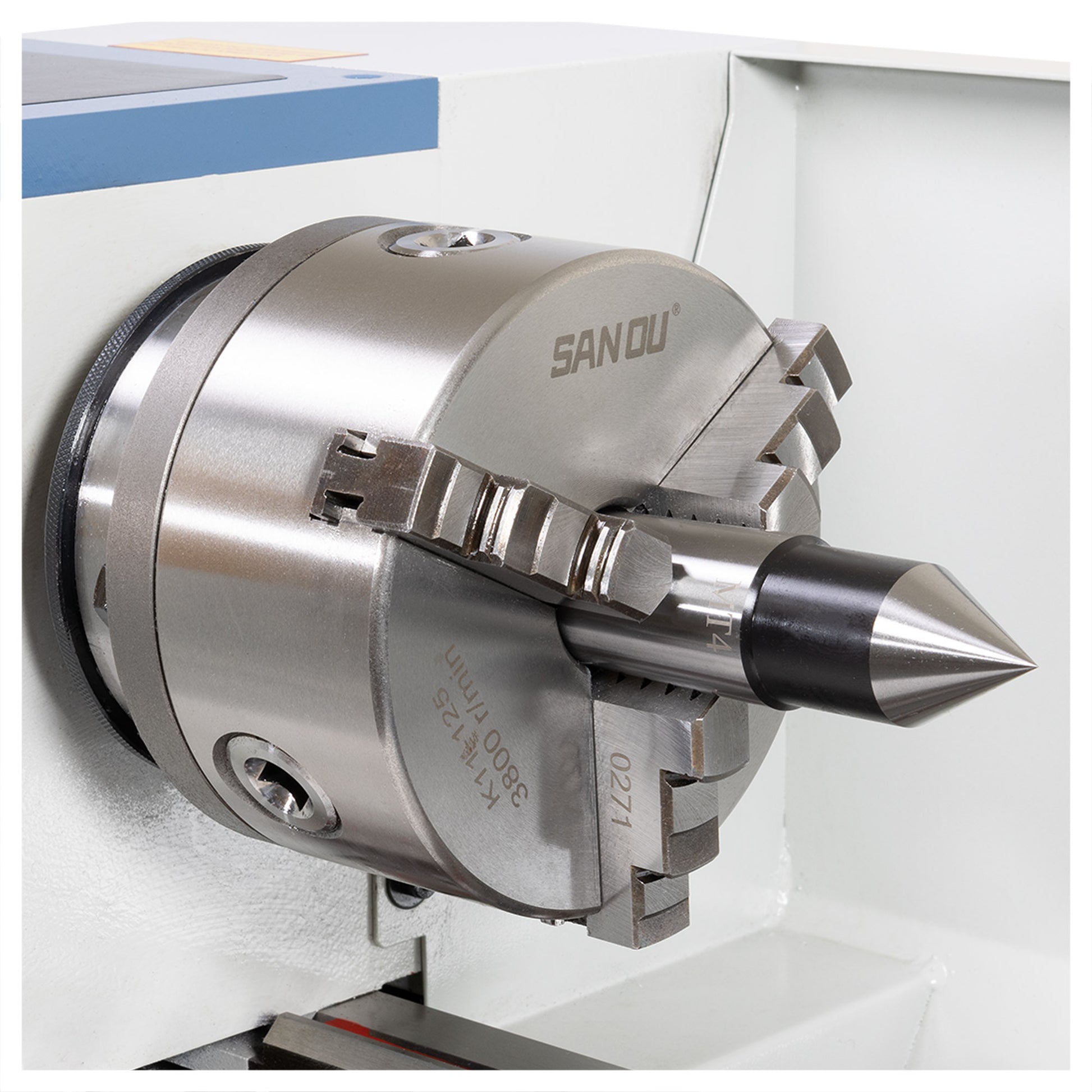

• 5" (125 mm) 3-jaw self centering lathe chuck with two sets of jaws and a chuck wrench
• 4-Way rotating tool post
• A #4 Morse taper dead center for the headstock
• A #2 Morse taper dead center for the tailstock

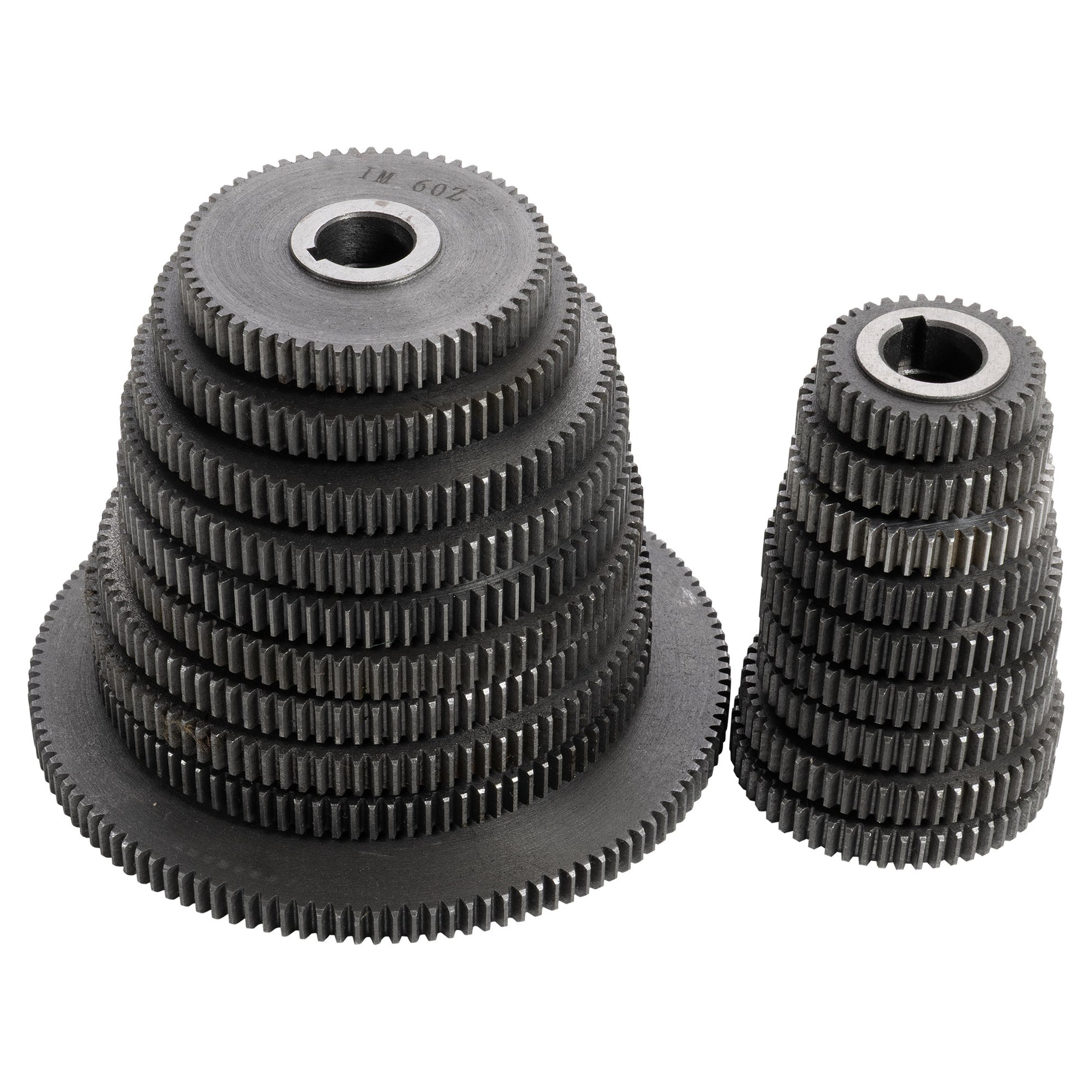

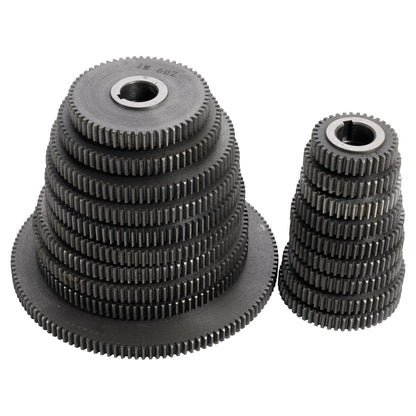

• Change gear set - 18 Gears - 35, 40, 45, 49, 50(x2), 55, 56, 60, 70, 80, 85, 87, 90, 94, 100(x2), 127 teeth

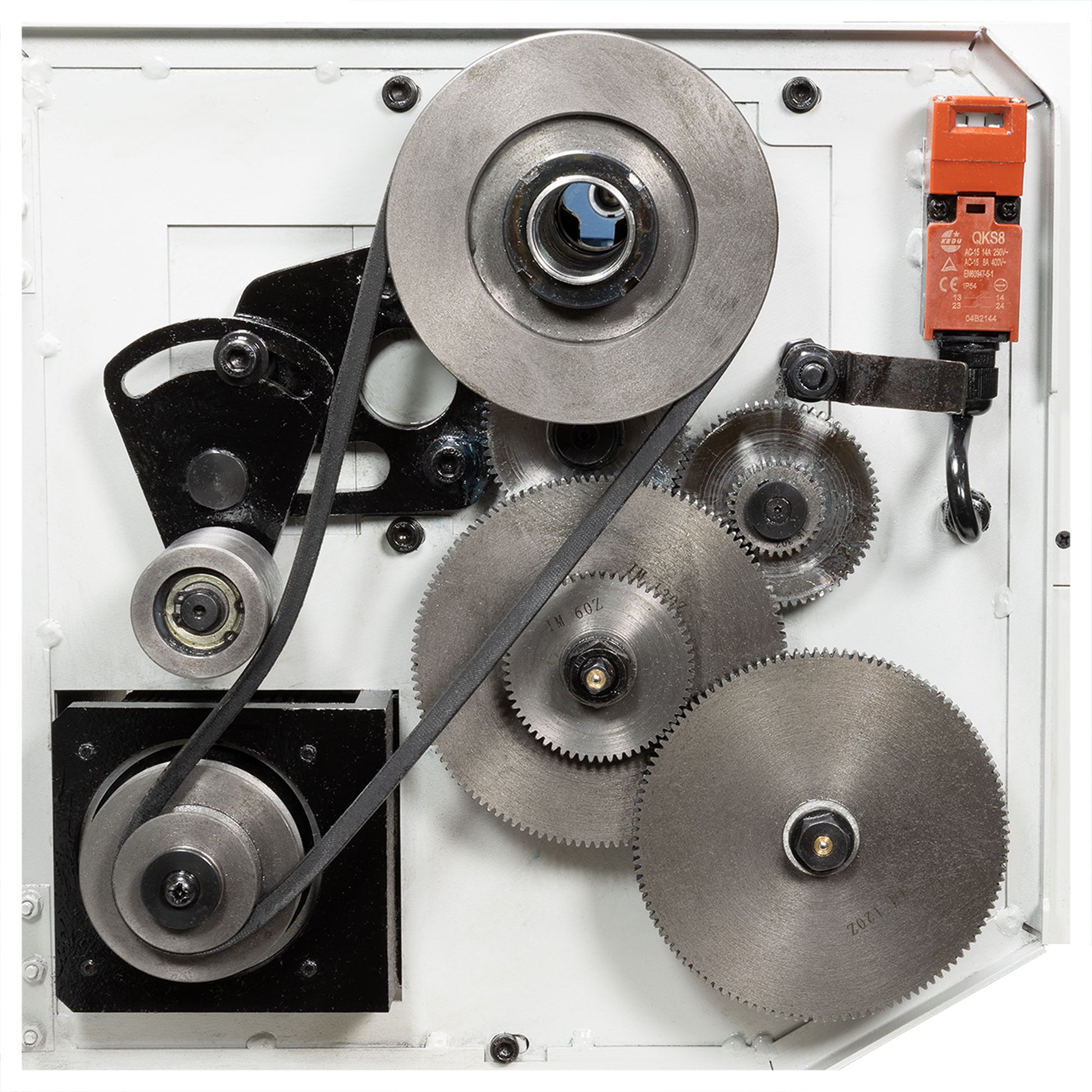

• Gears installed on the lathe include 30, 60, 66(x2), 120(x2) teeth
• Three open end wrenches: 8/10 mm, 14/17 mm, 17/19 mm
• Five hex (Allen) wrenches: 2, 3, 4, 5, 6 mm
• Users Manual
• Inspection Report



The LittleMachineShop.com model 7600 HiTorque 9x20 Bench Lathe is a version of the SIEG SC50 bench lathe. This lathe does not come with chip tray, but can be ordered separately

View a comparison of the specifications for our lathes.

See what the difference is between the SIEG drive system and the HiTorque drive system.

With this lathe, you can create every American Standard Unified class 2A inch screw thread from 4 to 100 threads per inch, and you can create every American Standard Metric class 6h thread from 0.25 to 8 mm pitch with the extra 21 tooth change gear that is included.

But you can actually make more thread pitches than that, and there are more change gear combinations than those shown in the user's guide. To see what you can really do, see the Change Gear Calculator.
