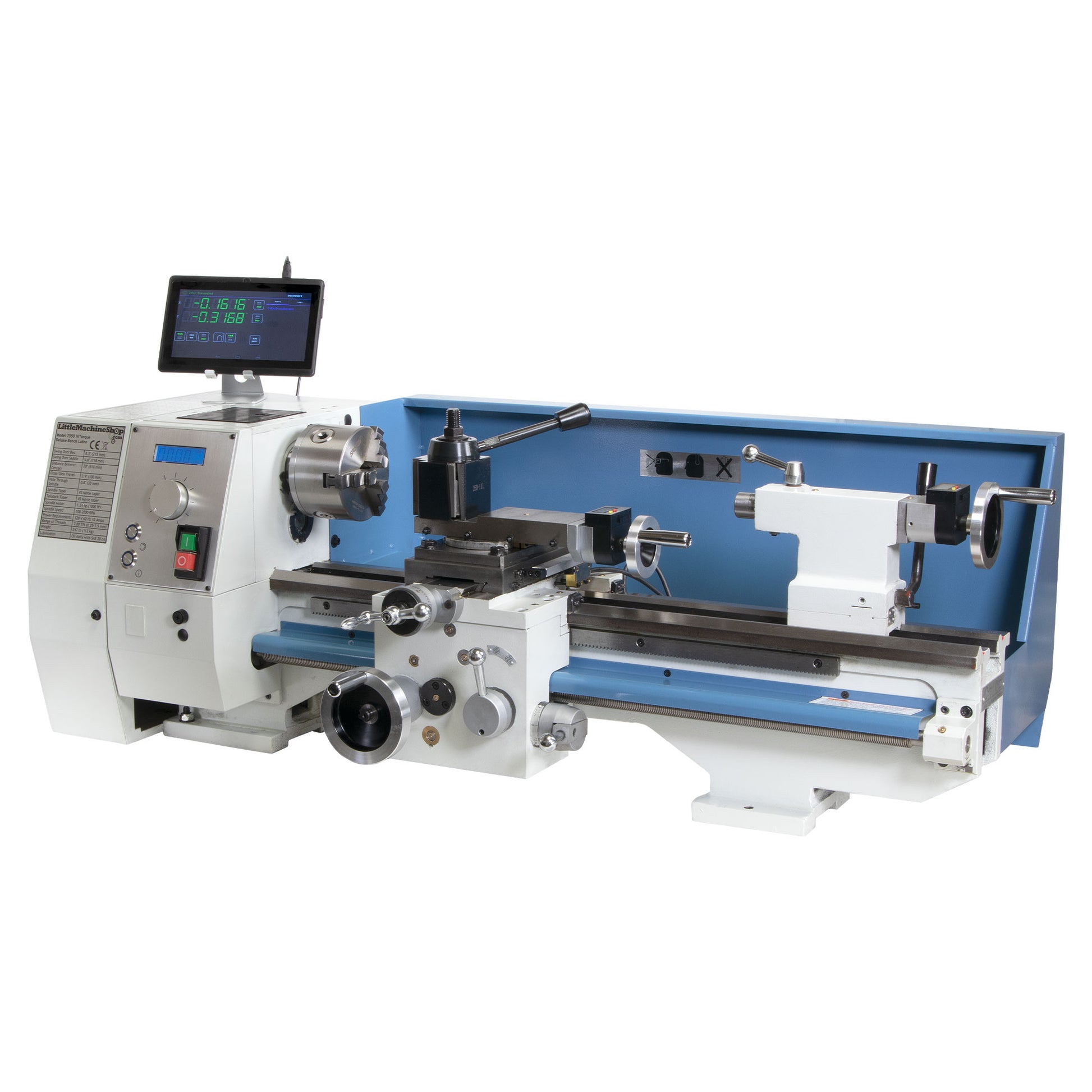

HiTorque 8.5x20 Deluxe Bench Lathe, Bluetooth Display CLOSEOUT

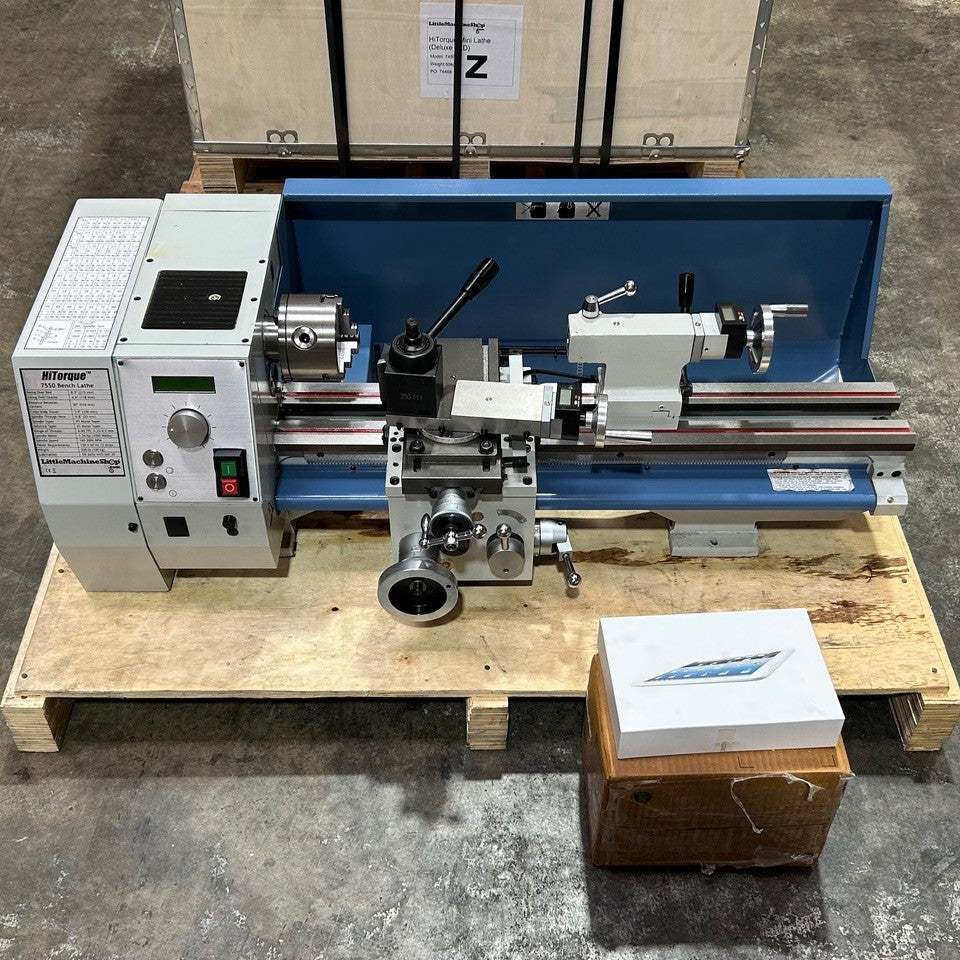

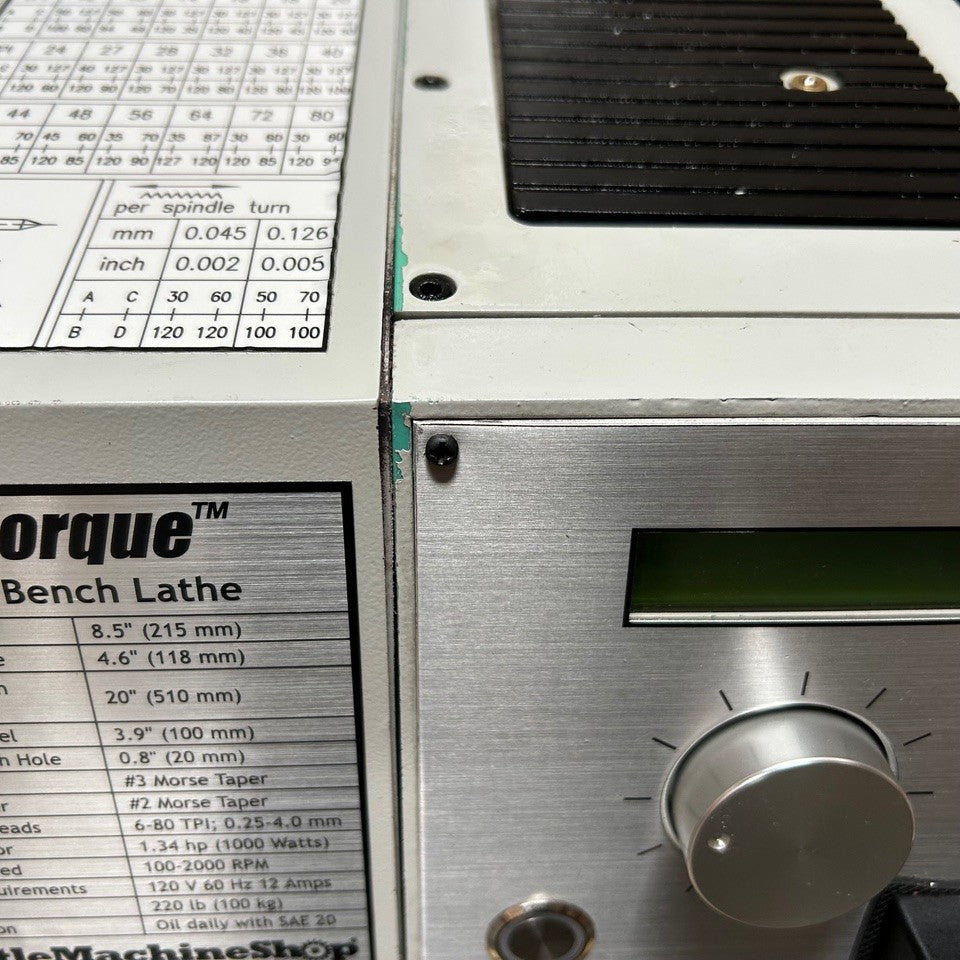

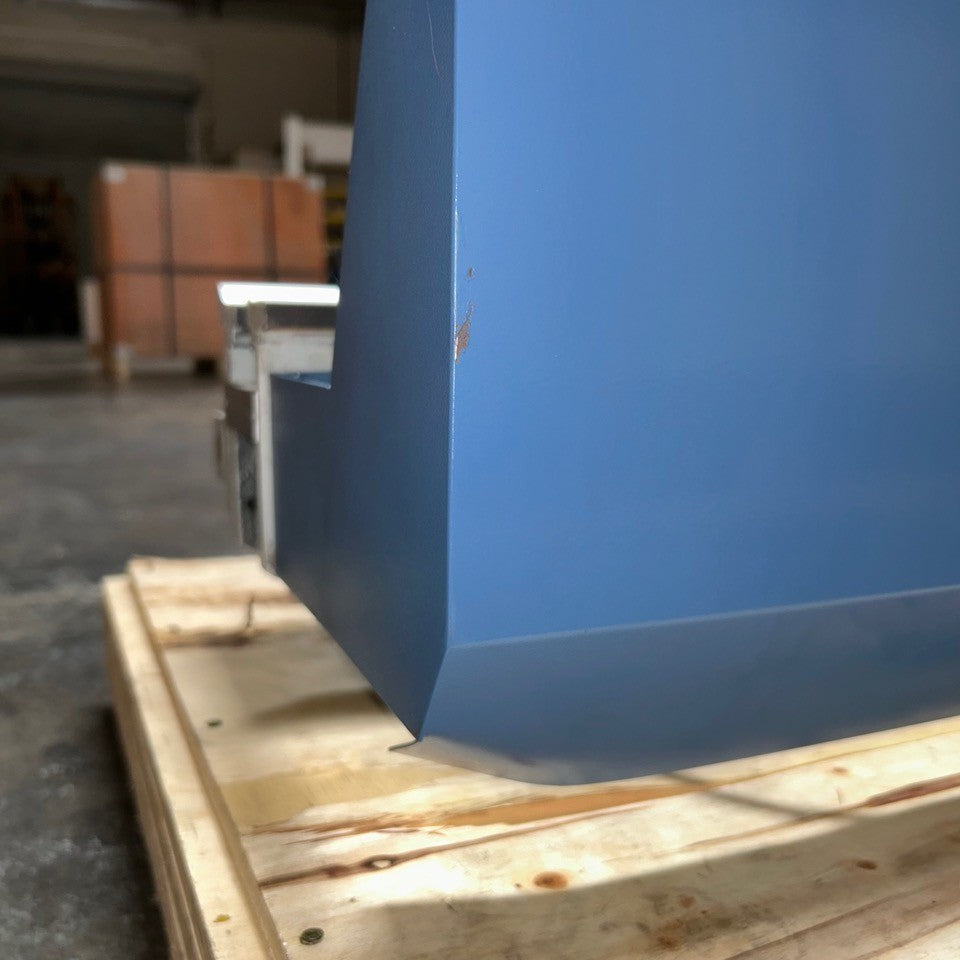

This machine was damaged in shipment, but repaired and ready for use. May be some extremely minor cosmetic damage, but nothing functional. (see photos).

The Deluxe model includes digital readouts (DRO) on the compound rest, cross slide, carriage, and tailstock (cross slide and carriage DROs feed data via magnetic scales to a Bluetooth equipped tablet display). All DROs read equally accurately in inches and mm.

The Deluxe model also includes an AXA quick change tool post set with five tool holders; anodized aluminum hand wheels with black anodizing in the centers; chrome knobs and levers; and a heavy duty splash guard that covers the full bed length. In addition, the compound rest is modified to better accommodate the quick change tool post.

The 1000 Watt brushless spindle drive motor provides tremendous low-end torque. And you can vary the speed from 100 rpm to 2000 rpm continuously in both directions. There are no gears to shift. The updated control panel allows you to stop and then restart the lathe at a pre-selected speed.

A reversible 2 mm pitch lead screw provide extended threading capability. With our lathe machinery, you can create every American Standard Unified class 2A inch screw thread from 8 to 80 threads per inch, and you can create every American Standard Metric class 6h thread from 0.2 to 8 mm pitch with the change gears that are included. All the gears on this lathe are metal.

• 1000 Watt output spindle motor
• DRO on compound, cross feed, carriage, and tailstock
• All DROs read equally accurately in inches and mm.
• AXA quick change tool post set
• Genuine NSK ball bearings
• Induction hardened ways
• Power longitudinal feed
• Anodized aluminum hand wheels with black anodizing in centers
• Chrome knobs and levers
• Power cross feed
• E-stop safety power switch
• Extended threading capability - inch and metric threads
• Cam lock tailstock
• Reversible lead screw for right and left hand threads


The Deluxe Bench Lathe comes with the following:

• 4" (100 mm) 3-jaw self centering lathe chuck with two sets of jaws and a chuck wrench
• AXA Quick change tool post set
• A #3 Morse taper dead center for the headstock
• A #2 Morse taper dead center for the tailstock
• Change gear set
• Three open end wrenches
• Five hex (Allen) wrenches
• Android tablet for the DRO

Specifications

Swing Over Bed	8.5" (215 mm)
Swing Over Saddle	4.6" (118 mm)
Distance Between Centers	20" (510 mm)
Cross Slide Travel	3.9" (100 mm)
Spindle Through Hole	0.8" (20 mm)
Spindle Taper	#3 Morse taper
Tailstock Taper	#2 Morse taper
Range of Threads	6-80 TPI; 0.25-4.0 mm
Spindle Motor Output	1.34 hp (1000 Watts)
Spindle Speed	100 - 2000 RPM
Power Requirements	120 V 60 Hz 12 Amps
Machine Weight	220 lbs (100 kg)
Crated Weight	281 lbs (128 kg)
Overall Dimensions (W x D x H)	40" x 22" x 16" (1010 mm x 550 mm x 400 mm)
Crate Dimensions (W x D x H)	44" x 24" x 20" (1110 mm x 620 mm x 500 mm)

View a comparison of the specifications for our lathes.

See what the difference between the SIEG drive system and the HiTorque drive system.

With this lathe, you can create every American Standard Unified class 2A inch screw thread from 4 to 100 threads per inch, and you can create every American Standard Metric class 6h thread from 0.25 to 8 mm pitch with the extra 21 tooth change gear that is included.

But you can actually make more thread pitches than that, and there are more change gear combinations than those shown in the user's guide. To see what you can really do, see the Change Gear Calculator.

While we sell an Android Tablet with the DRO software installed, you can use most any Android tablet that supports Bluetooth with the Bluetooth DROs that we sell.

Here's how to get going:

1. On your Android tablet, go to Bluetooth Settings and Pair the DRO to your tablet. The name of the DRO is HC-06 or BT04-E. The PIN is 1234.
2. Go to the Google Play Store and install Yuriy's Toys TouchDRO.
3. When you launch TouchDRO and tap Connect in the upper right corner.
