Knurling Tools - LittleMachineShop.com

The diamond pattern created by knurling allows you to get a better grip on round objects. LittleMachineShop.com has knurlers specifically designed for small lathes.

4235   4th Axis 6" Rotary Table Package, Tormach
The 4th Axis kit includes a motorized rotary table, driver, and complete installation wiring harness to add a 4th axis to the PCNC 770 or PCNC 1100. The kit supports coordinated motion between X, Y, Z and 4th axis. The 4th axis extends your machining capability to include rotation of the work piece. This is a fully integrated axis, allowing simultaneous and coordinated motion with all other axes. Whether you're cutting timing screws, cable winding drums, turbine impellers, or simply engraving on cylinders, our 4th axis options are just the ticket. Includes: Motorized rotary table, mounting hardware, axis driver, wiring, and connection port.

3519   4th Axis Rotary Table for CNC

  • Includes stepper motor
  • Includes tailstock
  • Includes adapter to mount a 3" lathe chuck
  • Includes hold down clamps to mount the rotary table on the mill table
This 4" (100 mm) 4th axis rotary table is great for small CNC milling machines.

4917   Air Compressor

  • Syclone 4610 Air Compressor
An Ultra Quiet 1HP 4.6 Gallon Twin Steel Tank compressor. 72 decibel operation. 3000 hr lifecycle compared to 500 hr lifecycle typical of consumer grade compressors. Features an integrated regulator and two integrated pressure gauges to monitor both tank pressure and regulated output pressure. Two universal quick connectors allow for simultaneous use of two tools. Oil-free pump has factory preset start (95 psi) and shut-off (116 psi) pressures for worry-free power draw bar operation. 110VAC/60Hz.

4290   Automatic Tool Changer, PCNC 1100

  • 10 position Tool Tray
  • Slide activation via double acting pneumatic cylinder with cushion
  • Integrated touch-off routine (requires electronic tool setter)
  • Requires power drawbar.
The Tormach Tooling System ATC is a 10 tool carousel-style automatic TTS tool changer for the PCNC 1100 Mill. The side mounted changer integrates with our existing power draw bar system to automatically change tools via controller command. The design features a retractable carousel cover for chip protection, and automated air-blast to clear chips from the tool shank. The carousel slides into position with a double-acting air cushioned pneumatic cylinder. Exchangeable virtual tool trays mean that tooling can be changed en mass by a simple tray swap, allowing a different tray to be dedicated to each job. Tool pockets can be independently assigned to any tool number, so there’s no need to change existing programs so they match tool tray pockets numbers. The control software integrates with Mach3, and includes a graphical screenset for quick identification of tool location in the carousel. A built-in integrated tool touch-off routine allows automated tool setting of the entire carousel with a single button (requires optional electronic tool setter). When needed, the ATC can be easily bypassed or used in conjunction with manual tool changes if more than 10 tools are needed for a job. Carousel position feedback ensures the ATC is in the correct position prior to a tool change. Control software interlocks detect and warn against potential collision scenarios and a low-air pressure warning protects against ATC actuation prior to reaching proper holding pressure.

4782   Automatic Tool Changer, PCNC 770

  • 10 position Tool Tray
  • Slide activation via double acting pneumatic cylinder with cushion
  • Integrated touch-off routine (requires electronic tool setter)
  • Requires power drawbar.
The Tormach Tooling System ATC is a 10 tool carousel-style automatic TTS tool changer for the PCNC 770 Mill. The side mounted changer integrates with our existing power draw bar system to automatically change tools via controller command. The design features a retractable carousel cover for chip protection, and automated air-blast to clear chips from the tool shank. The carousel slides into position with a double-acting air cushioned pneumatic cylinder. Exchangeable virtual tool trays mean that tooling can be changed en mass by a simple tray swap, allowing a different tray to be dedicated to each job. Tool pockets can be independently assigned to any tool number, so there’s no need to change existing programs so they match tool tray pockets numbers. The control software integrates with Mach3, and includes a graphical screenset for quick identification of tool location in the carousel. A built-in integrated tool touch-off routine allows automated tool setting of the entire carousel with a single button (requires optional electronic tool setter). When needed, the ATC can be easily bypassed or used in conjunction with manual tool changes if more than 10 tools are needed for a job. Carousel position feedback ensures the ATC is in the correct position prior to a tool change. Control software interlocks detect and warn against potential collision scenarios and a low-air pressure warning protects against ATC actuation prior to reaching proper holding pressure.

4918   Cable Package

  • One Video Extension Cable, SVGA
  • Two USB Extension Cables 10'
  • One USB Bulkhead Port Assembly
These are the cables you need to connect a computer through the machine arm to the keyboard and monitor.

4869   Cables, Tormach Extension

  • Two USB extension cables
  • One video extension cable, SVGA
These extension cables reach through the Tormach machine arm. All cables are 10' long.

4244   Computer, Machine Controller

  • Dual Core Atom processor
  • 60 GB solid state drive
  • 2 GB Memory
  • 19" Flat screen monitor
  • Keyboard & Mouse
The Mini-ITX Dual Core Atom computer includes the computer, a 19" flat screen monitor, plus keyboard and mouse. It comes with a fully licensed copy of Windows 7 Home Premium. This computer mounts on the back of the flat-screen monitor using the VESA mounting holes. This is a very compact setup for your shop. We even include a short monitor cable. This computer includes a parallel port on the motherboard, and is guaranteed to work with LittleMachineShop.com CNC milling machines with parallel interface. This computer is optimized to run Mach3. It's not designed to run CAD/CAM software. But you don't want to use those programs in your shop anyway. Install CAD/CAM programs on your desktop computer.

3834   Coolant Kit, Tormach PCNC 770 CNC Mill
This flood coolant kit is highly recommended for general metal cutting. The kit includes a coolant reservoir tank, pump, hose, and necessary fittings and mounting brackets. It also includes a backsplash surround and chip guard. Shown with the PCNC 770 mill and stand (not included)

3433   Coolant Line Assembly, 12" Loc-Line

  • Kool Mist part number PML-12
This coolant line assembly fits Kool Mist flexline, and PortaMist models. This is a 12" long Loc-Line coolant line assembly.

3761   Drawbar, 2MT x M10, 3501 Mill

  • For 3501 and KX1 CNC mill
  • M10 x 1.5 mm drawbar thread
  • For 2MT spindle
  • 8-5/8" long when measured like a bolt

4118   Jog & Shuttle Controller, Tormach
The Jog/Shuttle controller is a self contained unit that can be used hand-held or mounted in a convenient surface of the mill. It has three sets of controls: - A spring loaded ring - A central jog wheel - Five buttons Manual machining is a breeze with full velocity and position control on all 4 axis (X, Y, Z, and A rotary). Far superior to a standard CNC positioning wheel, this USB connected electronic hand wheel has two concentric wheels controlling both position and velocity. The inner wheel operates as a standard CNC jog wheel and allows precise position control of any axis. Each click on the inner wheel will move an axis a specific distance. You can select 0.0001", 0.0010", 0.0100", or define your own increment sizes like 1/16, 1/32, or 1/64. The outer wheel is spring loaded to center and can be used to control velocity of any axis, anything from a very slow crawl to full rapids. This combination of velocity and position in one control is very handy. This product only works with Tormach machines because the software is already installed.

3414   Jog Dial for CNC Machines

  • The ideal Mach3 accessory
  • Fully configurable
  • USB Interface
  • Setup software included
  • Complete jog pendent
The Z-Bot Jog Dial II replaces the hand cranks on CNC mills. The Z-Bot Jog Dial II is a USB jog pendent controller developed to work in conjunction with the popular Mach3 CNC control software. It is supplied with an installation disc that contains a Mach3 custom plug-in. The Jog Dial II is highly flexible, easy to use, requires minimal configuration, and does not use any parallel port pins. The Jog Dial II USB controller has an inner and outer dial. Used for rapid coarse positioning, the outer dial will jog progressively faster, up to the full jog speed configured in Mach3, as the dial is turned further to the right or left of the center detent. The outer dial springs back to center position when released. Used for fine positioning, the inner dial jogs the machine one step increment, as configured in Mach3 for each "click." Four buttons are used to select the axis to jog. The fifth button is easily configured for a variety of Mach3 functions using the plug-in supplied.

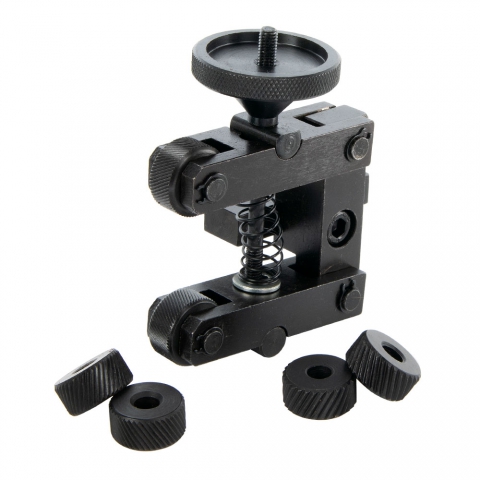

1911   Knurler, Large Capacity

  • 0 to 2" (50 mm) diameter capacity
  • Fits standard 4-way and quick change tool posts
  • Includes three sets of knurls
This scissors knurler is made to our design, specifically for the mini lathe. This knurler fits in the standard tool post of the mini lathe without any modification. It also works with any of the quick change tool posts we sell. The mounting bar is 3/8" (9.5 mm) tall so it replaces a 3/8" tool bit. It comes with fine (33 lines per inch, 0.8 mm pitch), medium (21 lines per inch, 1.2 mm pitch), and coarse (14 lines per inch, 1.8 mm pitch) diamond knurls.

3770   Knurler, Large Capacity with 6 sets of knurls

  • 0 to 2" diameter capacity
  • Fits standard 4-way and quick change tool posts
  • Three sets of diamond knurls
  • Three sets of straight knurls
This scissors knurler is made to our design, specifically for the mini lathe. This knurler fits in the standard tool post of the mini lathe without any modification. It also works with any of the quick change tool posts we sell. It comes with fine (33 lines per inch), medium (21 lines per inch), and coarse (14 lines per inch) diamond and straight knurls.

1733   Knurls, Coarse Diamond
This is a pair of fine diamond high speed steel knurls. These knurls are 3/4" diameter, 3/8" wide and have a 1/4" shaft hole. They create 14 lines per inch.

2974   Knurls, Coarse Straight
This is a pair of coarse straight high speed steel knurls. The knurls are 3/4" diameter, 3/8" wide and have a 1/4" shaft hole. These knurls create 14 lines per inch.

1731   Knurls, Fine Diamond
This is a pair of fine diamond high speed steel knurls. These knurls are 3/4" diameter, 3/8" wide and have a 1/4" shaft hole. They create 33 lines per inch.

2972   Knurls, Fine Straight
This is a pair of fine straight high speed steel knurls. The knurls are 3/4" diameter, 3/8" wide and have a 1/4" shaft hole. These knurls create 33 lines per inch.

1732   Knurls, Medium Diamond
This is a pair of fine diamond high speed steel knurls. These knurls are 3/4" diameter, 3/8" wide and have a 1/4" shaft hole. They create 21 lines per inch.

2973   Knurls, Medium Straight
This is a pair of medium straight high speed steel knurls. The knurls are 3/4" diameter, 3/8" wide and have a 1/4" shaft hole. These knurls create 21 lines per inch.

4277   Lathe Chuck, 4 Jaw 5" for 6" Tormach Rotary Table
4 jaw independent chuck with reversible jaws, 125mm (4.9”) diameter with adapter plate and mounting hardware for the Tormach 6" motorized rotary table.

4236   Machine Arm, for Computer, Tormach

  • Standard VESA 75 mm or 100 mm mount
The machine arm can be mounted directly on the pre-drilled machine column. It has a rigid support with a machined cast iron support bracket, two sturdy steel extension arms, and a center pivot. Any LCD with a standard VESA 75 mm or 100 mm mount can be used.

4237   Machine Arm, for Tools, Tormach

  • Holds 20 Tormach Tooling System tools
The machine arm can be mounted directly on the pre-drilled machine column. It has a rigid support with a machined cast iron support bracket, two sturdy steel extension arms, and a center pivot. Includes a tool tray that holds 20 Tormach Tooling System tools.

4651   Parallel cable for 3501 CNC Mill
This is the Parallel port cable that connects the 3501 CNC machine to the control computer.

4088   PathPilot Machine Controller, Tormach

  • Includes computer, monitor, mini keyboard, keyboard cover, and mouse
  • Tormach Performance Machine Controller (34119)
  • Standard LCD Monitor (30615)
  • Mini Keyboard (31371)
  • Keyboard Cover (31384)
Tormach provides a high performance computer pre-configured for machine control for general use with your PCNC 770 or PCNC 1100. This controller is recommended for performance applications such as large files, high block rates, or use of CAD or CAM on the controller. The configured computer includes a one year warranty with technical support provided by Tormach, power cable, and mouse.

4784   Pneumatic Hose Kit for PCNC Power Draw Bar/ATC

  • Provides necessary fittings for attaching the Power Draw Bar/ATC to the Syclone 4610 Air Compressor
This kit includes the necessary fittings for attaching the power draw bar and/or automatic tool changer for the Tormach PCNC 770 or 1100 to the Syclone 4610 Air Compressor. The kit includes 25 ft pneumatic tubing and assorted 1/4" NPT fittings.

4268   Power Drawbar, PCNC 1100

  • For Tormach PCNC 1100 CNC Milling Machine
  • Push-button drawbar operation
The Power Drawbar integrates with your PCNC 1100 for lightning-fast manual tool changes with the push of a button and eliminates the need to hand-tighten your drawbar. To change tools, a pneumatic multi-stack cylinder is actuated to depress the drawbar, releasing clamping pressure and opening the collet. When the cylinder is released, the drawbar tightens and the tool is held firmly in place. The power drawbar is designed for use with the Tormach Tooling System® (TTS), but easily pivots away to allow manual tightening of the drawbar if necessary for conventional R8 tooling. The Power Drawbar kit includes pneumatic cylinder assembly stack, drawbar, electronic control circuitry, push-button pendant, and all necessary pneumatic tubing and electronic wiring. Requires 90 psi air supply (not included).

4783   Power Drawbar, PCNC 770

  • For Tormach PCNC 770 CNC Milling Machine
  • Push-button drawbar operation
The Power Drawbar integrates with your PCNC 770 for lightning-fast manual tool changes with the push of a button and eliminates the need to hand-tighten your drawbar. To change tools, a pneumatic multi-stack cylinder is actuated to depress the drawbar, releasing clamping pressure and opening the collet. When the cylinder is released, the drawbar tightens and the tool is held firmly in place. The power drawbar is designed for use with the Tormach Tooling System® (TTS), but easily pivots away to allow manual tightening of the drawbar if necessary for conventional R8 tooling. The Power Drawbar kit includes pneumatic cylinder assembly stack, drawbar, electronic control circuitry, push-button pendant, and all necessary pneumatic tubing and electronic wiring. Requires 90 psi air supply (not included).

3838   Scanner, Tormach CNC
The Tormach CNC Scanner turns your PCNC into a high resolution 2D optical scanner and reverse engineering system. This is a unique tool has hundreds of uses, including toolmaking, artistry, repair and restoration, precision measurement, and quality assurance, to name a few. CNC Scanner utilizes a Mach3 plugin to take a series of photographs where the camera is automatically positioned for each photograph with CNC motion. A dimensionally scaled photomosaic is then assembled by stitching photographs together to build a larger image. After the photomosaic is assembled, it can be opened in Tormach CNC Scan CAD, a simple 2D CAD program with basic functionality for measuring distances and tracing shapes. This information can be exported as an industry standard .DXF file to other CAD/CAM programs for further work. CNC Scanner uses a spindle mounted adjustable focus USB microscope camera that features our Tormach Tooling System® quick change mounting system. It is also compatible with any CNC mill that utilizes Mach3 control software. Requires a spindle that is capable of holding 3/4" shank, such as R8 or MT-3 Co"plete CNC Scanner package contains all hardware and software necessary to integrate with a PCNC or other Mach3 controlled mill. Includes 1.3M USB 2.0 microscope featuring 10-50X continuous magnification AND 200X discrete magnification. Plastic shell. Included Software: Tormach CNC ScanCAD (with hardware license key dongle), and Mach3 Plug-ins for Tormach CNC Scope and CNC Scanner Utilities.

3835   Stand, Deluxe Tormach PCNC 1100 CNC Mill
The Deluxe Machine Stand has been designed to maximize efficiency of your PCNC 1100. Chips and coolant stay contained with its generous tray depth, back and side guarding. The table mounted guard shields in the forward direction, while the integrated coolant system keeps you running at maximum speeds and feeds. Shown with the PCNC 1100 mill (not included).

3833   Stand, Tormach PCNC 770 CNC Mill
The PCNC 770 stand is a welded steel base designed to support the weight of the PCNC 770 without compromising portability – a pallet jack can be easily positioned underneath the base when the mill needs to be moved. Includes generous left and right side chip trays with leak resistant drip channeling, leveling feet, and storage compartments for both tools and control computer. Shown with the PCNC 770 mill (not included).

4910   Tool Conversion Kit, Tormach TTS

  • Convert many conventional tools into Tormach Quick Change tools
  • Works with most tools with a 3/4" straight shank and a shoulder wider than 3/4"
  • Use for face mill, fly cutters and boring heads
  • Press Fit on .750" shaft, No adhesive required
  • Groove Geometry is compatible with Tormach ATC
This kit can be used to convert many conventional tools into Tormach Tooling System tools.

3869   Tooling Package, 3501 CNC Mill

  • 3” Toolmakers Screwless Vise and 10 Pairs of 3” long thin parallels
  • Precision 1-2-3 Blocks and 36-piece Clamping Kit – 8mm T-Slot
  • Two 6-piece end mill sets, 2 & 4 flute and 5 Center Drills
  • Four 2MT End Mill Holders
  • Combination Edge and Center Finder
Tooling package with all the essentials for a 3501 CNC Mill. Toolmakers Vise: 3” toolmakers screwless vice has a one-piece body. The body and jaws are hardened to RC 58-62. All sides are flat, square and parallel to 0.0002". There are horizontal and vertical vees on the inside face of the movable jaw to hold round objects. The vise jaws are 1.38" deep and open to 3.78" capacity. The vise is 7.28" long, 2.76" tall and 2.785" wide. Thin Parallels: Set of ten pairs, 1/8” thick x 3” long, in fitted case. Made of high-grade alloy steel hardened to 52–58 RC, parallel within 0.0002” on top and bottom. Parallel heights: 1/2”, 5/8”, 3/4”, 7/8”, 1”, 1-1/8”, 1-1/4”, 1-3/8”, 1-1/2”, and 1-5/8” (pairs matched within 0.0004”). Clamping Kit: 36-piece kit fits 8mm T-slots on a micro mill. Includes 10 M6 studs, 4 step block pairs, 6 T-slot nuts, 6 flange nuts, and 6 step clamps. End Mills: 6-piece 4 flute & 6-piece 2 flute, HSS, center cutting end mill sets. Sizes 1/8", 3/16", 1/4", 5/16", 3/8", and 1/2". All with 3/8" shanks. End Mill Holders: Set of four 2 Morse taper, high-grade tool hardened steel end mill holders. Sizes 3/16", 3/8", 1/2", and 5/8". The drawbar thread is 3/8"-16. This set includes all the sizes required for common end mills. 1-2-3 Blocks: Ground and hardened on all sides to 50-60 RC, sizes 1” x 2” x 3”. Parallel within 0.0002”, flat within 0.0002”, and square within 0.00021”. Set has two matched blocks, 23 holes of which 5 are threaded 3/8”-16 NC. Center Drills: Five sizes combined drills and countersinks made of high speed steel. Sizes 1, 2, 3, 4, and 5 with 60 degree counter sinks. This tooling package is perfect for KX1 CNC Mills.

5590   Vise, 3" CNC Mill

  • Lock down type
  • Compact size allows multiple vises on CNC mill table
  • Flatness of all sides within 0.001"
  • Mount upright, or on left or right sides
  • Sides parallel within 0.0005" in 4"
This vise is designed for CNC milling machines where a swivel base is never required. The compact size allows you to mount multiple vises on the CNC mill table so you can machine several items in one setup. The vise closes with up to 3000 lbs. of clamping force. The vise is 3.15" (90mm) wide, 9.06" (230mm) long, and 2.76" (70mm) tall. The jaws are 0.944" (24mm) deep and open 2.95" (75mm).

3857   Vise, 4" CNC Mill

  • Lock down type
  • Compact size allows multiple vises on CNC mill table
  • Flatness of all sides within 0.001"
  • Mount upright, or on left or right sides
  • Sides parallel within 0.0005" in 4"
This vise is designed for CNC milling machines where a swivel base is never required. The compact size allows you to mount multiple vises on the CNC mill table so you can machine several items in one setup. The vise closes with up to 3000 lbs. of clamping force. The vise is 4.13" wide, 11.25" long, and 4" tall. The jaws are 1.5" deep and open 4".

4834   Vise, 5" CNC Mill, Tormach

  • Lock down type
  • Compact size allows multiple vises on CNC mill table
  • Flatness of all sides within 0.001"
  • Mount upright, or on left or right sides
  • Sides parallel within 0.0005" in 4"
A versatile and compact 5" CNC Vise that can be mounted upright or on either side. Includes a Bridge Clamp for compact side by side mounting – up to 3 vises on the PCNC 1100 or 2 vices on the PCNC 770. Also features 6 tapped holes for mounting to base plate or trunnion. Vise includes economy cast steel handle, not shown here.
