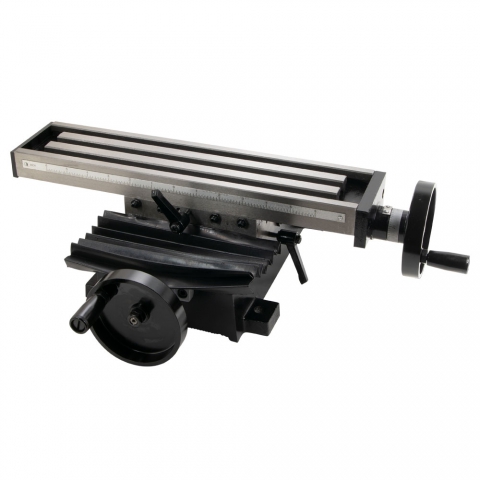

Mini Mill Table Assembly
- Mini mill XY table assembly
- Fits SIEG X2 and SX2 mini mills
- Adjustable gibs
- Table 13.19" x 3.54"
Weight: 47.0 lb
Price: $264.95
http://lmscnc.com/1765
The table is 90 mm (3.54") by 335 mm (13.19"). It has three 12 mm T-slots.
The X-axis travel is approximately 8" and the Y-axis travel is approximately 4". The table is 136 mm (5.31") tall (the hand wheel and rear mount are higher). The table is 390 mm (15.4") deep and 460 mm (18.1") wide.
The dials are graduated in 0.001" and one turn of the hand wheels moves the table 0.0625".
The XY table assembly is made of cast iron and steel. There are adjustable gibs on both axes.
This is all you need to make a mini mill using the milling column from a Grizzly G0516 Combo Lathe with Milling Attachment.
See the Compatibility tab for machines and other products that work with this product.
Chris' Tips |

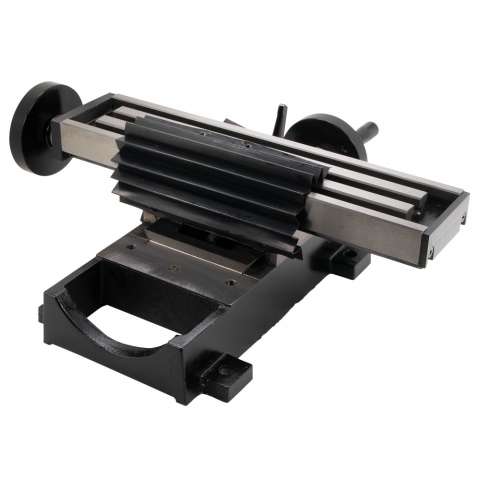

Reverse View |
Compatibility
This product works with these LittleMachineShop.com products:
- 1144 Clamping Kit, 7/16" T-Slot
- 1766 Column Assembly, Mini Mill
- 1912 Mini Mill Head Assembly, 3MT Spindle
- 1663 Mini Mill Head Assembly, R8 Spindle
- 1418 T-Slot Nut, 12 mm
- 1269 T-Slot Nut, 7/16"
This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)
- Bolton XJ-9510 Mill/Drill
- Clarke CMD300 Milling Drilling Machine
- Grizzly G8689 Mini Milling Machine
- Hare & Forbes HM-10 Mill/Drill
- Princess Auto 8507667 Powerfist Mini Mill
- SIEG X2-MT3 Mini Mill
- Micro-Mark 82573 MicroLux Milling Machine
- BusyBee CX605 Craftex Mini Mill
- Cummins (Tools Now) 7877 Mini Mill
- Eastwood 32498 Mini Mill
- Harbor Freight 44991 Central Machinery Mill/Drill
- Homier 03947 Speedway Mini Mill
- Northern Tool 49657 KLUTCH Mini Mill
- Penn Tool Co XJ-9510-1 Precise Mini Mill
- SIEG X2-R8 Mini Mill
- Travers Tools OT2213 OTMT Mini Mill
- BusyBee CX612 Craftex Mini Mill
- SIEG SX2 Mini Mill
- Micro-Mark 84630 MicroLux Mini Mill
