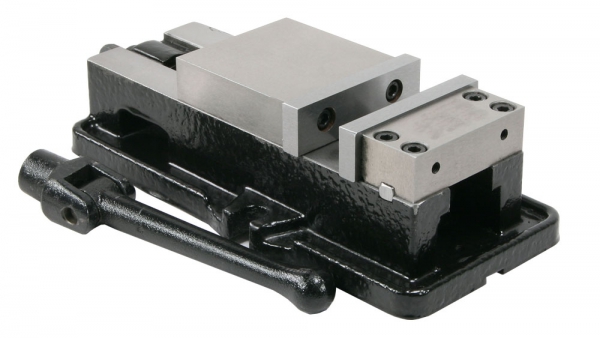

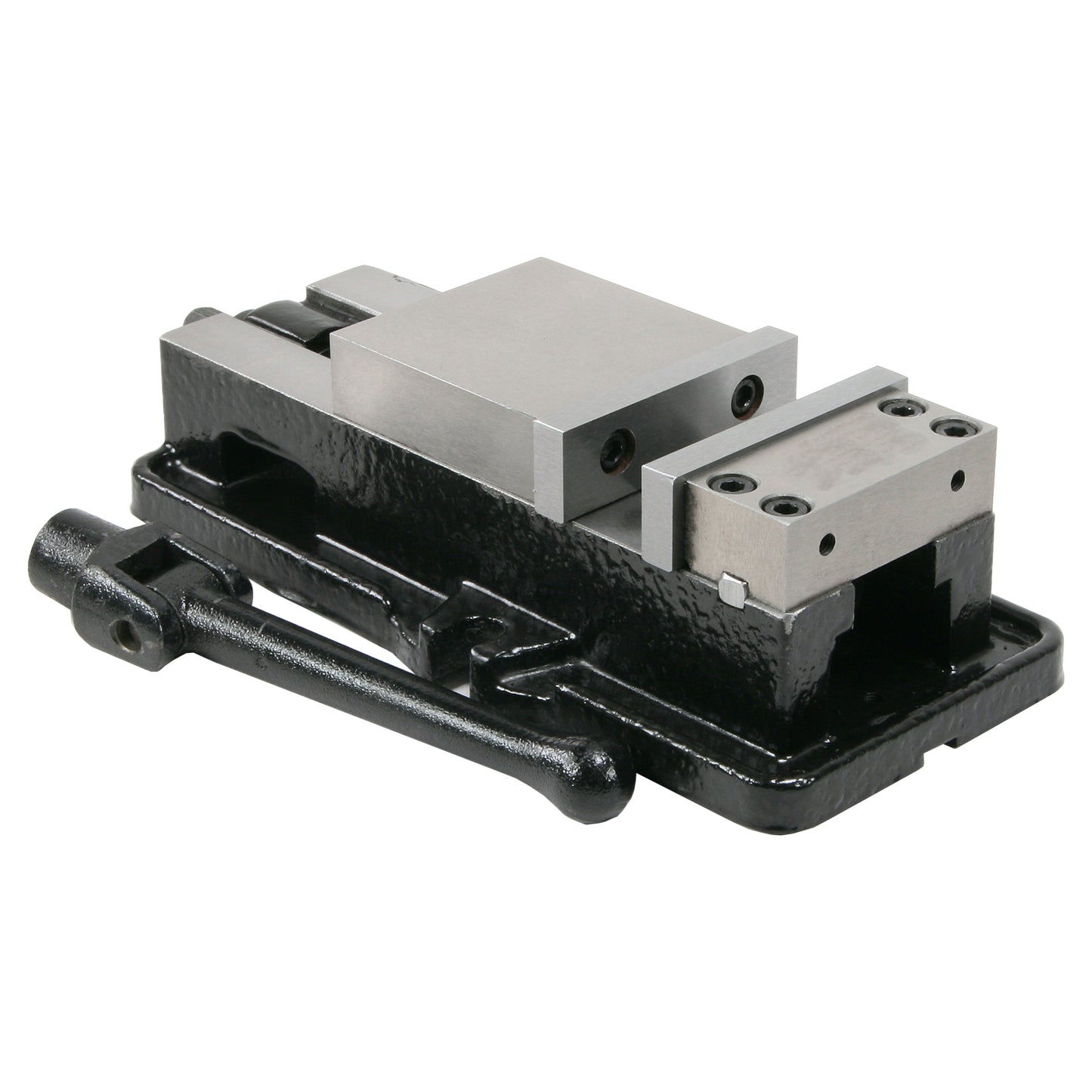

Vise, 3" Precision Milling, Heavy, No Swivel Base
- Precision 3" Kurt-style milling machine vise
- No swivel base
- Hardened replaceable jaws
- The top, bottom of vise bed, gib, jaws, swivel base, and all plate mounting surfaces are ground
Part Number: 2024
Weight: 14.0 lb
Weight: 14.0 lb
Price: $134.95
Share this page:
http://lmscnc.com/2024
http://lmscnc.com/2024
3" Kurt-style milling vise. Top, gib, jaws, bottom of vise bed and all plate mounting surfaces are ground. The angle tight positive lock style jaws are hardened and ground, and can be mounted on either end of the fixed and movable jaw providing a wide range of clamping distances.
Overall length is 10.85" and the height is 3.05". Jaws are 3.15" wide, 1.04" deep, open 3", and are perpendicular to the ways within 0.002" in 4". The ways are parallel to the base within 0.0006" in 4".
| Jaw Width | 3.15" (80.0 mm) |
| Jaw Depth | 0.94" (23.9 mm) |
| Maximum Jaw Opening | 3.0" (76 mm) |
| Weight | 14 lbs (6 kg) |
| Height | 2.73" (69.3 mm) |
| Length | 10.00" (254.0 mm) |
| Width | 4.80" (121.9 mm) |
| Mounting Bolt Centers | 4.00" (101.6 mm) |
| Hold-Down Mechanism | Yes |
| Ways Parallel to Bottom of Vise Within | 0.0006" in 4" (0.015 mm in 100 mm) |
| Ways Parallel to Bottom of Swivel Base Within | 0.0008" in 4" (0.020 mm in 100 mm) |
| Jaws Perpendicular to Ways Within | 0.002" in 4" (0.05 mm in 100 mm) |
Compatibility
This product works with these LittleMachineShop.com products:
- 1789 Jaws, 3" Precision Milling Vise
- 3070 Soft Jaws, 3" Vise
- 2045 Swivel Base, 3" Precision Milling, Heavy
- 1893 Thin Parallels, 3" Long, 10 Pairs
- 2220 Thin Parallels, 3" Long, 10 Pairs, Ultra-Precision
- 2924 Thin Parallels, 3" Long, 4 Pairs
- 1232 Thin Parallels, 6" Long, 10 Pairs
- 2923 Ultra Thin Parallels, 6" Long
- 3125 Vise Mounting Kit, 7/16" T-Slot
This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)
- Bolton XJ-9510 Mill/Drill
- Clarke CMD300 Milling Drilling Machine
- Grizzly G8689 Mini Milling Machine
- Hare & Forbes HM-10 Mill/Drill
- Princess Auto 8507667 Powerfist Mini Mill
- SIEG X2-MT3 Mini Mill
- Micro-Mark 82573 MicroLux Milling Machine
- BusyBee CX605 Craftex Mini Mill
- Cummins (Tools Now) 7877 Mini Mill
- Eastwood 32498 Mini Mill
- Harbor Freight 44991 Central Machinery Mill/Drill
- Homier 03947 Speedway Mini Mill
- Northern Tool 49657 KLUTCH Mini Mill
- Penn Tool Co XJ-9510-1 Precise Mini Mill
- SIEG X2-R8 Mini Mill
- Travers Tools OT2213 OTMT Mini Mill
- SIEG X2P Mini Mill
- LittleMachineShop.com 4962 SIEG Mini Mill
- SIEG X2D Mini Mill
- SIEG X2L Mini Mill
- WEN 33013 WEN Mini Mill
- SIEG X2LF Mini Mill
- BusyBee CX612 Craftex Mini Mill
- SIEG SX2 Mini Mill
- Micro-Mark 84630 MicroLux Mini Mill
- LittleMachineShop.com 3900 HiTorque Mini Mill
- SIEG SX2L Mini Mill
- LittleMachineShop.com 3960 HiTorque Mini Mill
- LittleMachineShop.com 3990 HiTorque Mini Mill
- LittleMachineShop.com 4190 HiTorque Mini Mill
- SIEG SX2LF Mini Mill
- Grizzly G0781 Mill/Drill
