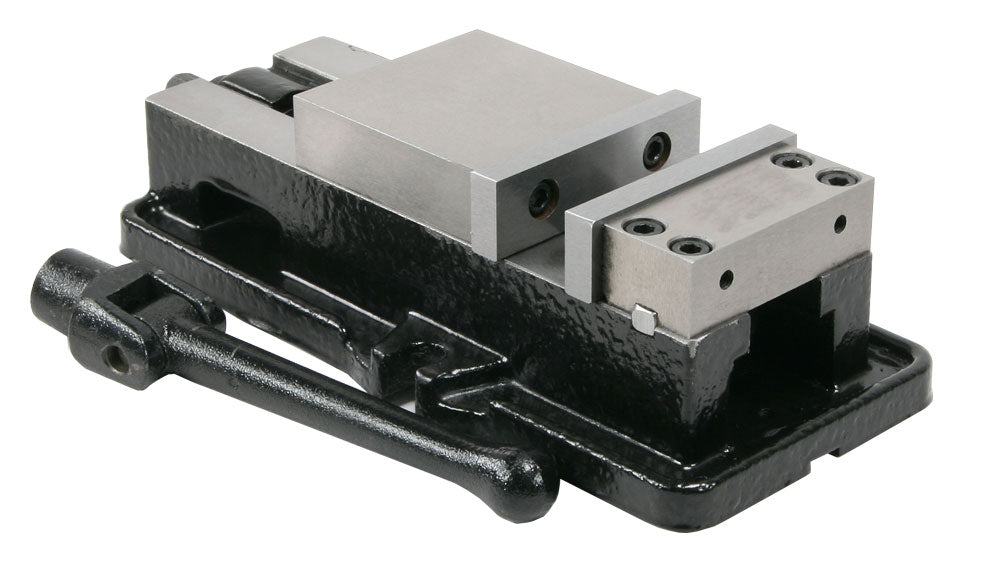

Vise, 3" Precision Milling, Heavy, No Swivel Base
Vise, 3" Precision Milling, Heavy, No Swivel Base
SKU:2024
In stock
Couldn't load pickup availability
Key Features
Key Features
- Precision 3" Kurt-style milling machine vise
- No swivel base
- Hardened replaceable jaws
- The top, bottom of vise bed, gib, jaws, swivel base, and all plate mounting surfaces are ground
- 30% Downward Locking Force
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

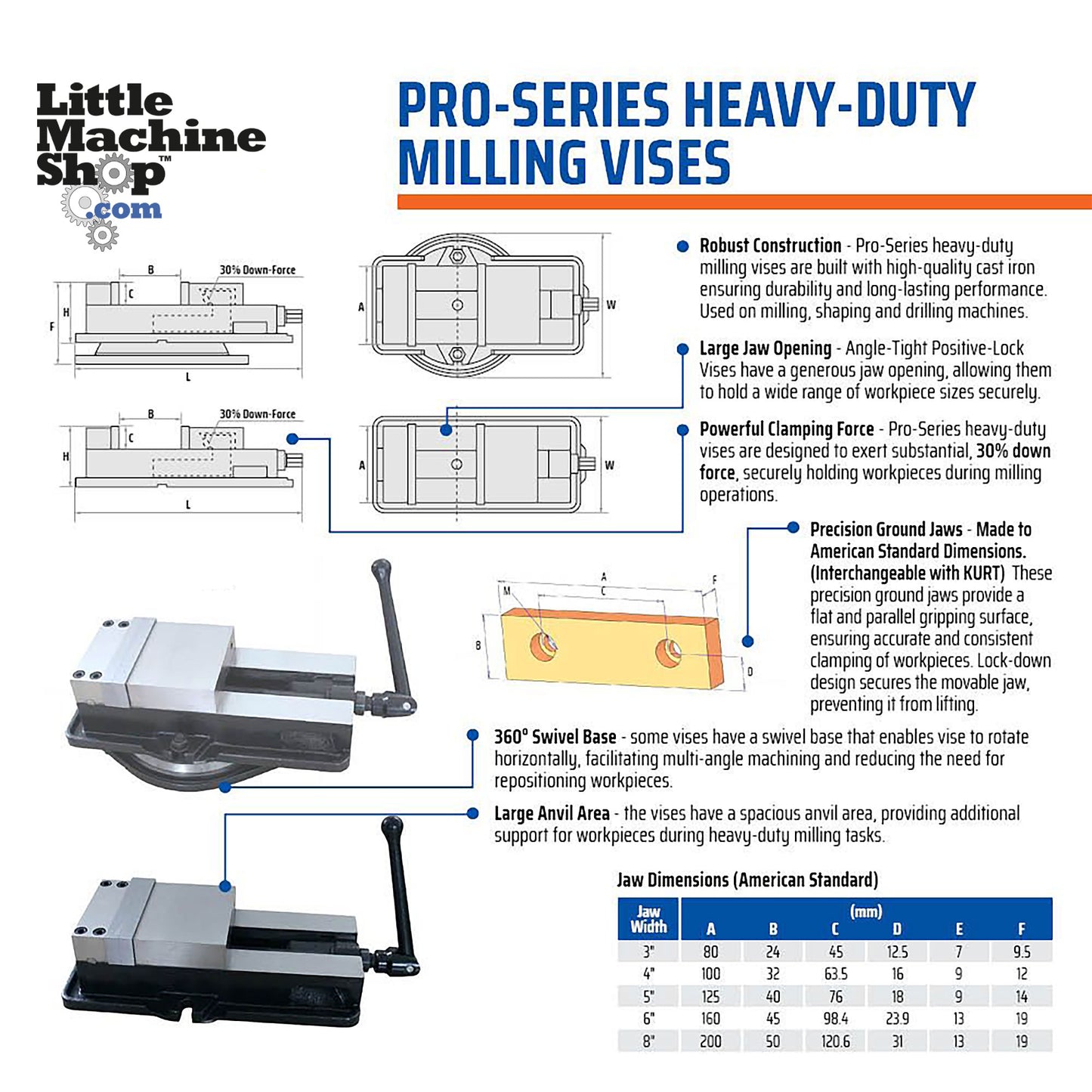

3" High quality Kurt-style milling vise. Top, gib, jaws, bottom of vise bed and all plate mounting surfaces are precision ground. The angle tight positive locking style and wide jaw opening allows for holding a large array of workpieces securely. The hardened and ground jaws are made to American standard dimensions (interchangeable with Kurt) and provide a flat and parallel gripping surface that ensures accurate and consistent clamping. The jaws can be mounted on either end of the fixed and movable jaw providing a wide range of clamping distances.

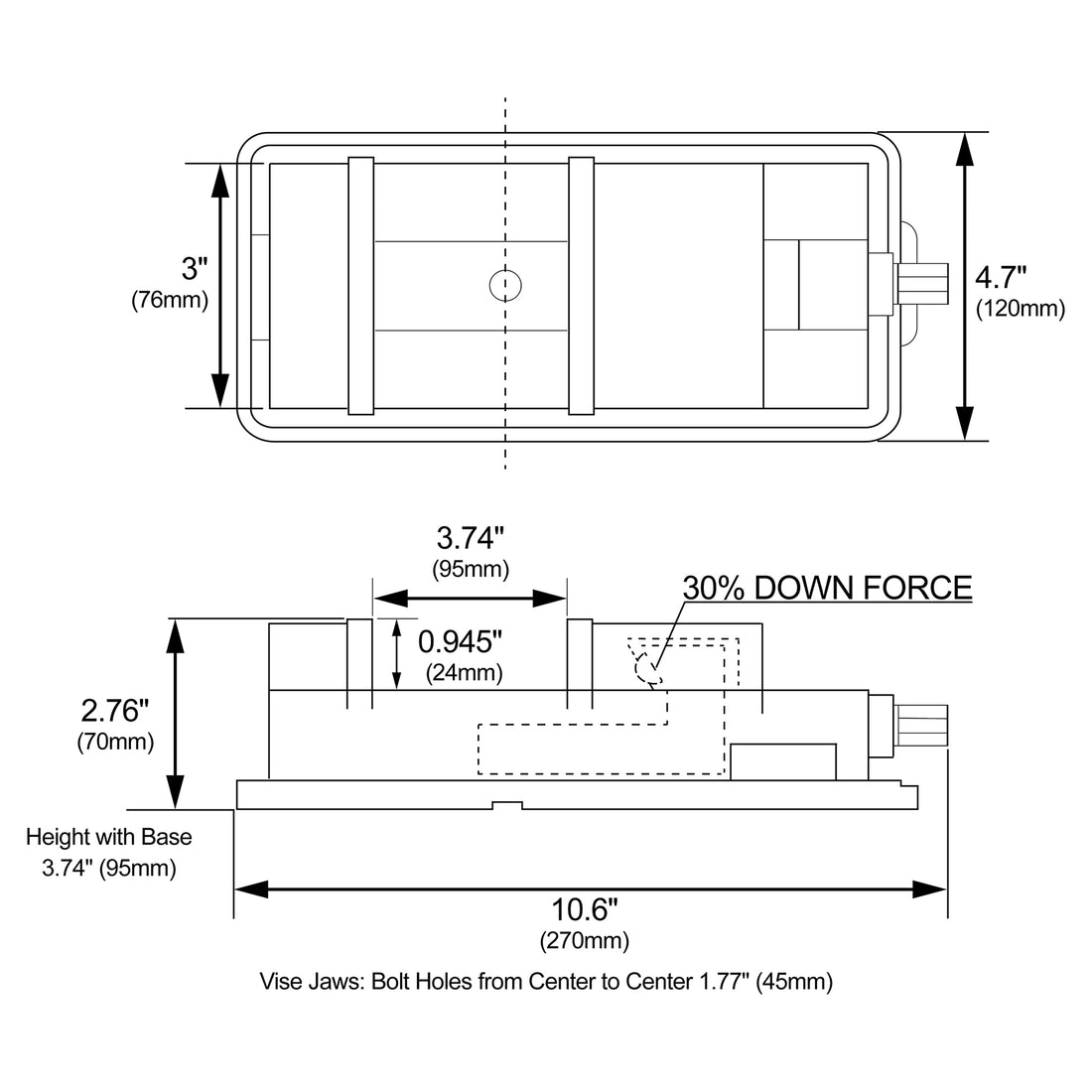

Overall length is 10.85" and the height is 3.05". Jaws are 3.15" wide, 1.04" deep, open 3", and are perpendicular to the ways within 0.002" in 4". The ways are parallel to the base within 0.0006" in 4".
Specifications
Jaw Width: 3.150" (80 mm)
Jaw Depth: .94" (23.876 mm)
Maximum Jaw Opening: 3.0" (76.200 mm)
Weight: 14.2 lbs (6 kg)
Height: 2.73" (69.342 mm)
Length: 10.0" (254.000 mm)
Width: 4.8" (121.920 mm)
Mounting Bolt Centers: 4.0" (101.600 mm)
Hold-Down Mechanism: YES
Ways Parallel to Bottom of Vise Within: 0.0006" in 4" (0.015 mm in 100 mm)
Ways Parallel to Bottom of Swivel Base Within: 0.0008" in 4" (0.020 mm in 100 mm)
Jaws Perpendicular to Ways Within: 0.0020" in 4" (0.050 mm in 100 mm)
