Lathe Chuck, 3-Jaw 5"
- 3-Jaw Lathe Chuck
- 5" (125 mm) diameter
- Includes chuck key, inside and outside jaws
- Plain back mounting
- High quality steel, hardened and ground

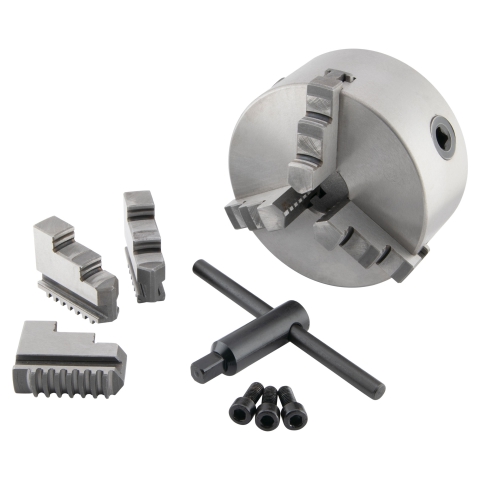

5 inch, 3-Jaw self-centering lathe chuck.
Includes chuck key, inside and outside jaws, and mounting bolts.
The chuck can hold work up to 110 mm (4.33") in diameter.
The radial runout of a test bar held in this chuck, when the chuck is mounted true, is 0.003" maximum.
Chris' Tips
Some people want a chuck that can hold larger diameters. 4" chucks work well on the mini lathe, but it is possible to use a 5" chuck on the mini lathe.
Mount this chuck on a mini lathe with one of our chuck adapters. Or purchase a chuck with an adapter already mounted.
Here are instructions for centering work in a 4-jaw chuck. It's easy if you follow this procedure.
Here is a chart that provides lathe chuck capacities and mounting dimensions.
Mount this chuck on a mini lathe with one of our chuck adapters. Or purchase a chuck with an adapter already mounted.
Here are instructions for centering work in a 4-jaw chuck. It's easy if you follow this procedure.
Here is a chart that provides lathe chuck capacities and mounting dimensions.
Rated Capacity, Inside Jaws | 0.10" - 1.57" (2.5 mm - 40.0 mm) |
Rated Capacity, Jamming Range | 1.50" - 4.92" (38.0 mm - 125.0 mm) |
Rated Capacity, Outside Jaws | 1.50" - 4.33" (38.0 mm - 110.0 mm) |
Practical Maximum Capacity, Inside Jaws | 2.00" (50.8 mm) |
Practical Maximum Capacity, Outside Jaws | 4.00" (101.6 mm) |
Runout (Max) | ≤ 0.003" (0.08 mm) |
Diameter, Overall | 4.92" (125.0 mm) |
Registration Recess Diameter | 3.74" (95.0 mm) |
Registration Recess Depth | 0.14" (3.5 mm) |
Bolt Circle Diameter | 4.25" (108.0 mm) |
Center Hole Diameter | 1.18" (30.0 mm) |
Height | 2.28" (58.0 mm) |
Jaw Height Above Face | 1.10" (28.0 mm) |
Height with Jaws | 3.39" (86.0 mm) |
Number and Size of Bolts | 3 M8 |
Chuck Key | 0.374" (9.50 mm) |
Max RPM | 4900 RPM |
Chuck Designation | K11-125 |

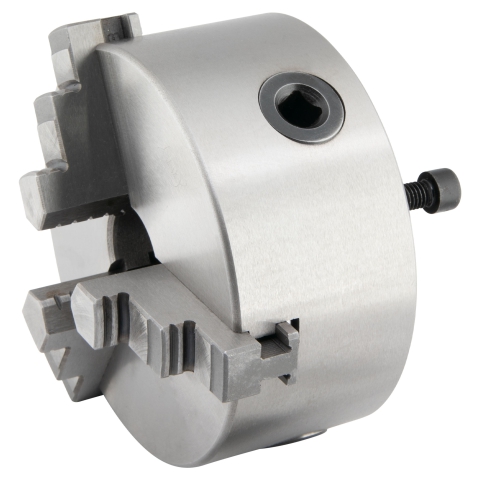

Inside jaws mounted | |
Side View | |

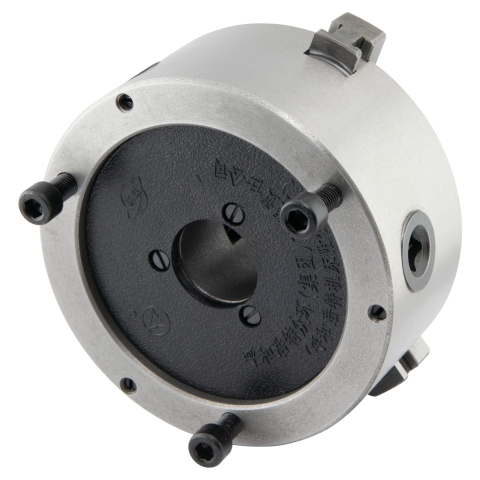

Back view | |

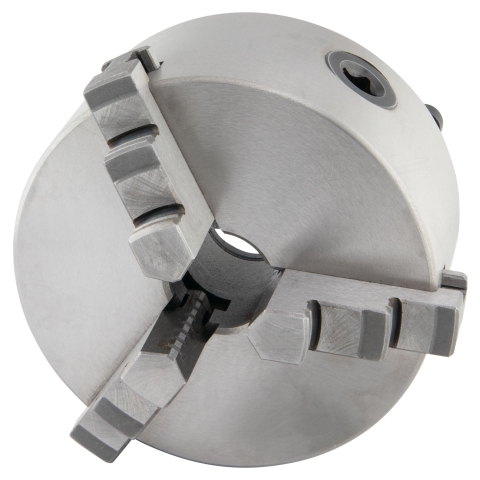

Outside jaws mounted |
