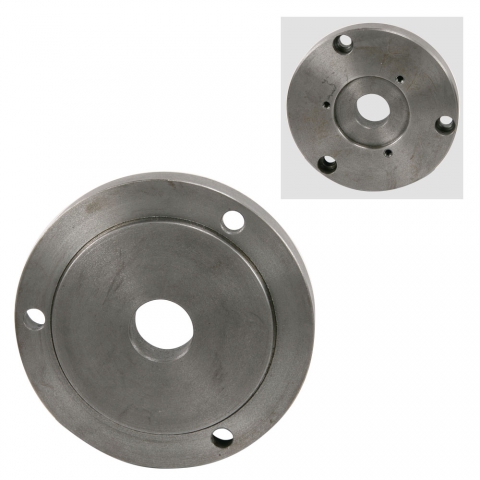

Adapter, 5" Lathe Chuck

Adapter, 5" Lathe Chuck
  • Compatible with 5" 3-Jaw Lathe Chucks
  • Can Use on Mini Lathe with 5" Chuck in Place of 3" Chuck
  • 92 mm Diameter Registration Boss
  • 3 Chuck Mounting Holes
Part Number: 2358
Weight: 3.20 lb

Price: $29.95

In stock
Quantity:
This adapter lets you mount 5" 3-jaw lathe chucks on your mini lathe in place of a 3" (80 mm) chuck.

The adapter mounts to the 3-hole pattern on the spindle so it works on spindles with only three holes.

This adapter has a 92 mm diameter registration boss, and has 3 chuck mounting holes.

Specifications
Outside Diameter Ø 4.9" (125 mm)
Center Hole Ø 1.2" (30 mm)
Spindle Side Registration Recess Ø 2.2" (55 mm)
Spindle Side Bold Circle Ø 2.6" (66 mm)
Chuck Side Registration Boss Ø 3.6" (92 mm)
Chuck Side Bolt Circle Ø 4.3" (108 mm)
Chuck Mounting Holes 6

Compatibility

This product works with these LittleMachineShop.com products:

This product works with lathes with a 80 mm flange chuck mount including:

  •   Grizzly M1015 Shop Fox 6x10 Micro Lathe
  •   Micro-Mark 85181 MicroLux 6x10 Micro Lathe
  •   SIEG C1 6x10 Micro Lathe
  •   Woodstock International M1015 Shop Fox 6x10 Micro Lathe
  •   Enco 110-0803 Enco 7x10 Mini Lathe
  •   Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
  •   Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
  •   MSC 0192857 Enco 7x10 Mini Lathe
  •   Bolton CQ9318 7x12 Mini Lathe
  •   Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
  •   Cummins (Tools Now) 5278 7x12 Mini Lathe
  •   Eastwood 32497 7x12 Mini Lathe
  •   Grizzly G8688 7x12 Mini Metal Lathe
  •   Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
  •   Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
  •   LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
  •   LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
  •   Princess Auto 8507659 Powerfist 7x12 Mini Lathe
  •   SIEG C2 7x12 Mini Lathe
  •   Tormach 30689 7x12 Duality Lathe
  •   Travers Tools OT222300 OTMT 7x12 Mini Lathe
  •   Warco 3004 7x12 Mini Lathe (Metric)
  •   Warco 3005 7x12 Mini Lathe (Imperial)
  •   WEN 3455 WEN 7x12 Mini Lathe
  •   Micro-Mark 82500 MicroLux 7x12 Mini Lathe
  •   LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
  •   LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
  •   SIEG SC2 7x12 Mini Lathe
  •   Micro-Mark 82710 MicroLux 7x14 Mini Lathe
  •   LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
  •   SIEG C3 7x14 Mini Lathe
  •   Warco 4800-350 7x14 Mini Lathe (Imperial)
  •   Warco 4820-350 7x14 Mini Lathe (Metric)
  •   Grizzly G0765 7x14 Mini Lathe
  •   Micro-Mark 84631 MicroLux 7x16 Mini Lathe
