Model Steam Engine Kit | Working Model Steam Engine Kit (Discontinued)

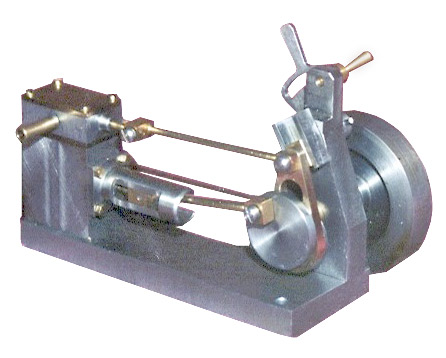

Working model of a steam mill engine
Includes all the material and drawings you need to make this model
You machine the parts
CAD drawings and complete construction manual

Part Number: 3136 (Discontinued)
Weight: 4.10 lb

Price: $89.95

Share this page:
http://lmscnc.com/3136

Description
Chris' Tips

Description

This is a working model engine kit.

This model steam engine kit includes 35 pages of drawings and 32 pages of construction notes that are specific to the mini mill and mini lathe.

When finished, the mill engine measures 2.79" wide x 4.54" long x 3.08" high.

Because of the difficulties and dangers of using steam, these engines are most often powered by compressed air.

Chris' Tips

Chris' Tips
These Elderberry Steam Engines come with the best drawings and construction booklets in the business. The drawings are all CAD generated, with complete dimensions and tolerances. The Construction Manual is a virtually complete how-to for using the mini lathe and mini mill.

The construction manuals for the Elderberry kits form a series. The launch engine is the first in the series. The mill engine construction manual builds on skills learned from building the launch engine, and the toy loco builds on skills learned from building the other two projects.

The drawing sets for each kit are complete. If you don't need the detailed construction manual to help improve your machining skills, you can build these kits in any order.

Here are some sample pages from the Drawing Set and the Construction Manual.
