HiTorque 8.5x20 Bench Lathe 3540 (Discontinued)

- Inch dials, inch and metric threading
- 120VAC 60 Hz
- 1000 Watt (1.34 HP) brushless DC drive
- Power longitudinal feed and power cross feed
- 4" (100 mm) 3-jaw self centering lathe chuck
Weight: 281 lb
Price: $1,799.95

Features newly updated for the model 7500 lathe
- 1000 Watt output spindle motor with spindle speed display
- Genuine NSK bearings
- Metal gears
- Induction hardened ways
- Power longitudinal feed
- Power cross feed
- E-stop safety power switch
- Spindle on-off button
- Forward/reverse button for spindle and lead screw direction
- Reversible lead screw allows for right- and left-hand threading
- Extended threading capability - inch and metric threads
- Zero-resettable dials graduated at 0.001" and advancing 0.050" per turn
- Cam-lock tailstock
- Four-way tool post
- 4" (100 mm) 3-jaw self centering lathe chuck
Swing Over Bed | 8.5" (215 mm) |
Swing Over Saddle | 4.6" (118 mm) |
Distance Between Centers | 20" (510 mm) |
Spindle Through Hole | 0.8" (20 mm) |
Spindle Motor Output | 1.34 hp (1000 Watts) |
Range of Threads | 8-80 TPI (0.2-8.0 mm) |
Spindle Taper | #3 Morse taper |
Tailstock Taper | #2 Morse taper |
Spindle Speed | 100 - 2000 RPM |
Cross Slide Travel | 3.9" (100 mm) |
Power Requirements | 120 V 60 Hz 12 Amps |
Crated Weight | 281 lbs (128 kg) |
Machine Weight | 220 lbs (100 kg) |
Overall Dimensions (W x D x H) | 40" x 22" x 16" (1010 mm x 550 mm x 400 mm) |
Crate Dimensions (W x D x H) | 44" x 28" x 22" (1110 mm x 700 mm x 550 mm) |
![]() |

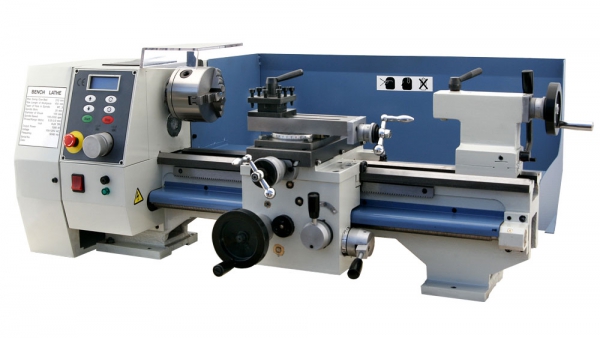

3540 Hitorque Bench Lathe |
![]() |

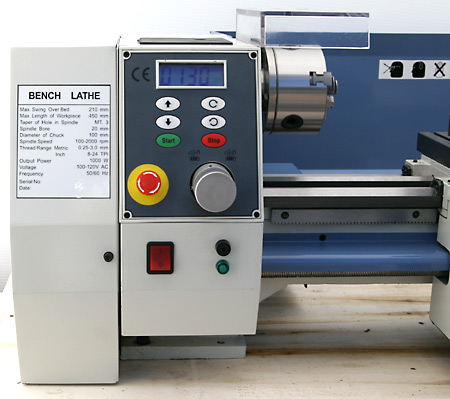

3540 Hitorque Bench Lathe Control Panel |
![]() |

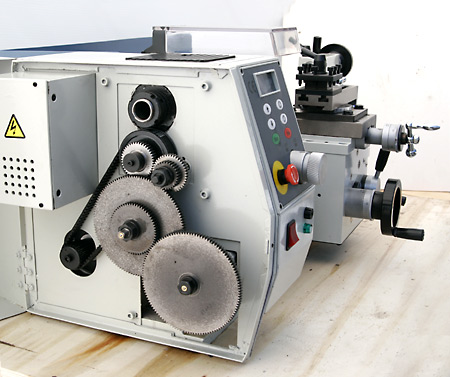

3540 Hitorque Bench Lathe Change Gears |
![]() |

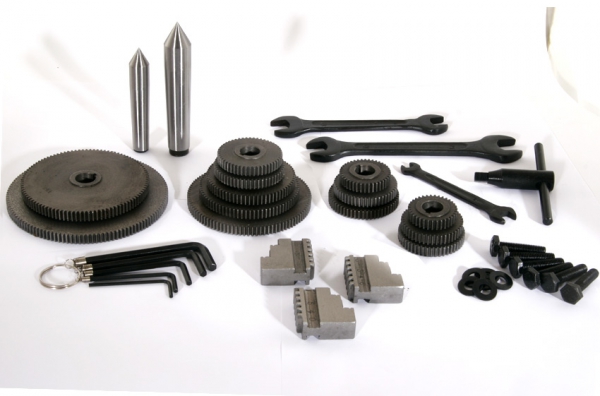

3540 Hitorque Bench Lathe Included Accessories |
![]() |
HiTorque Bench Lathe Stand Cabine |
The Bench Lathe comes with the following:
- 4" (100 mm) 3-jaw self centering lathe chuck with two sets of jaws and a chuck wrench
- 4-Way rotating tool post
- A #3 Morse taper dead center for the headstock
- A #2 Morse taper dead center for the tailstock
- Change gear set
- Three open end wrenches
- Five hex (Allen) wrenches
