Tooling Package, R8 Mini Mill Precision

3" Toolmakers screwless vise and 11 pairs of 3" long thin parallels
Precision 1-2-3 blocks and 20 piece end mill set - 2 and 4 flute (10 each)
58- piece clamping kit - 3/8"-16, 7/16" T-slots
Seven piece R8 collet set, five center drills - 60 degree countersinks
Combination edge and center finder and a T-slot cleaner

Part Number: 4723
Weight: 37.0 lb

$389.95 Value Price

Purchased individually $429.45

Share this page:
http://lmscnc.com/4723

Description

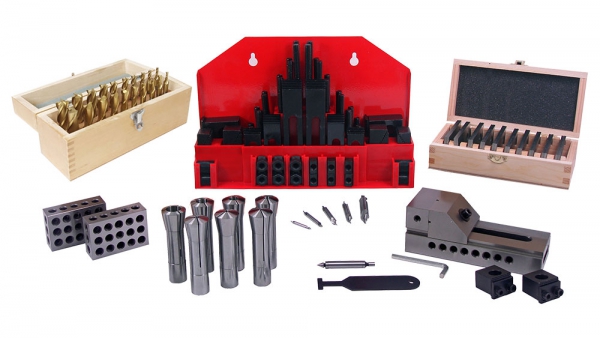

Tooling package with all the essentials for an R8 mini mill.

Toolmakers Vise: 3" toolmakers screwless vice has a one-piece body. The body and jaws are hardened to Rc 58-62. All sides are flat, square and parallel to 0.0002". There are horizontal and vertical vees on the inside face of the movable jaw to hold round objects. The vise jaws are 1.38" deep and open to 3.78" capacity. The vise is 7.28" long, 2.76" tall and 2.785" wide.

The set of 11 pairs of thin parallels are 1/8" thick and 3" long. The heights are 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1" with two pairs of shims are 9/64" and 5/32". They are made of high grade alloy steel hardened to 52 to 58 Rc. The top and bottom surfaces are parallel within 0.0002". The pairs are matched in height within 0.0004".

End Mills: 20 piece set included 2 flute and 4 flute center cutting TiN coated HSS end mills sizes 3/16" - 3/4" by 16ths.

R8 Collets: Set of seven high-grade tool hardened steel, sizes 1/8", 3/16", 1/4", 3/8", 1/2", 5/8", 3/4".

1-2-3 Blocks: Ground and hardened on all sides to 50-60 Rc, sizes 1" x 2" x 3". Parallel within 0.0002", flat within 0.0002", and square within 0.00021". Set has two matched blocks, 23 holes of which 5 are threaded 3/8"-16 NC.

Center Drills: Five sizes combined drills and countersinks made of high speed steel. Sizes 1, 2, 3, 4, and 5 with 60 degree counter sinks.

Chris' Tips

Chris' Tips
T-slot cleaners are designed for Bridgeport mills. It takes a few seconds on a grinder to reduce the size of the "T" to fit the slots on the mini mill.Combined drills and countersinks, commonly called center drills, are used to produce a center hole on a workpiece for turning between centers. Center drills are also used to start drilled holes. Because they are very stiff they don't have a tendency to wander.

Here are the sizes of center drills.

Number	Body Dia.	Drill Dia.	Length
1	1/8"	3/64"	1 1/4"
2	3/16"	5/64"	1 7/8"
3	1/4"	7/64"	2"
4	5/16"	1/8"	2 1/8"
5	7/16"	3/16"	2 3/4"

Drawings

Nominal Sizes for 7/16" T-Slot Nut

Suitable for 12 mm T-Slot tables on common mini mills.

Contents

This product contains the following items:
	Description	Qty
	Blocks, 1-2-3, P/N 1233	1
	Box, for 3" Parallels, P/N 2367	1
	Center Drills, HSS, Set of 5 (Numbers 1-5), P/N 1230	1
	Clamping Kit, 7/16" T-Slot, P/N 1144	1
	Clamps, Screwless Vise, P/N 2675	1
	Collet Set, R8, Set of 7, P/N 2605	1
	Edge and Center Finder, 3/8" Shank, P/N 1240	1
	End Mill Set, 20 pieces 2 & 4 Flute, TiN coated HSS, P/N 1244	1
	T-Slot Cleaner, 7/16" T-Slot, P/N 4991	1
	Thin Parallels, 3" Long, 11 Pairs, P/N 3946	1
	Vise, 3" Screwless, P/N 1590	1
