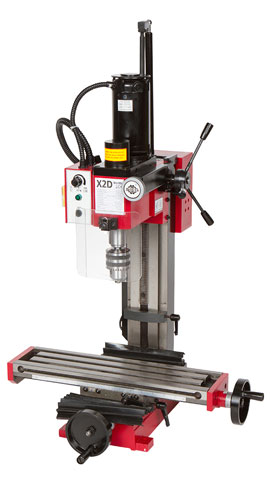

SIEG X2D Mini Mill
- Full featured mini mill at an incredible price
- 350 Watt variable speed DC drive
- Largest table and X-Y travel in its class
- R8 Spindle taper
- Dovetail solid column and air spring head support
This mill has a solid column. It does not tilt from side to side. This construction is significantly stiffer than the tilting column on other mini mills.

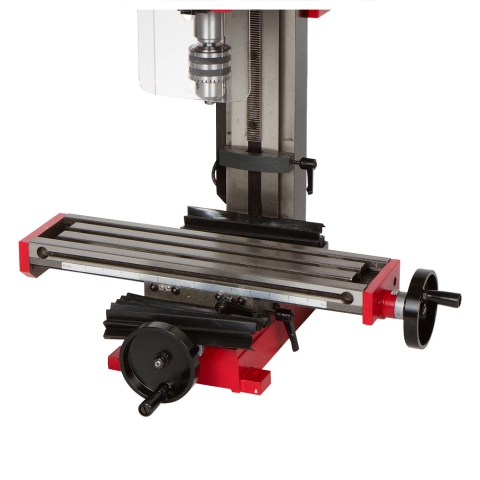

The large mill table provides 50% more table area than other mini mills. It also has 30% more travel in each direction. The resettable feed dials allow you to zero them at any point.

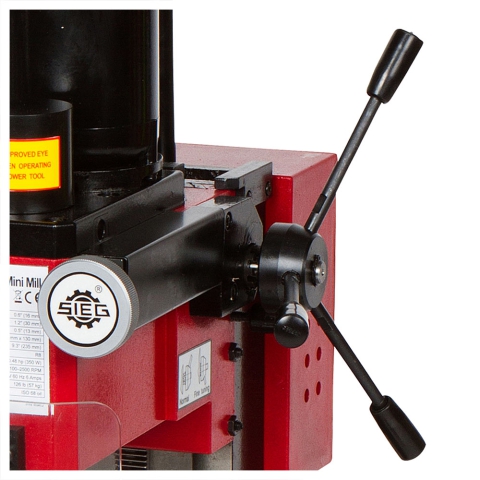

The SIEG X2D Mini Mill has drill press handles for drilling and fast motion of the mill's head. It also has Z-axis fine feed with 0.001" resolution for milling operations.
This model also includes the air spring head support for even support throughout the Z-axis travel.
- 350 Watt output spindle motor
- 2-Speed ranges for low speed torque
- Large X-Y table
- R8 Spindle for wide tool availability
- Solid column that does not tilt
- Gas strut provides even support through the Z-axis range
- Dovetail column maintains head alignment at any height
- Fine feed on Z-axis for precise control
- Three radial handles for drilling

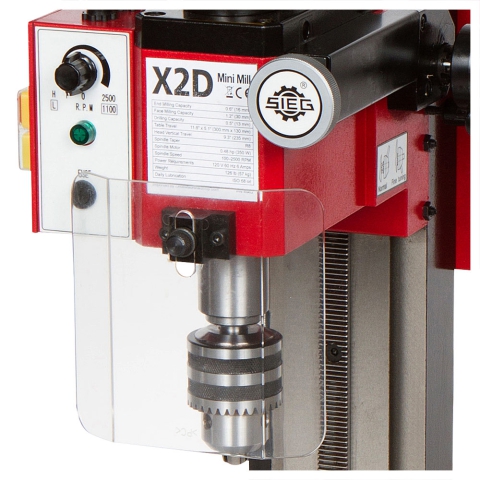

- E-stop safety power switch
- Adjustable Z-axis stop for repetitive drilling
- Neoprene bellows protect horizontal ways
- Adjustable gibs on all dovetail ways

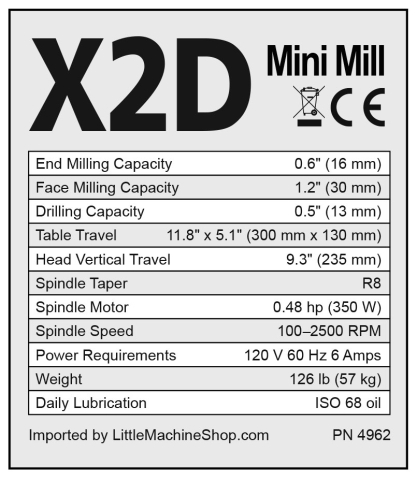

|End Milling Capacity||0.6" (16 mm)|
|Face Milling Capacity||1.2" (30 mm)|
|Drilling Capacity||0.5" (13 mm)|
|Table Size||18.1" x 4.7" (460 mm x 120 mm)|
|T-Slots||3 slots 0.47" (12.0 mm) wide|
|X-Axis Travel||11.8" (300 mm)|
|Y-Axis Travel||5.1" (130 mm)|
|Z-Axis Travel||10.6" (270 mm)|
|Throat||6.5" (165 mm)|
|X- and Y-Axis Feed Screws||0.062" (1.59 mm) per rotation|
|Maximum Spindle to Table||11.5" (292 mm)|
|Positioning Accuracy||0.0004" (0.010 mm)|
|Spindle Motor||0.47 hp (350 Watts)|
|Spindle Speed||100 - 2500 RPM|
|Power Requirements||120 V 60 Hz 6 Amps|
|Machine Weight||124 lbs (56 kg)|
|Base Dimensions (W x D)||8.50" x 14.25" (215.9 mm x 361.9 mm)|
|Mounting Holes Center to Center (W x D)||7.00" x 11.88" (177.8 mm x 301.6 mm)|
|Overall Dimensions (W x D x H)||23.2" x 19.7" x 36.3" (590 mm x 500 mm x 922 mm)|
|Crated Weight||176 lbs (80 kg)|
|Crate Dimensions (W x D x H)||23.6" x 25.0" x 29.9" (600 mm x 635 mm x 760 mm)|
|Table, X and Y Axis Handwheels|

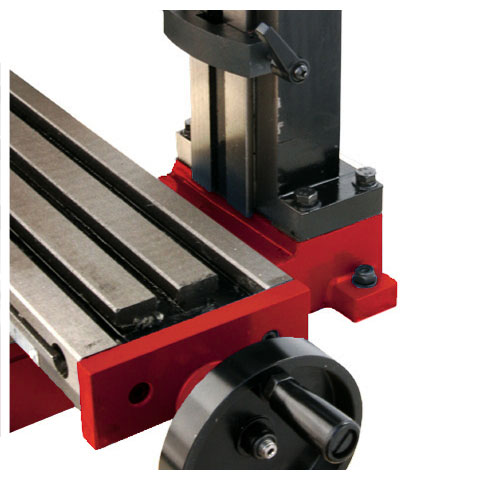

|Dovetail solid column|
The X2D Mini Mill comes with the following:
- Mini Mill Users Guide
- Two T-slot nuts
- Two end wrenches
- Four hex (Allen) wrenches
- One spanner wrench
- Oil can (plastic)
- 1/2" capacity drill chuck with arbor
