3-Axis DRO Kit, Bench Mill
- Hard wired 3-axis DRO package with mounting arm
- Designed for LittleMachineShop.com HiTorque bench mills
- Complete package, no additional components needed
- Advanced display functions

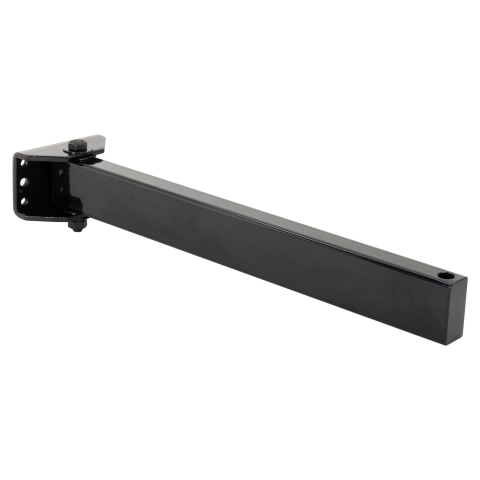

- Mounting arm included
Part Number: 6388
Weight: 8.10 lb
Weight: 8.10 lb
Price: $549.95
Share this page:
http://lmscnc.com/6388
http://lmscnc.com/6388

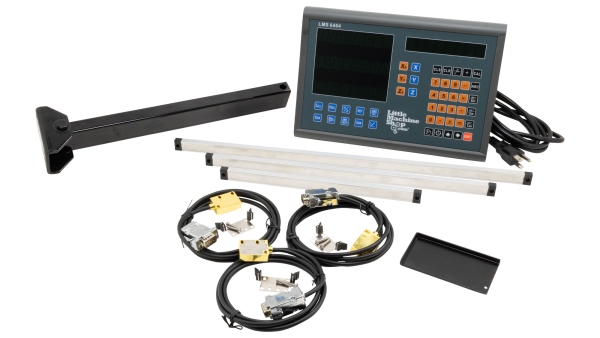

Hard wired DRO kit for the HiTorque bench mills. This kit comes with everything you need for a 3-axis bench mill DRO installation.
The wiring setup eliminates the need for a wireless environment and ensures regular steady connectivity to your mill.
The display has a protective cover which can be used or removed based on your preferences.
The read head cable is approximately 58" between read head and an 9-Pin connector.
The scales are pre-cut to length for the HiTorque bench mills.
See the Compatibility tab for products that work with this product.
Chris' Tips| X-Axis Scale Length | 18.11" (460.0 mm) |
| Y-Axis Scale Length | 9.45" (240.0 mm) |
| Z-Axis Scale Length | 14.17" (360.0 mm) |
| Repeatability | 0.0002" (0.005 mm) |
| Resolution | 0.0002" (0.005 mm) |
| Specified Accuracy | 0.0020" (0.050 mm) / 1 m travel |
| Accuracy / Foot | 0.0020" (0.050 mm) |
| Accuracy / 100 Mm | 0.0020" (0.050 mm) |
| Scale Technology | Magnetic |
| Scale Protection | Coolant & dust resistant |
| Voltage | 120-240 V |
| Clear to Zero | Yes |
| Direct Entry of Position | Yes |
| Inch/mm Display | Yes |
| Power Off Memory | Yes |
| Reversible Count Direction | Yes |
| Find Center | Yes |
| Bolt Circles | Yes |
| Bolt Lines | Yes |
| Preset Points | Yes |
| Tool Offsets | Yes |
| Radius/Diameter | Yes |
| Incremental/Absolute | Yes |
| Calculator | No |
| Arc Machining | No |
| Linear Error Compensation | No |
| Made In | China |
| Warranty | 1 year |
| Phone Tech Support | Free |
 |
Display |
 |
Read Head with Cable |
 |
Mounting Bracket |
Compatibility
This product works with these LittleMachineShop.com products:
This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)
- SIEG X2.7 Bench Mill
- LittleMachineShop.com 5500 HiTorque Bench Mill
- LittleMachineShop.com 6500 HiTorque Bench Mill
- SIEG SX2.7 Bench Mill
