HiTorque 4190 Deluxe Mini Mill, Tooling Package, and Stand Cabinet

All the essentials for a mini mill setup
Save hundreds of dollars with bundled pricing and shipping
Includes deluxe mini mill with factory DRO
Includes standard tooling package
Includes stand cabinet and drip tray

Part Number: 6542
Weight: 297 lb

$2,449.00 Value Price

Purchased individually $2,681.40

This product is currently backordered.

Estimated availability:
21-Dec-2024
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

Share this page:
http://lmscnc.com/6542

Description

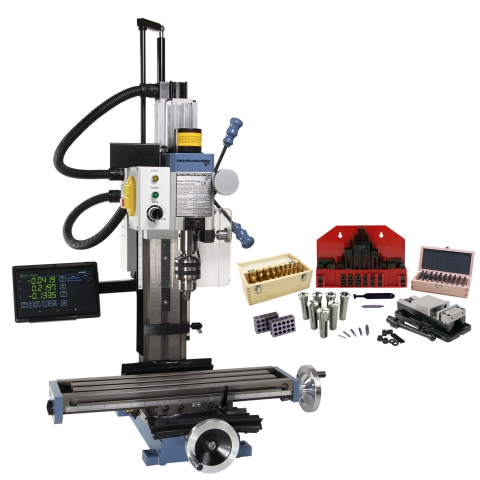

This package includes the 4190 HiTorque Deluxe Mini Mill, the 3489 R8 Mini Mill Tooling Package, and 5629 Stand cabinet.

The mill in this package is the HiTorque model 4190 Deluxe Mini Mill. The mill has the standard HiTorque features including solid column, brushless motor and NSK branded bearings. In addition, this mills has:

- 3-axis digital readout (DRO) with Bluetooth and 7" tablet display. The DRO is completely installed on the mill.

- Electrically interlocked spindle lock disables power to the motor when engaged.

- Machined aluminum handwheels and color keyed drill handles.

The 500 Watt brushless spindle drive motor provides tremendous low-end torque. And you can vary the speed from 50 rpm to 2500 rpm continuously. There are no gears to shift. And, with no gears, the HiTorque Mini Mill is quieter than other mills in its class.

The large mill table provides 50% more table area than other mini mills. It also has 30% more travel in each direction. The re-settable feed dials allow you to zero them at any point.

The mill is equipped with drill press handles for drilling and fast motion of the mill's head. It also has Z-axis fine feed with 0.001" resolution for milling operations.

This machine is shipped completely assembled and adjusted. Machined surfaces are coated with a viscous oil to prevent rust. It wipes off easily with a rag; no solvents necessary.

The tooling package has all the essentials for basic mini mill operations and is bundled to work with the 4190 R8 mini mill.

The stand cabinet is sourced from the same factory as the mini mill so the drip tray has pre-drilled holes for mounting the mill. It also has cutouts on the base for securing the cabinet to a shop floor. The cabinet itself is ideal for storage of tools and accessories.

*NOTE* We ship machines only to the US and Canada.

Chris' Tips

Chris' Tips
Here's Using the Bluetooth DRO Display.

For more information on the Bluetooth DRO, visit the Bluetooth DRO Package page and the Android Tablet page.

You can compare the specifications for our mills.

The solid column is much more rigid than the tilting column.

Some people may feel that the tilting column is a feature, but I have used a mini mill for many years and never tilted the column on purpose.

Let's compare the LittleMachineShop.com Solid Column HiTorque Mini Mill to mini mills with a tilting column.

The tilting column on other folk's mini mills tilts 45 degrees from side to side. This has several advantages. First, it is possible to make some angled cuts. It's also easy to tram in the X-axis. One user (and only one) has described to me a cut that was impossible to make any way but using a tilting column.

This mill has a solid column. While it is harder to tram in the X-axis because you must use shims, it is not as easy to knock it out of tram as the tilting column mini mill. The solid column has thicker walls than the tilting column, and a stiffer joint where it joins the base, so the column is significantly more rigid than the tilting column.

LittleMachineShop.com no longer sells mills with a tilting column. That is an indication of how much better the solid column is.

Here are the user's guides for our machines.

Features

500 Watt output spindle motor
Factory installed 3-Axis DRO with 7" Android tablet readout
Electrically interlocked spindle lock
Large X-Y table with attractive anodized handwheels
R8 Spindle for wide tool availability
Solid column that does not tilt
NSK brand Japanese bearings
Gas strut provides even support through the Z-axis range
Dovetail column maintains head alignment at any height
Fine feed on Z-axis for precise control
Three radial handles for drilling
E-stop safety power switch
Adjustable Z-axis stop for repetitive drilling
Neoprene bellows protect horizontal ways
Adjustable gibs on all dovetail ways
Includes R8 to 33JT drill chuck arbor and 1/2" drill chuck

Photos

	4190 mini mill - alternate view
	Front view
	Side view
	Side view
	Rear view
	R8 spindle
	Electrically interlocked spindle lock - Disengaged
	Electrically interlocked spindle lock - Engaged
	Z-Axis handle
	Z-Axis handle lock disengaged
	Z-Axis fine feed
	X-Axis DRO scale installed
	Y-Axis DRO scale installed
	Z-Axis DRO scale installed
	Control box
	Anodized aluminum hand wheels
	X-Axis scale ring
	Air spring
	Drawbar with cover cap removed
	Solid column base

Contents

This product contains the following items:
	Description	Qty
	Blocks, 1-2-3, P/N 1233	1
	Center Drills, HSS, Set of 5 (Numbers 1-5), P/N 1230	1
	Chip Tray, HiTorque Mini Mill, P/N 5510	1
	Clamping Kit, 7/16" T-Slot, P/N 1144	1
	Collet Set, R8, Set of 7, P/N 2605	1
	Edge and Center Finder, 3/8" Shank, P/N 1240	1
	End Mill Set, 20 pieces 2 & 4 Flute, TiN coated HSS, P/N 1244	1
	HiTorque 4190 Deluxe Mini Mill, P/N 4190	1
	Stand Cabinet, Mini Mill and Micro Mill (Component), P/N 5507	1
	T-Slot Cleaner, 7/16" T-Slot, P/N 4991	1
	Thin Parallels, 3" Long, 10 Pairs, P/N 1893	1
	Vise Mounting Kit, 7/16" T-Slot, P/N 3125	1
	Vise, 3" Precision Milling, Heavy, No Swivel Base, P/N 2024	1

Shipping

These machines ship by freight truck because they are simply too heavy and bulky for UPS Parcel Service. If your location will be difficult for larger truck/Semi-trailer, please let us know.

We normally ship truck orders a day or two after we receive the order. For local orders transportation usually takes no more than a day or two. For orders going across county or over water the transportation time can be up to a week or longer.

We add the following shipping cost to your order total:

We ship machines only to the US and Canada.

Destination	*Local	Continental US
Freight Terminal (pick-up) Within 50 miles / 1 hour of travel Note: Not all terminals allow pickup	$99	$179
Commercial Address (inc. Limited Access Sites) Set hours / No delivery appointment Includes limited access (e.g. Schools, Military, Gov. Bldgs) DOES NOT include liftgage service**	$99	$199
**Liftgate: Add liftgate if forklift or loading dock is not available onsite.		+ $50
Residential Address Includes delivery appointment and liftgage for ALL Residential businesses or limited access facilities (e.g. schools) requiring appointment or liftgage	$99	$249

*Local refers to the parts of Southern California served by Hollywood Delivery Service.

**Liftgate service is included in local delivery and residential delivery. A loading dock or forklift is assumed in commercial deliveries. If these are not available, please add this extra service.

Additional Notes

Contact and delivery. Ensure you choose the correct type of delivery, have a dedicated contact person/number, and are ready on day of delivery. Freight companies charge an additional fee if delivery exceeds 30 minutes.
Only one shipping charge for entire pallet (up to 700 pounds total). The shipping charges shown above cover the cost of shipping the machine and anything else that you purchase with it, including a second machine, stand, tooling, and accessories.
A "commercial address" has a sign with company name, a public entrance and posted hours of operation. If you are running a business at your residence without a public entrance and posted company name and hours of operation it is considered a residence and a not commercial address.
A "limited access" designation is required for "Secured Locations" (schools, colleges, universities, university hospitals, military bases, government facilities, etc). Please provide accurate details on delivery in special instructions.
"Terminal Pickup" allows for pickup at local terminal. If there is not a terminal within 50 miles (or 1 hour), we will confirm with you that you still want Terminal Pickup. Terminals tend to be near highways (usually miltiple intersecting) and industrial centers. Only certain terminals allow pick-up.
"Residential delivery" does not include moving machine into home/garage/workshop or any setup. Delivery is to start of driveway on the street that the delivery truck can access. (See inside delivery below.)

For delivery to Alaska, Hawaii, or Puerto Rico

We will check with several trucking companies to get the best price and then call for your approval before we ship.

Canadian Shipments

Truck Freight shipping to Canada involves 3 distinct charges in addition to the product costs. (All amounts are in US Dollars, see the current mid-market exchange rate.)

Canadian Provincial Taxes (GST, PST, HST) depending on which province the shipment is going to. This will be 5% - 15% added to total sales amount depending on province (Canadian Sales Tax).
Hemisphere Customs Brokerage which handles all customs clearance requirements. This is a flat fee of $108 on any shipment.
Truck Freight from Southern California to destination in Canada. This is generally $300-$500 for residential liftgate delivery and appointment for single machine + tooling orders. Delivery to a terminal for pick-up or a commercial location with loading capabilities can reduce this cost substantially.

Quotes

To get a quotation that includes the shipping costs, add the products you want to the shopping cart and continue the checkout process until you reach the Payment page. On the Payment page, select the Quotation option. We will add the shipping costs and return a complete quotation to you within one business day.

Inside Delivery

For many years we have offered INSIDE DELIVERY for an added charge (as set by freight carriers). Unfortunately, most carriers have stopped this practice for liability, cost, or other reasons and we can no longer reliably offer it. If you really need Inside Delivery, please give us a call and we can try to help with your specific situation. Our recommendation however has always been to call some friends or find someone local. Saves some money and lets you meet the neighbors....

Alternatively, companies like Navis Pack & Ship (www.gonavis.com) or similar may be able to help you pack up a machine, or move it into your home/shop.
