• Quick Change Tool Post Set, 0XA for HiTorque Bench Lathe
1 1

Quick Change Tool Post Set, 0XA for HiTorque Bench Lathe

Quick Change Tool Post Set, 0XA for HiTorque Bench Lathe

$219.95
$219.95
Sale Sold out
Shipping calculated at checkout.

In stock

4101 (BUNDLE)

Key Features

  • Fits HiTorque Bench lathes and SIEG C4 & SC4 lathes
  • 0XA, or series 000 size (60% of AXA size)
  • Includes five tool holders
  • All steel construction
  • Includes mounting stud for HiTorque Bench lathe

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

This true wedge type 0XA quick change tool post set has maximum rigidity and provides chatter free performance. This is the same Premium QCTP set that comes stock on our HiTorque Mini Lathes. All working parts are hardened and ground steel. It is completely sealed for maintenance-free operation. LEARN MORE

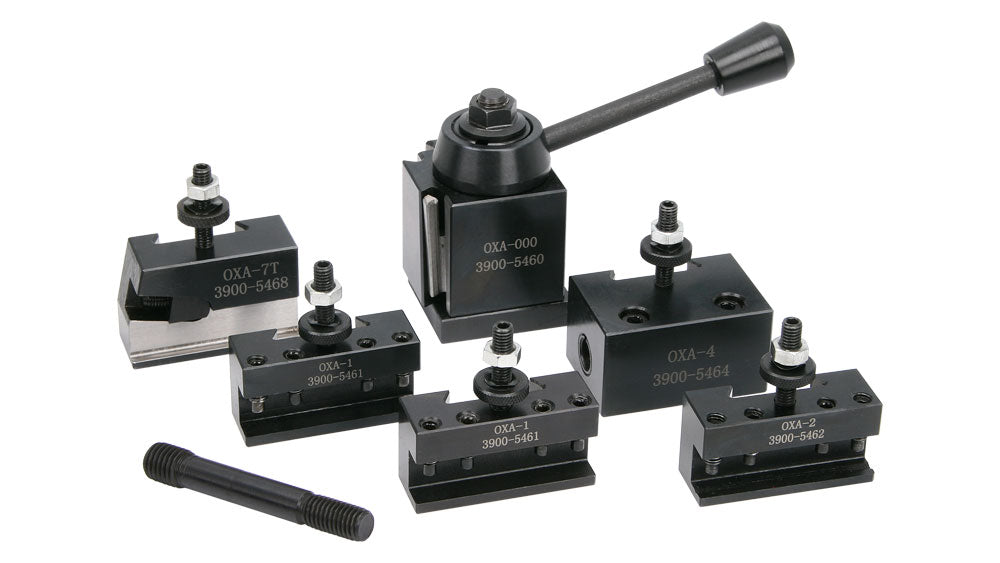

This set includes the tool post and the following tool holders: (It will hold turning tools with shanks from 1/4" to 1/2".)

2 - #1 Turning & Facing
1 - #2 Boring, Turning & Facing
1 - #4 Heavy Duty Boring will hold both 3/8 and 1/2 boring bars
1 - #7 Universal Parting Blade (for 1/2" cut-off blade)

It is the perfect size for bench lathes and smaller tools. The tool holders have been designed specifically to work on lathes that have limited distance from the top of the compound to the center of the lathe.

This tool post mounts with a threaded M12 to M10 adapter stud, which is included.

Chris' Tips

The 0XA quick change tool post and the associated tool holders were developed by Tormach and LittleMachineShop.com in cooperation. They were optimized to work with all versions of mini lathes, including 7x10, 7x12, 7x14 and 7x16 mini lathes.

This QCTP is a bolt-on accessory for the mini lathe. To mount this QCTP on other small lathes, you may have to make a bushing or re-work the center stud so that you can mount it to a smaller threaded hole. See the comparison chart of the quick-change tool post sets we carry.

See the comparison chart of the quick-change tool post sets we carry.

Product Compatibility

This product was designed for machines manufactured by SIEG, including those listed below. We have added compatibility for other non-SIEG machines when a “fit” can be verified.

If your machine is not listed, we cannot verify compatibility but encourage you to contact us. With additional information we may be able to help you find a solution.

  • LittleMachineShop.com 3536 HiTorque 8.5x16 Bench Lathe
  • SIEG C4 8.5x16 Bench Lathe
  • SIEG SC4 8.5x16 Bench Lathe
  • Travers Tools OT218410 OTMT 8x16 Bench Lathe
  • LittleMachineShop.com 3540 HiTorque 8.5x20 Bench Lathe
  • LittleMachineShop.com 3595 HiTorque 8.5x20 Deluxe Bench Lathe
  • LittleMachineShop.com 7500 HiTorque 8.5x20 Bench Lathe
  • LittleMachineShop.com 7550 HiTorque 8.5x20 Deluxe Bench Lathe
  • LittleMachineShop.com 7600 HiTorque 9x20 Bench Lathe
  • LittleMachineShop.com 7650 HiTorque 9x20 Deluxe Bench Lathe

Product Instructions
