Rotary Table, 4" Tilting, Standard

Rotary Table, 4" Tilting, Standard

5604

$139.95 USD
$139.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • Tilting table 0° to 90°
  • 4" diameter table rotates 360°
  • 1:36 ratio or 10° per handwheel revolution
  • Scale reads to 15 minutes
  • Low profile - 66mm (2.60") tall

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

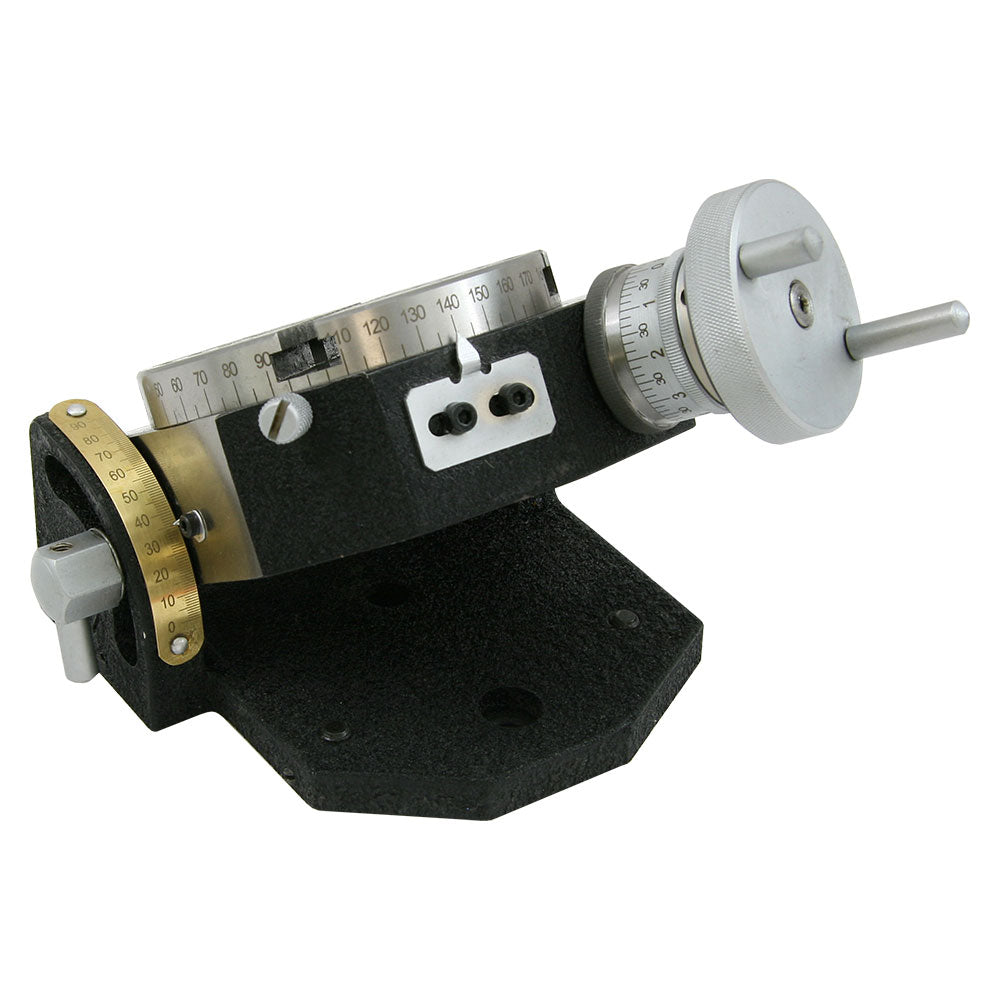

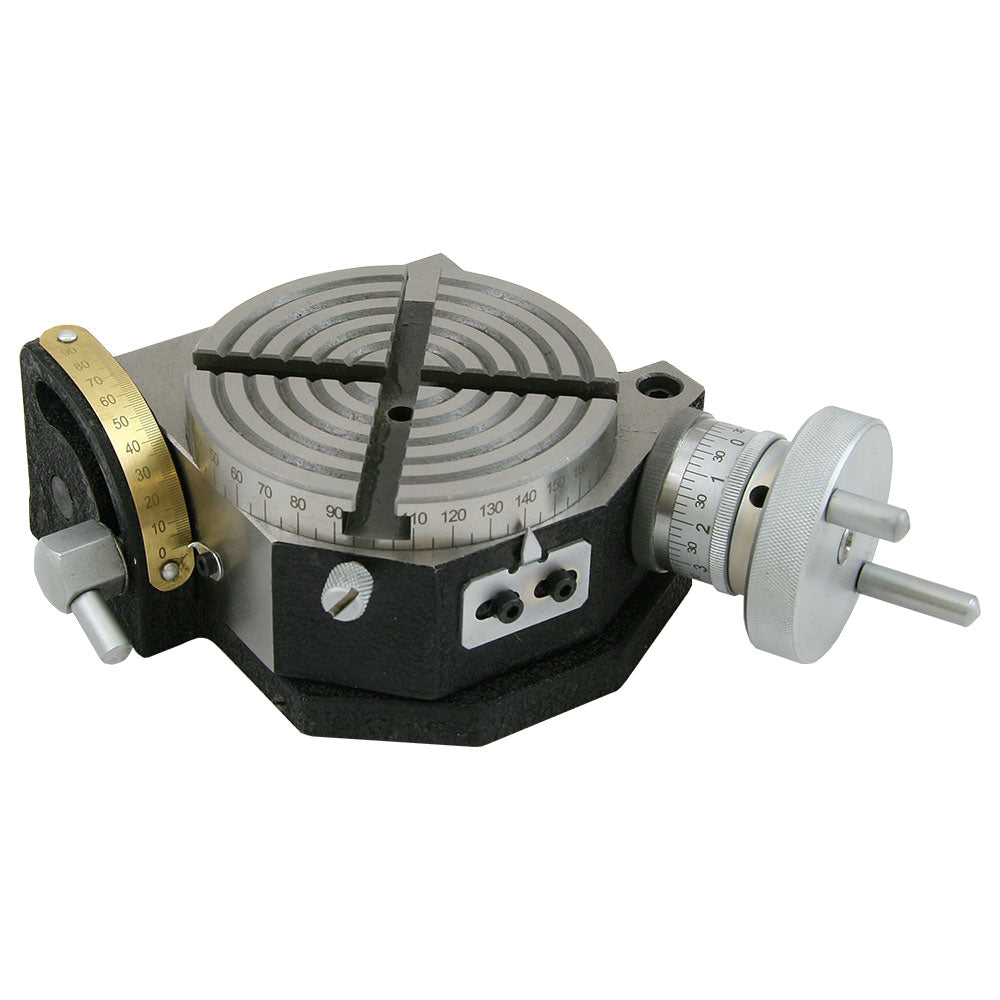

Affordably priced rotary table suitable for bolt patterns, arched slots, cutting out flywheels and other medium precision jobs. The small size of the table is good for small milling machines. The table has a low profile of 66mm (2.60") in the horizontal position.

This precision ground graded cast iron table is graduated for a full 360°. The handwheel utilizes a 1:36 ratio resulting in 10° per handwheel revolution. Table tilts from 0° to 90° and locks into place.

Table comes with two clamping studs, two 45mm clamping bars and two t-nuts.

Specifications

Ratio: 36:1

Table Diameter: 4.016" (102 mm)

Height (Mounted Horizontal): 2.598" (66 mm)

Body Length: 8.268" (210 mm)

Body Width: 8.268" (210 mm)

Center Height (Mounted Vertically): 3.031" (77 mm)

T-Slot Width: 0.315" (8 mm)

Minimum Vernier Reading: 10"

Flatness of Table Surface (Concave): 0.001" (.02 mm)

Parallelism of Table Surface to Base: 0.001" (.02 mm)

Squareness of Table Surface to Base: 0.001" (.02 mm)

Runout of Table Surface: 0.001" (.02 mm)

Squareness of Table Surface to Angle Face Slot: 0.001" (.02 mm)

Maximum Spacing Error: 30"
