Rotary Table, 4" with Tailstock, Dividing Plate, & 3-Jaw Lathe Chuck
Rotary Table, 4" with Tailstock, Dividing Plate, & 3-Jaw Lathe Chuck
Out of stock
SKU:6758Shelf Location: (E01 - 03)
Couldn't load pickup availability
Key Features
Key Features
- 4" (100mm) diameter table rotates 360°
- 1:72 ratio or 5° per handwheel revolution

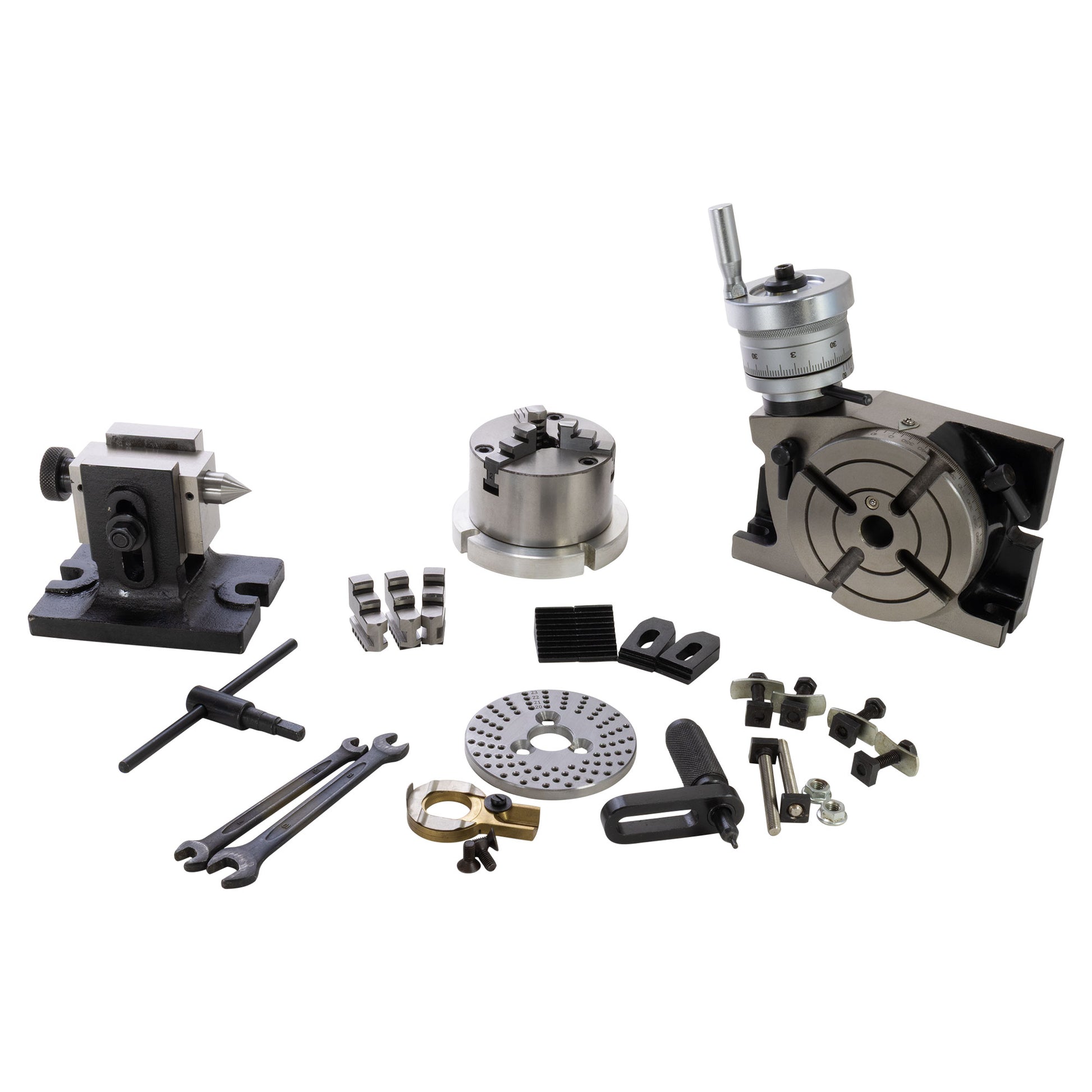

- Includes: dividing plate set, tailstock, 3" 4-Jaw chuck, and Lathe chuck adapter
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
This kit provides a complete rotary table and indexing solution.
This 4" horizontal/vertical rotary table is perfect for indexing, circular cutting, angle setting, bolt patterns, arched slots, cutting out flywheels, boring, and spot facing operations on a milling machine.

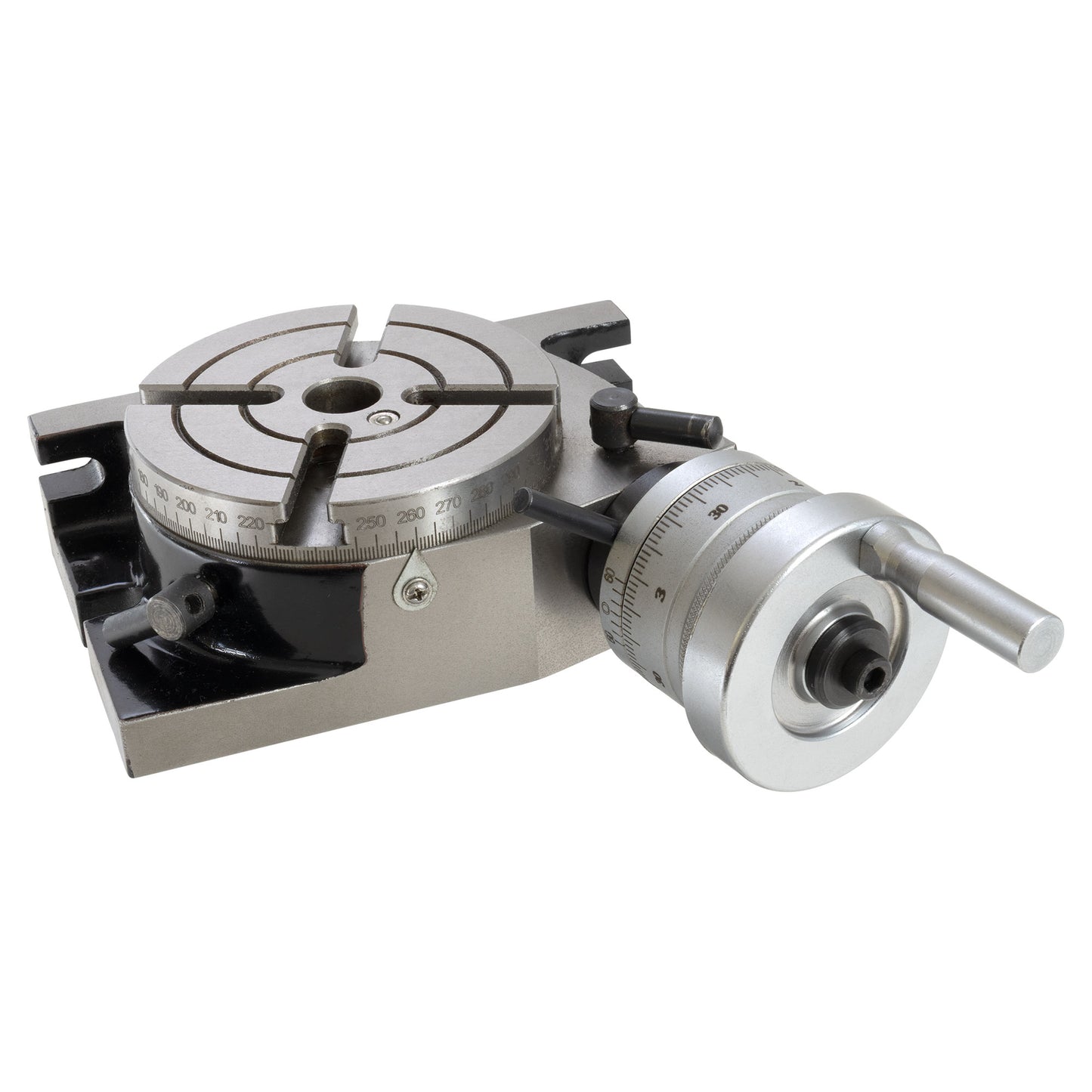

This rotary table is made of precision machined cast iron and has a 2 Morse taper center hole. The table is graduated with a 360-degree scale. The handwheel utilizes a 1:72 ratio resulting in 5° per handwheel revolution. The rotary table is furnished with lock down clamps. The table has a low profile of 55mm (2.17") in the horizontal position.
The dividing plate has circles with 20, 21, 22, and 23 holes on one side and 25, 26, 27, and 28 on the other.
The tailstock is adjustable in height.
The 3 inch 3-Jaw independent lathe chuck includes a chuck key, reversible jaws, and mounting bolts.
The lathe chuck adapter lets you mount a 3" 3- or 4-jaw lathe chuck on a rotary table with a 2 Morse taper center hole. There is an alignment boss that projects into the tapered hole for quick alignment. It is clamped to the rotary table with T-slot nuts that are included.
Chris' Tips
See the comparison of the specifications for the rotary tables we carry.
Learn more about rotary table HERE
Specifications
Ratio: 72:1
Table Diameter: 4" (102mm)
Height (Horizontal): 2.2" (56mm)
Body Length: 4" (103mm)
Body Width: 6.14" (156mm)
Center Hole Taper: MT-2
Center Height (Mounted Vertically): 2" (52mm)
T-Slot Width: 1/4" (M-6)
Minimum Vernier Reading: 20 Second
Flatness of Table Surface (Concave): 0.0008" (0.020mm)
Parallelism of Table Surface to Base: 0.0008" (0.020mm)
Squareness of Table Surface to Base: 0.0008" (0.020mm)
Runout of Table Surface: 0.0008" (0.020mm)
Runout of Center Taper: 0.0008" (0.020mm)
Squareness of Table Surface to Angle Face Slot: 0.0008" (0.020mm)
Center Hole Parallel with the Angle Face: 90°
