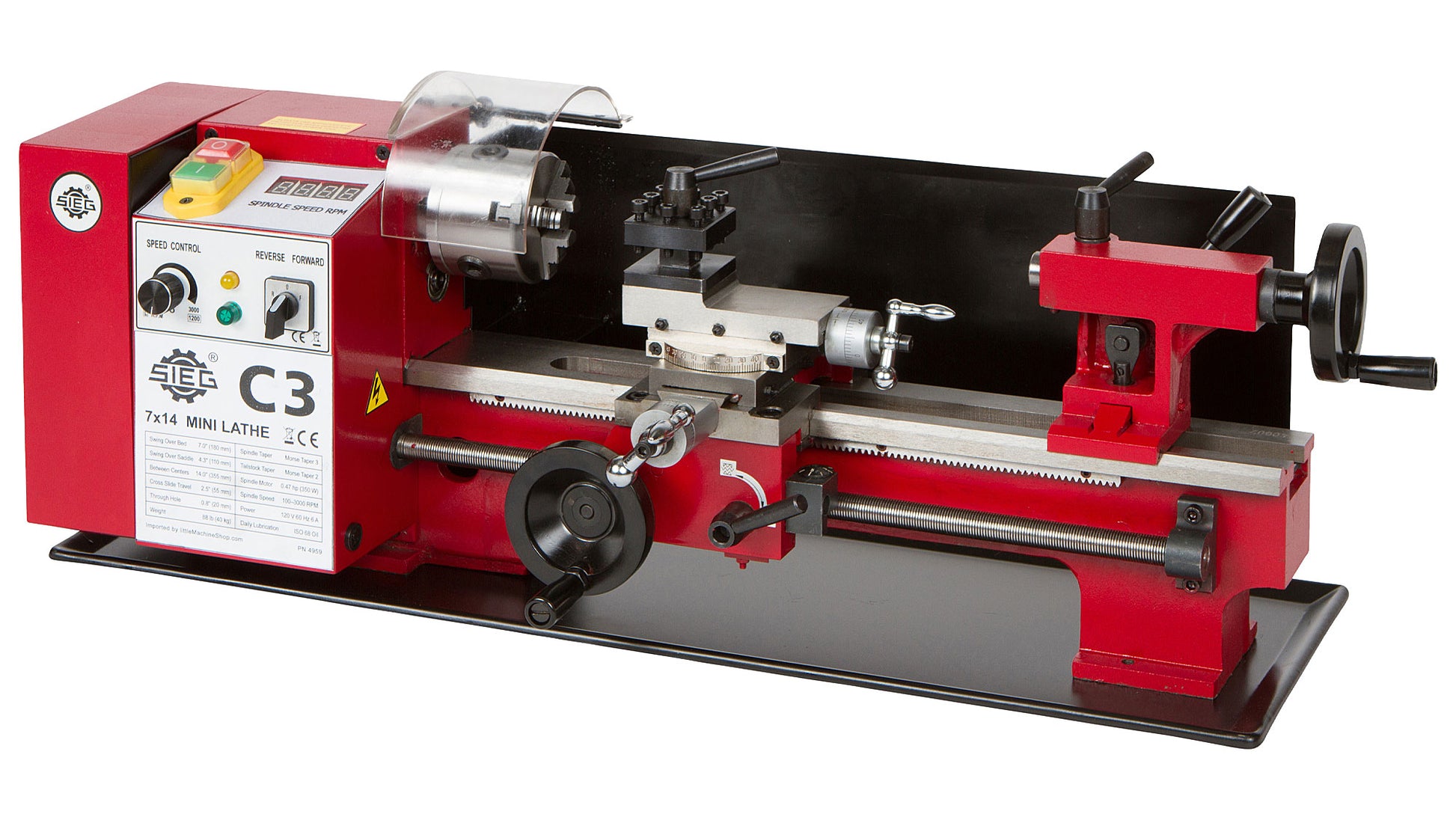

SIEG C3 7x14 Mini Lathe

The Lathe that started it all. An indispensable workhouse in many workshops for many years, the SIEG C3 7x14 Mini Lathe has all the features you want at an incredibly low price. Trusted quality, full selection of available tooling, accessories, and replacement parts, and a price you can't beat!

The LittleMachineShop.com exclusive version of this machine features:

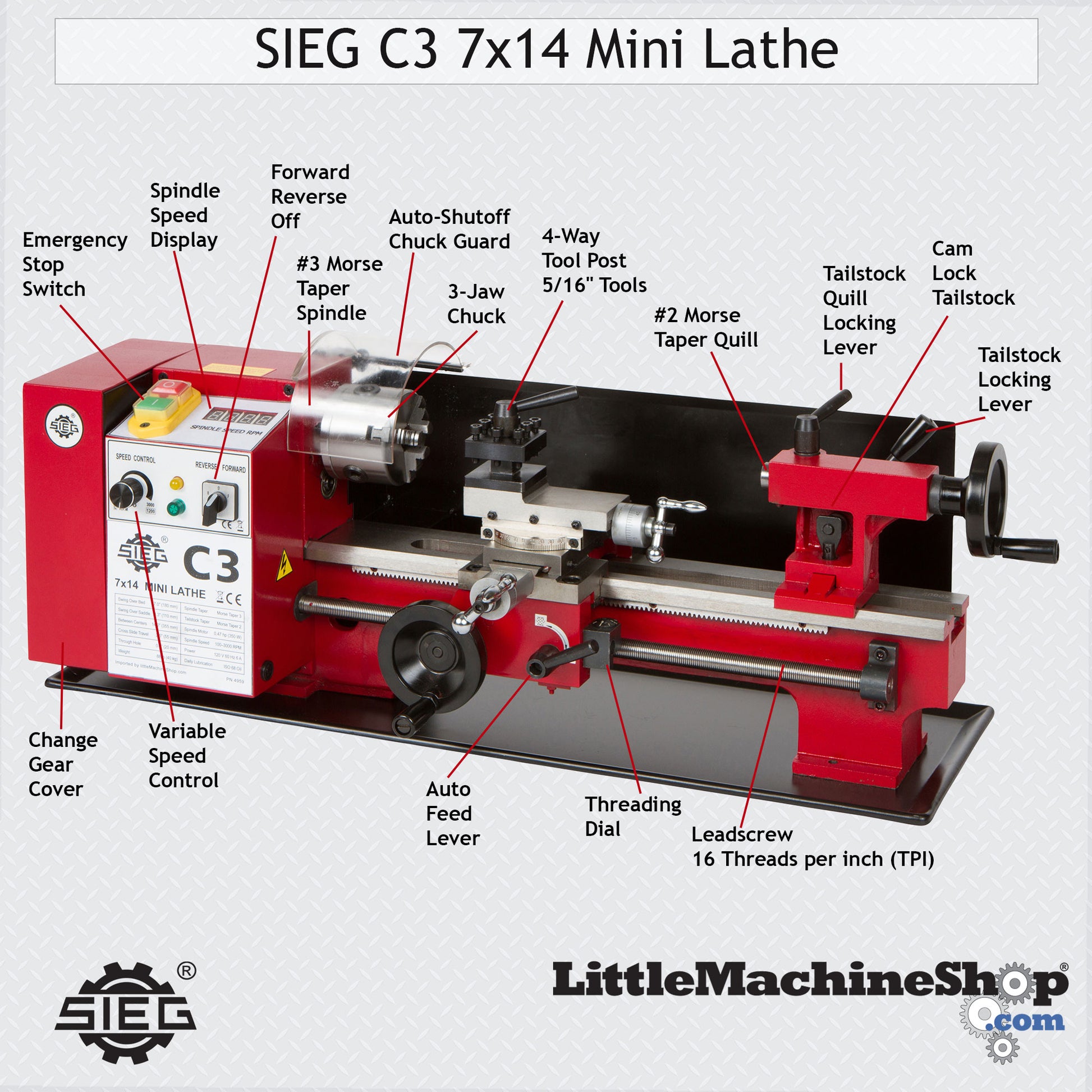

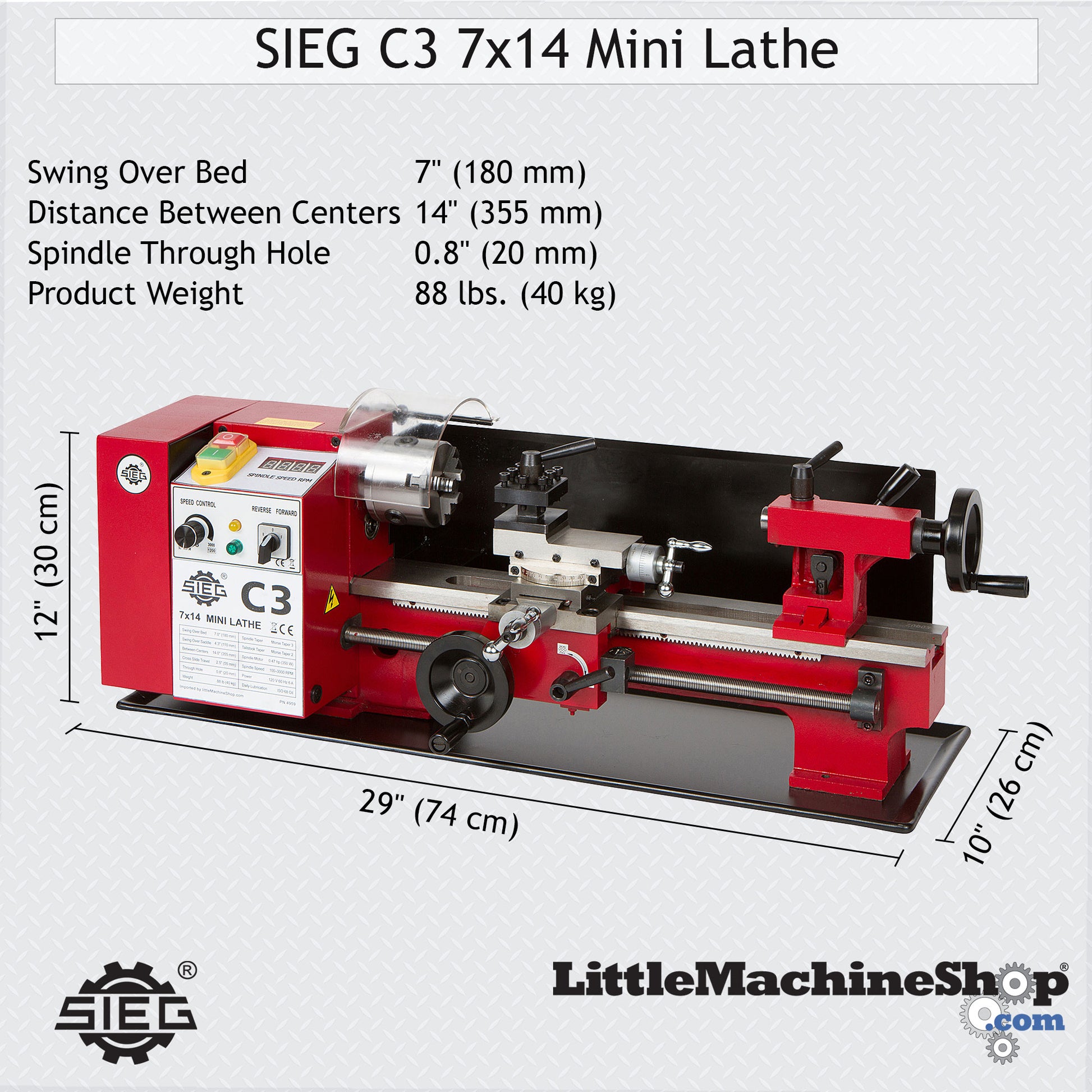

• Full 14" bed length with a cam-lock tailstock for longer work pieces.

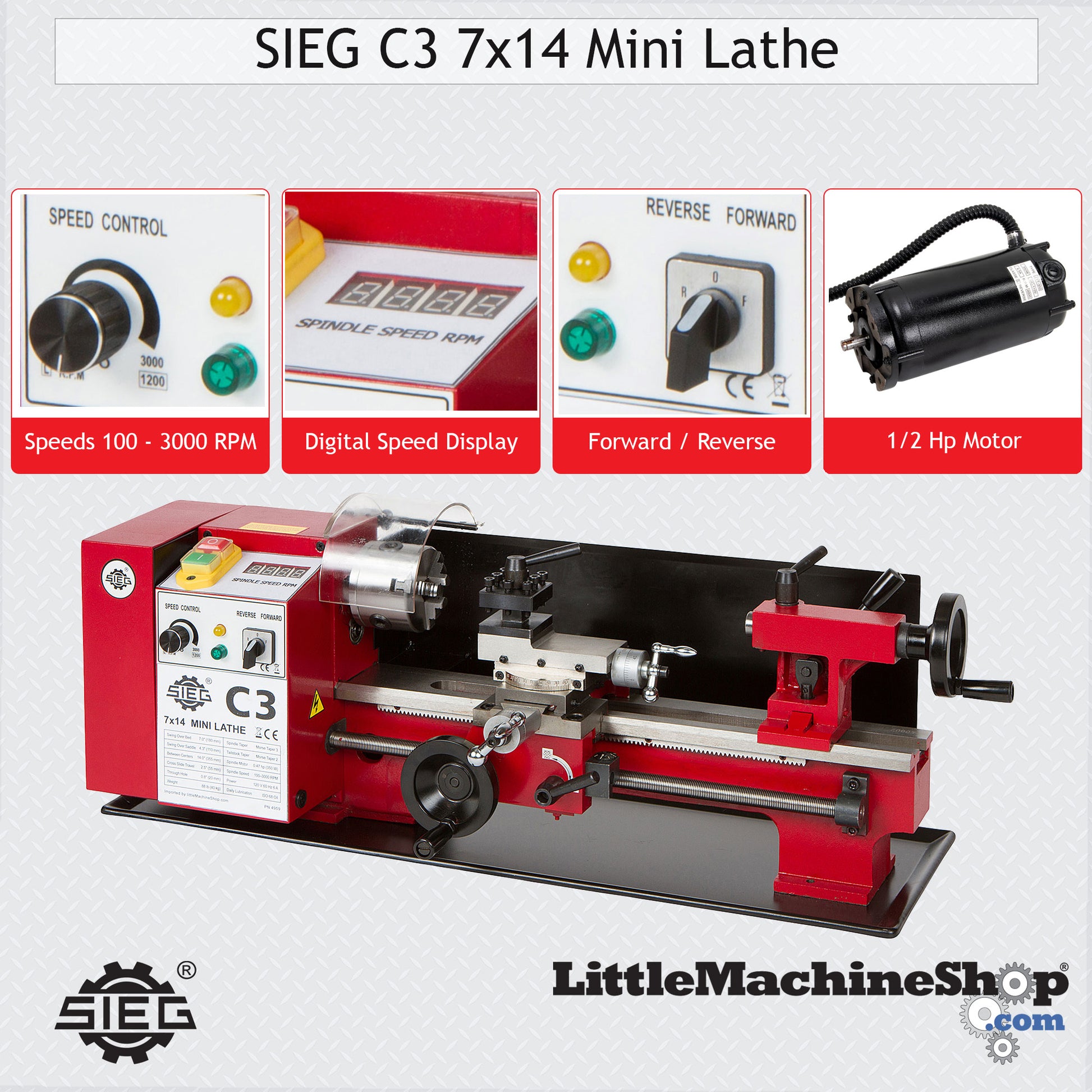

• 350-Watt spindle motor with 2 Speed ranges for low-speed torque

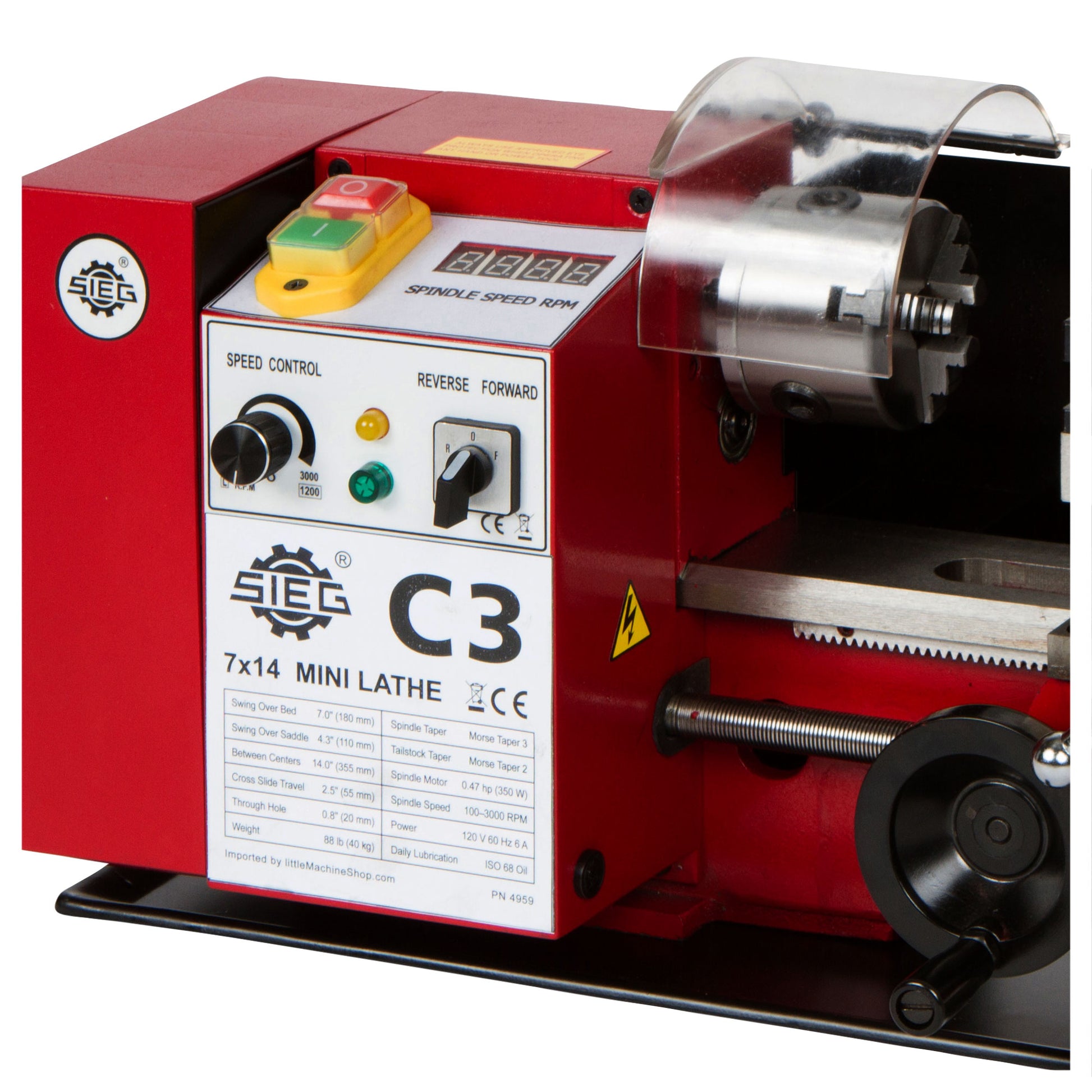

• Digital spindle speed readout

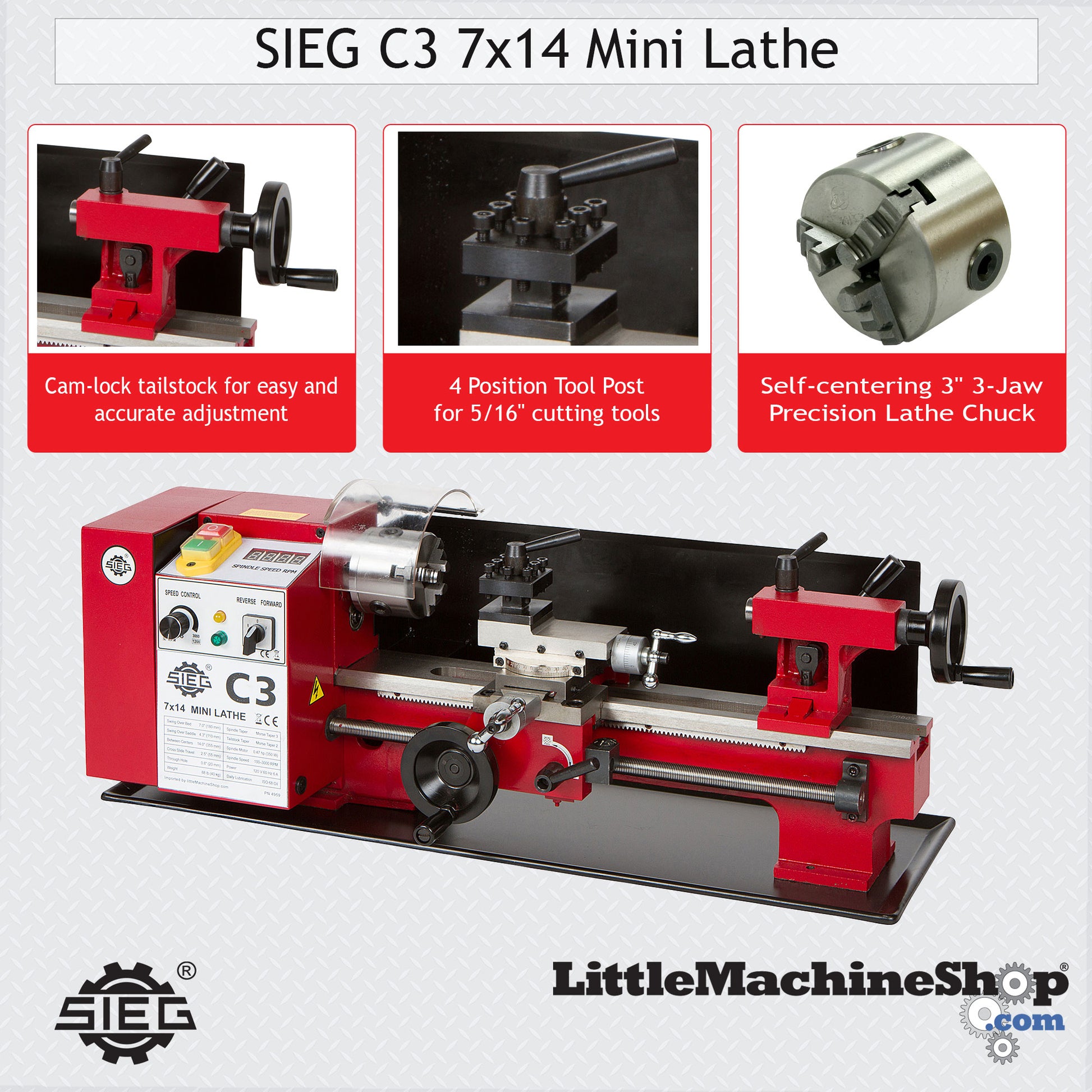

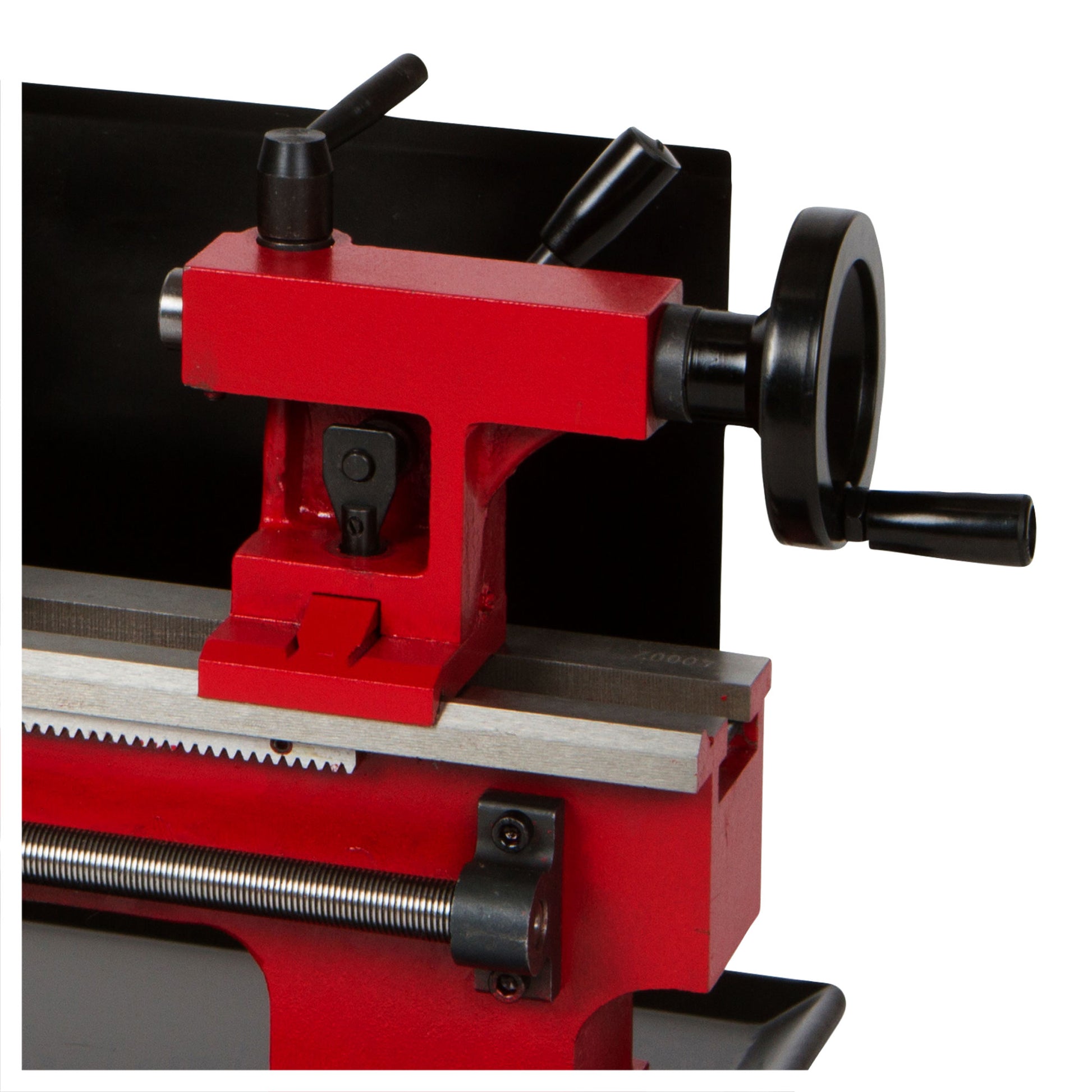

• Cam-lock tailstock

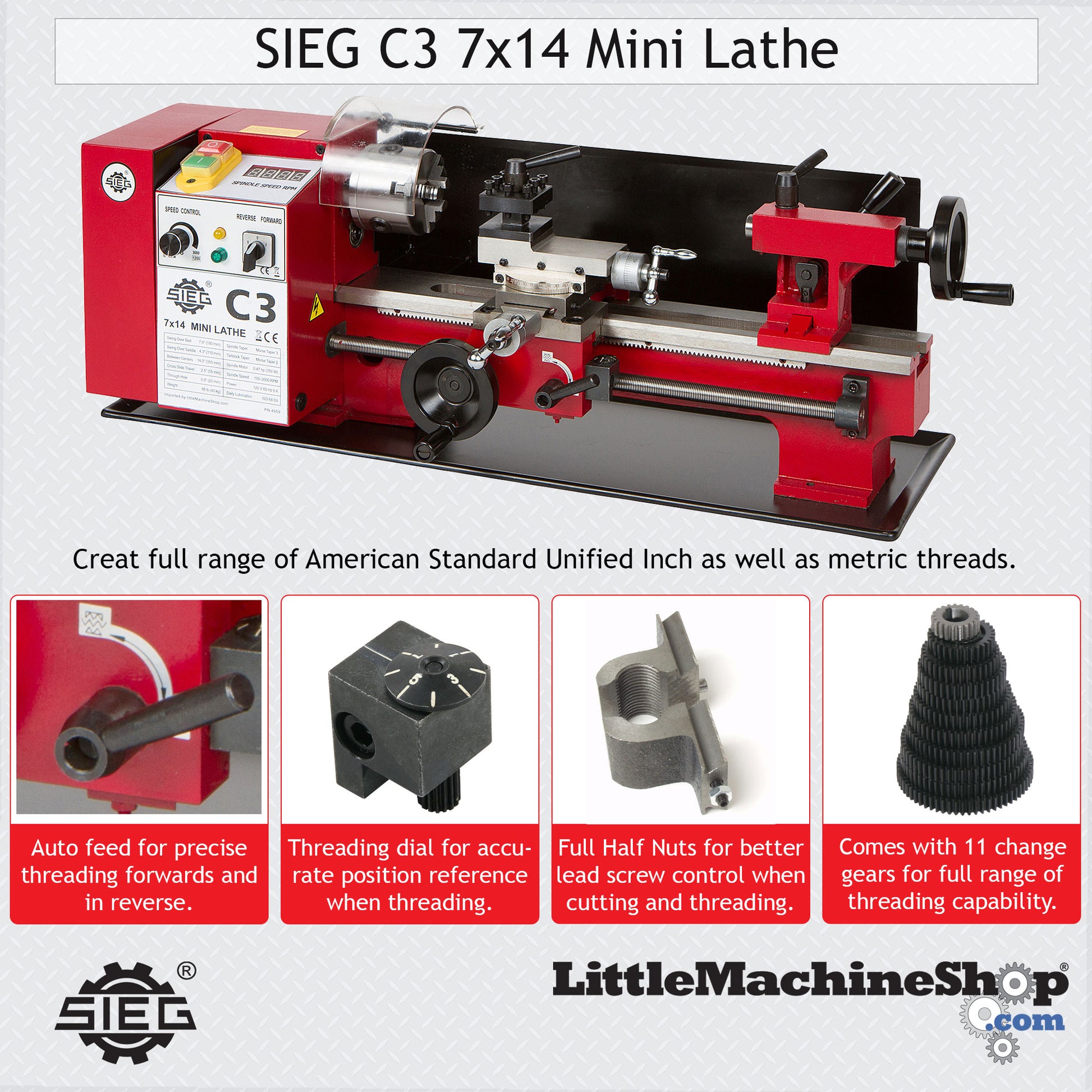

• Real top and bottom half-nuts and a reversible 16 TPI lead screw provide extended
• threading capability.

• Threading dial

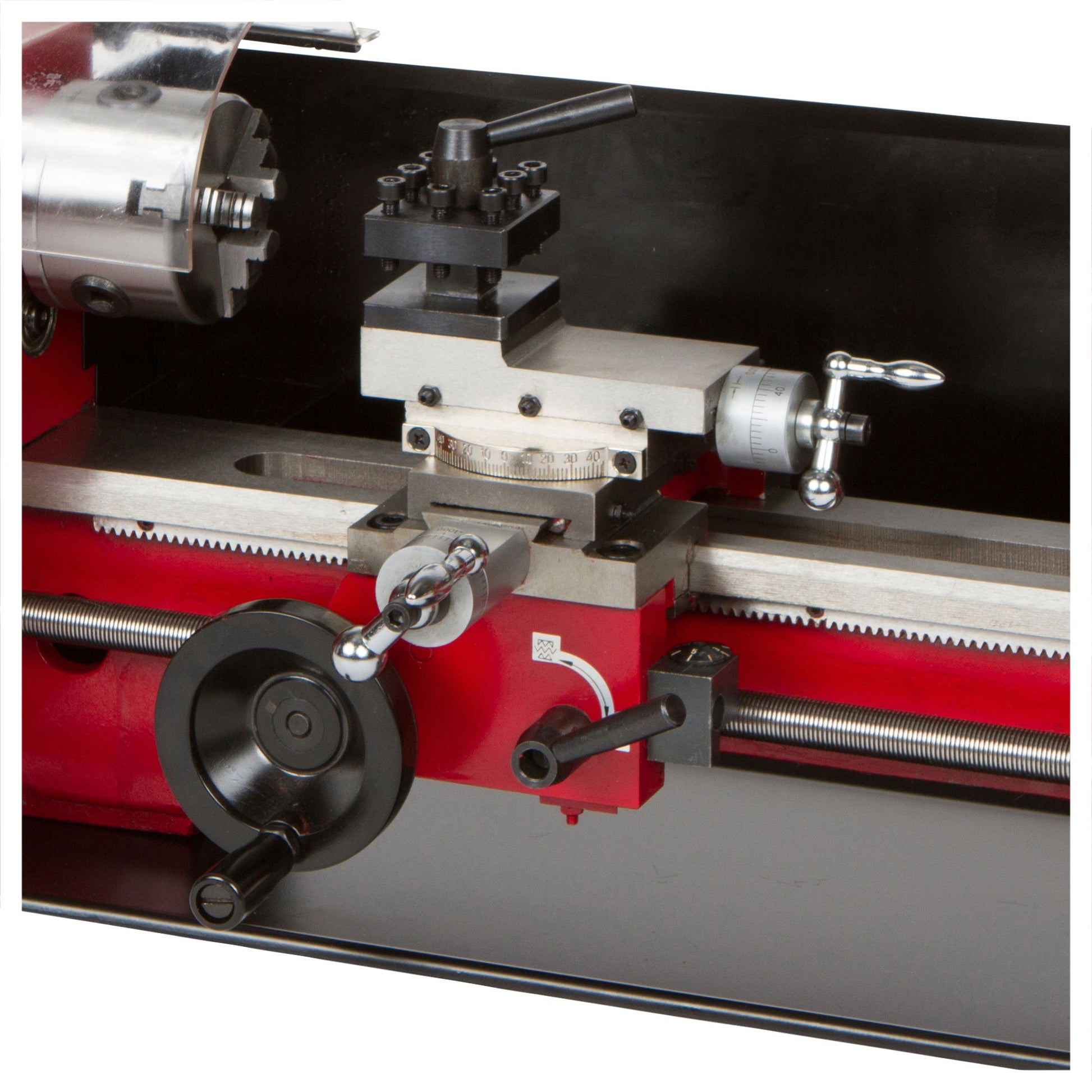

• The cross feed and compound rest dials are graduated in 0.001" and 0.025 mm.

• The lathe is equipped with a 4-way indexing tool post set for 5/16" (8 mm) tools.

• Chip tray and backsplash.

• User’s Manual

• Made and inspected in an ISO 9001 compliant factory

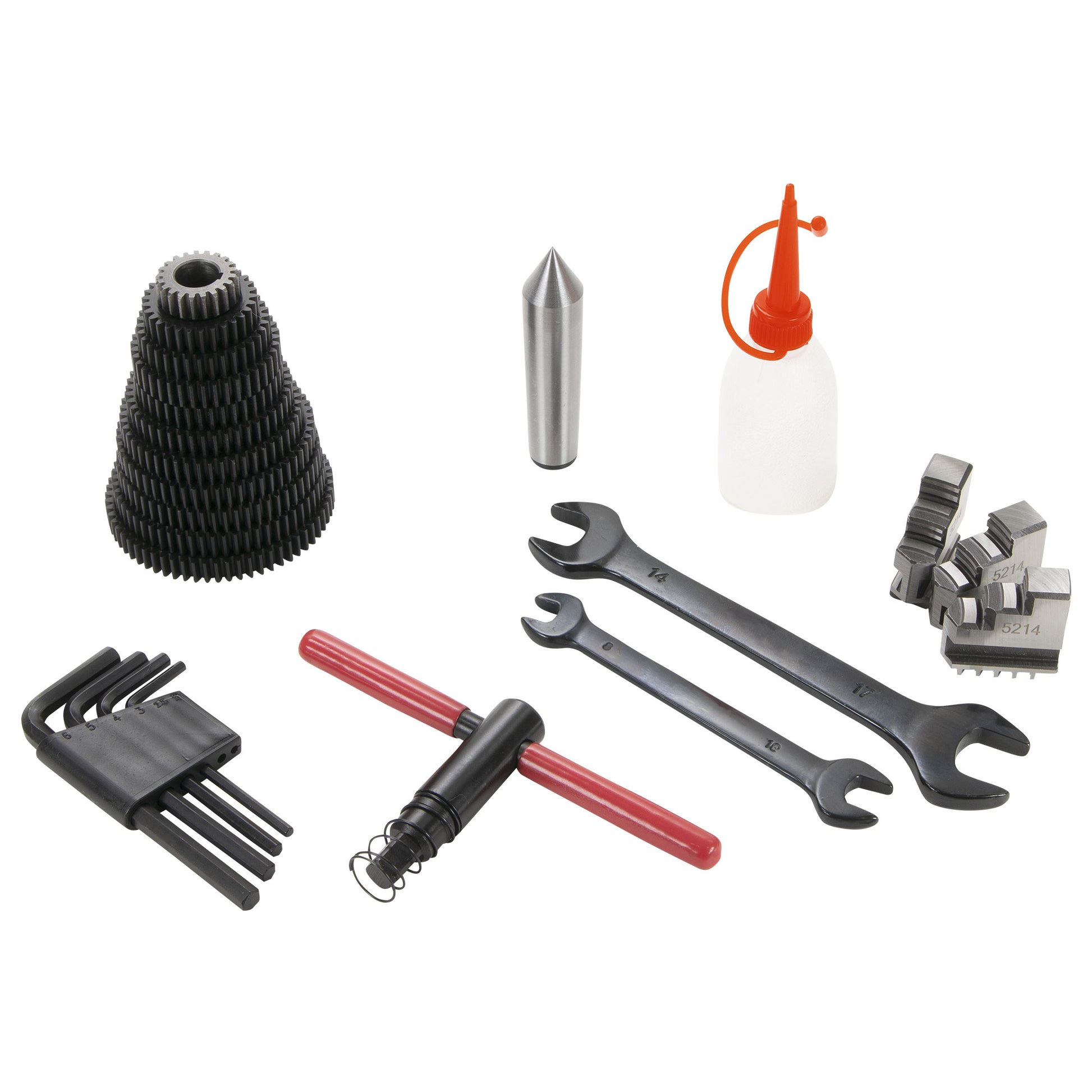

The LittleMachineShop.com exclusive version of this machine includes:

• SANOU 3" (80 mm) 3-jaw chuck with two sets of jaws and chuck key.

• A #2 Morse Taper (2MT) dead center

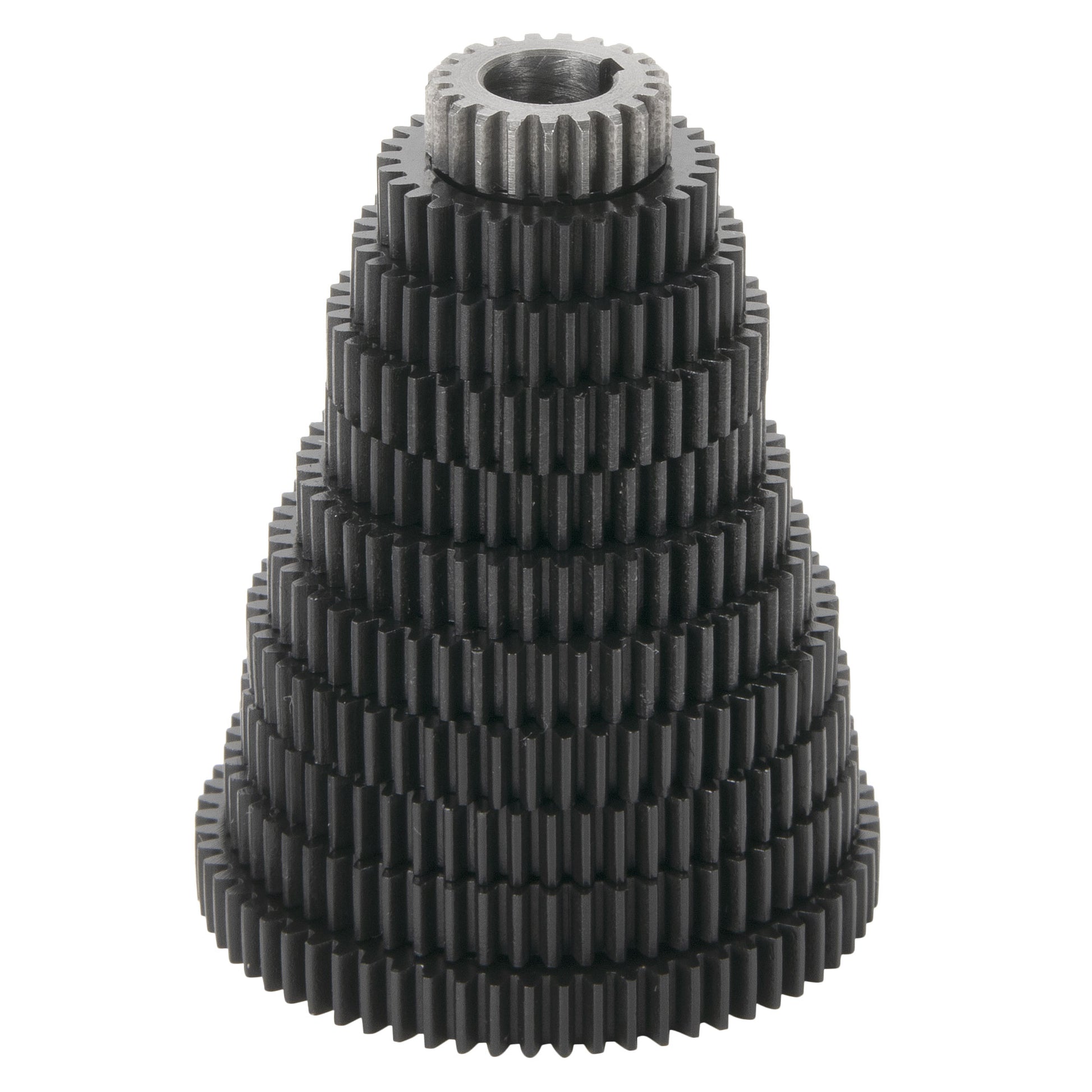

• 11-piece Change gear set

• Two open end wrenches

• Four hex (Allen) wrenches

• A plastic oil can

See what the difference is between the SIEG drive system and the HiTorque drive system.

With this lathe, you can create every American Standard Unified class 2A inch screw thread from 4 to 100 threads per inch, and you can create every American Standard Metric class 6h thread from 0.25 to 8 mm pitch with the extra 21 tooth change gear that is included.

But you can actually make more thread pitches than that, and there are more change gear combinations than those shown in the user's guide. To see what you can really do, see the Change Gear Calculator.

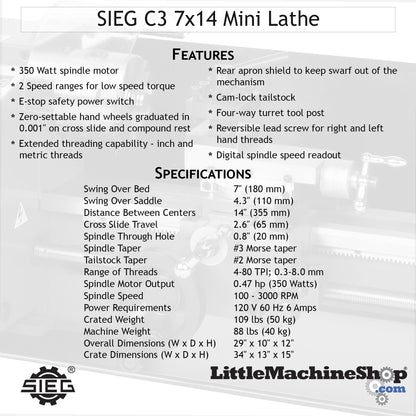

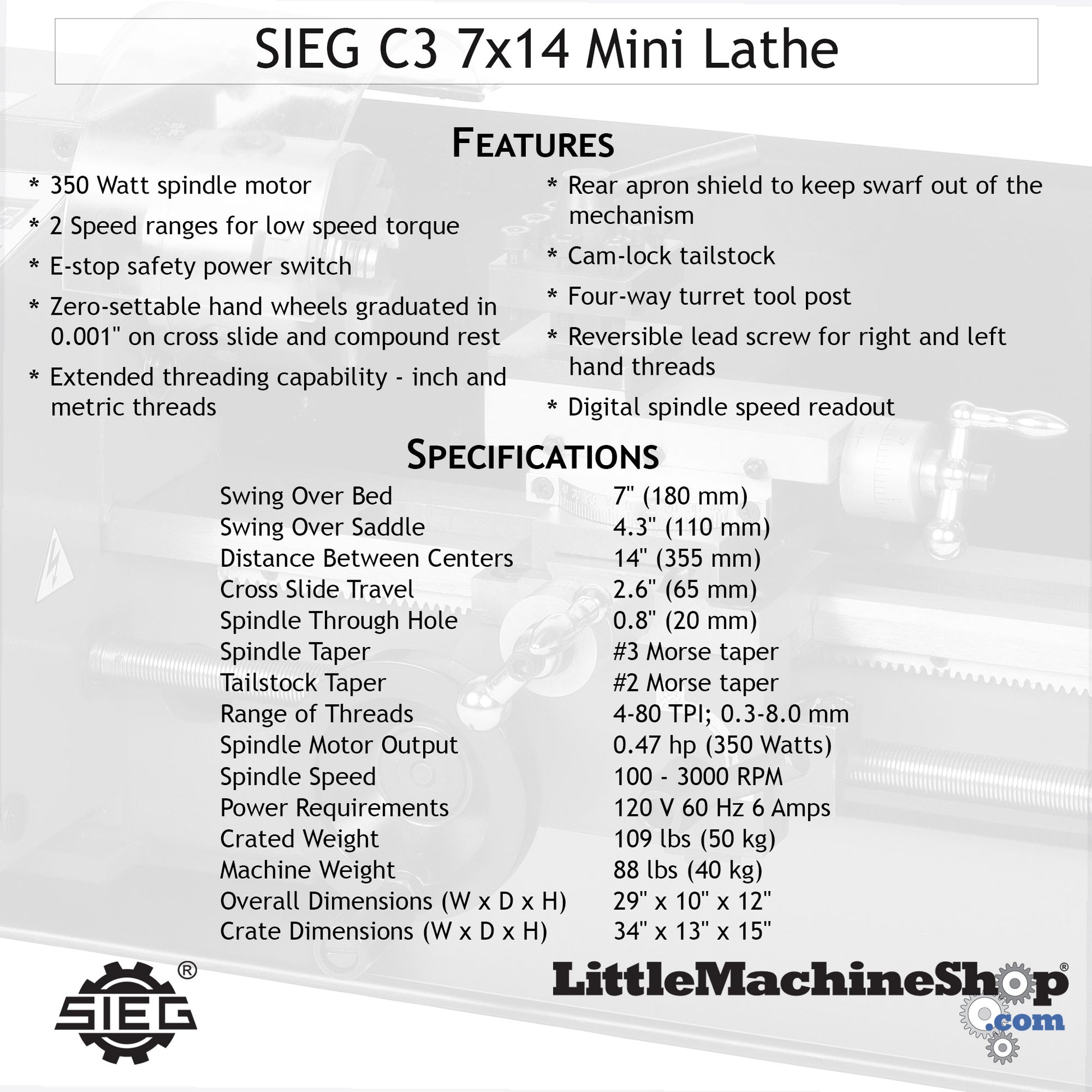

View a comparison of the specifications for our lathes.

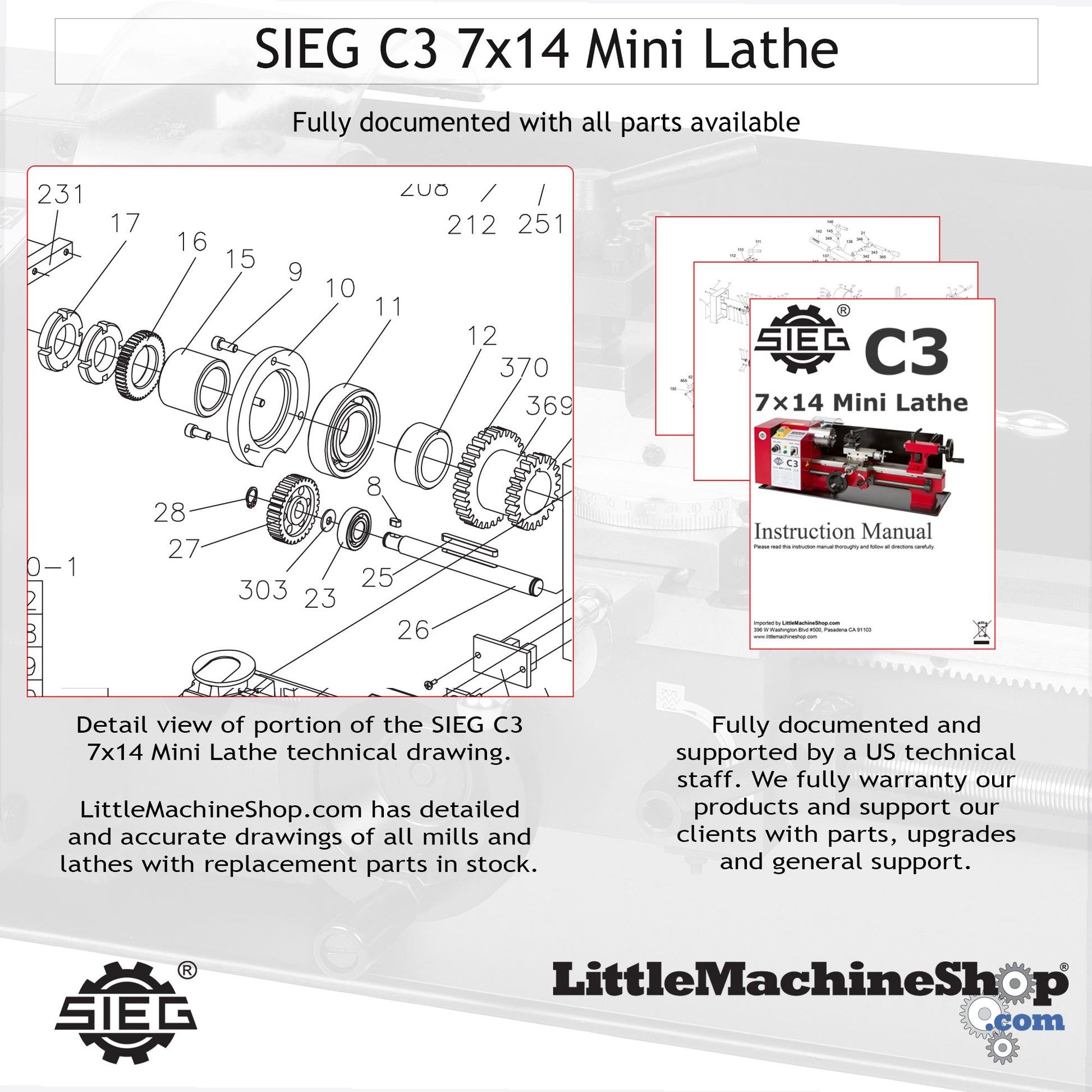

• C3 4959 Parts Diagram
