Vise, 4" Precision Milling
Vise, 4" Precision Milling
SKU:6789
In stock
Couldn't load pickup availability
Key Features
Key Features
- Detachable swivel base
- 360 degree rotation
- Ground and hardened jaws
- Jaw width 3.15" (80 mm)
- Jaw depth 0.93" (23.5 mm)
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

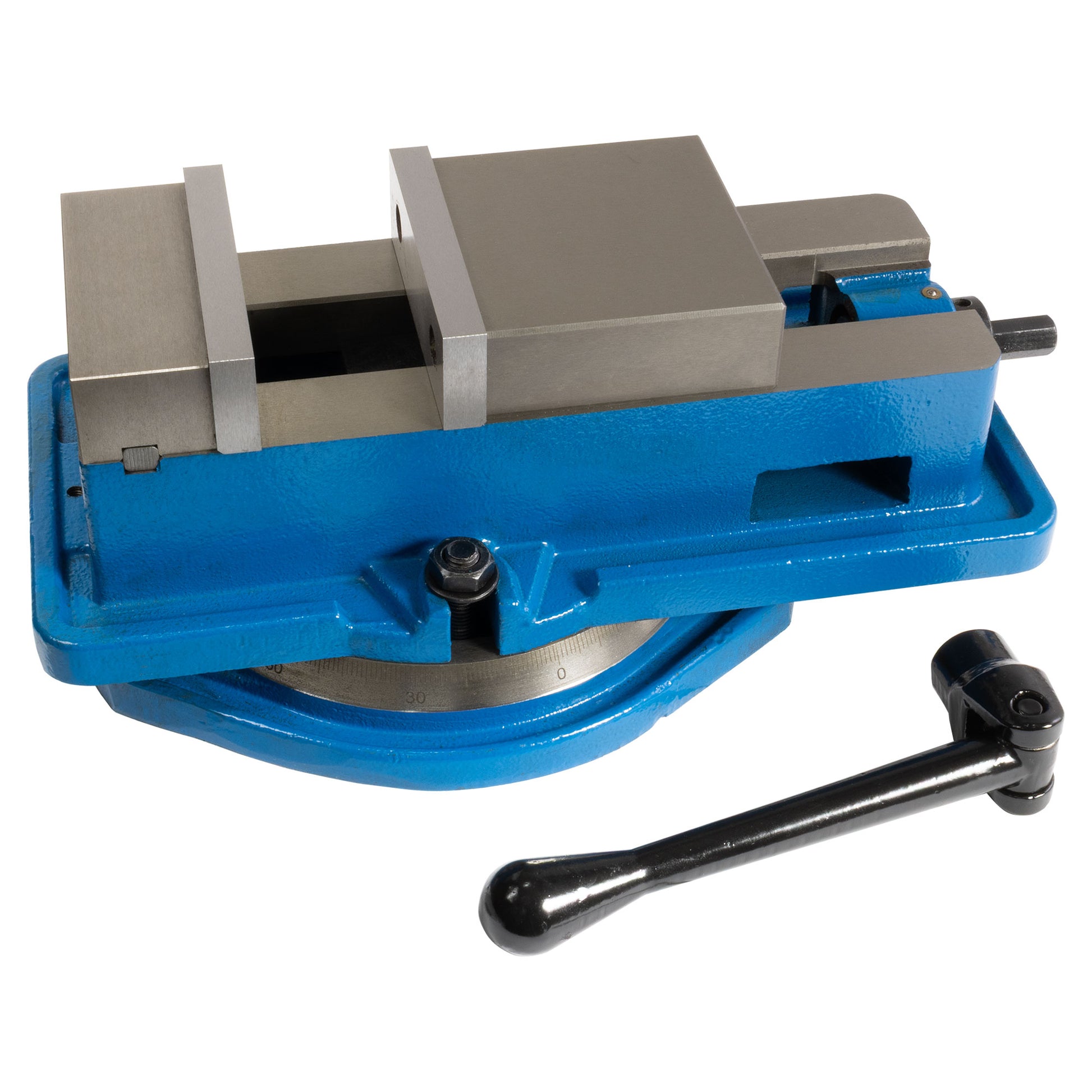

Precision 4" Kurt-style milling vise with swivel base.
The top, bottom of vise bed, gib, jaws, swivel base, and all plate mounting surfaces are ground.
The jaws of this precision milling vise are hardened and ground.
The detachable swivel base allows 360 degree rotation of the vise.
Chris's Tips
Take a look at our vise comparison page before you choose a vise.
Specifications
Jaw Width: 4.016" (102 mm)
Jaw Depth: 1.772" (45 mm)
Maximum Jaw Opening: 4.134" (105 mm)
Swivel Base: YES
Weight: 18.9 lbs (9 kg)
Height with Base: 3.937" (100 mm)
Height w/o Base: 2.913" (74 mm)
Length: 10.236" (260 mm)
Width with Base: 7.283" (185 mm)
Width w/o Base: 5.315" (135 mm)
Mounting Bolt Centers: 6.496" (165 mm)
Mounting Bolt Centers w/o Base: 4.134" (105 mm)
Hold-Down Mechanism: YES
