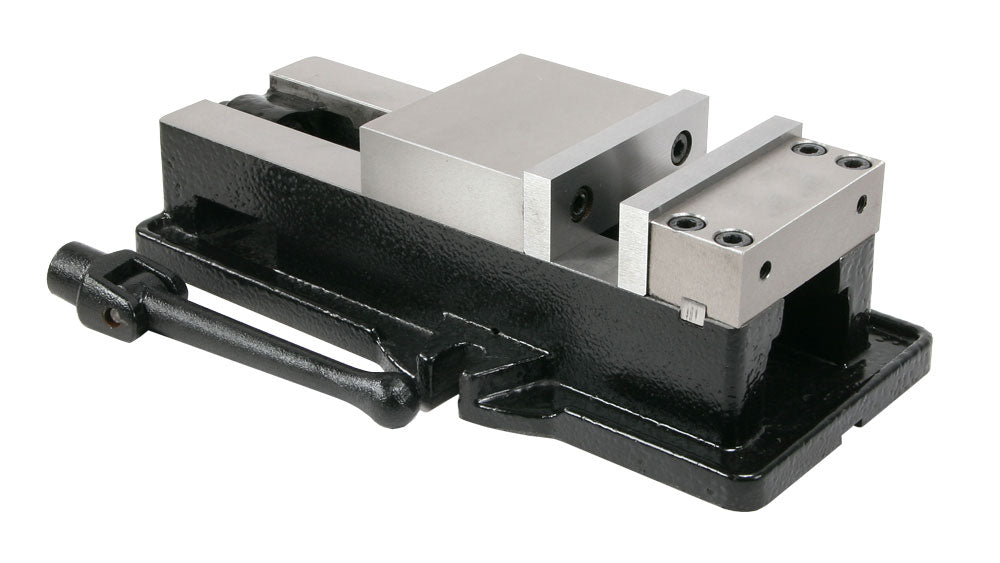

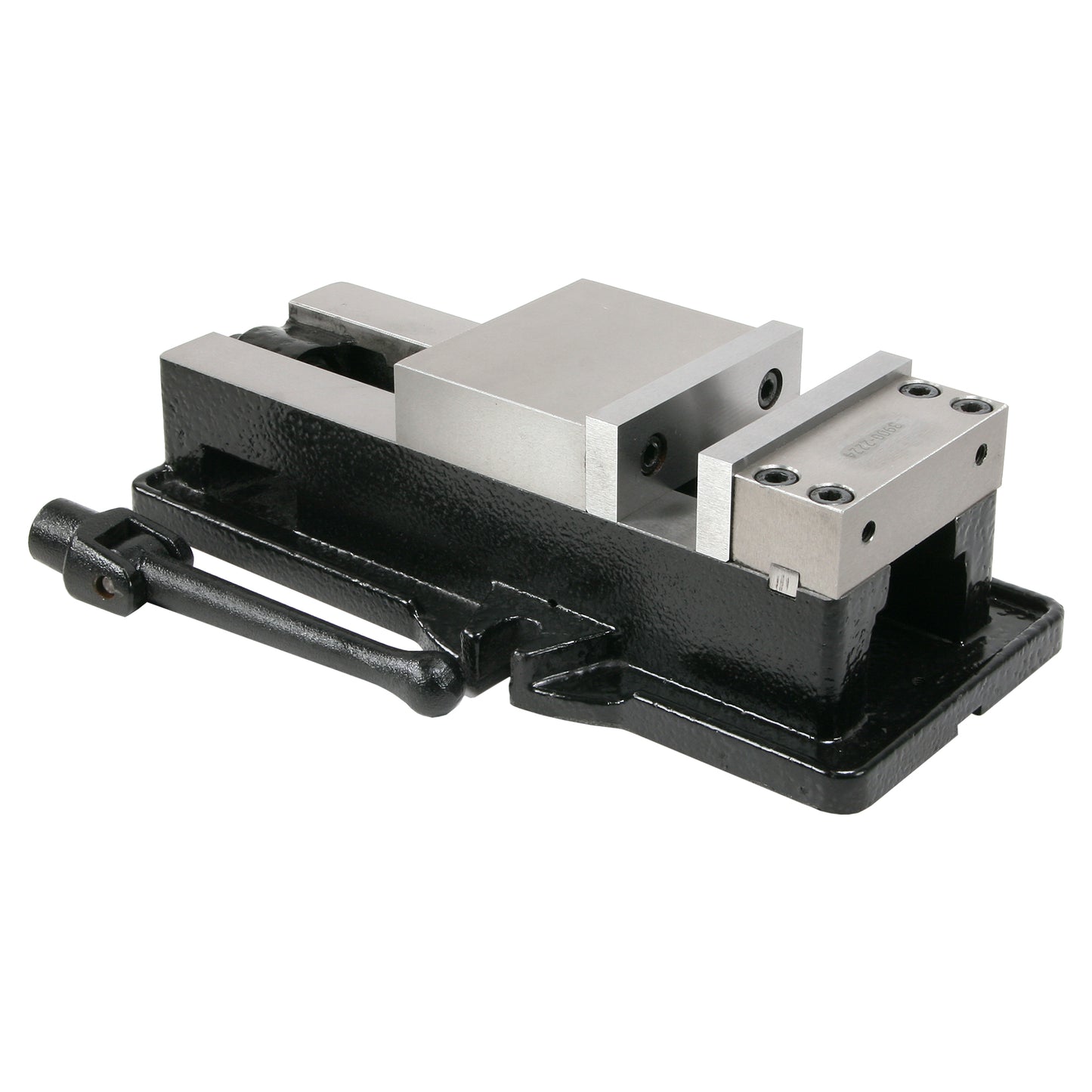

Vise, 4" Precision Milling, Heavy, No Swivel Base
Vise, 4" Precision Milling, Heavy, No Swivel Base
SKU:1879
In stock
Couldn't load pickup availability
Key Features
Key Features
- Precision 4" Kurt-style milling machine vise
- Ground surfaces
- Jaws hardened and ground
- Fixed jaw is bolted for enhanced rigidity
- 30% Downward Locking Force
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
4" High quality Kurt-style milling vise. Top, gib, jaws, bottom of vise bed and all plate mounting surfaces are precision ground. The fixed jaw is bolted from the top for enhanced rigidity. The angle tight positive locking style and wide jaw opening allows for holding a large array of workpieces securely. The hardened and ground jaws are made to American standard dimensions (interchangeable with Kurt) and provide a flat and parallel gripping surface that ensures accurate and consistent clamping. The jaws can be mounted on either end of the fixed and movable jaw providing a wide range of clamping distances.
The jaws are 4" wide, 1.27" deep and open 5.5".
The ways of the drill press milling vise are parallel to the base of the vise within 0.0006" in 4". The jaws are perpendicular to the ways within 0.002" in 4".

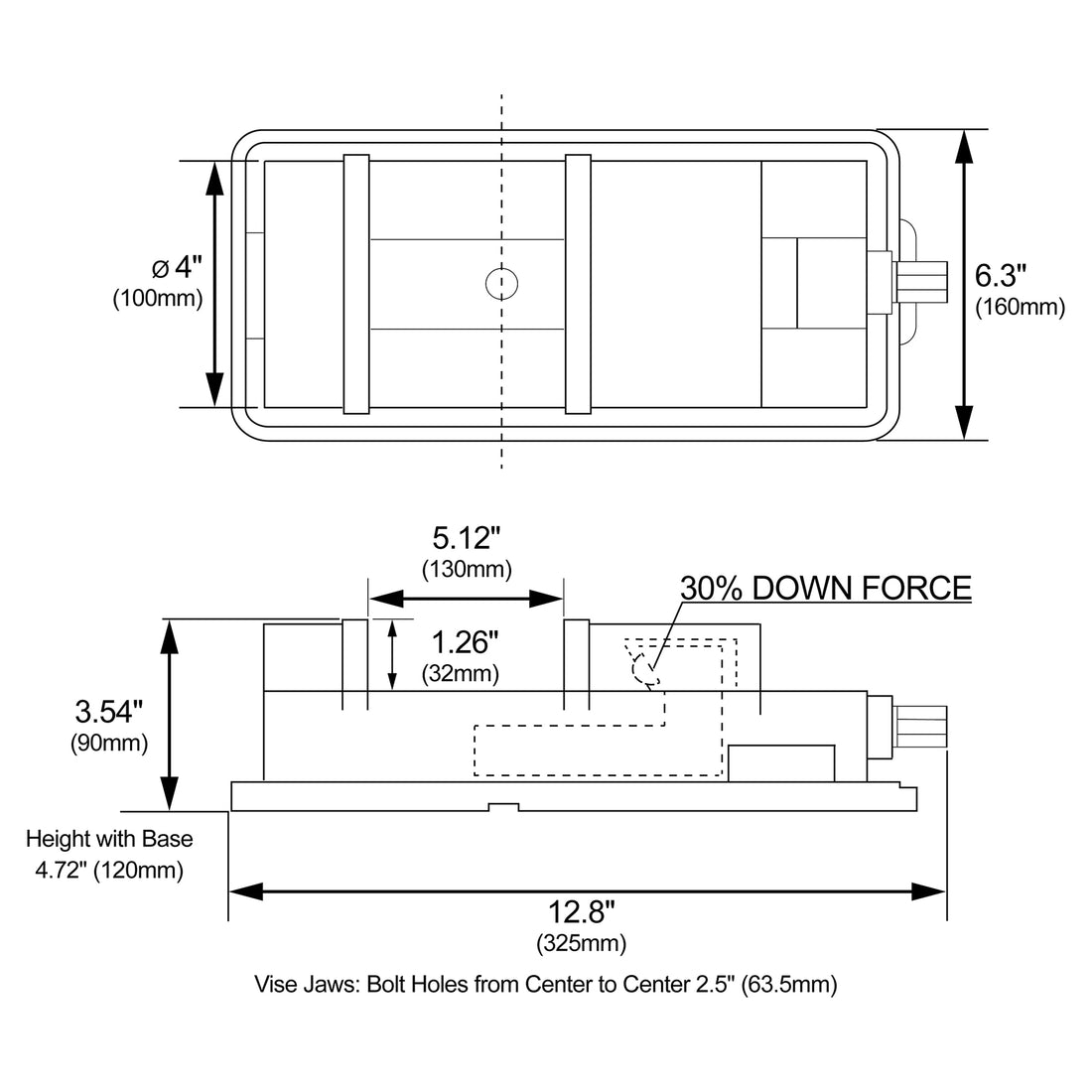

Specifications
Jaw Width: 3.937" (100 mm)
Jaw Depth: 1.260" (32 mm)
Maximum Jaw Opening: 5.512" (140 mm)
Weight: 24.6 lbs (11 kg)
Height w/o Base: 3.543" (90 mm)
Length: 12.795" (325 mm)
Width w/o Base: 6.299" (160 mm)
Mounting Bolt Centers w/o Base: 5.5" (139.700 mm)
Hold-Down Mechanism: YES
Ways Parallel to Bottom of Vise Within: 0.0006" in 4" (0.015 mm in 100 mm)
Jaws Perpendicular to Ways Within: 0.0012" in 4" (0.030 mm in 100 mm)
