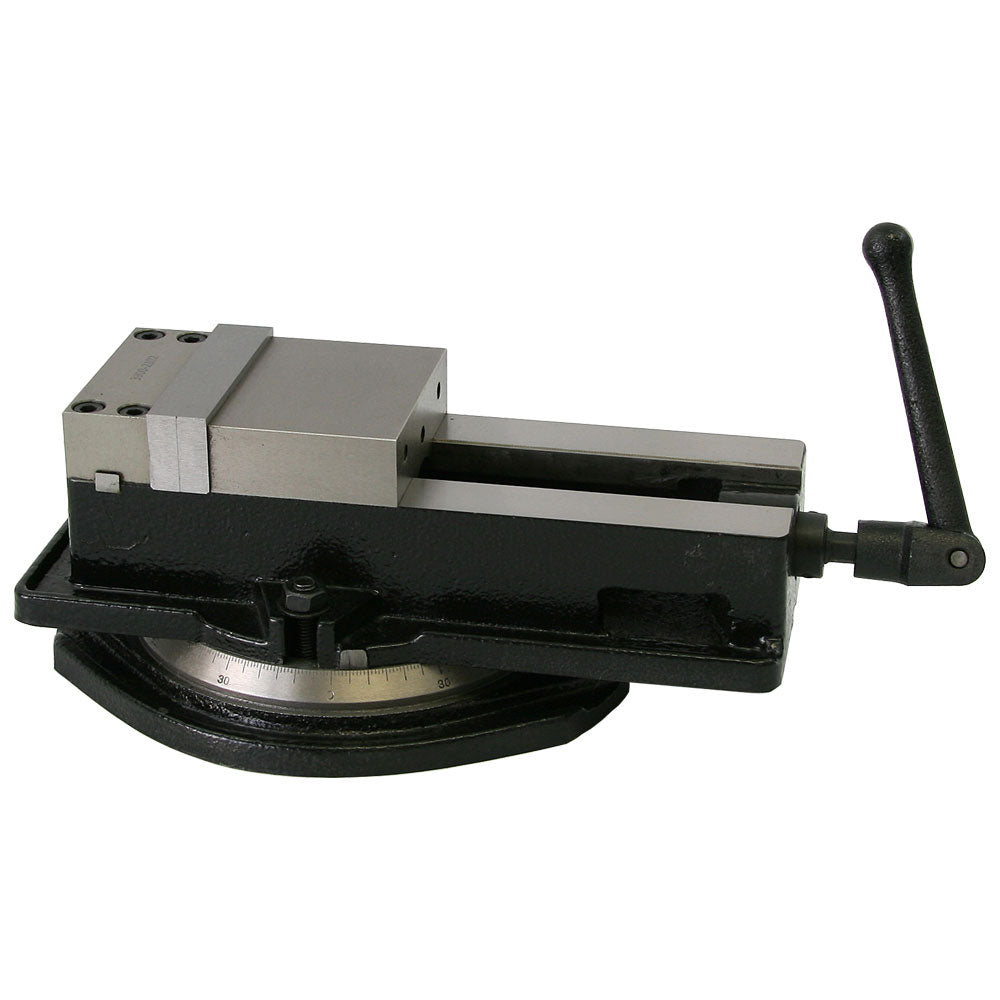

Vise, 4" Precision Milling, Heavy, with Swivel Base

Vise, 4" Precision Milling, Heavy, with Swivel Base

1755

$179.95 USD
$179.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • Precision 4" Kurt-style milling machine vise with swivel base.
  • Ground surfaces.
  • Jaws hardened and ground.
  • Fixed jaw is bolted for enhanced rigidity.

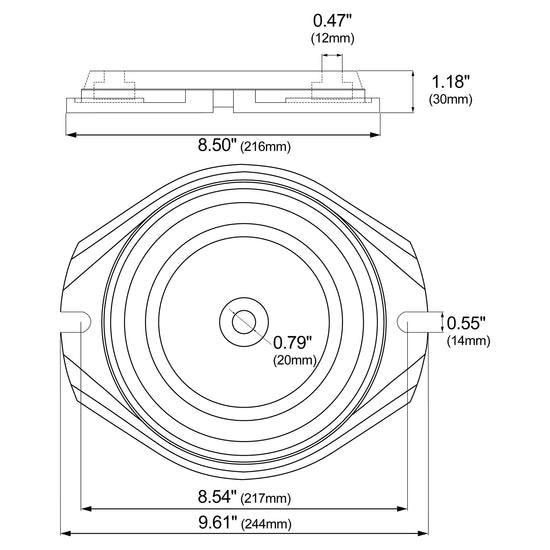

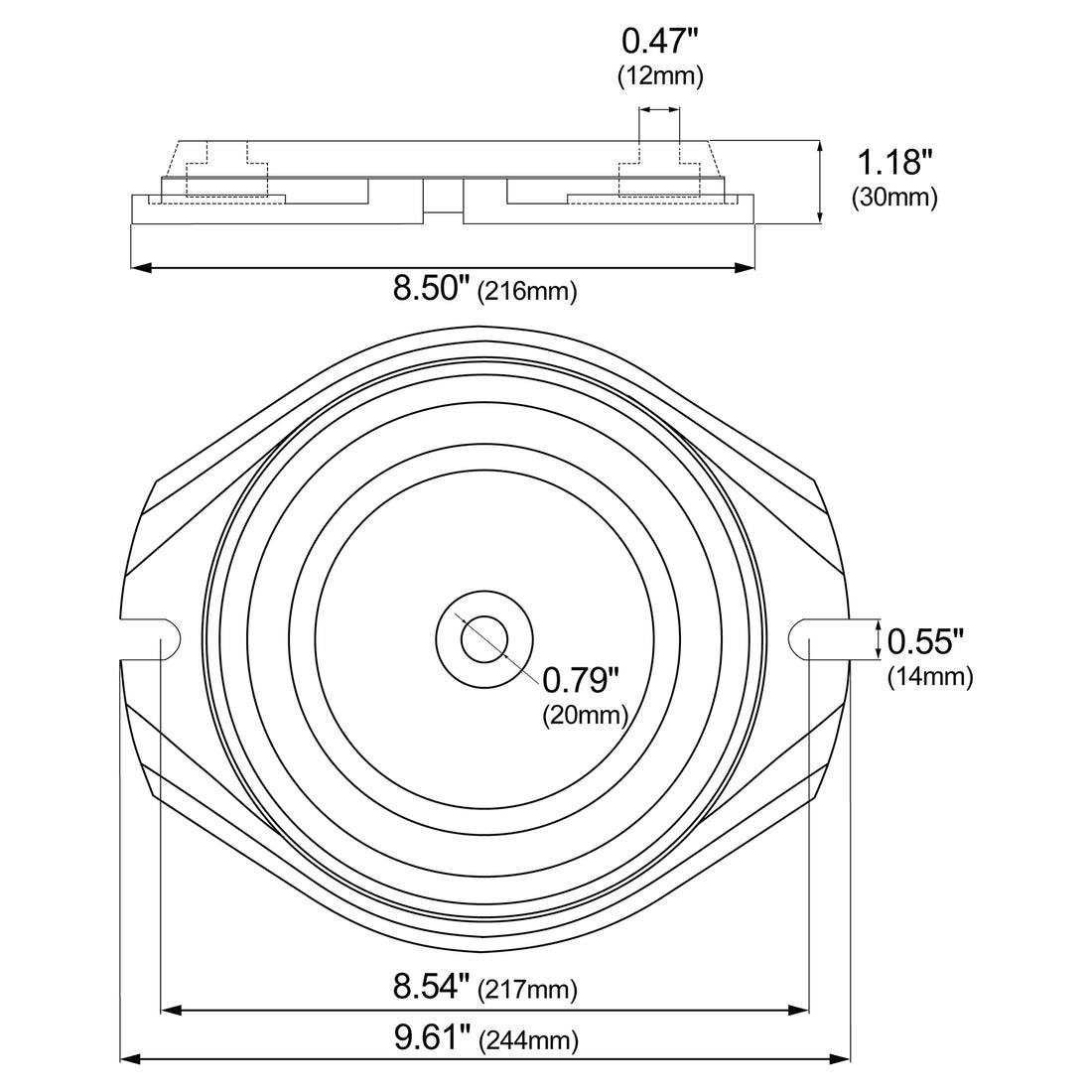

  • Detachable swivel base features easy to read divisions.

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

4" High quality Kurt-style milling vise. Top, gib, jaws, bottom of vise bed and all plate mounting surfaces are precision ground. The fixed jaw is bolted from the top for enhanced rigidity. The angle tight positive locking style and wide jaw opening allows for holding a large array of workpieces securely. The hardened and ground jaws are made to American standard dimensions (interchangeable with Kurt) and provide a flat and parallel gripping surface that ensures accurate and consistent clamping. The jaws can be mounted on either end of the fixed and movable jaw providing a wide range of clamping distances.

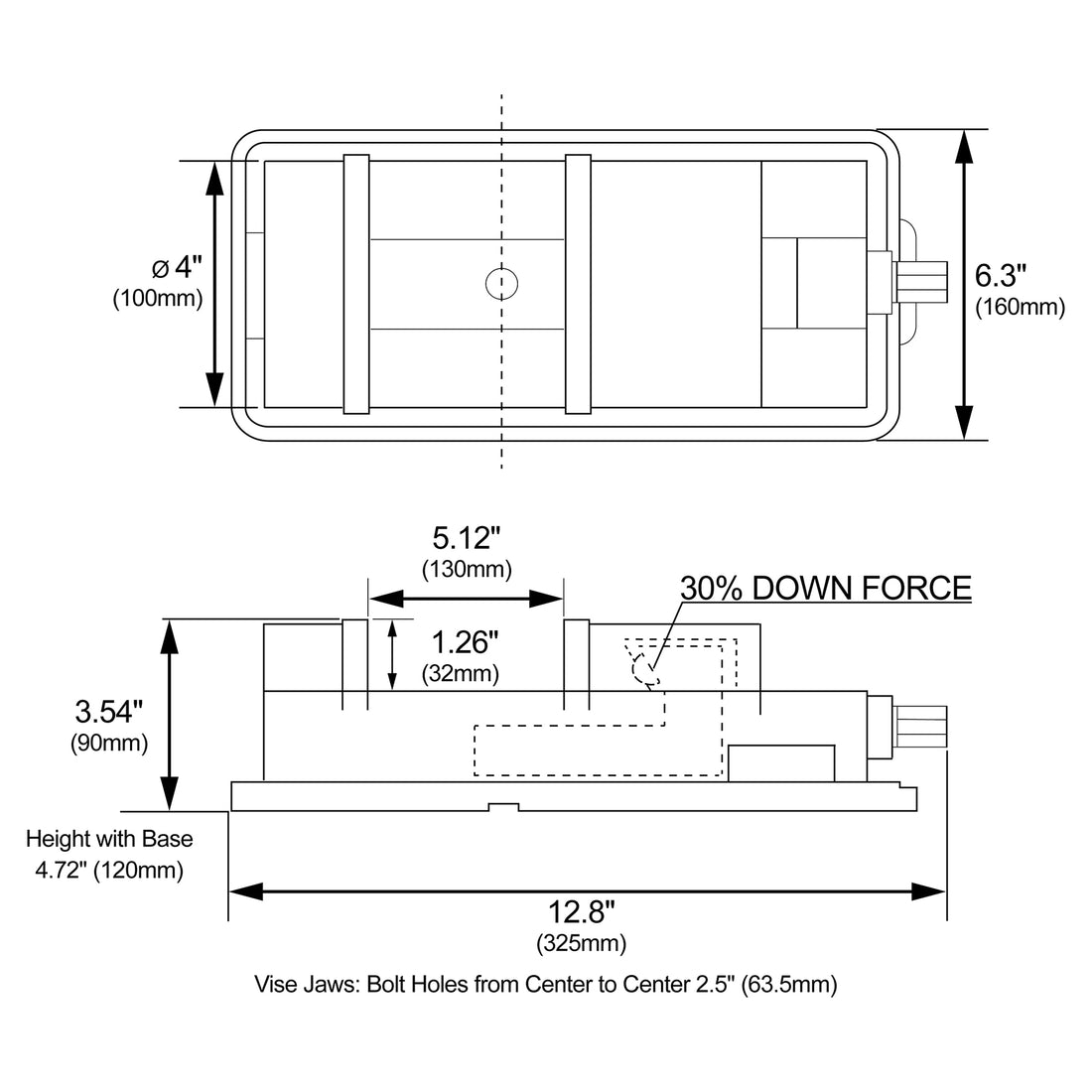

The jaws are 4" wide, 1.27" deep and open 5".

With the base, the vise is 9.7" wide, 13.4" long, and 4.75" high.

Without the swivel base, the ways of the precision milling vise are parallel to the base of the vise within 0.0006" in 4". The jaws are perpendicular to the ways within 0.002" in 4". With the swivel base installed, the ways of the vise are parallel to the base of the vise within 0.0008" in 4".

Specifications

Jaw Width: 4" (101.600 mm)

Jaw Depth: 1.18" (29.972 mm)

Maximum Jaw Opening: 4" (101.600 mm)

Swivel Base: YES

Weight: 35 lbs (16 kg)

Height with Out Base: 3.46" (87.884 mm)

Length: 13.4" (340.360 mm)

Hold-Down Mechanism: YES

Ways Parallel to Bottom of Vise Within: 0.0006" in 4" (0.015 mm in 100 mm)

Ways Parallel to Bottom of Swivel Base Within: 0.0008" in 4" (0.020 mm in 100 mm)

Jaws Perpendicular to Ways Within: 0.0020" in 4" (0.050 mm in 100 mm)
