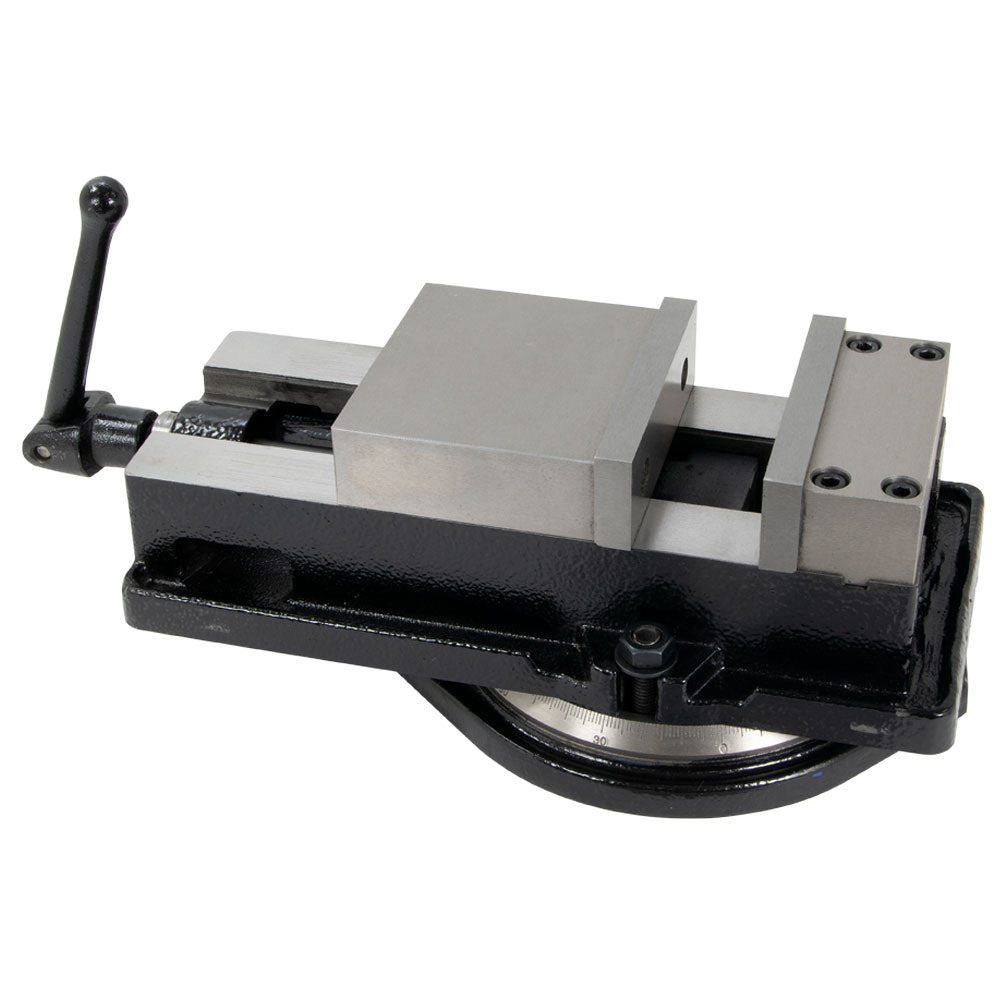

Vise, 5" Precision Milling, Heavy, with Swivel Base
Vise, 5" Precision Milling, Heavy, with Swivel Base
SKU:2061
Low stock
Couldn't load pickup availability
Key Features
Key Features
- Precision 5" Kurt-style milling machine vise with swivel base.
- Ground surfaces.
- Jaws hardened and ground.
- Fixed jaw is bolted for enhanced rigidity.
- Detachable swivel base features easy to read divisions.
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
Heavy swivel base vise for precision milling.
The top, bottom of vise bed, gib, jaws, swivel base, and all plate mounting surfaces are ground. The jaws are hardened and ground. The fixed jaw is bolted from the top for enhanced rigidity.
The jaws are 5" wide, 1.58" deep and open 5.71".
Without the swivel base, the ways of the precision milling vise are parallel to the base of the vise within 0.0006" in 4". The jaws are perpendicular to the ways within 0.002" in 4". With the swivel base installed, the ways of the vise are parallel to the base of the vise within 0.0008" in 4".

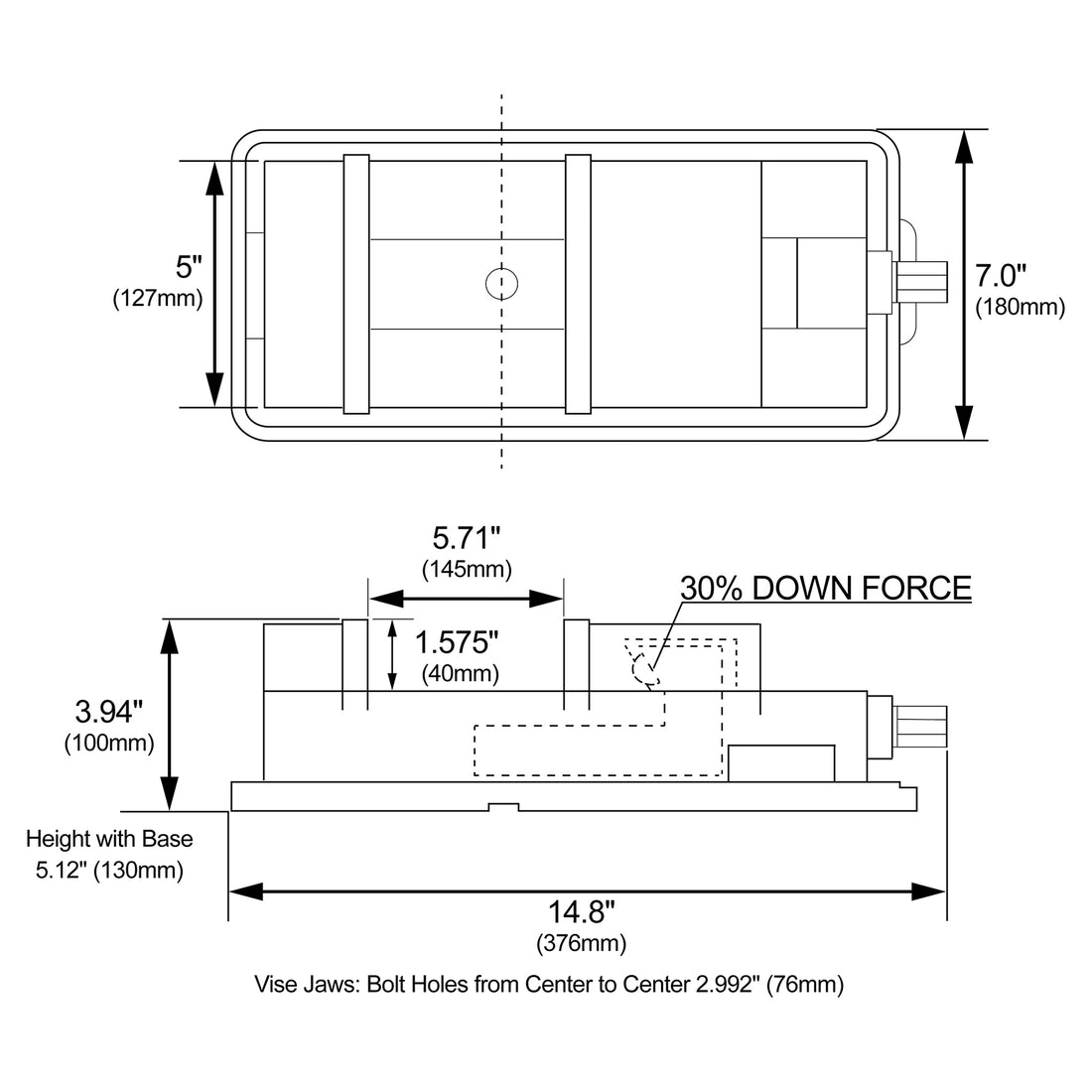

Specifications
Jaw Width: 5" (127.000 mm)
Jaw Depth: 1.58" (40.132 mm)
Maximum Jaw Opening: 5.71" (145.034 mm)
Swivel Base: Yes
Weight: 47.2 lbs (21 kg)
Height with Base: 5.12" (130.048 mm)
Height with Out Base: 3.94" (100.076 mm)
Length: 14.8" (375.920 mm)
Width with Base: 8.7" (220.980 mm)
Width with Out Base: 5" (127.000 mm)
Ways Parallel to Bottom of Vise Within: 0.0006" in 4" (0.015 mm in 102 mm)
Ways Parallel to Bottom of Swivel Base Within: 0.0008" in 4" (0.020 mm in 102 mm)
Jaws Perpendicular to Ways Within: 0.001" in 4" (0.025 mm in 102 mm)
