Vise, 5" Precision Milling, Professional Grade
Vise, 5" Precision Milling, Professional Grade
SKU:3951
Low stock
Couldn't load pickup availability
Key Features
Key Features

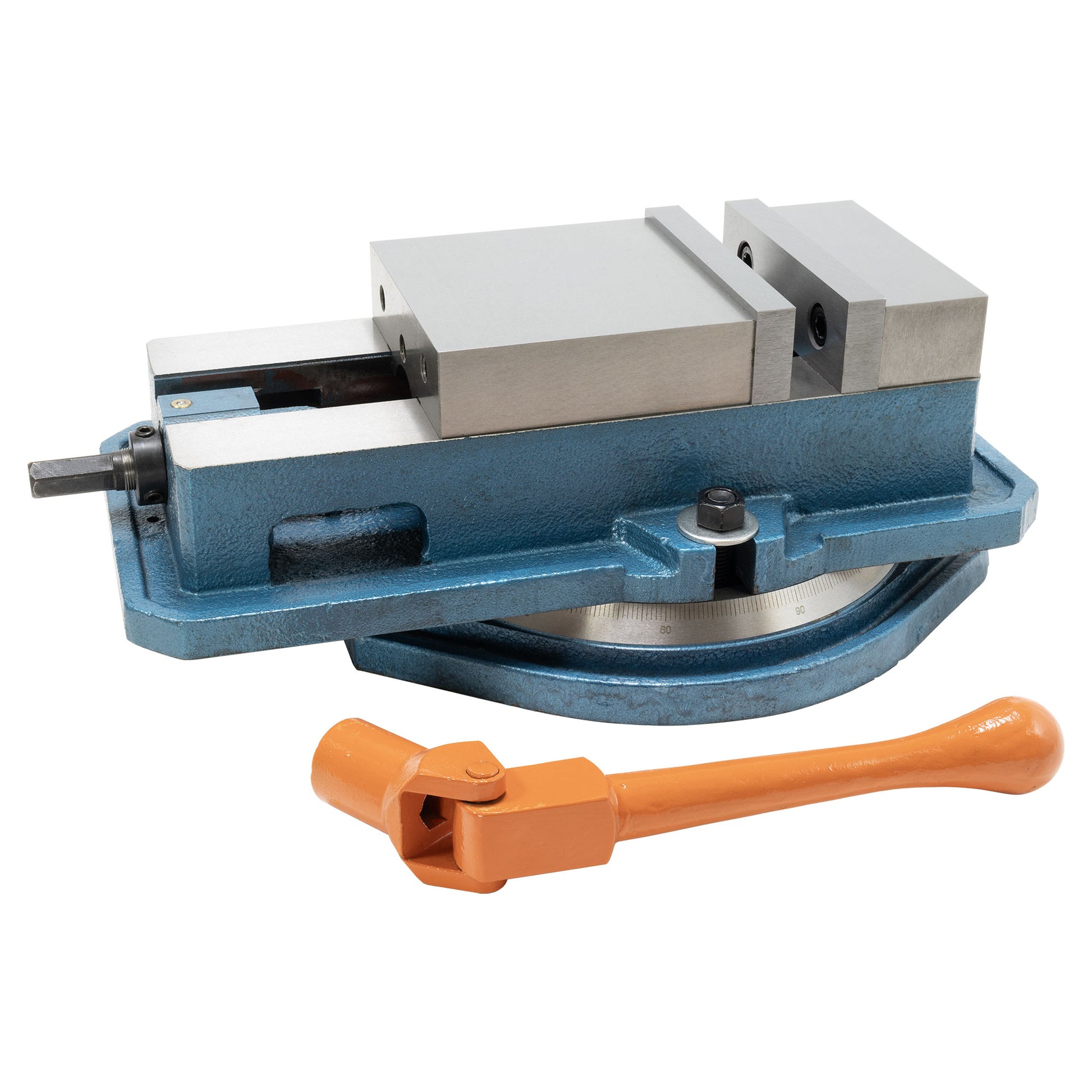

- Precision 5" Kurt-style milling machine vise with swivel base
- Top, bottom of vise bed, gib, jaws, swivel base, and all plate mounting surfaces are ground

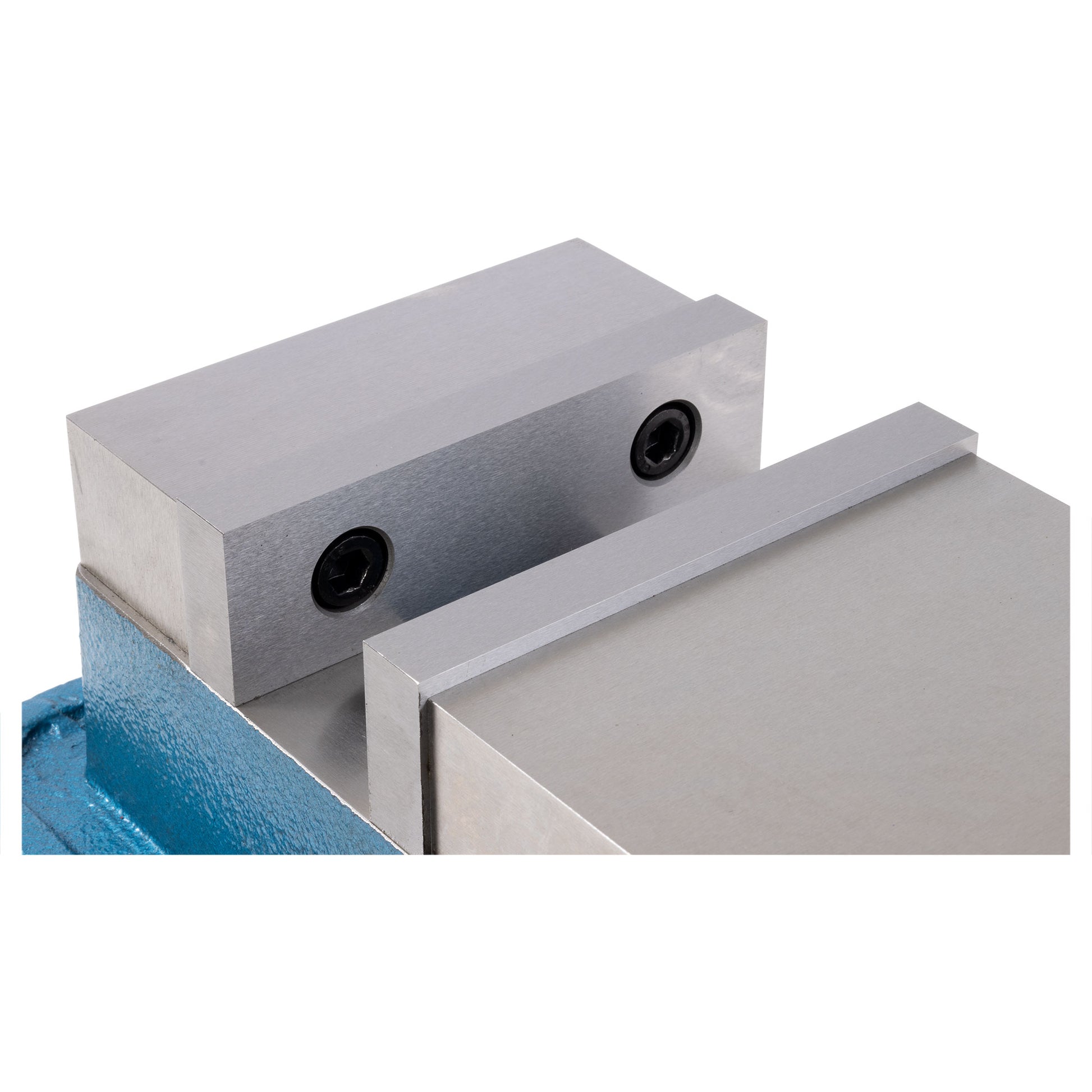

- Interchangeable jaws are hardened and ground

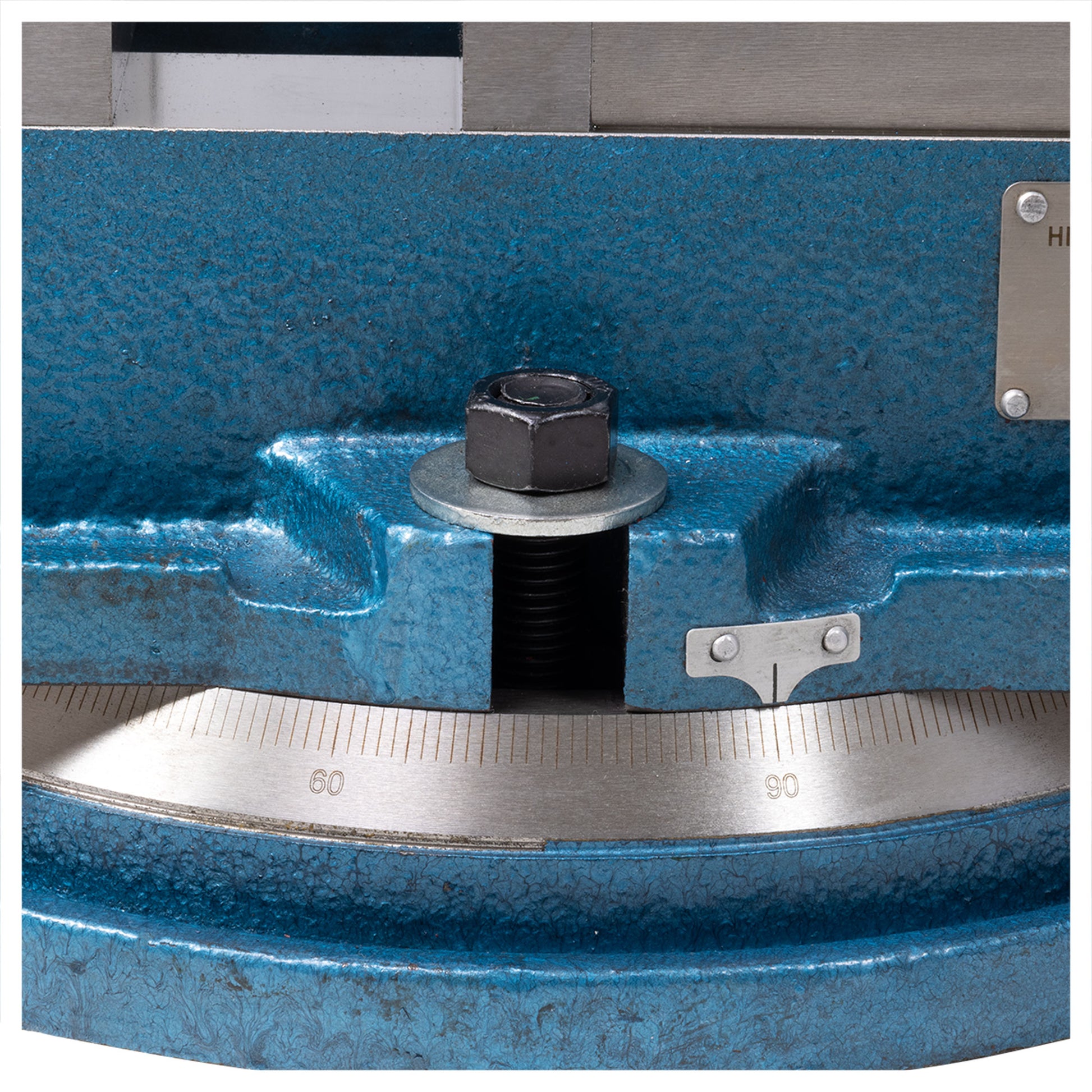

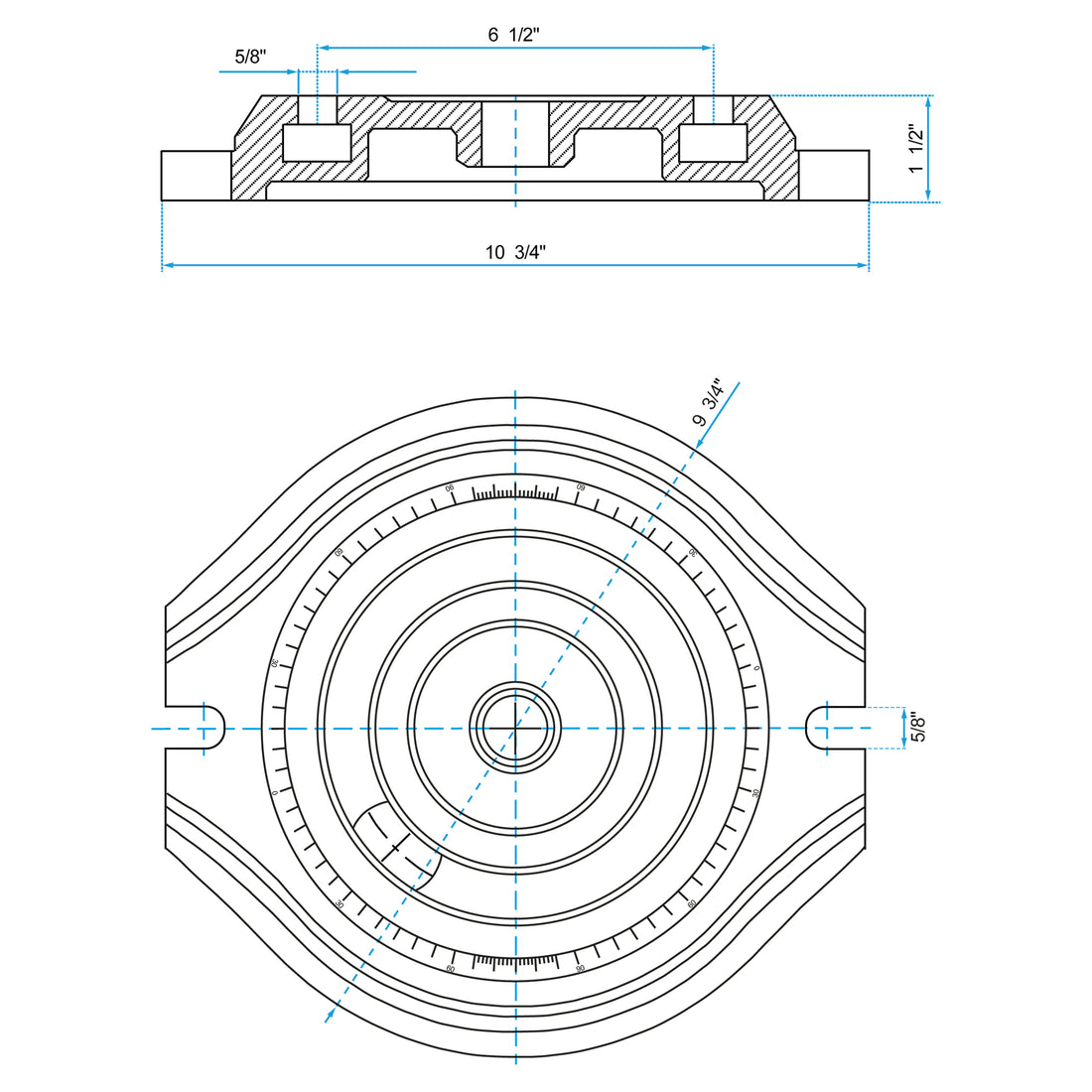

- The detachable swivel base features easy to read divisions
- Fully enclosed heat treated screw
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

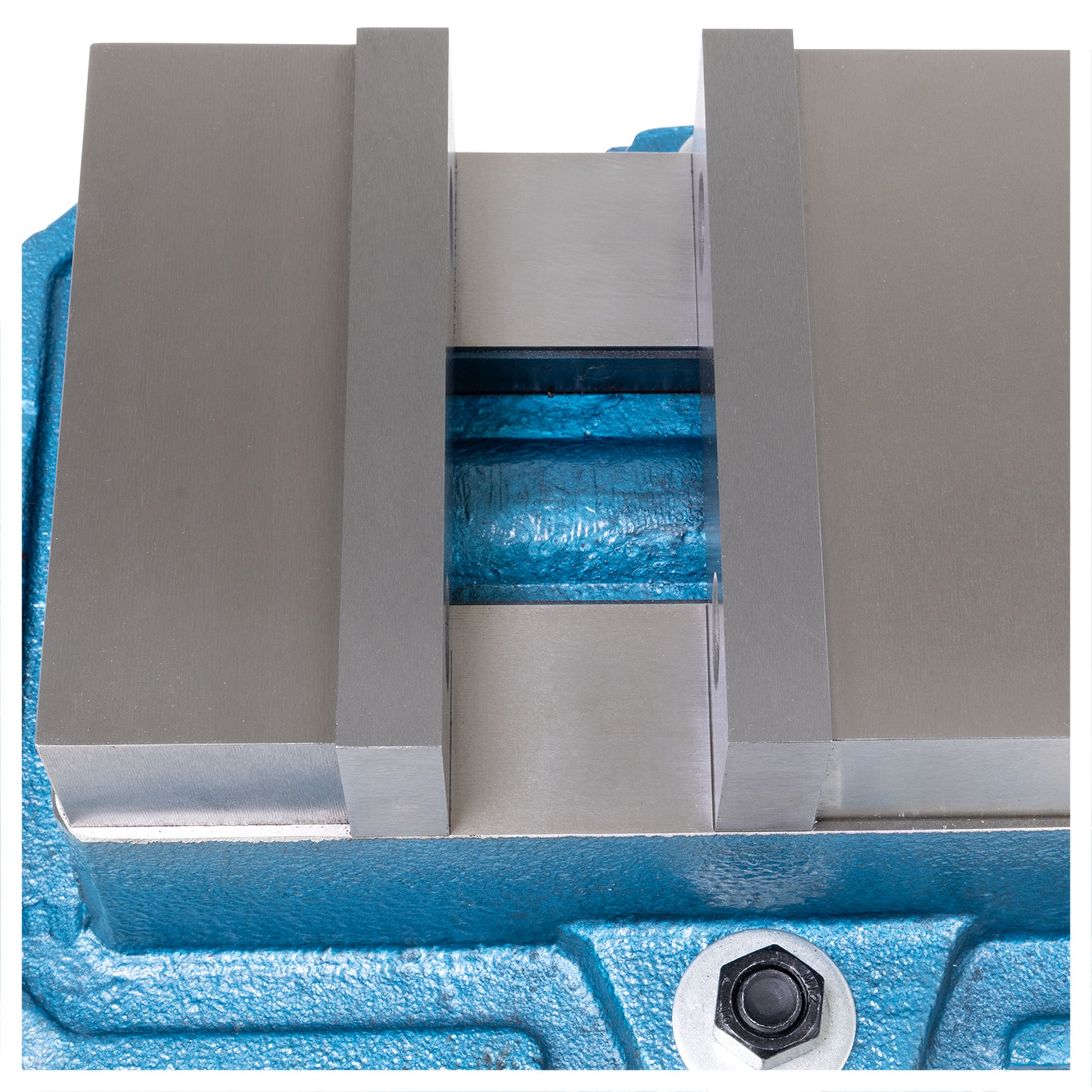

The replaceable jaws can be mounted on either end of the fixed and movable jaw supports providing a wide range of clamping distances.

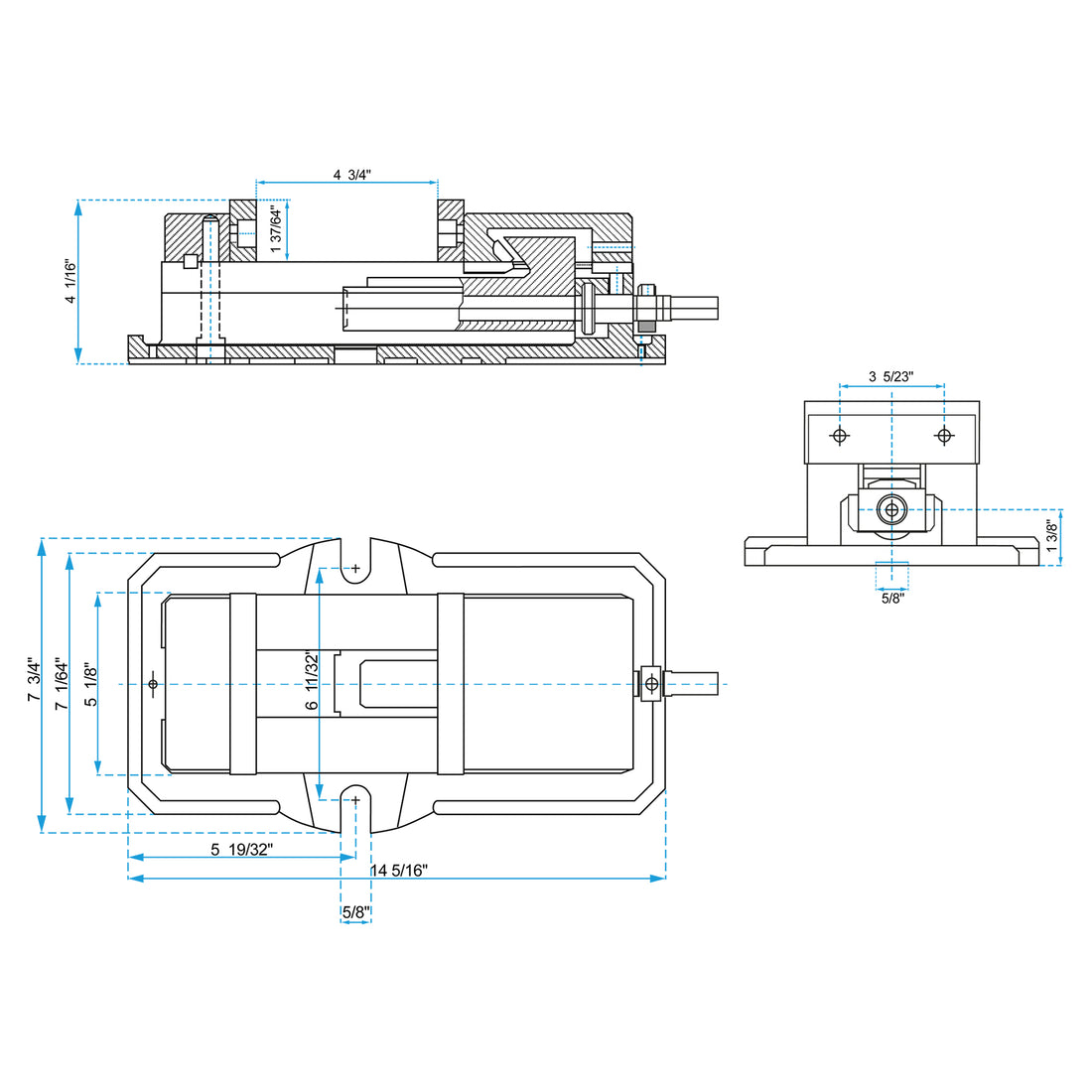

Specifications
Jaw width: 5.118" (130 mm)
Jaw depth: 1.339" (34 mm)
Maximum jaw opening: 4.724" (120 mm)
Swivel Base: YES
Weight: 65 lbs (29 kg)
Height with base: 5.315" (135 mm)
Height w/o base: 3.819" (97 mm)
Length: 14.291" (363 mm)
Width with base: 9.764" (248 mm)
Width w/o base: 7.008" (178 mm)
Hold-down mechanism: YES
Ways parallel to bottom of vise within: 0.0003" in 4" (0.008 mm in 100 mm)
Jaws perpendicular to ways within: 0.0004" in 4" (0.010 mm in 100 mm)
Product Instructions
