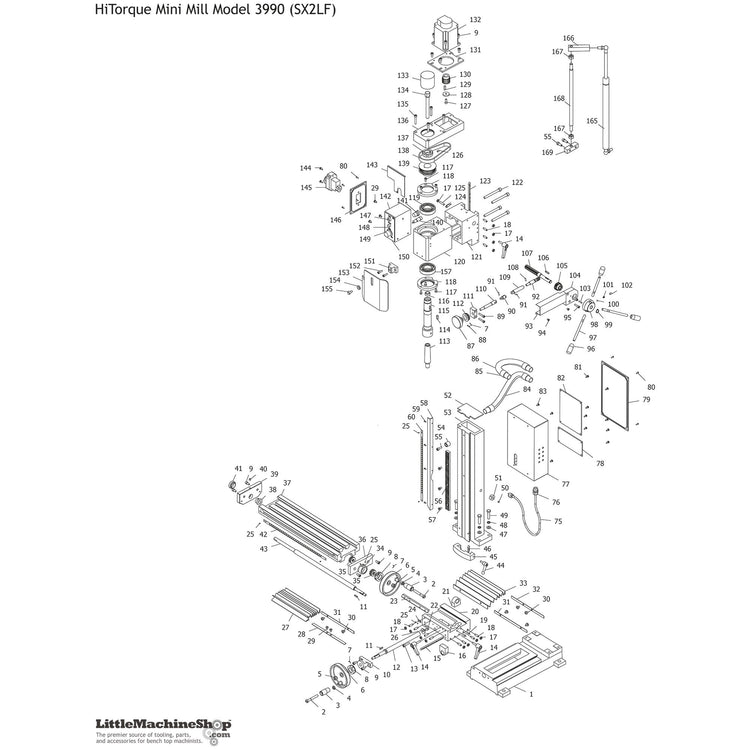

Collection: LittleMachineShop.com HiTorque 3990
Download Diagram
-
Product Sku1542
Cap Screw, M6x25, Socket Head
Regular price $0.55Regular priceUnit price / perItem: 13
-
Product Sku1431
Bellows, Chip Guard, Mini and Bench Mills
Regular price $9.95Regular priceUnit price / perItem: 27
-
Product Sku4055
Switch, Power, HiTorque Mini Mills and Lathes
Regular price $14.95Regular priceUnit price / perItem: 145
-
Product Sku1586
Washer, M8 Flat
Regular price $0.15Regular priceUnit price / perItem: 47
-
Product Sku1565
Screw, M8x55 Fillister Head Slotted Machine
Regular price $0.99Regular priceUnit price / perItem: 2
-
Product Sku1638
Drawbar, R8 1-Piece, Mini Mill
Regular price $17.95Regular priceUnit price / perItem: 134
-
Product Sku1477
Locking Lever, M6
Regular price $4.15Regular priceUnit price / perItem: 14
-
Product Sku1655
Oil Fitting, 6 mm
Regular price $1.29Regular priceUnit price / perItem: 40
-
Product Sku1208
Spring, Adjustable Dial, Mini Mill
Regular price $0.39Regular priceUnit price / perItem: 7
-
Product Sku1473
Key, 4x16 mm
Regular price $0.59Regular priceUnit price / perItem: 11
-
Product Sku1182
Retaining Ring, M12 External
Regular price $0.29Regular priceUnit price / perItem: 99
-
Product Sku1346
Knob, 8 mm
Regular price $2.95Regular priceUnit price / perItem: 96
-
Sold outProduct SkuFuse Holder
Regular price $2.95Regular priceUnit price / perItem: 140
Sold out -
Product Sku1676
Arbor, Drill Chuck R8 to 33JT
Regular price $11.95Regular priceUnit price / perItem: 113
-
Product Sku2516
Nut, M8 Nylon Insert Lock
Regular price $0.35Regular priceUnit price / perItem: 5
-
Product Sku1285
Cover, Spindle Bearing, Mini Lathe and Mini Mill
Regular price $2.95Regular priceUnit price / perItem: 118
-
Product Sku1338
Spring, 5 mm x 10 mm
Regular price $0.95Regular priceUnit price / perItem: 101
-
Product Sku1334
Knob, Speed Control, Mini Lathes and Mills
Regular price $3.95Regular priceUnit price / perItem: 149
-
Product Sku4482
Washer, M8 Lock
Regular price $0.25Regular priceUnit price / perItem: 48
-
Product Sku4481
Bolt, M8x35, Hex Head
Regular price $0.65Regular priceUnit price / perItem: 49
-

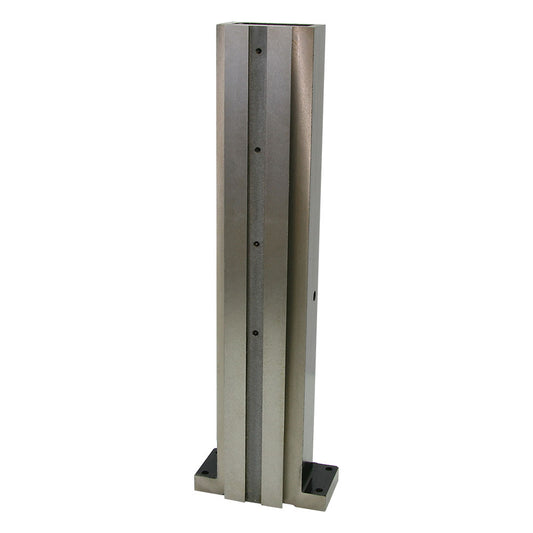

Sold outProduct SkuColumn, Solid, HiTorque Mini Mill
Regular price $179.95Regular priceUnit price / perItem: 53
Sold out -
Product Sku4015
Belt, Timing SX2 Mini Mills
Regular price $12.79Regular priceUnit price / perItem: 138
-
Product Sku1422
Retainer, Bellows Front
Regular price $1.95Regular priceUnit price / perItem: 28
-
Product Sku1439
Retainer, Bellows Table
Regular price $1.95Regular priceUnit price / perItem: 31
-
Product Sku3996
Potentiometer, Mini Mill & Mini Lathe
Regular price $29.95Regular priceUnit price / perItem: 149
-
Product Sku1220
Bearing, 6007-2RS
Regular price $24.95Regular priceUnit price / perItem: 157
-
Product Sku1499
Stop, Z-Axis
Regular price $19.95Regular priceUnit price / perItem: 45
-
Product Sku1124
Gib, Mini Mill Spindle, 140 mm
Regular price $3.99Regular priceUnit price / perItem: 123
-
Product Sku1337
Ball, Steel, 5 mm
Regular price $0.95Regular priceUnit price / perItem: 100
-
Product Sku1219
Bearing, 6206-2RS
Regular price $14.95Regular priceUnit price / perItem: 119
-
Sold outProduct SkuNut, Hex Thin Chamfered M8
Regular price $0.95Regular priceUnit price / perItem: 4
Sold out -
Product Sku1474
Retainer, Bellows Rear
Regular price $1.95Regular priceUnit price / perItem: 32
-
Product Sku1438
Nut, Spindle M27x1.5 Left Hand
Regular price $7.95Regular priceUnit price / perItem: 137
-
Product Sku1656
Bushing, Drawbar
Regular price $5.95Regular priceUnit price / perItem: 116
-
Product Sku1988
Rivet, M2x4
Regular price $0.95Regular priceUnit price / perItem: 25
-
Product Sku4828
Pin, Spindle R8
Regular price $1.99Regular priceUnit price / perItem: 115A
-
Product Sku4233

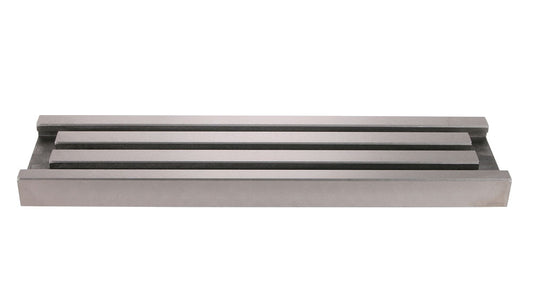

Table, HiTorque Mini Mill
Regular price $99.95Regular priceUnit price / perItem: 37
-
Product Sku4038
Gib, HiTorque Mini Mill X-Axis, 150mm
Regular price $4.15Regular priceUnit price / perItem: 23
-
Product Sku4020
Chip Shield, Spindle
Regular price $4.95Regular priceUnit price / perItem: 153
-
Product Sku1646
Bearing, Thrust 51200
Regular price $8.09Regular priceUnit price / perItem: 35
-
Product Sku1559
Screw, M5x8 Pan Head Phillips Machine
Regular price $0.25Regular priceUnit price / perItem: 29
-
Product Sku1500
Gib, Mini Mill Z-Axis Stop, 22 mm
Regular price $3.99Regular priceUnit price / perItem: 46
-
Product Sku4308

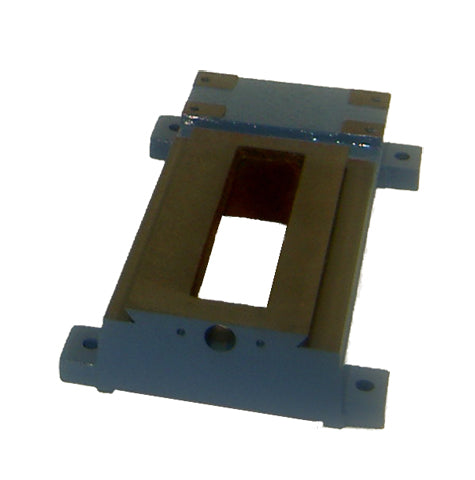

Base, Solid Column, HiTorque Mini Mill
Regular price $149.95Regular priceUnit price / perItem: 1
-
Product Sku4037
Gib, Mini Mill Y-Axis, 120 mm
Regular price $4.15Regular priceUnit price / perItem: 15
-
Product Sku1557
Screw, M4x8 Pan Head Phillips Machine
Regular price $0.19Regular priceUnit price / perItem: 83
-
Product Sku1488
Handwheel, Mini Mill
Regular price $24.95Regular priceUnit price / perItem: 6
-
Product Sku4032

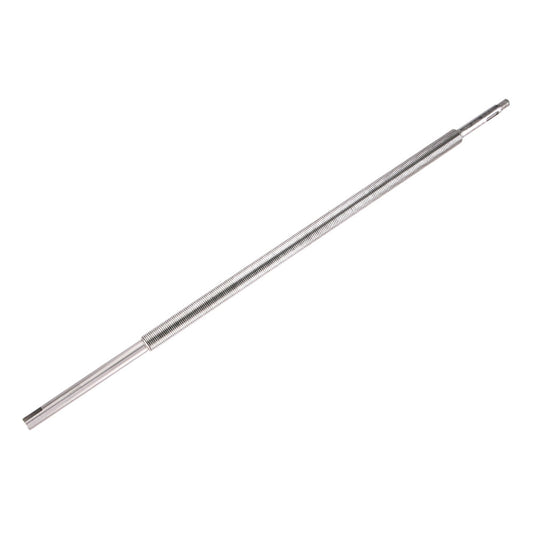

Feed Screw, X-Axis 16 TPI
Regular price $19.95Regular priceUnit price / perItem: 43
-
Product Sku4031

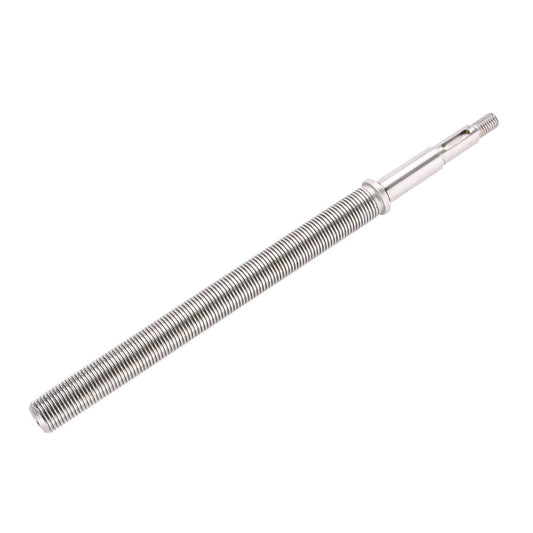

Feed Screw, Y-Axis 16 TPI Extended
Regular price $12.95Regular priceUnit price / perItem: 12
-
Product Sku4012
Bracket, Motor Mounting, HiTorque Mini Mill
Regular price $2.95Regular priceUnit price / perItem: 136
-
Product Sku3995
Motor Controller, Mini Mill and Mini Lathe
Regular price $399.95Regular priceUnit price / perItem: 82
-
Product Sku1489
Pinion, Z-Axis
Regular price $14.99Regular priceUnit price / perItem: 107
-
Product Sku4011
Spindle, R8 HiTorque Mini Mill
Regular price $59.95Regular priceUnit price / perItem: 115
-
Product Sku1573
Set Screw, M6x10, Socket Flat Point
Regular price $0.55Regular priceUnit price / perItem: 19
-
Product Sku1540
Cap Screw, M6x16, Socket Head
Regular price $0.65Regular priceUnit price / perItem: 55
-
Product Sku1535
Cap Screw, M5x20, Socket Head
Regular price $0.55Regular priceUnit price / perItem: 95
-
Product Sku1398
Key, 5x20 mm
Regular price $0.69Regular priceUnit price / perItem: 129
-
Product Sku1424
Thumb Screw, Chip Guard
Regular price $4.99Regular priceUnit price / perItem: 155
-
Product Sku1118
Nut, X-Axis Feed 16 TPI
Regular price $29.95Regular priceUnit price / perItem: 21
-
Product Sku1578
Set Screw, M6x8, Socket Flat Point
Regular price $0.45Regular priceUnit price / perItem: 102
-
Product Sku1563
Screw, M6x12 Flat Socket Head Machine
Regular price $0.29Regular priceUnit price / perItem: 57
-
Product Sku1533
Cap Screw, M5x16, Socket Head
Regular price $0.49Regular priceUnit price / perItem: 152
-
Product Sku1495
Lever, Z-Axis Coarse Feed
Regular price $5.49Regular priceUnit price / perItem: 97
-
Product Sku1476
Retainer, Y-Axis Screw
Regular price $25.95Regular priceUnit price / perItem: 10
-
Product Sku1483
Graduated Dial, 62.5 Divisions, Mini Mill
Regular price $11.95Regular priceUnit price / perItem: 8
-
Product Sku1445
Lamp, Yellow
Regular price $4.95Regular priceUnit price / perItem: 147
-
Product Sku1121
Nut, Y-Axis Feed 16 TPI
Regular price $26.95Regular priceUnit price / perItem: 16
-
Product Sku4659
Nut, Hex Thin Chamfered M6
Regular price $0.95Regular priceUnit price / perItem: 17
-
Product Sku4033

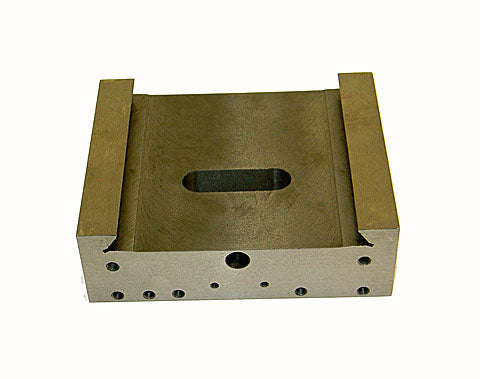

Saddle, HiTorque Mini Mill
Regular price $39.95Regular priceUnit price / perItem: 20
-
Product Sku2192
Lamp, Small Green
Regular price $3.95Regular priceUnit price / perItem: 148
-
Product Sku1516
Bracket, Z-Axis Fine Feed
Regular price $5.95Regular priceUnit price / perItem: 111
-
Sold outProduct SkuWorm, Z-Axis Fine Feed, Mini Mill
Regular price $10.95Regular priceUnit price / perItem: 92
Sold out -
Product Sku1510
Pin, M4x15
Regular price $0.59Regular priceUnit price / perItem: 103
-
Product Sku1464
Scale, X-Axis, Mini Mill
Regular price $3.99Regular priceUnit price / perItem: 42
-
Product Sku1415
Screw, M4x16 Flat Head Phillips Machine
Regular price $0.29Regular priceUnit price / perItem: 144
-
Product Sku5795

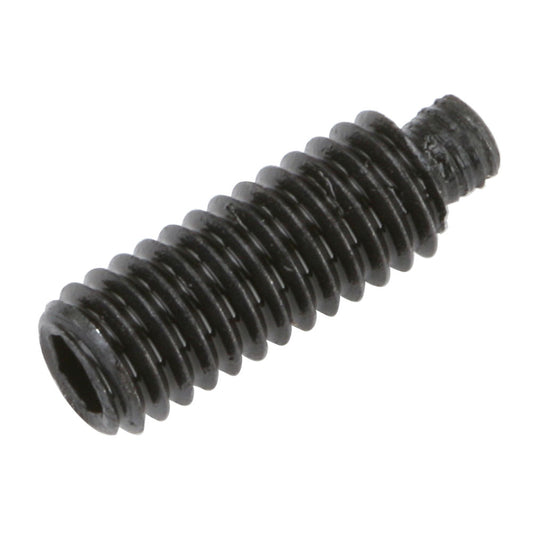

Set Screw, M4x12, Socket Dog Point
Regular price $0.95Regular priceUnit price / perItem: 88
-
Product Sku5339

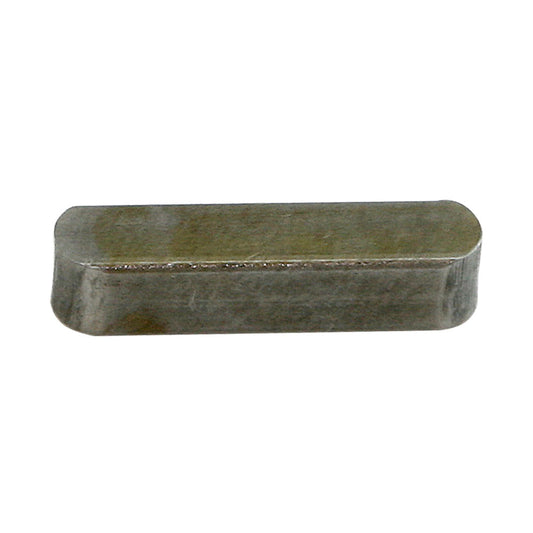

Key, 4x18 mm
Regular price $0.95Regular priceUnit price / perItem: 106
-

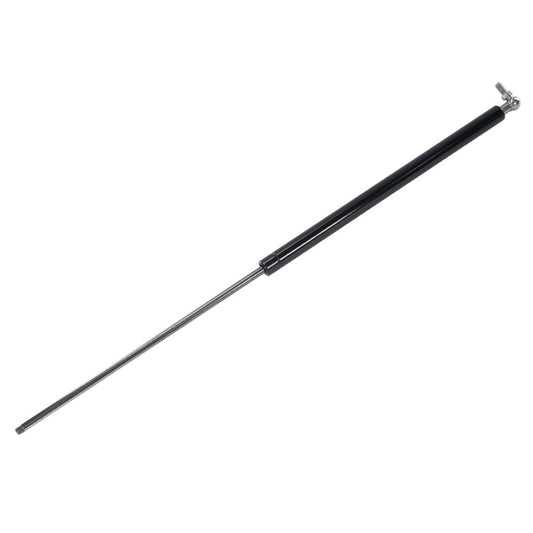

Sold outProduct SkuAir Spring, HiTorque Mini Mill
Regular price $19.95Regular priceUnit price / perItem: 165
Sold out -
Product Sku4167
Screw, M3x8 Flat Head Phillips Machine
Regular price $0.45Regular priceUnit price / perItem: 59
-
Product Sku4036
Bushing, X-Axis Feed Screw
Regular price $3.99Regular priceUnit price / perItem: 38
-
Product Sku4013
Plate, Motor Adjusting
Regular price $13.99Regular priceUnit price / perItem: 131
-
Product Sku2263
Cap Screw, M8x80, Socket Head
Regular price $1.69Regular priceUnit price / perItem: 122
-
Product Sku1909
Screw, M4x6 Round Head Phillips Machine
Regular price $0.19Regular priceUnit price / perItem: 94
-
Product Sku1564
Screw, M6x8 Round Head Phillips Machine
Regular price $0.25Regular priceUnit price / perItem: 30
-
Product Sku1539
Cap Screw, M6x12, Socket Head
Regular price $0.49Regular priceUnit price / perItem: 9
-
Product Sku1536
Cap Screw, M5x25, Socket Head
Regular price $0.99Regular priceUnit price / perItem: 89
-
Product Sku1497
Pointer, Z-Axis
Regular price $3.29Regular priceUnit price / perItem: 124
-
Product Sku1491
Gear, Worm 29 Teeth, Mini Mill
Regular price $18.95Regular priceUnit price / perItem: 105
-
Product Sku1484
Label, Position Indicator
Regular price $1.95Regular priceUnit price / perItem: 24
-
Product Sku1443
Cover, Drawbar, Mini Mill
Regular price $4.85Regular priceUnit price / perItem: 133
-
Product Sku6458
Screw, M6x18 Flat Head Phillips Machine
Regular price $0.95Regular priceUnit price / perItem: 127
-
Product Sku6459

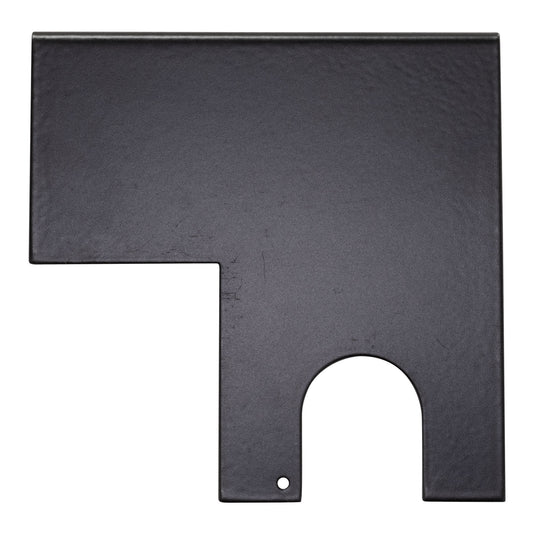

Spindle Tachometer, Connecting plate, Mini Mill
Regular price $5.95Regular priceUnit price / perItem: 143
-
Product Sku4776

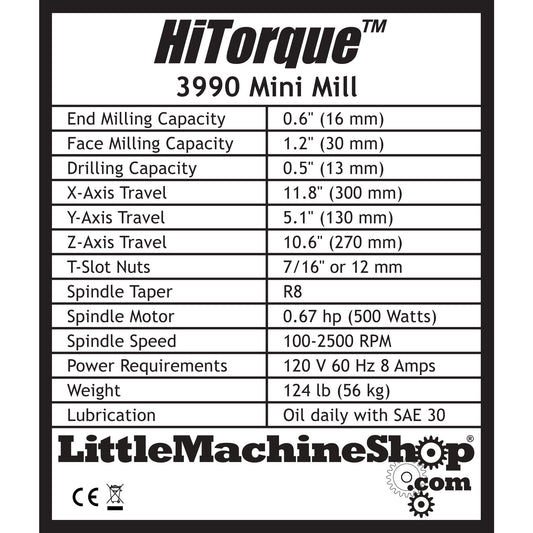

Label, HiTorque Mini Mill
Regular price $5.95Regular priceUnit price / perItem: 0
-
Product Sku4582

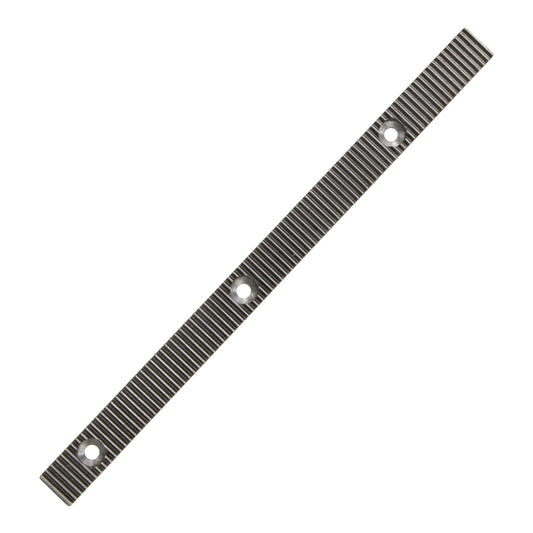

Rack, Mini Mill Z-Axis, 11"
Regular price $19.95Regular priceUnit price / perItem: 56
-
Product Sku4199

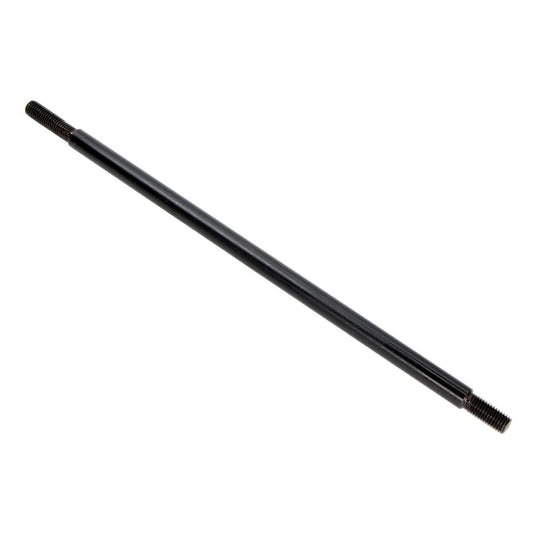

Shaft, Head Support, Air Spring, HiTorque Mini Mill
Regular price $24.95Regular priceUnit price / perItem: 168
-
Product Sku4189
Set Screw, M6x8 Socket Dog Point
Regular price $0.45Regular priceUnit price / perItem: 126
-
Product Sku4146
Cover, Control Box
Regular price $4.99Regular priceUnit price / perItem: 146
-
Product Sku4034
Retainer, X-Axis Bushing, HiTorque Mini Mill
Regular price $5.95Regular priceUnit price / perItem: 39
-
Product Sku4018
Bracket, Scale
Regular price $3.95Regular priceUnit price / perItem: 58
-
Product Sku4019
Strain Relief, 16 mm
Regular price $1.99Regular priceUnit price / perItem: 76
-
Product Sku1519
Shaft, Z-Axis Fine Feed Universal
Regular price $13.35Regular priceUnit price / perItem: 110
-
Product Sku1515
Universal Joint, Z-Axis Fine Feed
Regular price $8.29Regular priceUnit price / perItem: 90
-
Product Sku1512
Shaft, Z-Axis Fine Feed, Mini Mill
Regular price $11.95Regular priceUnit price / perItem: 109
-
Product Sku1494
Pivot, Z-Axis Coarse Feed
Regular price $26.95Regular priceUnit price / perItem: 98
-
Product Sku1501
Scale, Z-Axis, Mini Mill
Regular price $5.49Regular priceUnit price / perItem: 60
-
Product Sku1498
Mount, Spindle Housing
Regular price $53.95Regular priceUnit price / perItem: 121
-
Product Sku5639
Cable, Speed Control, HiTorque Mini Mill
Regular price $13.49Regular priceUnit price / perItem: 0
-
Product Sku5809
Set Screw, M5x6, Socket Cone Point
Regular price $0.95Regular priceUnit price / perItem: 50
-
Product Sku5238
Screw, Tapping M2.9x9.5 Flat Head Phillips
Regular price $0.95Regular priceUnit price / perItem: 80
-
Product Sku4196
Cap Screw, M6x10 Hex Socket Button Head
Regular price $0.95Regular priceUnit price / perItem: 22
-
Product Sku4144
Motor, 500 Watt Brushless DC, Mini Mill
Regular price $499.95Regular priceUnit price / perItem: 132
-
Product Sku4035
Cover, Feed Screw End
Regular price $3.55Regular priceUnit price / perItem: 41
-
Product Sku4030

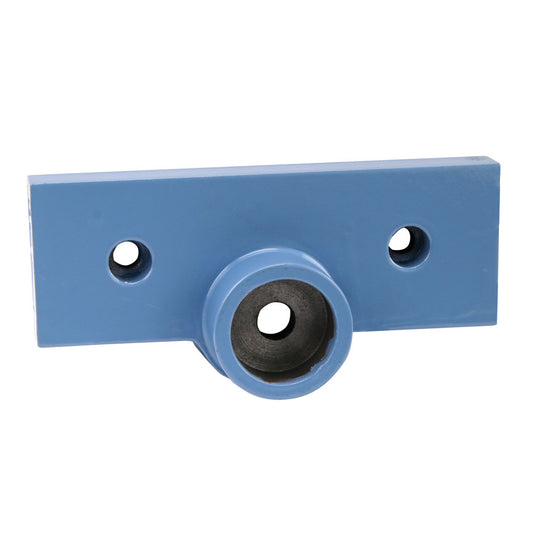

Retainer, X-Axis Bearing, HiTorque Mini Mill
Regular price $11.95Regular priceUnit price / perItem: 36
-
Product Sku4022
Box, Controls, Mini Mill
Regular price $11.95Regular priceUnit price / perItem: 142
-
Product Sku4026

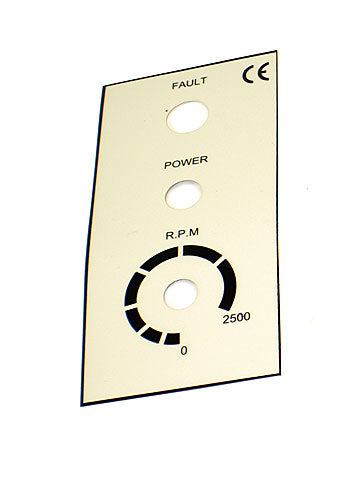

Label, Control Panel, HiTorque Mini Mill
Regular price $5.95Regular priceUnit price / perItem: 150
-
Product Sku4023
Cover, Motor Control Box
Regular price $5.05Regular priceUnit price / perItem: 79
-
Product Sku4021
Box, Motor Control, HiTorque Mini Mill
Regular price $16.89Regular priceUnit price / perItem: 77
-
Product Sku4014
Pulley, Timing, Spindle, HiTorque Mini Mill
Regular price $26.95Regular priceUnit price / perItem: 139
-
Product Sku4017
Washer, Motor Shaft
Regular price $1.29Regular priceUnit price / perItem: 128
-
Product Sku4016
Pulley, Timing, Motor, HiTorque Mini Mill
Regular price $21.79Regular priceUnit price / perItem: 130
-
Product Sku3380
Power Cord with Plug
Regular price $9.95Regular priceUnit price / perItem: 75
-
Product Sku1521
Bracket, Chip Guard
Regular price $4.79Regular priceUnit price / perItem: 151
-
Product Sku1520
Cover, Z-Axis Fine Feed
Regular price $2.95Regular priceUnit price / perItem: 93
-
Product Sku1518
Knob, Z-Axis Fine Feed, Mini Mill
Regular price $21.79Regular priceUnit price / perItem: 87
-
Product Sku1517
Graduated Dial, Z-Axis Fine Feed, Mini Mill
Regular price $13.25Regular priceUnit price / perItem: 112
-
Product Sku1513
Pin, M3x12
Regular price $0.85Regular priceUnit price / perItem: 91
-
Product Sku1509
Housing, Z-Axis Fine Feed
Regular price $24.95Regular priceUnit price / perItem: 104
-
Product Sku6651
Screw, M3x10 Flat Head Phillips Machine
Regular price $0.95Regular priceUnit price / perItem: 80
-
Product Sku4480
Rod End, Air Spring
Regular price $8.95Regular priceUnit price / perItem: 165a
-
Product Sku1381
Handle Set, Handwheel, Mini Mill
Regular price $8.45Regular priceUnit price / perItem: 3
-
Product Sku4027

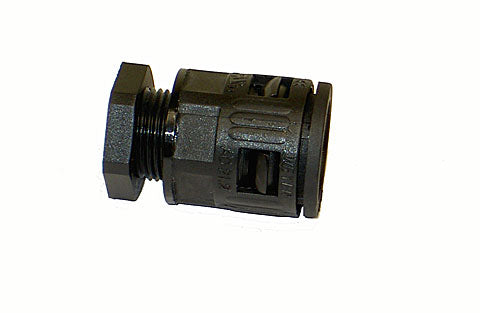

Connector, Quick, Flexible Conduit, 20 mm
Regular price $6.95Regular priceUnit price / perItem: 85
-
Product Sku4024

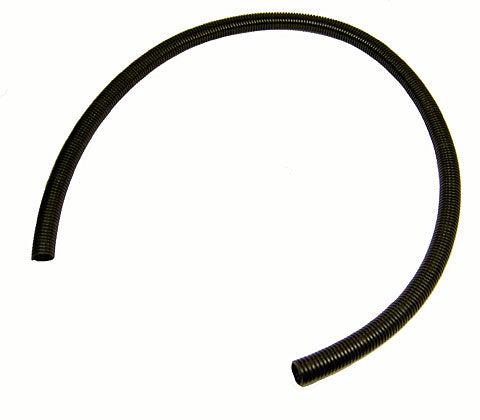

Conduit, 16 mm Dia Flexible Plastic
Regular price $7.95Regular priceUnit price / perItem: 84
-
Product Sku4010
Housing, HiTorque Mini Mill Spindle
Regular price $89.95Regular priceUnit price / perItem: 120
-
Product Sku1468
Cover, Mini Mill Column
Regular price $9.95Regular priceUnit price / perItem: 52
-
Product Sku1455
Set Collar
Regular price $14.95Regular priceUnit price / perItem: 51
-
Product Sku1425
Stop, Head Travel
Regular price $0.95Regular priceUnit price / perItem: 54
