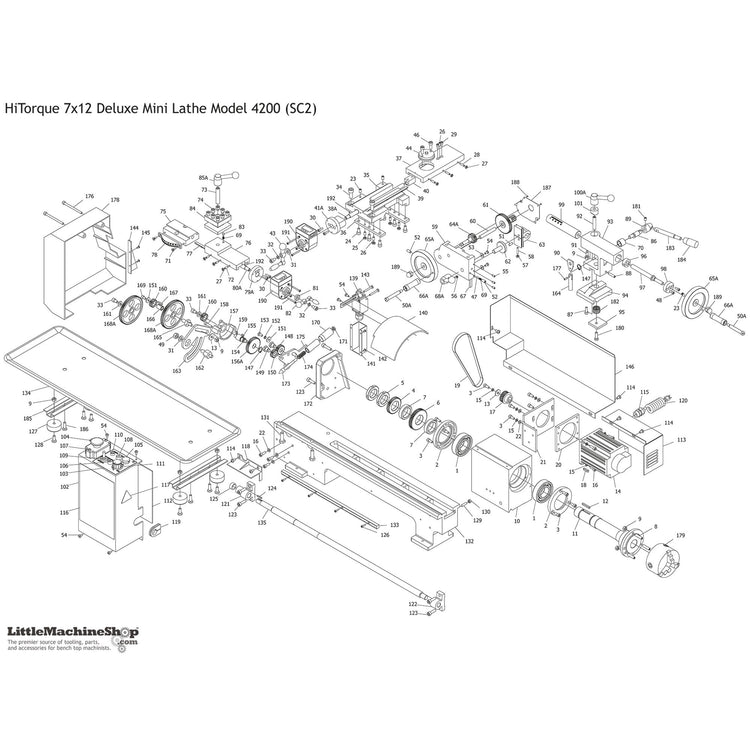

Collection: LittleMachineShop.com HiTorque 4200
Download Diagram
-
Product Sku1106
Gear, 80 Teeth, Mini Lathe
Regular price $8.95 USDRegular priceUnit price / perItem: 168A
-
Product Sku1542
Cap Screw, M6x25, Socket Head
Regular price $0.55 USDRegular priceUnit price / perItem: 74
-
Product Sku4055
Switch, Power, HiTorque Mini Mills and Lathes
Regular price $14.95 USDRegular priceUnit price / perItem: 104
-
Product Sku1586
Washer, M8 Flat
Regular price $0.15 USDRegular priceUnit price / perItem: 31
-
Product Sku1346
Knob, 8 mm
Regular price $2.95 USDRegular priceUnit price / perItem: 184
-
Product Sku4045
Belt, Timing HiTorque Mini Lathe, 100 Teeth
Regular price $8.95 USDRegular priceUnit price / perItem: 19
-
Product Sku1541
Cap Screw, M6x20, Socket Head
Regular price $0.49 USDRegular priceUnit price / perItem: 123
-
Product Sku1362
Bushing and Key, Mini Lathe
Regular price $4.84 USDRegular priceUnit price / perItem: 166
-
Product Sku1219
Bearing, 6206-2RS
Regular price $22.95 USDRegular priceUnit price / perItem: 1
-
Product Sku1530
Cap Screw, M4x12, Socket Head
Regular price $0.99 USDRegular priceUnit price / perItem: 30
-
Product Sku1363
Shaft, B & C Gears
Regular price $7.47 USDRegular priceUnit price / perItem: 165
-
Product Sku2562
Lead Screw Chip Guard
Regular price $2.89 USDRegular priceUnit price / perItem: 119
-
Product Sku1587
Spacer, Dial
Regular price $0.95 USDRegular priceUnit price / perItem: 81
-
Product Sku1569
Set Screw, M5x10, Socket Flat Point
Regular price $0.45 USDRegular priceUnit price / perItem: 26
-
Product Sku1531
Cap Screw, M4x8, Socket Head
Regular price $0.45 USDRegular priceUnit price / perItem: 29
-
Product Sku1383
Crank Handle, Compound Rest
Regular price $13.34 USDRegular priceUnit price / perItem: 82
-
Product Sku1357
Key, 3x8 mm
Regular price $0.95 USDRegular priceUnit price / perItem: 155
-
Product Sku1182
Retaining Ring, M12 External
Regular price $0.29 USDRegular priceUnit price / perItem: 147
-
Product Sku1110
Gib, Mini Lathe Compound Rest, 120 mm
Regular price $6.95 USDRegular priceUnit price / perItem: 77
-
Product Sku4194
Nut, Hex Thin Chamfered M4
Regular price $0.35 USDRegular priceUnit price / perItem: 27
-
Product Sku4057
Switch, F/R
Regular price $11.05 USDRegular priceUnit price / perItem: 109
-
Product Sku3995
Motor Controller, Mini Mill and Mini Lathe
Regular price $399.95 USDRegular priceUnit price / perItem: 112
-
Product Sku3996
Potentiometer, Mini Mill & Mini Lathe
Regular price $29.95 USDRegular priceUnit price / perItem: 111
-
Product Sku3493
Gear, 45 Teeth, Mini Lathe, Metal
Regular price $29.95 USDRegular priceUnit price / perItem: 156A
-
Product Sku1580
Stud, M10x65
Regular price $2.15 USDRegular priceUnit price / perItem: 73
-
Product Sku1568
Set Screw, M4x16, Socket Dog Point
Regular price $0.43 USDRegular priceUnit price / perItem: 28
-
Product Sku1540
Cap Screw, M6x16, Socket Head
Regular price $0.66 USDRegular priceUnit price / perItem: 46
-
Sold outProduct SkuHalf Nuts, Mini Lathe, Inch
Regular price $24.95 USDRegular priceUnit price / perItem: 63
Sold out -
Product Sku1359
Gear, 20 Teeth, Mini Lathe
Regular price $14.95 USDRegular priceUnit price / perItem: 160
-
Product Sku1352
Screw, Back Gear Mounting
Regular price $4.19 USDRegular priceUnit price / perItem: 149
-
Product Sku1338
Spring, 5 mm x 10 mm
Regular price $0.95 USDRegular priceUnit price / perItem: 69
-
Product Sku1304
Screw, Tailstock, Mini Lathe
Regular price $21.67 USDRegular priceUnit price / perItem: 97
-
Product Sku1321
Gear, 45 Teeth, Mini Lathe
Regular price $4.95 USDRegular priceUnit price / perItem: 156A
-
Product Sku1297
Key, 3x16 mm
Regular price $0.95 USDRegular priceUnit price / perItem: 124
-
Product Sku1187
Lathe Chuck - 3", 3-Jaw
Regular price $99.95 USDRegular priceUnit price / perItem: 179
-
Product Sku1204
Tool Post, Mini Lathe, Four-Position
Regular price $22.65 USDRegular priceUnit price / perItem: 84
-
Sold outProduct SkuGib, Mini Lathe Cross Slide, 150 mm
Regular price $6.95 USDRegular priceUnit price / perItem: 39
Sold out -
Product Sku1287
Pin, Tool Post Detent
Regular price $4.90 USDRegular priceUnit price / perItem: 83
-
Product Sku1288
Handle, Tool Post, Mini Lathe
Regular price $5.46 USDRegular priceUnit price / perItem: 85
-
Sold outProduct SkuCompound Rest Top
Regular price $39.99 USDRegular priceUnit price / perItem: 76
Sold out -
Product Sku1107
Protractor, Compound Rest
Regular price $12.95 USDRegular priceUnit price / perItem: 78
-
Product Sku4193
Nut, Hex Thin Chamfered M5
Regular price $0.45 USDRegular priceUnit price / perItem: 25
-
Product Sku4188
Handle Base, Half Nut Lever, Mini Lathe, Chrome
Regular price $2.95 USDRegular priceUnit price / perItem: 68A
-
Product Sku4180
Handle, Tailstock Lock, Mini Lathe, Chrome
Regular price $2.95 USDRegular priceUnit price / perItem: 100A
-
Product Sku4184
Bolt, Handwheel Handle, Chrome
Regular price $4.95 USDRegular priceUnit price / perItem: 50A
-
Product Sku4183
Handle, Handwheel, Mini Lathe, Chrome
Regular price $4.95 USDRegular priceUnit price / perItem: 66A
-
Product Sku4154
Motor Bracket, Mini Lathe
Regular price $22.85 USDRegular priceUnit price / perItem: 21
-
Product Sku4181
Handle Base, Mini Lathe, Chrome
Regular price $2.95 USDRegular priceUnit price / perItem: 100A
-
Product Sku4145
Motor, 500 Watt Brushless DC, Mini Lathe
Regular price $335.93 USDRegular priceUnit price / perItem: 14
-
Product Sku4071
Spring, 17.6 mm x 20 mm
Regular price $1.30 USDRegular priceUnit price / perItem: 182
-
Product Sku4062
Chuck Guard, Mini Lathe
Regular price $14.17 USDRegular priceUnit price / perItem: 140
-
Product Sku4056
Jack, Speed Readout
Regular price $14.11 USDRegular priceUnit price / perItem: 105
-
Product Sku4052
Foot, Cam Lock
Regular price $4.95 USDRegular priceUnit price / perItem: 95
-
Product Sku4044
Pulley, Timing, Motor, HiTorque Mini Lathe
Regular price $29.95 USDRegular priceUnit price / perItem: 17
-
Product Sku1909
Screw, M4x6 Pan Head Phillips Machine
Regular price $0.18 USDRegular priceUnit price / perItem: 138
-
Product Sku1903
Spacer, Lead Screw
Regular price $1.62 USDRegular priceUnit price / perItem: 125
-
Product Sku1573
Set Screw, M6x10, Socket Flat Point
Regular price $0.53 USDRegular priceUnit price / perItem: 23
-
Product Sku1572
Set Screw, M6x12, Socket Cone Point
Regular price $0.51 USDRegular priceUnit price / perItem: 52
-
Product Sku1555
Screw, M4x10 Flat Head Phillips Machine
Regular price $0.17 USDRegular priceUnit price / perItem: 71
-
Product Sku1557
Screw, M4x8 Pan Head Phillips Machine
Regular price $0.18 USDRegular priceUnit price / perItem: 54
-
Product Sku1544
Cap Screw, M8x20, Socket Head
Regular price $1.07 USDRegular priceUnit price / perItem: 34
-
Product Sku1539
Cap Screw, M6x12, Socket Head
Regular price $0.49 USDRegular priceUnit price / perItem: 24
-
Product Sku1535
Cap Screw, M5x20, Socket Head
Regular price $0.53 USDRegular priceUnit price / perItem: 158
-
Product Sku1529
Cap Screw, M4x10, Socket Head
Regular price $0.25 USDRegular priceUnit price / perItem: 48
-
Sold outProduct SkuApron, Mini Lathe
Regular price $29.95 USDRegular priceUnit price / perItem: 59
Sold out -
Product Sku1371
Gib, Mini Lathe Half Nut, 67 mm
Regular price $2.95 USDRegular priceUnit price / perItem: 67
-
Product Sku1356
Shaft, A-Gear
Regular price $6.71 USDRegular priceUnit price / perItem: 154
-
Product Sku1351
Pinion, 25 Teeth
Regular price $9.95 USDRegular priceUnit price / perItem: 148
-
Product Sku1334
Knob, Speed Control, Mini Lathes and Mills
Regular price $3.95 USDRegular priceUnit price / perItem: 111
-
Product Sku1329
Nut, Spindle M27x1.5
Regular price $3.80 USDRegular priceUnit price / perItem: 5
-
Product Sku1328
Brace, Chip Tray
Regular price $18.95 USDRegular priceUnit price / perItem: 185
-
Product Sku1296
Bracket, Lead Screw Mounting (Left)
Regular price $10.95 USDRegular priceUnit price / perItem: 121
-
Product Sku1300
Bracket, Lead Screw Mounting (Right)
Regular price $10.95 USDRegular priceUnit price / perItem: 122
-
Product Sku1286
Cross Slide
Regular price $49.95 USDRegular priceUnit price / perItem: 37
-
Product Sku5638
Cable, Speed Control, HiTorque Mini Lathe
Regular price $10.95 USDRegular priceUnit price / perItem: 0
-
Product Sku5572
Lamp, Fault, Mini Lathe
Regular price $4.75 USDRegular priceUnit price / perItem: 0
-
Product Sku4780
Pivot, Back Gear Shifter, HiTorque Mini Lathe
Regular price $13.95 USDRegular priceUnit price / perItem: 175
-
Product Sku4659
Nut, Hex Thin Chamfered M6
Regular price $0.95 USDRegular priceUnit price / perItem: 171
-
Product Sku4422
Cover, Spindle Bearing, Mini Lathe
Regular price $4.95 USDRegular priceUnit price / perItem: 2
-
Product Sku4196
Cap Screw, M6x10 Hex Socket Button Head
Regular price $0.95 USDRegular priceUnit price / perItem: 33
-
Product Sku4192
Set Screw, M4x20 Socket Flat Point
Regular price $0.55 USDRegular priceUnit price / perItem: 58
-
Product Sku4189
Set Screw, M6x8 Socket Dog Point
Regular price $0.45 USDRegular priceUnit price / perItem: 181
-
Product Sku4187
Bushing, Tailstock, Mini Lathe
Regular price $6.95 USDRegular priceUnit price / perItem: 96
-
Product Sku4186
Set Screw, M6x14 Socket Dog Point
Regular price $0.95 USDRegular priceUnit price / perItem: 91
-
Product Sku4185
Set Screw, M5x25 Socket Dog Point
Regular price $0.95 USDRegular priceUnit price / perItem: 88
-
Product Sku4070
Screw, M6x20 Fillister Head Slotted Machine
Regular price $0.95 USDRegular priceUnit price / perItem: 180
-
Product Sku4174
Set Screw, M3x4 Socket Flat Point
Regular price $0.25 USDRegular priceUnit price / perItem: 192
-
Product Sku4182
Handwheel, Tailstock, Mini Lathe, Aluminum
Regular price $29.95 USDRegular priceUnit price / perItem: 65A
-
Product Sku4081
Cap Screw, M5x65, Socket Head
Regular price $0.95 USDRegular priceUnit price / perItem: 176
-
Product Sku4072
Handle Mount, Cam Lock, Mini Lathe
Regular price $6.95 USDRegular priceUnit price / perItem: 183
-
Sold outProduct SkuShaft, Cam Lock
Regular price $16.93 USDRegular priceUnit price / perItem: 164
Sold out -
Product Sku4069
Cover, Change Gears, HiTorque Mini Lathe
Regular price $21.19 USDRegular priceUnit price / perItem: 178
-
Product Sku4068
Set Pin, M4x11 Threaded
Regular price $2.69 USDRegular priceUnit price / perItem: 177
-
Product Sku4067
Cover, Drive Belt, HiTorque Mini Lathe
Regular price $22.95 USDRegular priceUnit price / perItem: 172
-
Product Sku4064
Cover, Motor Pulley
Regular price $1.95 USDRegular priceUnit price / perItem: 144
-
Product Sku4063
Cover, Limit Switch
Regular price $21.31 USDRegular priceUnit price / perItem: 141
-
Product Sku4061
Switch, Limit
Regular price $20.96 USDRegular priceUnit price / perItem: 139
-
Product Sku4054
Label, Control Panel, HiTorque Mini Lathe
Regular price $1.95 USDRegular priceUnit price / perItem: 103
-
Product Sku4050
Hub, Cam Lock Tailstock
Regular price $6.96 USDRegular priceUnit price / perItem: 89
-
Product Sku4053
Control Box, Mini Lathe
Regular price $21.22 USDRegular priceUnit price / perItem: 102
-
Product Sku4051
Connector, Cam Lock
Regular price $4.05 USDRegular priceUnit price / perItem: 90
-
Product Sku
Shaft, Eccentric, Cam Lock Tailstock, Mini Lathe
Regular price $4.95 USDRegular priceUnit price / perItem: 86
Sold out -
Product Sku4048
Bushing, Cam Lock
Regular price $2.68 USDRegular priceUnit price / perItem: 70
-
Product Sku4043
Spindle, HiTorque Mini Lathe
Regular price $69.95 USDRegular priceUnit price / perItem: 11
-
Product Sku4040
Pulley, Timing, Spindle, HiTorque Mini Lathe
Regular price $15.95 USDRegular priceUnit price / perItem: 6
-
Product Sku4042
Headstock Casting, Mini Lathe
Regular price $69.95 USDRegular priceUnit price / perItem: 10
-
Product Sku4041
Spacer, Spindle 11 mm
Regular price $2.69 USDRegular priceUnit price / perItem: 7
-
Product Sku3874
Washer, M4 Flat
Regular price $0.12 USDRegular priceUnit price / perItem: 137
-
Product Sku4019
Strain Relief, 16 mm
Regular price $2.07 USDRegular priceUnit price / perItem: 115
-
Product Sku3959
Motor Plate, Mini Lathe
Regular price $15.44 USDRegular priceUnit price / perItem: 20
-
Product Sku3958
Cover, Motor, Mini Lathe
Regular price $5.95 USDRegular priceUnit price / perItem: 113
-
Product Sku3455
Pinion, 20 Teeth, Metal
Regular price $14.95 USDRegular priceUnit price / perItem: 150
-
Product Sku3454
Pinion, 25 Teeth, Metal
Regular price $14.95 USDRegular priceUnit price / perItem: 148
-
Product Sku3450
Gear, 80 Teeth, Mini Lathe, Metal
Regular price $45.95 USDRegular priceUnit price / perItem: 168A
-
Sold outProduct SkuPower Cord with Plug
Regular price $9.95 USDRegular priceUnit price / perItem: 120
Sold out -
Product Sku3050
Handle, Back Gear Shifter
Regular price $4.95 USDRegular priceUnit price / perItem: 170
-
Product Sku2671
Rear Splashguard, 7x14, 7x16
Regular price $19.95 USDRegular priceUnit price / perItem: 146
-
Product Sku2960
Shield, Apron
Regular price $4.40 USDRegular priceUnit price / perItem: 187
-
Product Sku2371

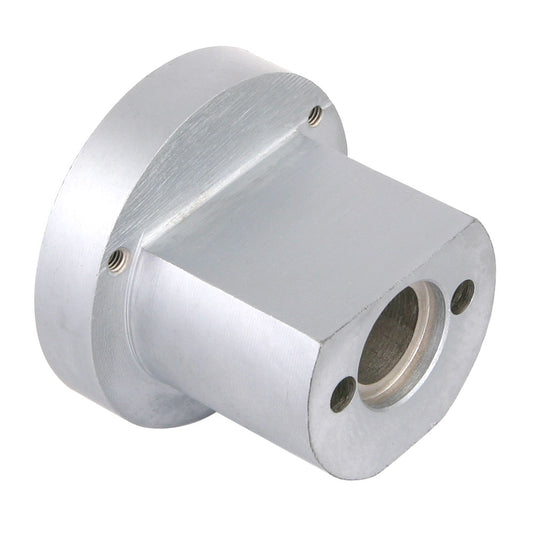

Retainer, Cross Slide Screw, 7x12 Mini Lathe DRO
Regular price $15.95 USDRegular priceUnit price / perItem: 41A
-
Product Sku2176
Washer, M6 Lock
Regular price $0.95 USDRegular priceUnit price / perItem: 32
-
Product Sku1995
Retainer, Compound Rest Screw, Mini Lathe 20 TPI
Regular price $9.95 USDRegular priceUnit price / perItem: 79A
-
Product Sku2369

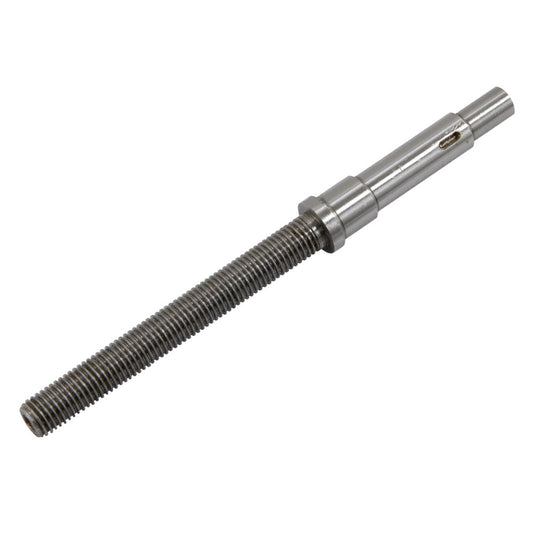

Screw, DRO Compound Rest, 20TPI
Regular price $19.95 USDRegular priceUnit price / perItem: 80A
-
Product Sku2112
Key, 4x28 mm
Regular price $0.60 USDRegular priceUnit price / perItem: 12
-
Sold outProduct SkuNut, Cross Slide Feed 20 TPI
Regular price $9.95 USDRegular priceUnit price / perItem: 40
Sold out -
Product Sku1996
Tailstock Casting, Mini Lathe, Cam-Lock
Regular price $49.95 USDRegular priceUnit price / perItem: 93
-
Product Sku1993
Compound Rest Bottom, Mini Lathe, 20 TPI
Regular price $16.95 USDRegular priceUnit price / perItem: 75
-
Product Sku1988
Rivet, M2x4
Regular price $0.95 USDRegular priceUnit price / perItem: 188
-
Product Sku1881
Compound Rest Bottom, Mini Lathe, Drilled & Milled, 20 TPI
Regular price $45.95 USDRegular priceUnit price / perItem: 75
-
Product Sku1880
Compound Rest Bottom, Mini Lathe, Drilled, 20 TPI
Regular price $36.95 USDRegular priceUnit price / perItem: 75
-
Product Sku1979
Bolt, Hexagon Head M8x25, Grade 4.8
Regular price $0.75 USDRegular priceUnit price / perItem: 131
-
Product Sku1585
Washer, M6 Flat
Regular price $0.20 USDRegular priceUnit price / perItem: 161
-
Product Sku1583
Washer, M4 Flat Large Diameter
Regular price $0.07 USDRegular priceUnit price / perItem: 53
-
Product Sku1584
Washer, M5 Flat
Regular price $0.12 USDRegular priceUnit price / perItem: 22
-
Product Sku1579
Stud, M8x40
Regular price $1.50 USDRegular priceUnit price / perItem: 92
-
Product Sku1559
Screw, M5x8 Pan Head Phillips Machine
Regular price $0.24 USDRegular priceUnit price / perItem: 114
-
Product Sku1575
Set Screw, M6x25, Socket Flat Point
Regular price $0.80 USDRegular priceUnit price / perItem: 8
-
Product Sku1558
Screw, M5x10 Pan Head Phillips Machine
Regular price $0.32 USDRegular priceUnit price / perItem: 153
-
Product Sku1554
Screw, M3x6 Pan Head Phillips Machine
Regular price $0.16 USDRegular priceUnit price / perItem: 145
-
Product Sku1532
Cap Screw, M5x12, Socket Head
Regular price $0.42 USDRegular priceUnit price / perItem: 3
-
Product Sku1538
Cap Screw, M5x8, Socket Head
Regular price $0.49 USDRegular priceUnit price / perItem: 169
-
Product Sku1533
Cap Screw, M5x16, Socket Head
Regular price $0.49 USDRegular priceUnit price / perItem: 87
-
Product Sku1447
Lamp, Large Green
Regular price $4.95 USDRegular priceUnit price / perItem: 110
-
Product Sku1461
Nut, M8 Acorn
Regular price $1.17 USDRegular priceUnit price / perItem: 189
-
Product Sku1528
Cap Screw, M3x10, Socket Head
Regular price $0.29 USDRegular priceUnit price / perItem: 126
-
Sold outProduct SkuRetainer, Saddle, Mini Lathe
Regular price $11.62 USDRegular priceUnit price / perItem: 36
Sold out -
Product Sku1415
Screw, M4x16 Flat Head Phillips Machine
Regular price $0.29 USDRegular priceUnit price / perItem: 107
-
Product Sku1445
Lamp, Yellow
Regular price $4.95 USDRegular priceUnit price / perItem: 108
-
Sold outProduct SkuSaddle, Mini Lathe
Regular price $49.95 USDRegular priceUnit price / perItem: 35
Sold out -
Product Sku1390
Swivel Disk
Regular price $11.95 USDRegular priceUnit price / perItem: 44
-
Product Sku1384
Crank Handle, Cross Slide
Regular price $16.67 USDRegular priceUnit price / perItem: 43
-
Product Sku
Gear, Saddle Drive 11/54 Teeth, Mini Lathe
Regular price $26.95 USDRegular priceUnit price / perItem: 61
Sold out -
Sold outProduct SkuShaft, Saddle Drive
Regular price $6.86 USDRegular priceUnit price / perItem: 60
Sold out -
Sold outProduct SkuCam, Half Nut
Regular price $27.95 USDRegular priceUnit price / perItem: 62
Sold out -
Product Sku1372
Pin, M5x12
Regular price $0.95 USDRegular priceUnit price / perItem: 51
-
Product Sku1364
Adjustment Plate, Change Gear
Regular price $11.79 USDRegular priceUnit price / perItem: 163
-
Product Sku1365
Stud, Change Gear Adjusting
Regular price $5.42 USDRegular priceUnit price / perItem: 162
-
Product Sku1358
Mount, Change Gear
Regular price $11.70 USDRegular priceUnit price / perItem: 157
-
Product Sku1349
Spring, 10 mm x 33 mm
Regular price $1.60 USDRegular priceUnit price / perItem: 174
-
Product Sku1353
Pinion, 20 Teeth
Regular price $9.95 USDRegular priceUnit price / perItem: 150
-
Product Sku1337
Ball, Steel, 5 mm
Regular price $0.95 USDRegular priceUnit price / perItem: 47
-
Product Sku1350
Detent Rod, Mini Lathe
Regular price $2.95 USDRegular priceUnit price / perItem: 173
-
Product Sku1306
Quill, Tailstock, Mini Lathe
Regular price $19.95 USDRegular priceUnit price / perItem: 99
-
Product Sku1320
Gear, Change Gear Drive 45 Teeth, Mini Lathe
Regular price $16.94 USDRegular priceUnit price / perItem: 4
-
Product Sku1308
Clamp, Quill
Regular price $5.80 USDRegular priceUnit price / perItem: 101
-
Product Sku1305
Retainer, Tailstock
Regular price $8.30 USDRegular priceUnit price / perItem: 98
-
Product Sku1294
Rubber Foot, Mini Lathe
Regular price $4.18 USDRegular priceUnit price / perItem: 127
