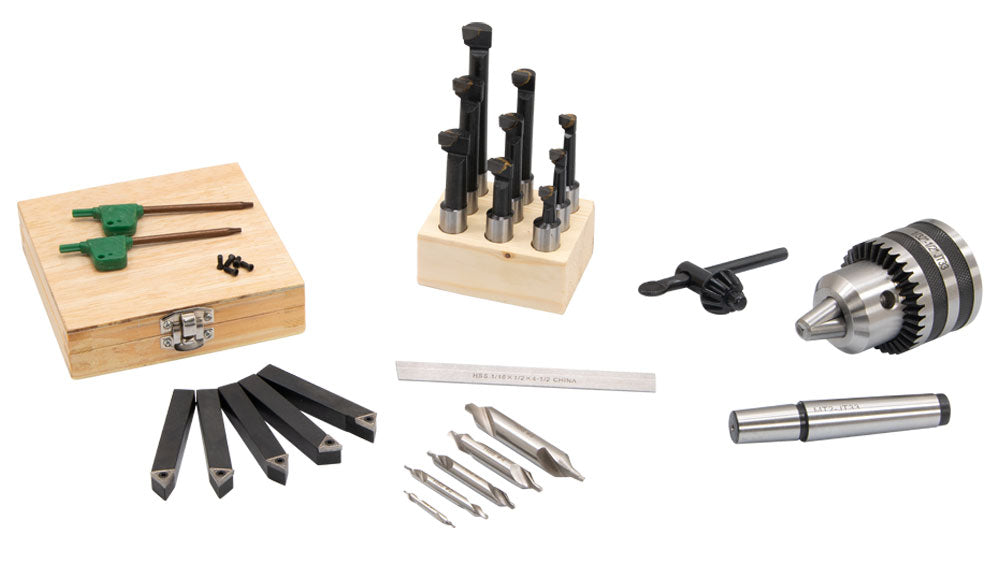

Bench Lathe Tooling Package, Basics

Bench Lathe Tooling Package, Basics

$119.95
$119.95
Sale Sold out
Shipping calculated at checkout.

In stock

3164 (BUNDLE)

Key Features

  • Tooling package for deluxe bench lathe
  • 3/8" Indexable TCMT inserts, P1 cut-off blade
  • 1/2" drill chuck, 2MT standard to 33JT drill chuck arbor
  • 9-piece carbide boring bar set - 1/2" shank
  • 5 center drills (sizes 1-5)

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

This package contains all the tooling you need to be productive with your lathe on the first day you own it. It works with the LittleMachineShop.com HiTorque 8.5x or 9x bench lathes as well as other bench lathes.

The 1/2" capacity drill chuck is mounted on a standard 2 Morse taper shank. The rated capacity of the drill chuck is 1 mm (0.039") to 13 mm (0.512").

This set of indexable turning tools includes 5 indexable tools (AR, AL, BR, BL, E), inserts, a wrench, and extra screws. It comes in a wooden case. The carbide inserts are TCMT-21.51.

  • Style AR right hand tool
  • Style BR right hand tool with a 15° lead angle
  • Style E Neutral threading tool with 60° included angle
  • Style BL left hand tool with a 15° lead angle
  • Style AL left hand tool

The carbide tipped 9-piece boring bar set includes three different length boring bars each for minimum bores of 5/16", 3/8", and 7/16". The bore depth ranges from 3/4" to 2-1/4". The heat treated, alloy steel shanks are held to 0.000 to -0.0005" from the nominal diameter.

The P1 parting blade is 5/64" x 1/2" x 4-1/2" and made from M2 HSS. These T-shape parting blades provide great side clearance.

This package includes 5 different sizes of combined drills and countersinks, commonly called center drills. The center drill set is high speed steel and includes sizes 1, 2, 3, 4, and 5. These are 60-degree center drills. These are the sizes that are most used by bench top machinists.
